3003 Aluminum for EV Battery Systems: Why It’s the Industry Standard

The selection of 3003 aluminum for EV battery systems is not arbitrary—it represents a deliberate engineering decision backed by decades of metallurgical research and practical manufacturing experience. Several key factors converge to make this particular alloy the optimal choice for battery applications.

1.1 Metallurgical Foundation

3003 aluminum belongs to the 3xxx series of aluminum alloys, characterized by manganese as the primary alloying element. With a nominal composition of 1.0-1.5% manganese, 0.6% iron, 0.3% silicon, and 0.2% copper, this alloy achieves an ideal balance of strength and formability through solid solution strengthening rather than precipitation hardening. The manganese content forms fine Al6Mn dispersoids that stabilize the grain structure during thermal processing, providing consistent mechanical properties across the entire formed component.

1.2 Industry Adoption Drivers

The EV industry’s adoption of 3003 aluminum is driven by five critical factors:

Formability Excellence: 3003 aluminum exhibits exceptional deep drawing characteristics, achieving draw ratios of up to 2.2:1 in single-stage operations. This enables the production of complex battery shell geometries—cylindrical, prismatic, and pouch cell configurations—with minimal wall thinning and consistent dimensional accuracy.

Corrosion Resistance: The electrolyte environment inside battery cells presents significant corrosion challenges. 3003 aluminum’s natural oxide layer, enhanced by its manganese content, provides superior resistance to galvanic corrosion, electrolyte attack, and environmental degradation, ensuring long-term battery integrity over 1,500-3,000 charge-discharge cycles.

Thermal Management: With a thermal conductivity of approximately 160 W/(m·K) in the H14 temper, 3003 aluminum efficiently conducts heat away from battery cells. This is critical for maintaining optimal operating temperatures (15-35°C) and preventing thermal runaway—a paramount safety concern in EV battery design.

Lightweight Advantage: At 2.73 g/cm³, 3003 aluminum is one-third the density of steel. For a typical EV battery pack weighing 400-600 kg, using aluminum components instead of steel can reduce weight by 20-35%, directly translating to increased vehicle range—approximately 6-8 km of additional range per kilogram of weight savings.

Cost-Effectiveness: Compared to 5xxx and 6xxx series alternatives, 3003 aluminum offers a 15-25% cost advantage in raw material pricing while delivering comparable or superior performance in battery-specific applications. This cost efficiency is crucial for achieving the $100/kWh battery pack cost target that industry analysts identify as the threshold for EV price parity with internal combustion engines.

This convergence of properties has made 3003 aluminum the baseline specification for battery components at major manufacturers including Tesla, BYD, CATL, LG Energy Solution, and Panasonic, who collectively represent over 75% of global EV battery production capacity.

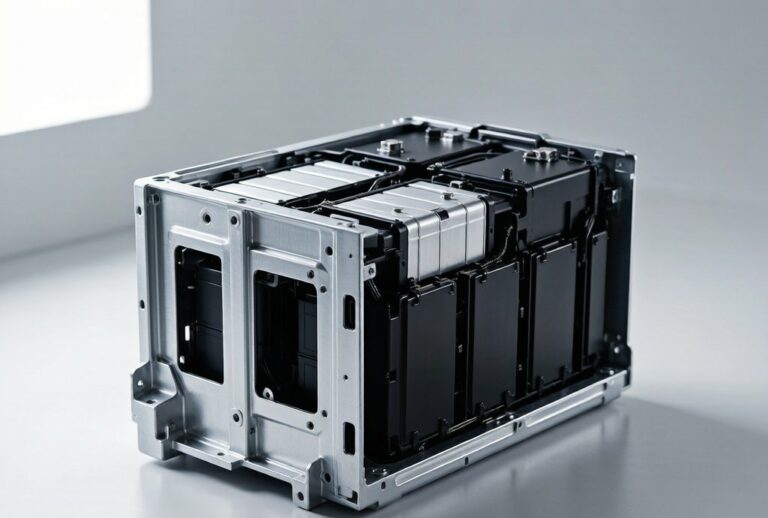

EV battery shells serve as the primary protective enclosure for individual cells, modules, or entire battery packs. The material specification for these components is among the most demanding in all of automotive engineering, requiring a careful balance of seemingly contradictory properties.

2.1 Critical Requirements for Battery Shell Materials

Dimensional Stability: Battery shells must maintain precise dimensional tolerances (±0.05mm or better) across temperature ranges from -40°C to +85°C. The thermal expansion coefficient of 3003 aluminum (23.5 × 10⁻⁶/K) provides predictable, linear expansion behavior that can be compensated for in the battery pack design.

Hermetic Sealing Capability: Electrolyte leakage from battery cells poses severe safety and performance risks. 3003 aluminum forms excellent metallurgical bonds during laser welding, achieving helium leak rates below 1×10⁻⁸ Pa·m³/s—exceeding the automotive industry standard of 1×10⁻⁷ Pa·m³/s for battery enclosures.

Electromagnetic Shielding: Battery electronics require protection from external electromagnetic interference (EMI). While pure aluminum provides moderate EMI shielding, 3003 alloy’s controlled composition enables attenuation of 40-60 dB across the 100 MHz to 1 GHz frequency range, sufficient for automotive EMI/EMC compliance (CISPR 25 Class 3).

Crashworthiness: Battery shells must withstand crash loads without rupturing, protecting cells from mechanical damage during collisions. 3003-H14 aluminum demonstrates excellent energy absorption characteristics, with a specific energy absorption (SEA) of approximately 15-18 kJ/kg in axial crushing—comparable to mild steel at one-third the weight.

2.2 Material Requirement Compliance Matrix

The ability of 3003 aluminum to meet and exceed these demanding requirements explains its widespread adoption across the EV battery supply chain, from individual cylindrical cell cans to large-format prismatic cell housings and complete battery pack enclosures.

Deep drawing is the primary manufacturing process for producing 3003 aluminum battery shells, especially for cylindrical cells (18650, 21700, 4680 formats) and prismatic cell housings. The process involves radially drawing a flat sheet metal blank into a die cavity using a mechanical or hydraulic punch, forming a seamless, cup-shaped component.

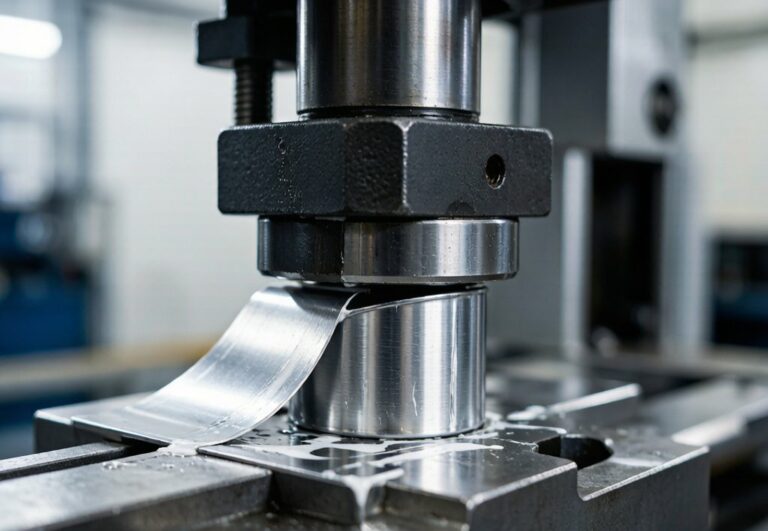

3.1 Deep Drawing Process Overview

The deep drawing process for 3003 aluminum battery cases follows these critical stages:

Blank Preparation: 3003 aluminum sheet or coil stock is cut into circular blanks with precisely calculated diameters. The blank diameter determines the final component height through the draw ratio relationship. For 21700 cylindrical cells (21mm diameter × 70mm height), the typical blank diameter ranges from 42-48mm, depending on wall thickness and drawing strategy.

First Draw: The blank is positioned over the die cavity and clamped by a blank holder that applies controlled pressure (typically 1.5-3.0 kN for small cell components). The punch descends at a controlled velocity, drawing the material into the die cavity while the blank holder prevents wrinkling. For 3003-H14 material, a first-stage draw ratio of 1.8:1 to 2.0:1 is achievable without intermediate annealing.

Redrawing and Ironing: For deeper components requiring draw ratios exceeding 2.0:1, multiple redraw stages are employed. Each subsequent redraw uses progressively smaller punch and die diameters. Ironing stages may be incorporated to achieve uniform wall thickness and surface finish. The ironing reduction per stage typically ranges from 10-25% in wall thickness.

Bottom Forming: The final forming stage shapes the bottom profile of the battery case, which may include features such as vent scores, bottom domes for pressure relief, or electrical contact pads. This stage requires precise punch-to-die alignment to maintain wall thickness uniformity.

3.2 Critical Process Parameters for 3003 Aluminum

3.3 Forming Limit Diagram for 3003-H14

The forming limit diagram (FLD) defines the safe strain envelope for 3003-H14 aluminum sheet forming. In the major strain-minor strain space, the forming limit curve (FLC) for 3003-H14 in the as-received condition shows:

• Plane strain intercept (FLC₀): approximately 0.22-0.25 true strain
• Biaxial stretching (ε₁=ε₂): formability limit of approximately 0.30-0.35 true strain
• Deep drawing (ε₁=-ε₂): formability limit of approximately 0.40-0.50 true strain

These values confirm 3003 aluminum’s exceptional deep drawing formability, which is central to its role in battery shell manufacturing. Process engineers must maintain forming strains below these limits while achieving the required component geometry—a challenge that has driven continuous innovation in progressive die design and servo-press technology.

The H14 temper designation represents a specific work-hardening and partial annealing condition that achieves an optimal balance of strength and formability for 3003 aluminum. Understanding and controlling the temper specification is essential for consistent battery component manufacturing.

4.1 H14 Temper Metallurgy

The H14 temper is produced through a two-step process:

Strain Hardening (H1x): The annealed (O-temper) 3003 aluminum is cold-rolled to achieve a strength level corresponding to half-hard condition. This introduces a dislocation density that increases yield strength through work hardening. The cold reduction for H14 temper typically ranges from 15-25% thickness reduction, resulting in a dislocation density of approximately 10¹⁰-10¹¹ cm⁻².

Partial Annealing (x4): The strain-hardened material undergoes a controlled low-temperature heat treatment (typically 230-260°C for 1-4 hours) that partially recovers the dislocation structure. This thermal treatment reduces internal stresses while retaining approximately 50% of the work-hardening effect, resulting in the characteristic H14 mechanical properties.

4.2 H14 vs. Alternative Tempers for Battery Applications

The H14 temper has become the industry standard because it provides sufficient formability for complex deep drawing operations while maintaining adequate post-forming strength to withstand service loads, internal pressure, and crash requirements. Manufacturers occasionally specify H24 temper for components requiring additional formability, but H14 remains the preferred choice for the majority of deep-drawn battery shells.

4.3 Temper Verification and Quality Control

Rigorous quality control is essential to ensure consistent H14 temper properties. Key verification methods include:

• Hardness Testing: Vickers hardness (HV) values should range from 42-52 HV for consistent H14 temper. Rockwell B (HRB) values of 30-38 provide equivalent verification.
• Tensile Testing: Per ASTM E8/E8M, yield strength should be 145 MPa minimum, with tensile strength in the 150-200 MPa range and elongation 8-12% for 1.0-3.0mm gauge material.
• Earing Test: The earing percentage (cup height variation) during deep drawing should not exceed 4-6% for H14 temper 3003 aluminum, indicating adequate texture control and grain structure uniformity.
• Grain Size Analysis: ASTM grain size number G=6-8 (approximately 25-45 μm average grain diameter) is typical for deep-drawing quality 3003-H14 sheet.

The thickness of 3003 aluminum used in EV battery applications spans a range from ultra-thin 0.4mm foil for cooling fin applications to 3.0mm structural sheet for battery pack enclosures. Each application within the battery system has specific thickness requirements driven by functional, manufacturing, and cost considerations.

5.1 Thickness by Battery Component

5.2 Thickness Considerations for Deep Drawing

The relationship between blank thickness and final component geometry is governed by the draw ratio and the number of drawing stages. For single-stage deep drawing of cylindrical components from 3003-H14 sheet:

Wall Thickness Distribution: After deep drawing, the wall thickness is not uniform throughout the component. The top of the drawn wall is typically 5-15% thicker than the original blank due to compressive circumferential strains, while the bottom corner (punch radius region) may experience 10-20% thinning. For battery shell manufacturers, the minimum acceptable wall thickness at any point must be specified considering this thickness gradient.

Blank Thickness Selection: The initial blank thickness is selected to ensure that the thinnest region of the formed component (typically the punch radius area) meets the minimum thickness specification. As a rule of thumb for 3003-H14, the blank thickness should be 1.10-1.25 times the minimum required wall thickness to compensate for forming-induced thinning.

5.3 Gauge Control and Quality Standards

For EV battery applications, thickness tolerances must conform to ASTM B209/B209M or EN 485 standards, with additional restrictions commonly specified by Tier 1 battery manufacturers:

• Standard Mill Tolerance (ASTM B209): For 0.4-1.6mm sheet, tolerance is ±5-8% of nominal thickness. For 1.6-3.0mm, tolerance is ±4-6%.
• Battery-Grade Enhanced Tolerance: Many EV manufacturers specify tighter tolerances of ±3-4% across the coil width and length, requiring precision cold rolling with automatic gauge control (AGC) systems capable of sub-micron thickness measurement accuracy.
• Coil-to-Coil Consistency: Maximum thickness variation between coils from the same heat lot should not exceed ±2% to ensure consistent forming behavior in high-volume automated production lines processing millions of battery shells per day.

HXM Aluminum supplies 3003 aluminum sheets and coils with battery-grade thickness tolerances, supported by in-line X-ray and laser thickness gauging systems that provide full-width, real-time thickness monitoring with ±0.5% measurement accuracy.

Battery thermal management is one of the most critical engineering challenges in EV design. Lithium-ion cells operate optimally within a narrow temperature window of 15-35°C, and deviation from this range—particularly overheating—can lead to accelerated degradation, reduced capacity, and in extreme cases, thermal runaway. 3003 aluminum has become the material of choice for battery cooling plates due to its unique combination of thermal and mechanical properties.

6.1 Thermal Conductivity Advantage

At 160 W/(m·K) in the H14 temper, 3003 aluminum provides approximately 60-70% of the thermal conductivity of pure aluminum (237 W/(m·K)) while offering substantially higher strength and formability. This thermal performance enables:

• Efficient Heat Extraction: Cooling plates fabricated from 3003 aluminum can extract heat at rates of 200-500 W per module, maintaining cell-to-cell temperature differentials below 3°C—a target specified by leading EV manufacturers for optimal battery life.
• Rapid Thermal Equalization: The high thermal diffusivity (approximately 65 mm²/s) ensures rapid temperature equalization across the cooling plate surface, preventing localized hot spots that can accelerate cell degradation.
• Cold-Start Performance: In sub-zero conditions, the cooling system can be reversed to heat the battery pack using a heat pump or resistive heater. 3003 aluminum’s thermal properties facilitate rapid warm-up, bringing cells to optimal operating temperature within 2-5 minutes.

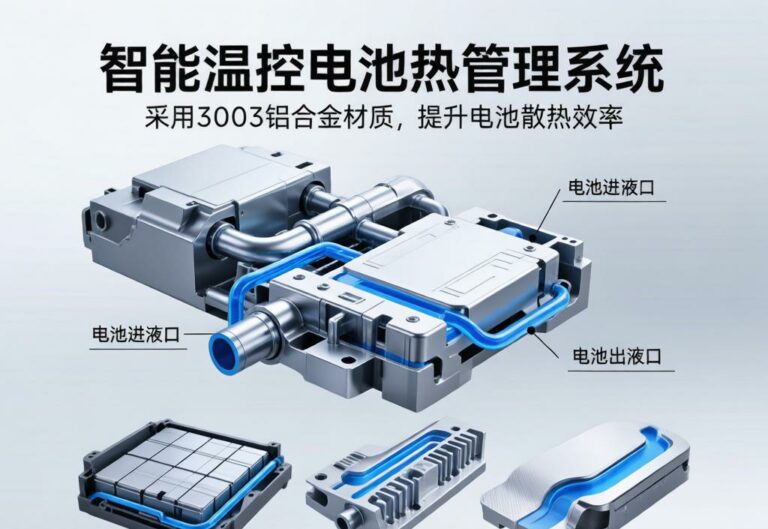

6.2 Cooling Plate Design Configurations

Three primary cooling plate configurations utilize 3003 aluminum:

Stamped Channel Plates: Two sheets of 3003 aluminum (typically 0.6-1.0mm thickness) are stamped to form cooling channels and then brazed or laser-welded together. This configuration is the most common for prismatic and pouch cell modules, offering design flexibility and cost-effective manufacturing. Channel geometries are optimized through computational fluid dynamics (CFD) simulations to achieve uniform flow distribution with minimal pressure drop.

Extruded Micro-Channel Plates: While extrusions typically use 6xxx series alloys, 3003 can be used for roll-bonded plates with internal channel patterns created through a patterned rolling process followed by inflation. These plates offer complex internal channel geometries at lower cost than machined alternatives.

Flat Plate with Thermal Interface Material (TIM): For cylindrical cell modules, flat 3003 aluminum plates (1.5-2.5mm) are bonded to cells using thermally conductive gap fillers or adhesives. This simpler configuration is common in Tesla’s 18650 and 21700-based modules, where the cylindrical cell geometry provides natural gaps for coolant flow.

6.3 Thermal Performance Comparison

The data demonstrates that 3003 aluminum provides the optimal balance of thermal performance, weight, and cost for battery cooling applications. While graphite composites offer higher specific thermal conductivity, their cost premium and anisotropic properties limit widespread adoption. Copper, despite its excellent thermal conductivity, introduces excessive weight and cost penalties.

While 3003 aluminum dominates EV battery shell applications, several alternative materials compete for specific niches within the battery system. Understanding the comparative advantages and limitations of each material is essential for informed material selection.

7.1 3003 vs. 5052 Aluminum

5052-H32 aluminum (2.5% Mg, 0.25% Cr) offers higher strength than 3003 (yield strength 193 MPa vs. 145 MPa) with comparable formability. However, several factors favor 3003 for battery applications:

• Cost: 5052 commands a 10-15% premium over 3003 due to higher alloying content and more complex processing requirements.
• Corrosion: While 5052 provides excellent marine corrosion resistance, 3003’s manganese-based composition is more compatible with the mildly basic electrolyte environment found in lithium-ion cells (pH 8-10).
• Weldability: 3003 aluminum welds more predictably with fewer solidification cracking concerns than 5052, a critical advantage for laser-welded hermetic seals.

7.2 3003 vs. 3004 Aluminum

3004 aluminum (1.25% Mn, 1.0% Mg) is essentially a magnesium-enhanced version of 3003, offering approximately 10-15% higher strength while maintaining excellent formability. For applications requiring the highest deep draw ratios combined with elevated post-forming strength, 3004 can be a viable alternative. However, 3003 remains preferred for cost-sensitive high-volume production where the incremental strength benefit of 3004 does not justify the 8-12% material cost increase.

7.3 3003 vs. Nickel-Plated Steel

Nickel-plated cold-rolled steel was the traditional material for cylindrical cell cans before the industry-wide shift to aluminum. Steel offers higher strength and lower raw material cost but suffers from several disadvantages:

• Weight: Steel is 3× denser than aluminum, adding approximately 30-45g per 18650 cell can—significant in a pack containing thousands of cells.
• Thermal Conductivity: Steel’s thermal conductivity (approximately 52 W/m·K) is only one-third that of 3003 aluminum, impairing heat dissipation from the cell core.
• Corrosion: The nickel plating on steel cans can develop pinhole defects, leading to galvanic corrosion at the steel-electrolyte interface and potential cell failure.

The industry transition from steel to aluminum cell cans, pioneered by Tesla with the 18650 format and now universal across all major cylindrical cell formats, has been driven primarily by thermal management benefits and weight reduction.

7.4 Comprehensive Material Comparison Matrix

The comprehensive comparison confirms 3003 aluminum’s position as the optimal material for EV battery shells, offering the best overall balance of formability, thermal performance, weight, and cost. While alternative materials offer advantages in specific categories, no single material matches the complete performance profile of 3003 aluminum for this application.

Laser welding has become the dominant joining technology for 3003 aluminum battery components, particularly for hermetic sealing of cell enclosures. The process delivers the precision, speed, and quality required for high-volume battery manufacturing while ensuring the critical hermetic integrity that battery safety depends upon.

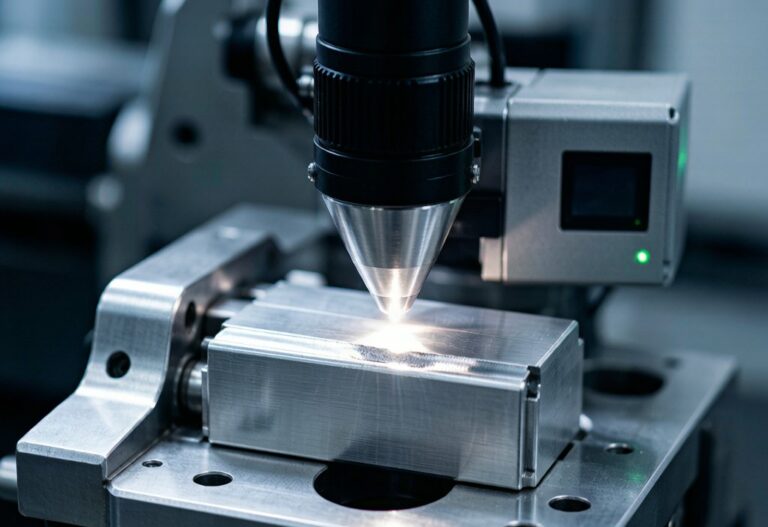

8.1 Laser Welding Process for 3003 Aluminum

The laser welding of 3003 aluminum battery components presents specific challenges and requirements that distinguish it from welding thicker structural aluminum or other metals:

Wavelength Selection: Aluminum’s high reflectivity at common laser wavelengths requires careful source selection. Fiber lasers operating at 1070 nm wavelength are preferred because their shorter wavelength results in higher absorption (approximately 5-7% for aluminum vs. 3-5% for CO₂ lasers at 10,600 nm). Modern high-brightness fiber lasers with beam parameter products (BPP) below 4 mm·mrad provide the necessary power density for consistent keyhole welding.

Power and Speed Parameters: For typical 3003-H14 battery shell thicknesses of 0.3-0.8mm, laser power of 500-2000W with welding speeds of 3-8 m/min achieves full-penetration welds with heat-affected zone (HAZ) widths below 0.5mm. The narrow HAZ minimizes distortion and preserves the base material mechanical properties adjacent to the weld.

Shielding Gas Selection: Argon or argon-helium mixtures are the standard shielding gases for 3003 aluminum laser welding. Pure argon provides excellent plasma suppression at a flow rate of 15-25 L/min through a coaxial nozzle. For high-speed applications (>5 m/min), adding 30-50% helium increases penetration depth by raising the keyhole plasma temperature.

8.2 Welding Parameters for Battery Components

8.3 Common Welding Defects and Mitigation

Porosity: Hydrogen porosity is the most common defect in 3003 aluminum laser welding. Sources include surface contamination, moisture, and dissolved hydrogen in the base material. Mitigation strategies include: thorough degreasing of components before welding, storage in a dry environment (<35% RH), and using a trailing gas shield to extend inert gas coverage during weld solidification.

Hot Cracking (Solidification Cracking): 3003 aluminum has a broad solidification temperature range (approximately 654-643°C), which increases susceptibility to hot cracking. While 3003 is less crack-sensitive than 5xxx series alloys due to its non-heat-treatable nature, cracking can occur under conditions of high restraint or unfavorable weld geometry. Pulse shaping—using a gradual power ramp-down at the weld termination—reduces solidification stresses and minimizes crater cracking.

Spatter and Underfill: Excessive spatter can contaminate battery internals and create electrical short circuits. Maintaining optimal focus position (0 to -1mm relative to the workpiece surface) and using power modulation to stabilize the keyhole reduces spatter generation. In-line vision systems capable of detecting spatter events enable real-time quality monitoring in automated production.

8.4 Quality Assurance and Testing

Battery component welds are subject to rigorous quality assurance regimes:

• Helium Leak Testing: 100% of production welds are typically tested using helium mass spectrometer leak detectors, with acceptance criteria of <1×10⁻⁷ Pa·m³/s for standard cells and <1×10⁻⁸ Pa·m³/s for premium cells.
• Metallographic Cross-Sectioning: Periodic destructive testing verifies penetration depth, fusion zone geometry, and absence of internal defects. Acceptance criteria typically require minimum 95% penetration through the joint interface.
• Tensile-Shear Testing: Weld joint strength is verified through destructive mechanical testing, with acceptance criteria typically requiring the weld to withstand at least 80% of the base material ultimate tensile strength.
• X-ray/CT Inspection: For premium applications, computed tomography (CT) scanning detects internal porosity and weld defects with resolution down to 10-20 μm.
