Choosing between 3003 aluminum and 5052 aluminum can make or break your project’s performance, cost, and longevity. These two non-heat-treatable alloys dominate different application realms — 3003 in HVAC ductwork and cookware, 5052 in marine hardware and fuel tanks — yet buyers frequently confuse their capabilities. This guide provides a side-by-side technical comparison covering chemical composition, mechanical properties across all common tempers, corrosion behavior, weldability, formability, anodizing, cost, and sourcing, so you can make the right call with confidence.

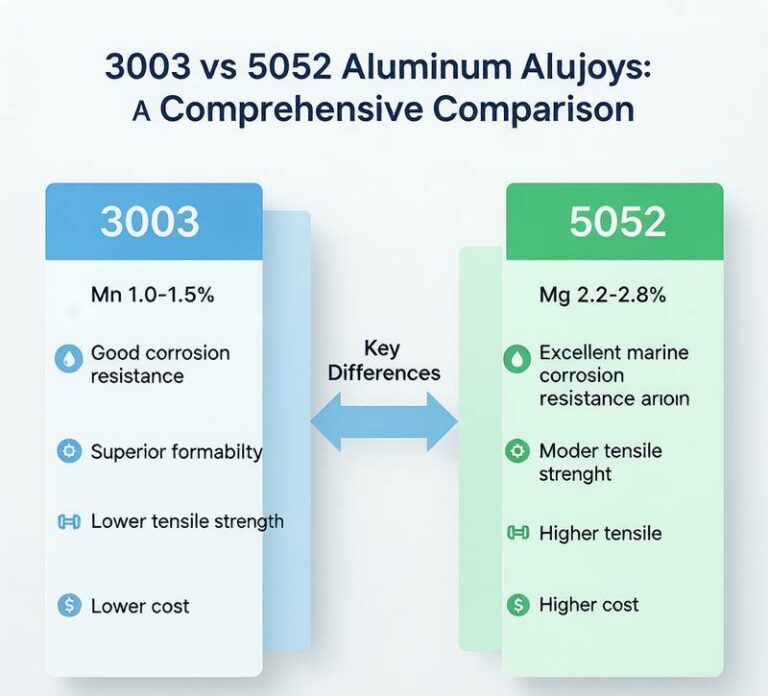

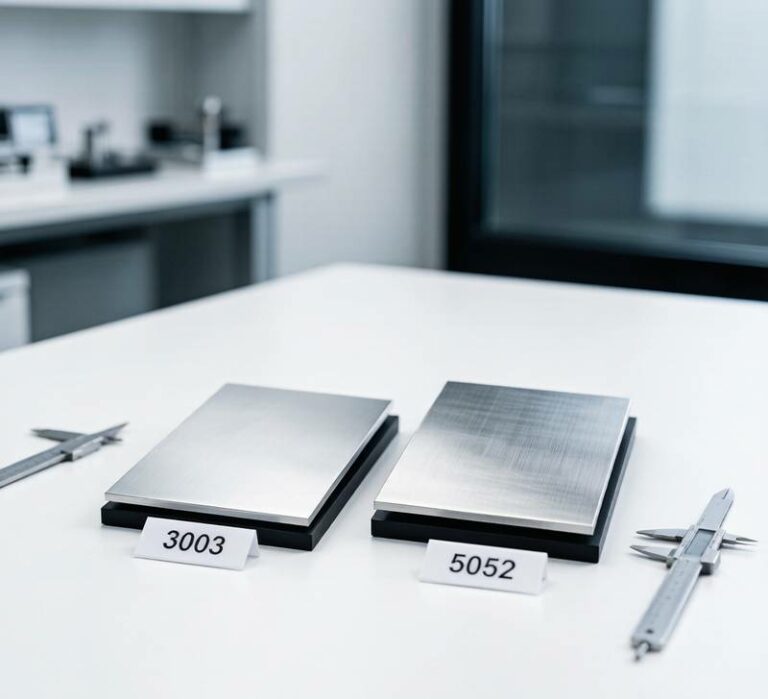

3003 vs 5052 Aluminum — Quick Comparison
| Property | 3003 Aluminum | 5052 Aluminum | Key Takeaway |
|---|---|---|---|
| Series | 3xxx (Al-Mn) | 5xxx (Al-Mg) | Different strengthening mechanism |
| Primary Alloying Element | Mn (1.0–1.5%) | Mg (2.2–2.8%) | Mg gives 5052 higher strength |
| Tensile Strength (typical H temper) | 160–220 MPa | 215–250 MPa | 5052 ≈ 35% stronger |
| Yield Strength (typical H temper) | 120–170 MPa | 120–160 MPa | Similar in H32/H14 range |
| Elongation (O temper) | 20–40% | 15–30% | 3003 more ductile in annealed state |
| Density | 2.73 g/cm³ | 2.68 g/cm³ | 5052 slightly lighter |
| Corrosion Resistance | Good (general) | Excellent (marine/salt) | 5052 far superior in chloride environments |
| Weldability | Excellent | Excellent | Both weld readily; same filler options |
| Formability | Superior (deep drawing) | Good (moderate forming) | 3003 preferred for complex shapes |
| Anodizing Quality | Clear, limited colors | Clear, slightly better color range | Neither ideal for decorative anodizing |
| Typical Cost | Lower | Higher (≈10–20% more) | 3003 wins on raw material cost |
| Common Tempers | O, H14, H16, H18, H24, H26 | O, H32, H34, H36, H112 | 5052 uses stabilized H tempers |
Chemical Composition — What Makes Them Different
3003 Aluminum Composition (Al-Mn)
3003 belongs to the 3xxx series, where manganese (Mn) is the primary alloying element at 1.0–1.5%. Mn provides solid-solution strengthening without significantly reducing ductility. A small copper addition (0.05–0.20%) further increases strength. The result is an alloy roughly 10–20% stronger than commercial-purity 1100 aluminum, while retaining excellent workability.
| Element | 3003 (%) | 5052 (%) | Role |
|---|---|---|---|
| Si | ≤ 0.60 | ≤ 0.25 | Impurity control |
| Fe | ≤ 0.70 | ≤ 0.40 | Impurity — limits ductility |
| Mn | 1.0–1.5 | ≤ 0.10 | Primary strengthener in 3003 |
| Mg | ≤ 0.10 | 2.2–2.8 | Primary strengthener in 5052 |
| Cu | 0.05–0.20 | ≤ 0.10 | Secondary strengthener (3003) |
| Cr | ≤ 0.05 | 0.15–0.35 | Grain structure control (5052) |
| Zn | ≤ 0.10 | ≤ 0.10 | Trace |
| Ti | ≤ 0.15 | ≤ 0.15 | Grain refinement |
| Al | Remainder | Remainder | Base matrix |
5052 Aluminum Composition (Al-Mg)
5052 is a 5xxx series alloy with magnesium (Mg) at 2.2–2.8% as the key element. Mg provides stronger strain-hardening response than Mn, which is why 5052 achieves higher ultimate tensile strength. Chromium (0.15–0.35%) controls grain structure and limits grain boundary precipitation, critical for corrosion resistance in saltwater environments.
Why Composition Drives Performance
The fundamental difference: Mn strengthens through solid-solution effects only, while Mg provides both solid-solution strengthening and superior strain-hardening response. This means 5052 gains more strength from cold working, but also retains better corrosion properties — particularly against chloride attack — because Mg promotes a more stable, protective oxide film.
Mechanical Properties & Temper Comparison
Non-Heat-Treatable Strengthening
Both 3003 and 5052 are non-heat-treatable alloys — they cannot be strengthened by solution heat treatment and aging. Instead, their strength comes entirely from strain hardening (cold working), with partial annealing (stabilization) used to control final properties. This is why temper selection is the single most important decision when specifying either alloy.
Full Temper Comparison Table
| Temper | 3003 UTS (MPa) | 3003 YS (MPa) | 3003 Elong. (%) | 5052 UTS (MPa) | 5052 YS (MPa) | 5052 Elong. (%) |
|---|---|---|---|---|---|---|
| O (Annealed) | 110–155 | 35–70 | 20–40 | 110–145 | 35–70 | 15–30 |
| 3003-H14 / 5052-H32 | 160–220 | 120–170 | 6–12 | 215–250 | 120–160 | 6–12 |
| 3003-H16 / 5052-H34 | 185–240 | 145–195 | 4–8 | 240–280 | 170–215 | 4–8 |
| 3003-H18 / 5052-H36 | 200–260 | 170–220 | 1–6 | 270–310 | 220–260 | 2–5 |
| 3003-H24 | 130–180 | 80–130 | 8–16 | — | — | — |
| 5052-H112 | — | — | — | ≥170 | ≥70 | ≥12 |
Fatigue and Shear Strength
| Property | 3003-H14 | 5052-H32 |
|---|---|---|
| Fatigue Strength (10⁸ cycles) | ≈ 55 MPa | ≈ 95 MPa |
| Shear Strength | ≈ 95 MPa | ≈ 140 MPa |
| Hardness (Brinell) | 40–80 HB | 60–85 HB |
5052-H32 offers approximately 70% higher fatigue endurance, making it the better choice for applications involving cyclic loading — marine deck fittings, vehicle fuel tanks, and pressure vessels.
Corrosion Resistance — General vs Marine
3003 Aluminum: Good General Corrosion Resistance
3003 performs well in atmospheric, freshwater, and mild chemical environments. Its Mn-based composition produces a stable Al₂O₃ passive film that resists uniform corrosion. Typical applications — roofing, siding, HVAC ductwork — see decades of service without significant degradation.
5052 Aluminum: Excellent Marine and Saltwater Performance
5052’s higher Mg content (2.2–2.8%) creates a denser, more protective oxide film that actively resists chloride penetration. This is why 5052 is the standard alloy for boat hulls, marine fuel tanks, dock hardware, and coastal enclosures.
- Pitting resistance: 5052 pits form slower and shallower in NaCl solutions
- Stress corrosion cracking: 5052 has very low SCC susceptibility (far below 7xxx or 6xxx-T6 alloys), though heavily cold-worked H36/H38 tempers can show slight SCC risk in sustained tensile + chloride conditions
- Exfoliation resistance: 5052 resists layer-by-layer corrosion in humid salt air better than 3003
Corrosion Comparison by Environment
| Environment | 3003 Rating | 5052 Rating | Recommendation |
|---|---|---|---|
| Dry indoor / HVAC | ★★★★★ Excellent | ★★★★★ Excellent | 3003 (cost advantage) |
| Rural atmospheric | ★★★★ Good | ★★★★★ Excellent | 3003 sufficient |
| Urban/industrial | ★★★ Fair | ★★★★ Good | 5052 preferred |
| Coastal (salt air) | ★★ Moderate | ★★★★★ Excellent | 5052 strongly recommended |
| Marine immersion | ★ Poor | ★★★★ Good | 5052 only (with coating) |
| Chemical/acid | ★★★ Variable | ★★★★ Good | 5052 for acid; 3003 for mild alkaline |
Surface Protection Options
For applications where 3003 must serve in mildly corrosive conditions:
- Painting/coating: Standard architectural paint systems extend service life 15–25 years
- Chromate conversion coating: MIL-DTL-5541 provides short-term corrosion protection and paint adhesion
- Anodizing: Type II anodizing available but limited color range (clear, light gold)
For 5052 in severe marine service:
- Marine-grade paint systems: Anti-fouling + barrier coat
- Anodizing: Type II (clear/light colors) — thicker oxide than 3003 but not decorative-grade
- Bare exposure: 5052-H32 can serve bare in salt spray for 5+ years before significant pitting
Weldability — Both Excellent, With Nuances
3003 Weldability
3003 is rated excellent for weldability across all common tempers. Key characteristics:
- All standard processes: TIG (GTAW), MIG (GMAW), resistance spot welding, laser welding
- Low hot-cracking susceptibility: Mn content provides wide solidification range, reducing crack risk
- No heat-treatment issues: Since 3003 is non-heat-treatable, welding doesn’t “undo” a heat treatment — only the local strain-hardening is lost in the heat-affected zone (HAZ)
5052 Weldability
5052 also rates excellent, with similar process compatibility. However, there are important differences:
- Mg burn-off: In the weld pool, some Mg evaporates or oxidizes, slightly reducing the local Mg content and thus corrosion resistance in the weld zone
- HAZ softening: As with 3003, welding H32/H34 tempers creates a localized annealed zone. The softened zone in 5052 typically extends 1–2 inch from the weld center
- Filler metal choice matters more: Using 5356 (Al-Mg) filler preserves weld-zone corrosion resistance; using 4043 (Al-Si) creates a Mg-depleted zone that pits faster in saltwater
Welding Parameter Comparison
| Parameter | 3003 | 5052 | Recommendation |
|---|---|---|---|
| Primary filler (general) | ER4043 or ER5356 | ER5356 (preferred) | Use 5356 for 5052 in marine service |
| Alternative filler | ER1100 (lower strength) | ER4043 (non-marine only) | 4043 for 5052 only in non-corrosive service |
| HAZ strength loss | Reverts toward O temper locally | Reverts toward O temper locally | Both lose ~50% yield in HAZ |
| Pre-weld cleaning | Standard degreasing | Standard + remove Mg oxide layer | 5052 needs more thorough cleaning |
| Post-weld treatment | None required (general service) | None for H32; consider local re-forming for critical | Both typically weld-and-go |
| Joint efficiency | 85–95% | 85–95% | Comparable with proper filler |

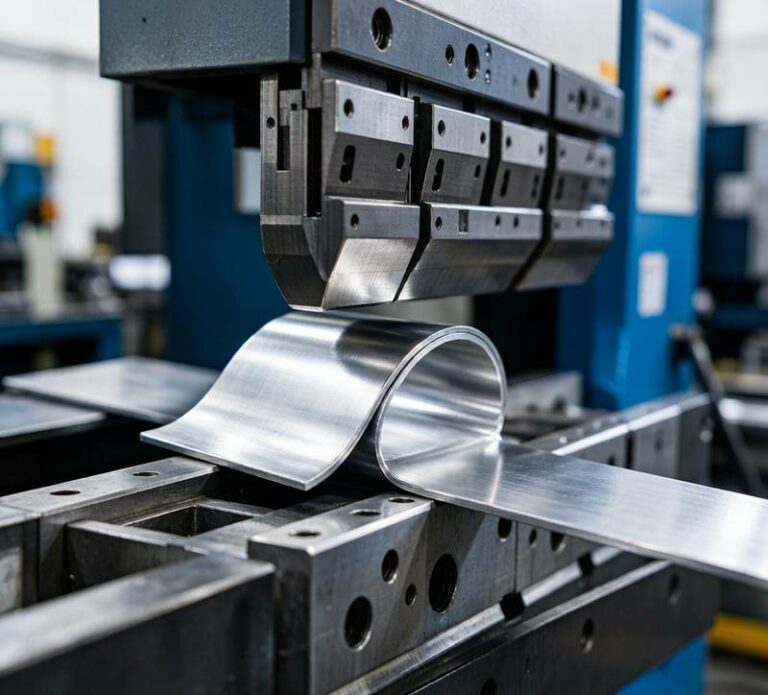

Formability and Bending — Where 3003 Excels
3003: The Deep-Drawing Champion
3003’s lower strength and higher ductility (especially in O temper) make it the preferred alloy for deep drawing, complex stamping, and intricate forming operations. Its strain-hardening curve is gradual, meaning it distributes deformation evenly rather than concentrating strain at a single point — this prevents thinning and rupture in deep draws.
| Temper | Bend Radius (per T) | Springback | Deep Draw Depth |
|---|---|---|---|
| O | 0T (zero — flat bend) | Minimal | Very deep (4–6× diameter) |
| H14 | 1T | Low | Good (2–3× diameter) |
| H16 | 2T | Moderate | Moderate (1–2× diameter) |
| H18 | 3–4T | High | Limited — not recommended |
| H24 | 1.5T | Low-Moderate | Good (2–3× diameter) |
5052: Good Formability, But Less Ductile
5052 can be formed successfully in O and H32 tempers, but its higher baseline strength means more forming force is required, and springback is more pronounced. Complex deep draws beyond 2–3× diameter risk thinning and fracture.
| Temper | Bend Radius (per T) | Springback | Deep Draw Depth |
|---|---|---|---|
| O | 0.5T | Low | Good (2–3× diameter) |
| H32 | 2–3T | Moderate | Moderate (1–2× diameter) |
| H34 | 3–4T | Higher | Limited |
| H36 | 4–5T | High | Not recommended |
Formability Decision Guide
- Complex deep draws, cookware, HVAC ducts, fin stock: Choose 3003-O or 3003-H14
- Moderate forming, sheet metal enclosures, structural panels: Choose 5052-H32
- Bending only (no deep draw), high-strength panels: Either alloy works; 5052 if corrosion matters, 3003 if cost matters
- Roll forming, corrugated sheet: 3003-H14/H24 for cost-sensitive; 5052-H32 for marine exposure
Machinability — Adequate for Both, Not Exceptional
Neither 3003 nor 5052 is considered a “free-machining” alloy. They produce long, gummy chips and build up on tool edges. For dedicated CNC machining applications, 6061-T6 or 2011-T3 are far better choices. However, when machining is secondary to formability or corrosion resistance, both alloys can be machined with appropriate techniques.
| Machining Aspect | 3003 | 5052 | Tips |
|---|---|---|---|
| Chip type | Long, gummy | Long, slightly less gummy | Use high rake angle tools |
| Tool buildup | Significant (low Mg) | Less (Mg acts as lubricant) | 5052 slightly easier to machine |
| Surface finish achievable | Ra 1.6–3.2 μm | Ra 1.0–2.5 μm | 5052 marginally better finish |
| Recommended cutting speed | 150–250 m/min | 180–300 m/min | Carbide tools, flood coolant |
| Drilling/tapping | Possible but gummy | Slightly easier | Use spiral-flute taps, peck drilling |
Anodizing & Surface Treatment
Type II Anodizing (Decorative)
Both alloys can be Type II anodized, but results differ significantly:
Type III Hard Anodizing
5052: Achieves 30–60 μm oxide with better density. The harder anodic layer provides better wear resistance. Preferred for marine hardware needing both corrosion protection and abrasion resistance.
Chromate Conversion Coating
Both alloys accept chromate conversion coating (MIL-DTL-5541, Class 1A or 3) readily. This provides:
- Short-term corrosion protection (96–168 hours salt spray per spec)
- Excellent paint adhesion base
- Electrical conductivity retention (important for electronic enclosures)
5052 chromate coating lasts longer in salt exposure than 3003 chromate, consistent with the base alloy’s superior corrosion resistance.

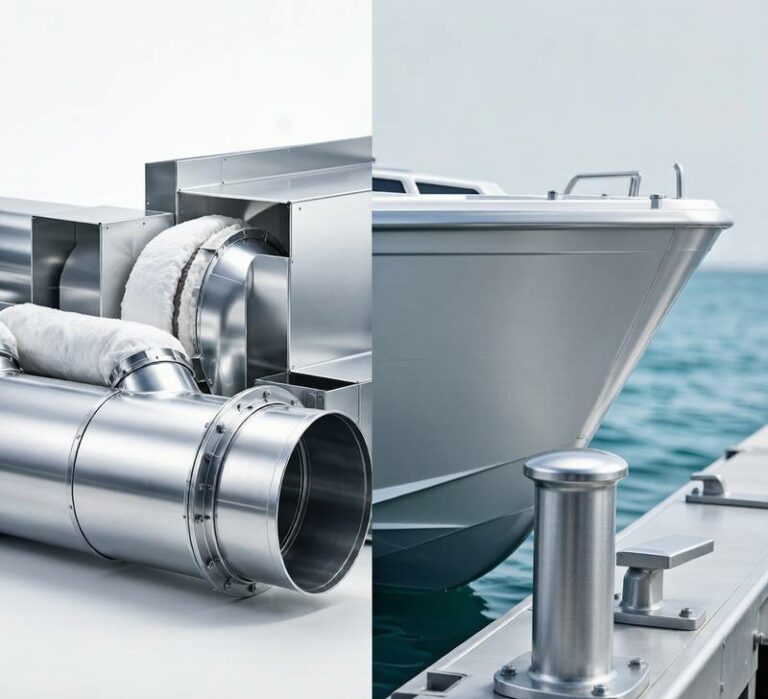

Common Applications — Which Alloy Goes Where
Application Selection Matrix
| Application | Recommended Alloy | Temper | Why This Choice |
|---|---|---|---|
| HVAC ductwork & insulation jackets | 3003 | H14 / H24 | Superior formability, adequate corrosion resistance, lowest cost |
| Fin stock / heat exchanger fins | 3003 | H14 / H26 | Excellent thin-gauge formability, good thermal conductivity |
| Cookware & kitchen utensils | 3003 | O / H14 | Deep-drawing capability, food-safe, thermal conductivity |
| Roofing & siding panels | 3003 | H14 / H24 | Cost-effective, roll-forms well, adequate atmospheric resistance |
| Chemical storage tanks (mild) | 3003 | H14 / O | Good weldability, acceptable for non-aggressive chemicals |
| Marine boat hulls & deck hardware | 5052 | H32 / H34 | Best saltwater corrosion resistance among common alloys |
| Fuel tanks (automotive & marine) | 5052 | H32 | Corrosion resistance to fuel + salt, weldability, moderate strength |
| Marine & coastal enclosures | 5052 | H32 / H34 | Long-term salt air resistance, good structural rigidity |
| Pressure vessels (low-pressure) | 5052 | H32 / H112 | ASME code-qualified, fatigue resistance |

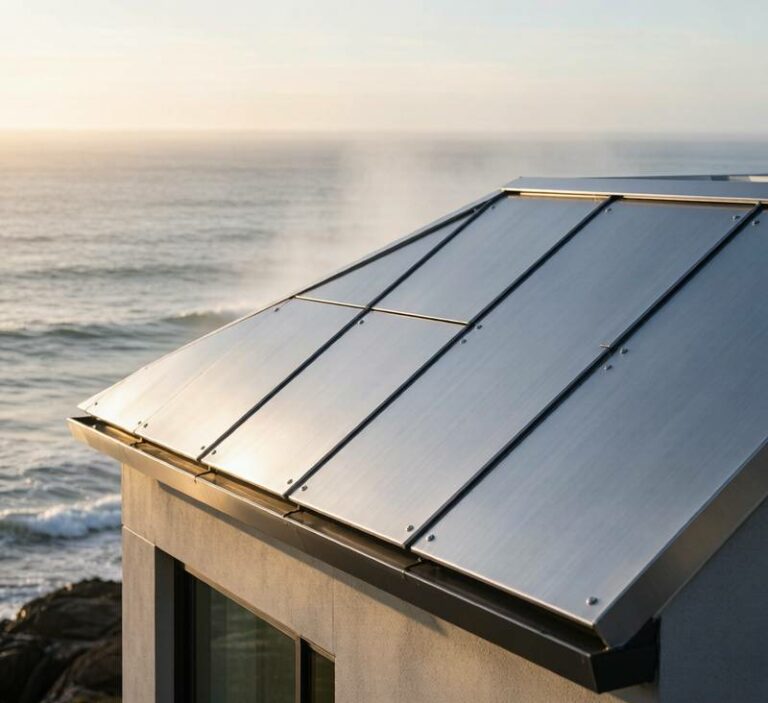

| Signage & architectural panels (coastal) | 5052 | H32 / H34 | Corrosion resistance + sufficient formability for flat/bent panels |
| Electronic enclosures (EMI shielding) | 5052 | H32 | Corrosion resistance + conductivity + stiffness |
| Truck/trailer body panels | 5052 | H32 / H34 | Strength + corrosion resistance to road salt + weldability |
HXM Products in Both Alloys
HXM Aluminum manufactures both 3003 and 5052 products:
- 3003: Sheet, coil, circle, strip — for HVAC, cookware, roofing, decorative stamping
- 5052: Sheet, coil, plate, circle — for marine, fuel tank, coastal construction, signage
Standards and Certifications
ASTM Specifications
| Product Form | 3003 ASTM Spec | 5052 ASTM Spec |
|---|---|---|
| Sheet & plate | ASTM B209 / AMS 4008 | ASTM B209 / AMS 4016 |
| Bar & rod | ASTM B211 | ASTM B211 |
| Wire | ASTM B211 | ASTM B211 |
| Drawn tube | ASTM B210 | ASTM B210 |
| Extruded tube | ASTM B221 | — |
ASME Boiler & Pressure Vessel Code
- 5052-O and 5052-H112 are listed in ASME Section II for unfired pressure vessels (low-pressure applications)
- 3003 is NOT ASME-code qualified for pressure vessels — an important distinction for tank fabrication
Marine Classification Societies
5052 sheet and plate are certified by:
- ABS (American Bureau of Shipping)
- Lloyds Register
- DNV (Det Norske Veritas)
3003 does not carry marine classification society certifications — it is not intended for structural marine use.
5-Step Decision Guide — 3003 or 5052?
Step 1: Environment
- Indoor / dry / HVAC / mild atmosphere → 3003 is fine (and cheaper)
- Coastal / salt air / marine / chemical exposure → 5052 is mandatory
Step 2: Forming Complexity
- Deep drawing, complex stamping, multi-stage forming → 3003-O or 3003-H14
- Bending, moderate forming, flat/bent panels → Either works; 5052 if Step 1 says marine
Step 3: Strength Requirements
- Structural load-bearing (yield ≥ 150 MPa) → 5052-H34 or consider 6061-T6
- Non-structural, formed components (yield ≤ 120 MPa sufficient) → 3003-H14
Step 4: Welding Context
- General welding, non-corrosive service → 3003 with ER4043 or ER5356
- Marine/chemical welded assemblies → 5052 with ER5356 (preserves corrosion resistance)
- Dissimilar weld (3003 + 5052) → ER5356 filler
Step 5: Budget
- Cost-sensitive, large volume, non-critical → 3003 (10–20% cheaper)
- Performance-critical, marine/chemical → 5052 (the performance premium is worth it)
Quick Decision Flowchart
- If saltwater or coastal → 5052 (stop — no further debate needed)
- If deep drawing required → 3003 (even if mild coastal, consider 3003 + protective coating)
- If pressure vessel → 5052 (ASME qualified)
- If budget-only, indoor → 3003
- If unsure → 5052-H32 (covers most situations with a safety margin)
Cost and Lead Time Comparison
Raw Material Cost
| Factor | 3003 | 5052 | Difference |
|---|---|---|---|
| Sheet price (per kg, typical) | $2.80–3.50 | $3.20–4.00 | 5052 ≈ 10–20% higher |
| Coil price (per kg, typical) | $2.60–3.20 | $3.00–3.80 | 5052 ≈ 12–18% higher |
| Circle / blank price | $3.00–3.80 | $3.40–4.30 | 5052 ≈ 12–20% higher |
| Reason for premium | Lower alloying cost (Mn only) | Mg + Cr alloying; tighter composition control | Mg is more expensive than Mn |
Total Cost of Ownership (TCO)
Raw material price is only part of the story. Consider:
- Forming cost: 3003 requires less forming force → lower press energy, faster cycle times → 5–15% fabrication savings
- Welding cost: Comparable for both alloys
- Coating cost: If 3003 needs protective coating in mildly corrosive service, coating adds 15–30% to total cost — potentially making 5052 cheaper in TCO
- Replacement cost: 3003 in saltwater may need replacement in 5–8 years vs. 5052 lasting 15–25+ years — the lifecycle cost strongly favors 5052 for corrosive environments
HXM Lead Times
- 3003 sheet/coil: 7–15 working days (standard); 3–5 days (stock items)
- 5052 sheet/coil: 10–20 working days (standard); 5–7 days (stock items)
- Custom dimensions / special tempers: Additional 5–10 days for either alloy
Sourcing 3003 & 5052 from China — HXM Aluminum
HXM Aluminum (Huaxiao Metal) is a B2B manufacturer and exporter specializing in both 3003 and 5052 aluminum products for global markets. Key capabilities:
- 3003 product range: Sheet (0.3–6.0 mm), coil (0.2–3.0 mm), circle/disc (Ø80–1200 mm), strip — standard and custom tempers (O, H14, H16, H18, H24, H26)
- 5052 product range: Sheet (0.5–8.0 mm), coil (0.2–3.0 mm), plate (6–50 mm), circle/disc — standard and custom tempers (O, H32, H34, H36, H112)
- Surface treatments: Mill finish, anodized (Type II), painted/coated, chromate conversion, polished, embossed (stucco/5-bar pattern)
- Certifications: ISO 9001, ASTM compliance, mill test certificates with every shipment
- Packaging: Export-standard wooden cases/pallets, moisture protection, custom marking
- MOQ: 2–5 tons per specification (lower for stock items)
- Same supplier for both alloys → consistent quality, simplified logistics
- Factory-direct pricing → no middleman markup
- Full temper availability → no waiting for specialty suppliers
- Technical support → HXM engineers help with alloy selection and temper recommendations
FAQ — 3003 vs 5052 Aluminum
Can 3003 aluminum be used in marine environments?
3003 aluminum is not recommended for continuous saltwater immersion or coastal structural applications. It pits significantly in chloride-rich environments. For marine use, 5052-H32 or 5052-H34 is the standard choice. If 3003 must be used near coastlines (e.g., roofing), apply protective paint systems and expect shorter service life compared to 5052.
Is 5052 stronger than 3003?
Yes. In comparable temper conditions, 5052-H32 achieves 215–250 MPa tensile strength versus 3003-H14 at 160–220 MPa — approximately 35% higher. The strength advantage comes from magnesium’s superior strain-hardening response compared to manganese. However, in the annealed (O) condition, both alloys have similar baseline strength around 110–145 MPa.
Which alloy is better for deep drawing and cookware?
3003 aluminum is the clear winner for deep drawing. In O temper, 3003 achieves 20–40% elongation and can be drawn to 4–6× diameter ratios without tearing. 5052’s higher strength and lower ductility limit draw depth to 2–3× diameter. Most cookware, HVAC ducts, and fin stock use 3003-O or 3003-H14 for this reason.
Can you weld 3003 to 5052 together?
Yes, dissimilar welding of 3003 and 5052 is practical using ER5356 (Al-Mg) filler metal. ER5356 is compatible with both base metals and provides adequate joint strength and corrosion properties. Avoid ER4043 (Al-Si) filler for this combination in corrosive service, as it creates a Mg-depleted zone at the 5052 interface that pits faster in saltwater.
Why does 5052 use H32 tempers instead of H14 like 3003?
5xxx series alloys containing ≥ 3% Mg (or approaching it, like 5052 at 2.2–2.8%) undergo “age softening” — a gradual loss of cold-work strength at room temperature over weeks or months. The H3x temper designation (H32 = strain hardened + stabilized) means the material has been partially annealed after cold working to arrest this age-softening. 3003, with only Mn, doesn’t age-soften, so H1x tempers (H14 = strain hardened only) are stable indefinitely.
Which alloy costs more — 3003 or 5052?
5052 costs approximately 10–20% more than 3003 per kilogram. The premium reflects higher alloying costs (magnesium is more expensive than manganese), tighter composition control, and higher demand in marine markets. However, total cost of ownership can favor 5052 when corrosion resistance is needed — a 3003 component requiring protective coatings or earlier replacement may cost more over its service life.
Is 3003 or 5052 better for roofing panels?
For standard inland roofing and siding, 3003-H14 or 3003-H24 is preferred — it’s cheaper, roll-forms easily, and has adequate atmospheric corrosion resistance. For coastal or island roofing within 1 km of saltwater, switch to 5052-H32 or 5052-H34 to prevent accelerated pitting and perforation.
Does either alloy require heat treatment?
Neither 3003 nor 5052 is heat-treatable. Their strength comes entirely from cold working (strain hardening). You cannot improve their properties through solution treatment and aging. If your project requires higher strength than 5052-H34 can provide (≈240–280 MPa UTS), consider switching to a heat-treatable alloy like 6061-T6 (310 MPa UTS) or 6082-T6 (340 MPa UTS).
Conclusion — Choose Based on Environment and Forming Needs
The 3003 vs 5052 decision boils down to two dominant factors:
- Environment: Saltwater/coastal → 5052. Indoor/mild → 3003.
- Forming complexity: Deep drawing → 3003. Moderate forming → 5052 (if marine) or 3003 (if cost-driven).
When both factors point the same way, the choice is obvious. When they conflict (deep drawing needed but corrosive environment), consider:
- 3003 with protective coating (acceptable for mild coastal, not for immersion)
- 5052 with modified forming approach (progressive forming instead of deep draw)
- A third alloy (5056 or 5456 for severe marine + moderate forming)
HXM Aluminum stocks both alloys in sheet, coil, circle, and plate forms with full temper availability, mill test certificates, and export-standard packaging. Our technical team can help you select the right alloy and temper for your specific application.
