When you open any commercial HVAC system, residential air conditioner, or automotive radiator, you will find 3003 aluminum at its core. This Al-Mn alloy dominates the global heat exchanger industry, accounting for over 60% of all aluminum fin stock produced worldwide. Its unique combination of excellent thermal conductivity, superior formability, outstanding brazing performance, and cost-effectiveness makes it the undisputed material of choice for HVAC manufacturers.
This complete technical guide from HXM Aluminum covers everything B2B buyers, HVAC engineers, and procurement teams need to know about specifying 3003 aluminum for heat exchanger applications — including thermal performance data, fin stock specifications, brazing process parameters, temper selection, corrosion behavior in coolant systems, and sourcing strategies.

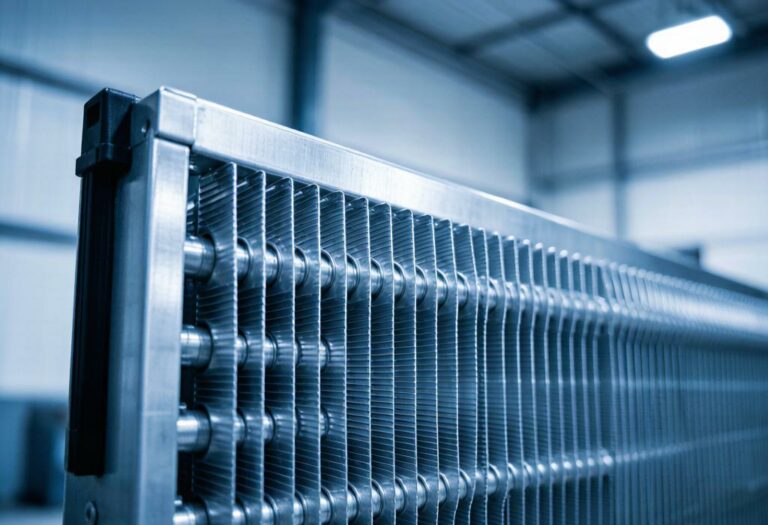

Why 3003 Aluminum Dominates HVAC and Heat Exchanger Applications
The global HVAC aluminum heat exchanger market was valued at $42.4 billion in 2025 and is projected to reach $61.5 billion by 2032, growing at a CAGR of 5.45%. 3003 aluminum is the backbone material driving this growth. But why has this particular alloy — out of hundreds of aluminum alloy variants — become the industry standard?
The Five Key Advantages of 3003 in HVAC
- Thermal conductivity: 3003 offers approximately 162-193 W/m-K depending on temper, which is 60-70% of pure copper’s conductivity at roughly one-third the weight and significantly lower cost. This makes it the optimal balance of thermal performance and cost for fin-and-tube heat exchangers.
- Formability: The Al-Mn composition gives 3003 exceptional ductility in O and H14 tempers, allowing it to be rolled into ultra-thin fin stock (0.08-0.15mm) and stamped into complex louvered, wavy, and slit fin patterns without cracking.
- Brazing compatibility: 3003 is the standard core alloy for CAB (Controlled Atmosphere Brazing) heat exchangers. When clad with 4004 or 4045 aluminum-silicon filler metal, it forms metallurgically sound joints at 590-610 degrees Celsius.
- Corrosion resistance: The stable aluminum oxide passive film provides long-term protection against glycol-based coolants, humid air, and mild atmospheric corrosion — the primary environments in HVAC service.
- Cost efficiency: 3003 is significantly less expensive than copper, stainless steel, or even 5052 aluminum. Its abundance and ease of manufacturing keep prices competitive for high-volume HVAC production.

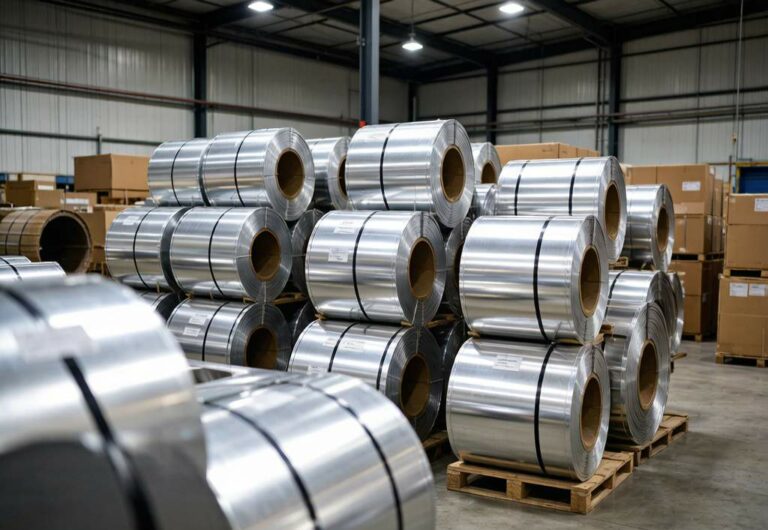

For manufacturers sourcing 3003 aluminum coils or 3003 aluminum strips for fin stock production, understanding these properties in detail is critical for optimizing heat exchanger performance and controlling manufacturing costs.
Thermal Conductivity and Heat Transfer Properties
Thermal conductivity is the single most important material property for heat exchanger alloys. It determines how efficiently heat moves from the refrigerant or coolant through the tube wall and into the fins, where it is dissipated into the air stream.
| Material | Thermal Conductivity (W/m-K) | Density (g/cm3) | Relative Weight Efficiency |
|---|---|---|---|
| Copper (C12200) | 290 | 8.94 | 100% (baseline) |
| 3003-O Aluminum | 193 | 2.73 | 229% (2.3x better by weight) |
| 3003-H14 Aluminum | 162 | 2.73 | 192% |
| 5052-H32 Aluminum | 138 | 2.68 | 164% |
| 6061-T6 Aluminum | 167 | 2.70 | 197% |
| 1100-O Aluminum | 222 | 2.71 | 263% |
Note: “Weight Efficiency” = (Thermal Conductivity / Density) relative to copper. Higher = better heat transfer per unit weight. 3003-O offers 2.3x the thermal conductivity per kg compared to copper.
Why 3003 Beats Copper Despite Lower Raw Conductivity
While copper has higher absolute thermal conductivity (290 vs 193 W/m-K), 3003 aluminum wins on a weight-adjusted basis because it is only one-third as dense. In automotive and aerospace HVAC applications where weight savings translate directly to fuel efficiency, 3003 aluminum heat exchangers can achieve the same thermal performance as copper units at roughly 40-50% of the weight.
Effect of Temper on Thermal Conductivity
Cold working (strain hardening) reduces thermal conductivity by introducing dislocations that scatter electrons. This is why 3003-O (annealed) has 193 W/m-K while 3003-H14 (half-hard) drops to 162 W/m-K — a 16% reduction. For fin stock where maximum heat transfer is critical, manufacturers often specify 3003-O or 3003-H22 (low strain-hardened) to preserve thermal performance.
Fin Stock Specifications and Manufacturing
Aluminum fin stock is the thin-gauge 3003 aluminum foil used to manufacture the corrugated fins in plate-fin heat exchangers. The fin stock is typically roll-formed into louvered, wavy, or offset strip patterns that maximize surface area and create turbulent airflow for enhanced heat transfer.
Standard Fin Stock Dimensions
| Parameter | Range | Typical HVAC Application | Notes |
|---|---|---|---|
| Thickness | 0.08-0.15 mm | 0.10-0.12 mm (most common) | Thinner = lighter but more fragile |
| Width | 100-500 mm | Custom to tube bank width | Slit from master coil |
| Temper | O, H22, H24, H14 | H22 or O (most common) | O = max formability, H22 = balance |
| Surface Treatment | Bare, hydrophilic coated | Hydrophilic (condenser units) | Coating improves wetting and drainage |
| Fin Pitch | 1.2-3.5 mm | 1.8-2.5 mm (standard) | Closer pitch = more surface area but higher air pressure drop |
| Louver Angle | 15-35 degrees | 24-28 degrees (optimal) | Controls turbulence and heat transfer coefficient |

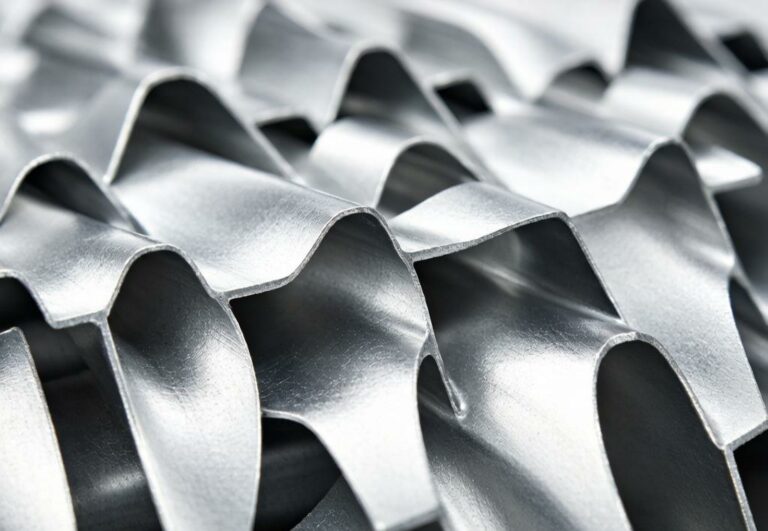

Fin Patterns and Their Performance Characteristics
The fin pattern stamped into 3003 fin stock significantly affects heat exchanger performance. The most common patterns include:
- Louvered fins: Small angled slits redirect airflow across the fin surface, creating boundary layer interruption. This pattern increases the heat transfer coefficient by 50-80% compared to plain fins, but also increases air-side pressure drop by 30-50%.
- Wavy fins: Sinusoidal corrugation creates secondary flows that enhance mixing. Common in automotive radiators where compact size is critical.
- Offset strip fins: Alternating segments are offset, creating repeated leading edges that restart thermal boundary layers. Highest heat transfer per unit volume, but highest pressure drop.
- Plain fins: Simplest pattern, lowest pressure drop, used in low-fouling applications and when fan power is limited.
Manufacturers sourcing 3003 aluminum coils for fin stock must specify the temper, thickness tolerance (typically plus or minus 0.005mm), and surface quality requirements to ensure consistent fin stamping performance.

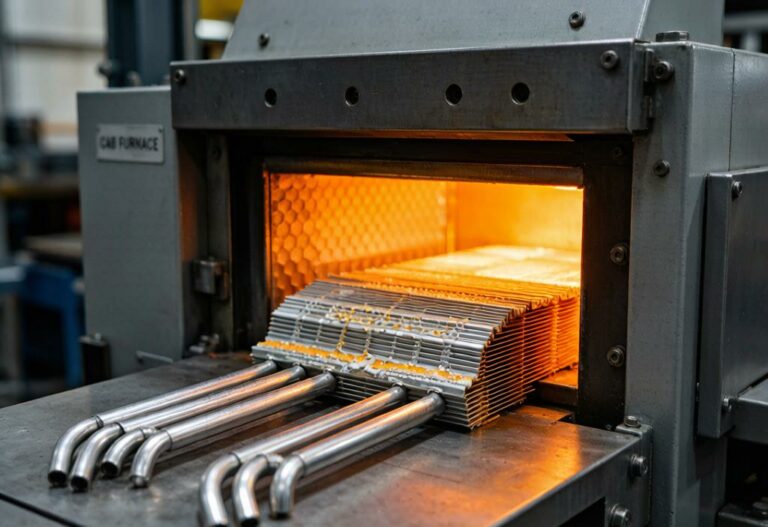

Brazing Process: CAB and NOCOLOK for 3003 Aluminum Heat Exchangers
Brazing is the critical joining process that bonds 3003 aluminum fins to tubes in plate-fin heat exchangers. The industry standard method is CAB (Controlled Atmosphere Brazing) using the NOCOLOK flux process, which accounts for over 80% of all aluminum heat exchanger production worldwide.
How CAB Brazing Works with 3003 Aluminum
In a typical CAB heat exchanger, the 3003 aluminum core tubes and fins are assembled with a thin layer of aluminum-silicon filler metal (typically 4045 or 4004 alloy, 7.5-10% Si). The assembly is coated with NOCOLOK flux (potassium fluoroaluminate), which dissolves the aluminum oxide film at brazing temperature, allowing the filler metal to wet and flow into the joints by capillary action.
CAB Brazing Temperature Window for 3003
| Stage | Temperature Range | Duration | Critical Notes |
|---|---|---|---|
| Preheat | 200-400 C | 10-20 min | Remove moisture and organic contaminants |
| Flux activation | 560-575 C | 3-5 min | NOCOLOK flux melts and dissolves Al2O3 |
| Brazing | 590-610 C | 2-4 min | Filler metal flows; 3003 solidus is 643 C |
| Cooling | 610 to 200 C | 5-10 min | Controlled cooling to prevent distortion |
Critical: The brazing temperature (590-610 C) must stay below the 3003 solidus temperature (643 C). Exceeding 615 C risks incipient melting of the 3003 core, causing tube wall thinning and potential leakage.
Clad Composite Structures
Most CAB heat exchangers use clad composite tube stock — a three-layer structure where 3003 forms the core (providing strength and thermal conductivity) and 4045 or 4004 aluminum-silicon alloy forms the surface cladding (providing the filler metal for brazing). Typical clad ratios are 5-10% filler on each side. This eliminates the need for separate filler wire placement and enables high-volume automated brazing of complex multi-tube assemblies.
Common Brazing Defects and Prevention
- Poor joint fill: Caused by insufficient flux, low brazing temperature, or contaminated surfaces. Ensure parts are degreased and flux concentration is 5-15 g/m2.
- Tube wall erosion: Caused by overheating above 615 C or excessive filler metal. Monitor furnace temperature closely and control clad ratio.
- Post-braze leakage: Often due to poor fit-up or assembly distortion before brazing. Use proper fixturing and maintain dimensional tolerances within plus or minus 0.1mm.
- Flux residue corrosion: Excess residual flux can cause pitting in service. Ensure proper post-braze washing if flux-free operation is not achieved.
Temper Selection Guide for HVAC Components
Selecting the correct temper is critical for HVAC applications because it directly affects formability, thermal conductivity, and mechanical performance. Different HVAC components require different tempers based on their manufacturing process and service requirements.
| Temper | UTS (MPa) | Elongation (%) | Thermal Cond. (W/m-K) | Best HVAC Use |
|---|---|---|---|---|
| 3003-O | 110-155 | 20-40 | 193 | Fin stock (maximum formability) |
| 3003-H22 | 120-165 | 12-20 | 180 | Fin stock (balanced) |
| 3003-H24 | 140-180 | 8-15 | 172 | Ductwork, panels |
| 3003-H14 | 160-220 | 6-12 | 162 | Tube stock, headers |
| 3003-H18 | 200-260 | 3-6 | 155 | High-strength components (limited forming) |
Component-Specific Temper Recommendations
- Fin stock (0.08-0.15mm): Use 3003-O or 3003-H22. The O temper maximizes formability for complex louver stamping and maximizes thermal conductivity. H22 provides slightly better handling rigidity while maintaining 93% of O temper’s thermal conductivity.
- Tubes and headers: Use 3003-H14. The higher strength prevents tube bulging under internal pressure while maintaining adequate brazing compatibility.
- Ductwork and panels: Use 3003-H24 or 3003-H14. These tempers provide sufficient stiffness for large flat panels while allowing moderate bending and forming.
- End plates and side supports: Use 3003-H14 or H18. Higher strength is needed for structural integrity and fastener retention.
When ordering 3003 aluminum sheets or 3003 aluminum strips for HVAC manufacturing, always specify the temper explicitly. Incorrect temper selection can cause fin stamping cracks (if too hard) or tube collapse under pressure (if too soft).
Corrosion Resistance in HVAC Coolant Systems
HVAC heat exchangers operate in challenging environments: glycol-water coolants, humid air streams, and occasional exposure to cleaning chemicals. 3003 aluminum’s corrosion resistance is a key reason for its dominance in this industry.
Corrosion Behavior by HVAC Environment
| Environment | 3003 Performance | Corrosion Rate | Recommendation |
|---|---|---|---|
| Ethylene glycol coolant (50%) | Excellent | <0.01 mm/year | Standard use, maintain pH 7-9 |
| Propylene glycol coolant | Excellent | <0.01 mm/year | Preferred for food-safe applications |
| Humid air (indoor) | Excellent | <0.005 mm/year | No additional protection needed |
| Coastal/marine air | Moderate | 0.02-0.05 mm/year | Use hydrophilic coating or consider 5052 |
| Acidic rain (pH<4) | Fair | 0.05-0.10 mm/year | Protective coating recommended |
| Chlorinated water | Poor | >0.15 mm/year | Avoid; use cupronickel instead |
Galvanic Corrosion Considerations
In HVAC systems where 3003 aluminum heat exchangers connect to copper pipes or brass fittings, galvanic corrosion can occur at the junction. The aluminum (anode) corrodes preferentially to protect the copper (cathode). Prevention strategies include:
- Using dielectric unions or isolating gaskets at aluminum-to-copper transitions
- Applying cathodic protection in critical installations
- Using compatible coolant inhibitors (sodium silicate, sodium molybdate) that protect both aluminum and copper
- Maintaining coolant pH between 7.0 and 9.0 — acidic coolants accelerate aluminum corrosion, while strongly alkaline coolants (pH>10) attack aluminum amphoteraically
Internal Tube Corrosion and Pitting
The most common failure mode for 3003 aluminum HVAC tubes is pitting corrosion on the coolant-facing surface. Pits initiate at surface defects, flux residue inclusions, or areas where the passive oxide film is damaged. Regular coolant changes, proper pH maintenance, and using high-purity 3003 alloy (with controlled Fe and Si impurity levels) minimize pitting risk. Service life of 15-20 years is typical for properly maintained 3003 aluminum heat exchangers.
3003 vs Other Aluminum Alloys for HVAC Applications
While 3003 is the dominant HVAC alloy, several alternative aluminum alloys are used in specific applications. Understanding the trade-offs helps engineers make the right material selection.
| Property | 3003 | 1100 | 5052 | 6061 | 3103 |
|---|---|---|---|---|---|
| Thermal Cond. (W/m-K) | 193 | 222 | 138 | 167 | 185 |
| UTS H14 (MPa) | 160-220 | 110-145 | 215-250 | 290 (T6) | 155-200 |
| Formability | Excellent | Excellent | Good | Fair | Excellent |
| Brazing | Excellent | Excellent | Fair | Poor | Excellent |
| Corrosion (glycol) | Excellent | Excellent | Excellent | Good | Excellent |
| Cost Index | 100 | 95 | 120 | 130 | 105 |
| HVAC Suitability | Best overall | Good (low strength) | Marine HVAC only | Structural parts | European alt. |
When to Consider Alternatives
- 1100 aluminum: Higher thermal conductivity (222 W/m-K) but significantly lower strength. Only suitable for low-pressure applications or very thin fin stock where strength is not critical.
- 5052 aluminum: Better marine corrosion resistance. Use in coastal HVAC installations or marine air conditioning systems where salt exposure is severe. Higher cost and lower thermal conductivity.
- 6061 aluminum: Use for structural brackets, frame members, and high-pressure headers where strength is more important than thermal conductivity. Not suitable for brazing — use mechanical joining or TIG welding.
- 3103 aluminum: European equivalent of 3003 with slightly different Mn range. Used interchangeably with 3003 in European HVAC manufacturing.
Sizing and Thickness Guide for HVAC Applications
Selecting the correct thickness and dimensions for 3003 aluminum HVAC components balances thermal performance, mechanical integrity, weight, and cost. Below is a comprehensive guide based on industry standards and HXM Aluminum manufacturing experience.
Fin Stock Thickness Selection
| Application | Recommended Thickness | Temper | Rationale |
|---|---|---|---|
| Residential AC fins | 0.10-0.12 mm | O or H22 | Balance of cost, durability, and formability |
| Commercial HVAC fins | 0.12-0.15 mm | H22 or H24 | Thicker for durability in high-airflow environments |
| Automotive radiator fins | 0.08-0.10 mm | O | Thinnest possible for weight savings |
| Industrial air cooler fins | 0.15-0.20 mm | H24 | Thicker for harsh industrial environments |
Tube Wall Thickness Guide
| Application | OD Range (mm) | Wall Thickness (mm) | Temper | Max Pressure (bar) |
|---|---|---|---|---|
| Residential AC tubes | 7-9.5 | 0.25-0.35 | H14 | 25-30 |
| Commercial chiller tubes | 9.5-16 | 0.35-0.50 | H14 | 30-40 |
| Automotive radiator tubes | 6-8 (flattened) | 0.25-0.30 | H14 | 15-20 |
| Condenser tubes | 7-12 | 0.30-0.45 | H14 | 25-35 |

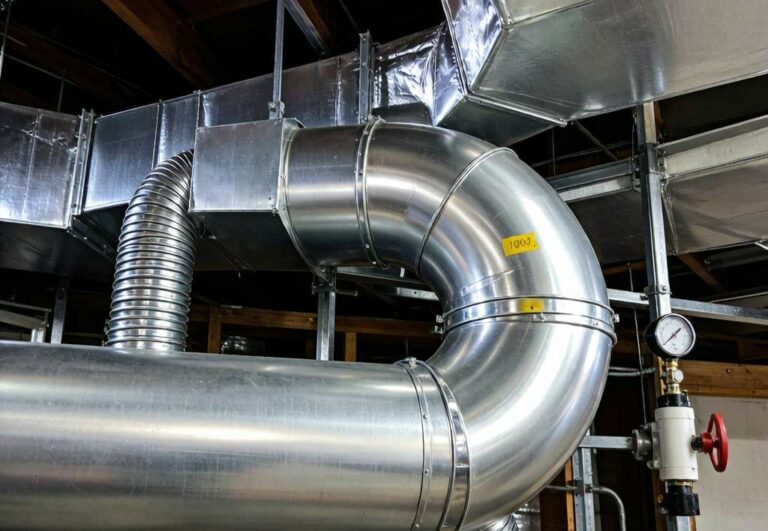

Sheet and Plate for Ductwork
| Duct Type | Sheet Thickness (mm) | Temper | Standard Width (mm) |
|---|---|---|---|
| Residential supply/return | 0.5-0.7 | H24 | 914 or 1219 |
| Commercial main ducts | 0.8-1.0 | H14 or H24 | 914 or 1219 |
| Industrial exhaust ducts | 1.0-1.5 | H14 | 1219 or 1500 |
For custom dimensions and bulk orders of 3003 aluminum pipes, coils, or strips for HVAC manufacturing, contact HXM Aluminum for factory-direct pricing.
Source 3003 Aluminum for Your HVAC Projects
As a certified Chinese aluminum manufacturer, HXM Aluminum supplies 3003 alloy products optimized for HVAC and heat exchanger manufacturing with factory-direct wholesale pricing, ISO 9001 quality certification, and global shipping.
- 3003 Aluminum Coils for fin stock manufacturing (0.08-3.0mm)
- 3003 Aluminum Strips for tube stock and stamped fins
- 3003 Aluminum Pipes for heat exchanger tubes (6-50mm OD)
- 3003 Aluminum Sheets for ductwork and panels (0.5-6.0mm)
Frequently Asked Questions: 3003 Aluminum in HVAC
Why is 3003 aluminum used in HVAC heat exchangers instead of copper?
3003 aluminum is used because it offers 60-70% of copper’s thermal conductivity at one-third the weight and significantly lower cost. On a weight-adjusted basis, 3003 aluminum is 2.3x more thermally efficient than copper. Additionally, 3003 aluminum is easier to form into thin fin stock, compatible with high-volume CAB brazing processes, and has excellent corrosion resistance in glycol-based coolants. These factors make it the most cost-effective material for large-scale HVAC heat exchanger production.
What thickness of 3003 aluminum fin stock is best for HVAC?
The optimal fin stock thickness depends on the application: 0.10-0.12mm for residential air conditioners, 0.12-0.15mm for commercial HVAC systems, 0.08-0.10mm for automotive radiators (weight-critical), and 0.15-0.20mm for industrial air coolers. Thinner fins reduce material cost and weight but are more fragile during handling and cleaning. Most standard HVAC applications use 0.10-0.12mm in 3003-O or 3003-H22 temper.
Can 3003 aluminum be brazed for heat exchanger manufacturing?
Yes, 3003 aluminum is the industry standard core alloy for CAB (Controlled Atmosphere Brazing) heat exchangers. It is typically used as a clad composite with 4045 or 4004 aluminum-silicon filler metal on the surface. The brazing temperature window is 590-610 degrees Celsius, which is safely below the 3003 solidus temperature of 643 degrees Celsius. NOCOLOK flux is used to dissolve the aluminum oxide film and enable filler metal flow.
What temper of 3003 aluminum should I use for HVAC fin stock?
For fin stock, 3003-O (annealed) or 3003-H22 (quarter-hard, stabilized) are the most common choices. 3003-O offers maximum formability for complex louver stamping and the highest thermal conductivity (193 W/m-K). 3003-H22 provides slightly better handling rigidity while maintaining 93% of the O temper’s thermal conductivity. Avoid H14 or harder tempers for fin stock, as they reduce formability and thermal performance.
How long do 3003 aluminum heat exchangers last?
With proper maintenance, 3003 aluminum heat exchangers typically last 15-20 years. The key to longevity is maintaining the coolant pH between 7.0 and 9.0, using proper coolant inhibitors (sodium silicate or sodium molybdate), performing regular coolant changes, and ensuring the system is free from flux residue after brazing. In coastal environments with salt air exposure, consider hydrophilic-coated fins or 5052 aluminum for extended service life.
Is 3003 aluminum better than 5052 for HVAC applications?
For most HVAC applications, 3003 is superior to 5052 because it has higher thermal conductivity (193 vs 138 W/m-K), better formability for fin stamping, and better brazing compatibility. 5052 is only recommended for marine HVAC applications in severe salt environments where its superior chloride corrosion resistance justifies the higher cost and lower thermal performance. For standard residential and commercial HVAC, 3003 is the clear choice.
What causes corrosion in 3003 aluminum HVAC systems?
The most common causes of corrosion in 3003 aluminum HVAC systems are: (1) acidic coolant (pH below 7.0), which dissolves the protective oxide film; (2) galvanic corrosion at aluminum-to-copper junctions; (3) flux residue left after brazing, which traps moisture and causes pitting; (4) chlorinated water in cooling tower systems; and (5) salt air in coastal installations. Prevention includes pH monitoring, dielectric isolation at copper junctions, proper post-braze cleaning, and using hydrophilic coatings for outdoor units.
