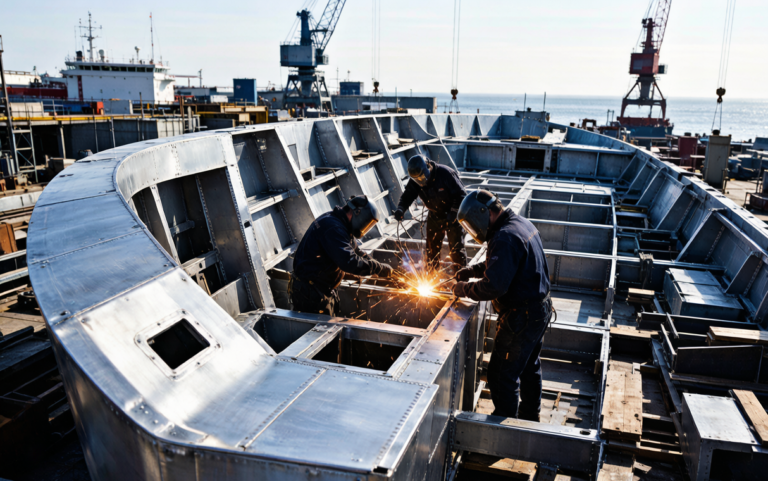

If you are specifying aluminum sheet for a boat hull, deck, superstructure, fuel tank, or any other marine structure, you have almost certainly come across two alloy names: 5052 and 5083. They are the two most widely used marine-grade aluminum alloys in the 5xxx series, and they look similar on paper — but they behave very differently under real-world seawater exposure, welding, and impact loads.
The short version: 5083 is the structural choice for large commercial vessels, military craft, and any welded hull that must survive slamming loads and prolonged saltwater immersion. 5052 is the non-structural and cost-effective choice for smaller craft, deckhouses, cabin components, fuel tanks, and complex sheet-metal work where formability matters more than ultimate strength.
This guide breaks down the chemistry, mechanical properties, corrosion behavior, weldability, and real-world applications of both alloys so you can match the right grade to your project — and avoid the costly mistake of over- or under-specifying. At the end, you will find a decision matrix and a request form for factory-direct marine aluminum sheet quotes from HXM.

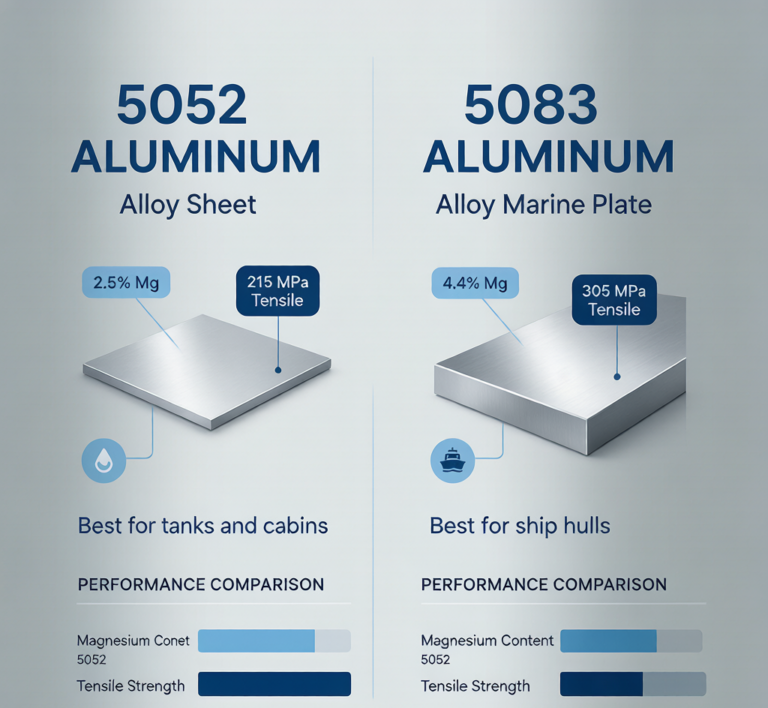

5052 vs 5083 Aluminum Quick Comparison Table
For buyers who need the answer in 30 seconds, this table summarizes the key differences. We will expand on each row in the sections that follow.
| Property | 5052 Aluminum | 5083 Aluminum |
|---|---|---|
| Primary alloying element | 2.5% Mg | 4.4% Mg |
| Tensile strength (H32/H116) | 215–230 MPa | 305–317 MPa |
| Yield strength (H32/H116) | 165 MPa | 215 MPa |
| Elongation at break | 12–18% | 12–16% |
| Density | 2.68 g/cm³ | 2.66 g/cm³ |
| Saltwater corrosion resistance | Excellent (good) | Excellent (best in 5xxx) |
| Weldability | Excellent | Excellent (preferred) |
| Formability / bendability | Best | Good |
| Typical marine uses | Cabin, deckhouse, fuel tanks, small craft hull | Ship hulls, marine superstructures, offshore |
| Relative cost (USD/kg) | $2.40 – $2.80 | $2.80 – $3.20 |
| ASTM / EN standards | ASTM B209, EN 485 | ASTM B928, EN 485 |
Bottom line: If you need to bend complex curves, draw deep, or save cost on non-structural parts, choose 5052. If you need welded structural strength and maximum seawater resistance, choose 5083.
Chemical Composition: Why Magnesium Content Matters
Both 5052 and 5083 belong to the 5xxx series of aluminum alloys, where magnesium (Mg) is the primary alloying element. The difference is in how much Mg each contains — and this single number drives almost every performance gap between them.
5052 Chemical Composition (per ASTM B209)
| Element | Min % | Max % |
|---|---|---|
| Magnesium (Mg) | 2.2 | 2.8 |
| Chromium (Cr) | 0.15 | 0.35 |
| Iron (Fe) | — | 0.40 |
| Silicon (Si) | — | 0.25 |
| Copper (Cu) | — | 0.10 |
| Manganese (Mn) | — | 0.10 |
| Zinc (Zn) | — | 0.10 |
| Aluminum (Al) | Balance | — |
5083 Chemical Composition (per ASTM B928)
| Element | Min % | Max % |
|---|---|---|
| Magnesium (Mg) | 4.0 | 4.9 |
| Manganese (Mn) | 0.40 | 1.0 |
| Chromium (Cr) | 0.05 | 0.25 |
| Iron (Fe) | — | 0.40 |
| Silicon (Si) | — | 0.40 |
| Copper (Cu) | — | 0.10 |
| Zinc (Zn) | — | 0.25 |
| Titanium (Ti) | — | 0.15 |
| Aluminum (Al) | Balance | — |
What the Higher Magnesium Does
5083 has roughly 4.4% Mg vs 2.5% in 5052. This higher Mg content produces a stronger solid-solution strengthening effect, raising tensile strength by about 35–40%. It also improves resistance to exfoliation corrosion in seawater — a slow, layered attack that can delaminate the surface of welded marine structures.
The trade-off is reduced formability: 5052 bends, draws, and spins more easily because its softer matrix accommodates plastic deformation without cracking. This is why 5052 is the default for fuel tanks (deep drawn) and cabin panels (complex curves), while 5083 is the default for hull plating (mostly flat or single-curvature bending).
Mechanical Properties and Tempers
The H temper designation (H32, H116, etc.) tells you how much strain-hardening and stabilization the sheet has received. For marine service, three tempers dominate:
5052-H32 (Most Common)
5052-H32 is the workhorse marine cabin and tank temper — strain-hardened to 1/4 hard, then stabilized by low-temperature heating.
- Tensile strength: 215–230 MPa (31,200–33,400 psi)
- Yield strength (0.2% offset): 165 MPa (24,000 psi)
- Elongation in 50 mm: 12–18%
- Brinell hardness: 60 HB
- Fatigue strength: 115 MPa (at 5×10⁸ cycles)
5083-H116 (Marine Structural Standard)
5083-H116 is the industry standard for welded marine structures. The H116 temper includes a special final stabilization treatment that makes the alloy resistant to exfoliation corrosion in seawater — a property verified by ASTM G66 (modified acetic acid test) and ASTM G67 (nitric acid mass loss test).
- Tensile strength: 305 MPa (44,200 psi) minimum
- Yield strength (0.2% offset): 215 MPa (31,200 psi)
- Elongation in 50 mm: 12% minimum
- Brinell hardness: 85 HB
- Fatigue strength: 160 MPa (at 5×10⁸ cycles)
5083-H321 (Alternative Marine Temper)
5083-H321 is the work-hardened and stabilized version, often used where a slightly different strength profile is needed. Properties are very close to H116; the choice is usually based on regional convention or customer specification.
Why the Strength Difference Matters for Boat Design
For a 10-meter aluminum hull operating in displacement or semi-displacement mode, the plate must resist hydrostatic pressure, slamming loads, and concentrated weights (engine beds, keel bolts, mast step). 5083’s higher yield strength allows a thinner plate to carry the same load — or a stronger hull at the same plate weight. For a 6-meter runabout or a fuel tank that will never see wave slamming, 5052-H32 gives more than enough strength at lower cost.
Corrosion Resistance in Seawater
Both alloys are considered “marine grade,” but the level of protection they offer is not identical. Three corrosion mechanisms matter in service:
General (Uniform) Corrosion
Both 5052 and 5083 form a stable, self-healing aluminum oxide (Al₂O₃) layer that protects the base metal in clean seawater. In atmospheric marine exposure (above the waterline), both perform well; in continuous saltwater immersion, both show very low general corrosion rates of 0.025–0.05 mm/year — far below mild steel (0.1–0.5 mm/year).
Winner: Tie. Neither alloy will fail by general corrosion in normal marine service.
Pitting Corrosion
In chloride-rich environments, pitting is the most common attack mode for aluminum. Pitting depth after 5 years of North Sea immersion testing (per NACE TM0174) is typically:
- 5052-H32: 0.3–0.5 mm maximum pit depth
- 5083-H116: 0.2–0.3 mm maximum pit depth
The lower pit depth on 5083 is attributed to its finer grain structure and more uniform passive film.
Winner: 5083 (marginally).
Exfoliation and Stress-Corrosion Cracking (SCC)
This is where the two alloys diverge sharply. Exfoliation is a layered, delaminating attack that runs along grain boundaries in worked alloys exposed to warm saltwater. SCC is cracking under sustained tensile stress in a corrosive environment.
- 5052 in H32 temper is generally considered immune to SCC in marine service, but can suffer light exfoliation in hot saltwater (>50 °C).
- 5083 in H116 / H321 temper is specifically formulated and tested (ASTM G66 + G67) to resist exfoliation. It is the only 5xxx alloy widely accepted for high-integrity welded marine structures.
Winner: 5083-H116 / 5083-H321 — required for structural marine service.
Weldability and Joining
Most marine structures are welded (MIG or TIG), so the weld performance of the base plate determines fabrication cost and long-term integrity.
Both Alloys Weld Easily

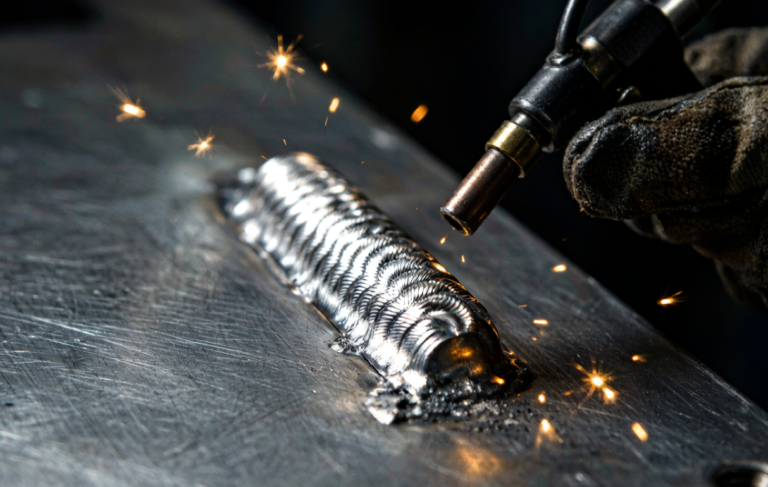

Both 5052 and 5083 are readily weldable by GMAW (MIG), GTAW (TIG), and PAW (plasma) using 5xxx or 4xxx filler wires. The most common filler choices:
- ER5356 (Al-Mg 5%) — general marine use, slightly higher strength
- ER5183 (Al-Mg 4.5% + Mn) — preferred for 5083 base metal, color-matched anodizing
- ER4043 (Al-Si 5%) — better fluidity for thin sheet and cosmetic welds, but not for sea-going service
5083 Has a Welding Edge
Because of its higher Mg content, 5083 weld metal retains more of its as-rolled strength in the heat-affected zone (HAZ). For 5052, the HAZ softens by 25–35%; for 5083, softening is only 15–20%. This is why 5083 is the only alloy accepted by classification societies (DNV, Lloyd’s, ABS, BV) for primary hull plating on commercial vessels.
Hot Cracking Resistance
Neither alloy is prone to solidification cracking, but 5083’s higher Mg slightly increases sensitivity to liquation cracking in the HAZ when welding at high heat input (>1.5 kJ/mm). The fix is simple: keep interpass temperature below 60 °C and use stringer beads rather than wide weaves.
Winner: 5083 (preferred by classification societies).
Formability, Bending, and Machining
5052 Is the Formability Champion
If your part requires deep drawing, spinning, severe bending, or complex stamping, 5052 is the obvious choice. A 5052-H32 sheet can be bent to a 1t radius (t = thickness) on a press brake without cracking. 5083-H116 typically needs a 2t–3t radius for the same bend.
For fuel tanks, water tanks, cabin sides with compound curves, console panels, and similar geometry, 5052 is faster to fabricate and produces fewer rejected parts.
5083 Is Sufficient for Most Hull Bending
Hull plating is mostly single-curvature (developable surface) bending. 5083 handles this easily on a standard roll bender or press brake. The cost of using 5083 only shows up when you try to form sharp, complex curves — a rare case in hull work.
Machining
Both alloys machine similarly: they are “gummy” and tend to form long chips. Use sharp carbide tools, high spindle speeds, and abundant coolant. 5083 machines slightly cleaner because of its higher hardness.
Winner: 5052 (for complex forming); 5083 (for simple structural bending).
Weight Savings vs Steel
A common question: “If 5052 is good enough, why not just use steel and paint it?”
The answer is weight. For a 12-meter workboat hull, the weight difference is dramatic:
| Hull Material | Plate Thickness | Hull Weight (approx.) |
|---|---|---|
| Mild steel (painted) | 5 mm | 1,800 kg |
| 5052-H32 aluminum | 6 mm | 720 kg |
| 5083-H116 aluminum | 5 mm | 540 kg |
Switching to 5083-H116 saves roughly 70% of hull weight compared to painted mild steel. For a commercial fishing boat, patrol craft, or fast ferry, this translates directly into:
- 15–25% fuel savings over the vessel’s life
- Higher payload capacity at the same displacement
- Better stability and seakeeping
For a small recreational boat, the weight savings may be less critical, and 5052 may be the cost-rational choice.
Common Marine Applications
Where 5052 Is Used
- Fuel tanks and water tanks (deep-drawn)
- Cabin sides, roofs, and deckhouse panels (complex curves)
- Console panels and instrument panels (formed + machined)
- Small craft hulls (dinghies, RIB collars, jon boats under 6 m)
- Outboard motor brackets (cast or formed)
- Decorative marine trim and hardware
Where 5083 Is Used
- Hull plating for ships, patrol boats, fishing vessels, and ferries (welded, structural)
- Marine superstructures and deckhouses (large welded assemblies)
- Offshore platforms and FPSO modules (corrosion-critical)
- LNG and LPG cargo tanks (cryogenic-compatible down to –196 °C)
- Naval craft hulls (military specification)
- Bridge and pier structures in seawater (welded structural)
Standards, Certifications, and Classification
For commercial vessels, the choice of alloy is often dictated by classification society rules — not by personal preference. The major marine rules all require 5083 for primary hull structure:
- DNV GL: 5083 plate with H116 / H321 temper required for shell plating
- Lloyd’s Register: 5083 plate per Lloyd’s Standard for aluminum ship construction
- ABS (American Bureau of Shipping): 5083 plate per ABS Rules for aluminum vessels
- Bureau Veritas (BV): 5083 plate per NR 546
- CCS (China Classification Society): 5083 plate per CCS Rules
For 5052, the same societies accept it for secondary structures, superstructures, tanks, and outfitting — but not for primary hull plating on classed vessels.
Material certificates that buyers should request:
- EN 10204 3.1 mill certificate (chemistry + mechanical properties)
- ASTM B209 / ASTM B928 compliance
- Classification society certificate (if vessel will be classed)
- ISO 9001 + IATF 16949 (for OEM automotive marine)
5052 vs 5083 — Decision Guide
Use this decision tree to pick the right alloy for your project:
Step 1 — Is the part a primary hull, deck, or structural weldment on a commercial / naval / classed vessel?
→ Yes → Choose 5083-H116 (or 5083-H321, regional preference).
→ No → Continue to Step 2.
Step 2 — Will the part see wave slamming, dynamic loading, or impact (pontoon, fender, hull side)?
→ Yes → Choose 5083-H116 for strength and toughness.
→ No → Continue to Step 3.
Step 3 — Does the part require deep drawing, complex bending, or tight radii?
→ Yes → Choose 5052-H32 for formability.
→ No → Continue to Step 4.
Step 4 — Is the part a tank (fuel, water, hydraulic) or cabin structure?
→ Yes → Choose 5052-H32 — proven, weldable, easy to form and inspect.
→ No → Continue to Step 5.
Step 5 — Will the part be exposed to hot saltwater (>50 °C) for extended periods?
→ Yes → Choose 5083-H116 for exfoliation resistance.
→ No → Either 5052-H32 or 5083-H116 is acceptable — choose based on cost and availability.
Cost and Lead Time Comparison
Material cost varies with thickness, quantity, and market conditions, but typical 2026 Q3 ranges for plate in 3–10 mm gauge, FOB China:
| Item | 5052-H32 | 5083-H116 |
|---|---|---|
| Plate (3 mm) | $2.40–$2.70 / kg | $2.80–$3.10 / kg |
| Plate (6 mm) | $2.50–$2.80 / kg | $2.90–$3.20 / kg |
| Plate (10 mm) | $2.60–$2.90 / kg | $3.00–$3.30 / kg |
| Standard lead time (mill) | 25–35 days | 30–45 days |
| Stocked at HXM warehouse | 1.5–6 mm common | 3–12 mm common |
Cost tip: 5083 typically carries a 15–20% premium over 5052 due to higher Mg content and tighter production controls. For non-structural parts where 5052 will do, the savings are real.

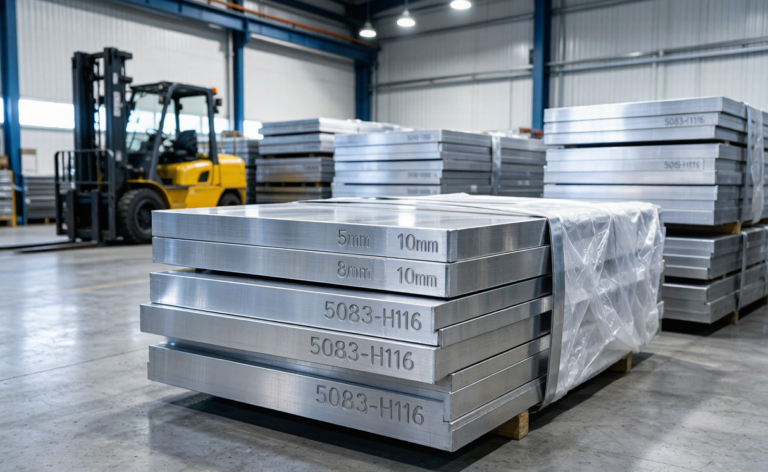

Sourcing Marine Aluminum Sheet from China
If you are evaluating Chinese suppliers for marine aluminum plate, here is what a reliable source should provide:
Mill Test Certificate (MTC) per EN 10204 3.1
Every heat of plate should ship with a 3.1 certificate showing actual chemistry and mechanical test results. Avoid suppliers who can only offer 2.1 or 2.2 certificates for marine service.
Welding Procedure Support
Reputable marine plate suppliers will provide:
- Filler wire recommendations (ER5356 / ER5183)
- Sample weld procedure specification (pWPS)
- Interpass and preheat guidance
- Post-weld stress relief recommendations (rarely needed for 5xxx, but available)
Cutting and Machining Services
Marine plate is often supplied cut-to-shape (CNC plasma, waterjet, or laser) to minimize fabrication scrap. HXM provides:
- Laser cutting (±0.2 mm tolerance)
- Waterjet cutting (up to 100 mm thick)
- CNC bending and rolling
- Beveling for weld prep
Packaging for Sea Freight
Plate must be:
- Separated by plastic interleaving paper to prevent scratching
- Strapped to steel skids or in wooden crates
- Fumigated and ISPM-15 stamped for international sea freight
- Shipped with desiccant for long sea voyages
Frequently Asked Questions
Can I use 5052 instead of 5083 for a boat hull?
For small recreational craft under 6 meters, 5052-H32 is sometimes used for hull plating and can be acceptable — but most classification societies and many insurance underwriters require 5083-H116 for any commercial, charter, or rental vessel. For a private boat, the choice is yours: 5052 is cheaper and forms more easily, 5083 is stronger and more corrosion-resistant. When in doubt, consult the boat designer or naval architect.
Is 5083 aluminum harder to weld than 5052?
No. Both weld with the same MIG/TIG equipment and similar parameters. The main practical difference is that 5083 requires slightly tighter heat-input control to avoid HAZ sensitivity, but this is straightforward for any qualified welder. The weld strength of 5083 retains more of the base-metal strength than 5052.
What filler wire should I use for 5052 vs 5083?
For both alloys, ER5356 is the most common filler. For 5083 base metal, ER5183 is preferred when color-matching for anodizing is required. For 5052 cosmetic welds where strength is less critical, ER4043 (Al-Si) gives smoother bead appearance.
Can 5052 and 5083 be welded to each other?
Yes. If you need to join a 5052 component (e.g., a fuel tank) to a 5083 hull, use ER5356 filler wire. The weld will be slightly over-matched for the 5052 side and slightly under-matched for the 5083 side, which is acceptable for most non-critical joints.
What is the difference between 5083-H116 and 5083-H321?
Both are marine-grade tempers of 5083. H116 is strain-hardened and stabilized; H321 is the same plus a small amount of cold work after solution treatment. Properties are very similar. H116 is more common in Europe and Asia; H321 is more common in North America. Either is acceptable for marine service.
Does 5052 need to be heat-treated?
No. 5052 is a non-heat-treatable alloy — strength comes from cold work (H tempers), not from precipitation hardening. This means 5052 is not affected by welding in terms of needing post-weld heat treatment, which simplifies fabrication.
Does 5083 need to be heat-treated?
No. Like 5052, 5083 is non-heat-treatable. Strength is developed by strain hardening and stabilization. The H116 / H321 tempers are achieved by cold rolling followed by a low-temperature stabilization anneal.
Which alloy is better for cryogenic applications?
5083 is widely used for LNG and LPG cargo tanks down to –196 °C. Its strength actually increases at low temperatures while toughness remains excellent, making it the standard choice for cryogenic pressure vessels. 5052 is not used for primary cryogenic service.
Conclusion and Next Steps
Choosing between 5052 and 5083 aluminum sheet is a question of structural role, fabrication method, and certification requirement:
- Choose 5052-H32 for non-structural marine parts, fuel/water tanks, cabin panels, and any component requiring complex forming. It is the cost-effective workhorse of the marine outfitting world.
- Choose 5083-H116 (or H321) for hull plating, structural welds, commercial vessels, military craft, offshore structures, and any service where classification society approval is required. It is the strongest, toughest, and most corrosion-resistant 5xxx alloy.
For boatbuilders, shipyards, and OEM marine equipment manufacturers, the smartest approach is to qualify both alloys with a single trusted mill source — keeping 5052 for outfitting and 5083 for primary structure simplifies procurement, documentation, and welding procedure qualification.
