Complete B2B guide to aluminum wire — alloy types (1100, 1350, 5056, 4043, 5356), mechanical properties, standard diameters & tolerances, applications, and how to source wholesale from Chinese suppliers with factory-direct quotes.
Aluminum wire is one of the most versatile non-ferrous metal products used across electrical, automotive, construction, and welding industries. It combines the lightweight advantage of aluminum (about one-third the density of copper) with good electrical conductivity, corrosion resistance, and formability — making it a cost-effective alternative to copper wire in many applications.
Whether you need EC-grade 1350 wire for power transmission, 4043 and 5356 welding wire for fabrication, or 1100/5056 alloy wire for rivets and nails, this guide covers everything B2B buyers need to know: alloy types, mechanical properties, standard diameters, tolerances, surface treatments, common applications, and how to evaluate a Chinese aluminum wire supplier.
If you are looking for factory-direct aluminum wire quotes, contact HXM Aluminum for fast response within 12 hours.
What Is Aluminum Wire?
Aluminum wire is a solid or stranded cylindrical product drawn from aluminum or aluminum alloy rods through a die. The drawing process reduces the cross-section while increasing length and improving surface finish and tensile strength.
Key characteristics:
- Lightweight: Density ~2.7 g/cm³ (vs 8.96 g/cm³ for copper)
- Conductivity: 61% IACS for EC grade 1350 (vs 100% for copper), but weight-to-conductivity ratio makes it competitive for long-span transmission
- Corrosion resistance: Naturally forms a protective oxide layer
- Formability: Excellent ductility in annealed (O) temper
- Cost: Typically 30–50% cheaper per meter than equivalent copper
Common forms supplied by HXM Aluminum:
| Form | Diameter Range | Typical Use |
|---|---|---|
| Round wire | 0.1 mm – 12 mm | Welding, electrical, fasteners |
| Flat wire | 0.5 – 6 mm thick × 3 – 60 mm wide | Busbars, transformer windings |
| Stranded cable | 1.5 mm² – 500 mm² | Power distribution |
| Coiled wire | 1 m – 50 kg per coil | Welding, spring manufacturing |

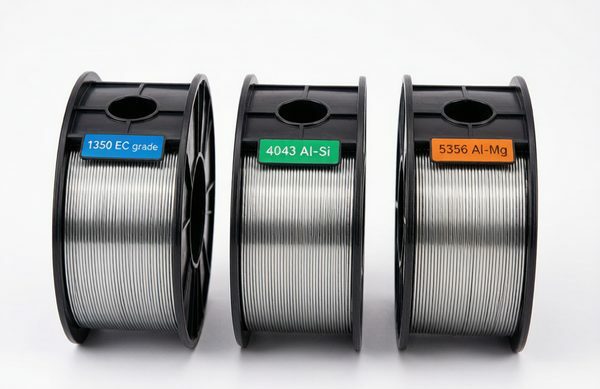

Common Aluminum Wire Alloy Types and Grades
Different alloys deliver different combinations of strength, conductivity, corrosion resistance, and weldability. Here are the grades most frequently specified in international B2B orders:
1100 Aluminum Wire (Pure Aluminum, 99% min Al)
- Tensile strength: 75–110 MPa (annealed)
- Conductivity: 59% IACS
- Best for: Rivets, nails, chemical equipment, decorative wire, packaging
- Temper: O, H14, H18
1350 Aluminum Wire (EC Grade, 99.5% min Al)
- Tensile strength: 55–85 MPa (annealed)
- Conductivity: 61.8% IACS
- Best for: Electrical conductors, transformer windings, magnet wire, overhead transmission lines
- Standard: ASTM B230, B233, B609
4043 Aluminum Welding Wire
- Composition: Al-Si 5%
- Tensile strength: 180 MPa (as welded)
- Best for: MIG/TIG welding of 6xxx series (6061, 6063), casting repair, automotive body panels
- Standard: AWS A5.10 ER4043
4047 Aluminum Welding Wire
- Composition: Al-Si 12%
- Melting point: Lower than 4043 (577°C vs 621°C)
- Best for: Brazing, sheet metal joining, automotive radiators
5056 Aluminum Wire
- Composition: Al-Mg 5%
- Tensile strength: 280 MPa (H38)
- Best for: Rivets, nails, screen cloth, marine fasteners, structural mesh
- Standard: ASTM B211
5356 Aluminum Welding Wire
- Composition: Al-Mg 5%
- Tensile strength: 290 MPa (as welded)
- Best for: MIG/TIG welding of 5xxx and 6xxx series, marine applications, high-strength welded structures
- Standard: AWS A5.10 ER5356
6061 Aluminum Wire
- Tensile strength: 310 MPa (T6)
- Best for: Anodized fasteners, structural wire forms, machine parts
- Standard: ASTM B211
Need help choosing the right alloy for your application? Send HXM your spec — our engineers recommend the optimal grade within 24 hours.

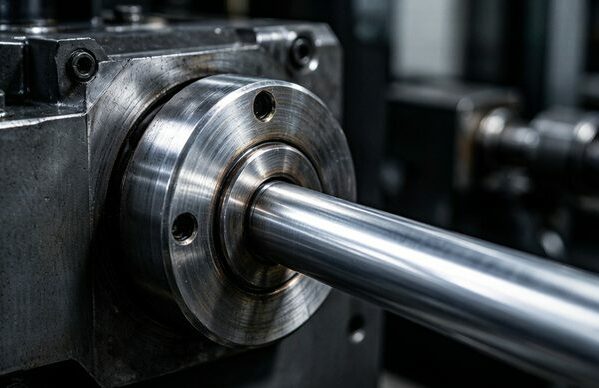

Aluminum Wire Manufacturing Process
Most B2B buyers don’t need to know every detail of the drawing process — but understanding the basics helps you evaluate supplier quality.
Step 1: Continuous Casting or Hot Rolling
Aluminum alloy is cast into rod (typically 7.6 mm or 9.5 mm diameter) or hot-rolled from billets into a similar starting size.
Step 2: Cold Drawing
The rod is pulled through a series of tungsten carbide or diamond dies. Each pass reduces the diameter by 15–25%, and intermediate annealing restores ductility for the next draw. A typical 1.0 mm wire may go through 8–12 dies.
Step 3: Intermediate Annealing (for fine wire)
For wire below 0.5 mm, in-process annealing at 340–400°C prevents breakage.
Step 4: Final Annealing or Solution Heat Treatment
Sets the final temper (O, H14, H18, T6, etc.) according to the customer’s spec.
Step 5: Surface Treatment
- Bare wire: Default for most applications
- Anodized wire: Improved corrosion and color coding
- Tinned or nickel-plated: For electrical contact applications
- PVC/XLPE insulated: For cable products
Step 6: Spooling
- Plastic spools (DIN 100, DIN 125, DIN 160): 1–10 kg
- Wooden drums: 25–50 kg
- Coil baskets: 50–500 kg for large-diameter wire
Quality checkpoints at HXM:
- Diameter tolerance verified every 2 hours (±0.01 mm for fine wire)
- Tensile strength tested per heat lot
- Surface inspected for scratches, die marks, and oxidation
- Mill Test Certificate (EN 10204 3.1) issued for every batch

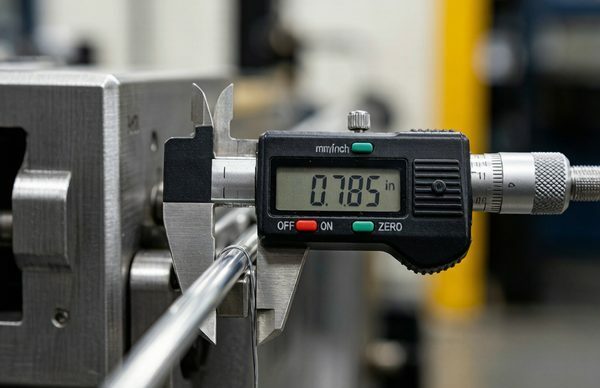

Standard Diameters, Tolerances, and Tempers
Round Wire Diameter (per ASTM B211 / EN 1715-3)
| Diameter Range | Standard Tolerance | Premium Tolerance |
|---|---|---|
| 0.10 – 0.30 mm | ±0.005 mm | ±0.003 mm |
| 0.30 – 0.80 mm | ±0.010 mm | ±0.005 mm |
| 0.80 – 1.50 mm | ±0.015 mm | ±0.008 mm |
| 1.50 – 3.00 mm | ±0.020 mm | ±0.010 mm |
| 3.00 – 6.00 mm | ±0.025 mm | ±0.015 mm |
| 6.00 – 12.00 mm | ±0.030 mm | ±0.020 mm |
Common Tempers Supplied
- O (annealed): Soft, maximum ductility — for deep drawing, forming
- H12 / H22 / H32: Quarter-hard — general purpose
- H14 / H24 / H34: Half-hard — moderate forming
- H16 / H26 / H36: Three-quarter hard — limited forming
- H18 / H28 / H38: Full hard — spring applications, minimal forming
- T6 (6061 only): Solution heat-treated and artificially aged

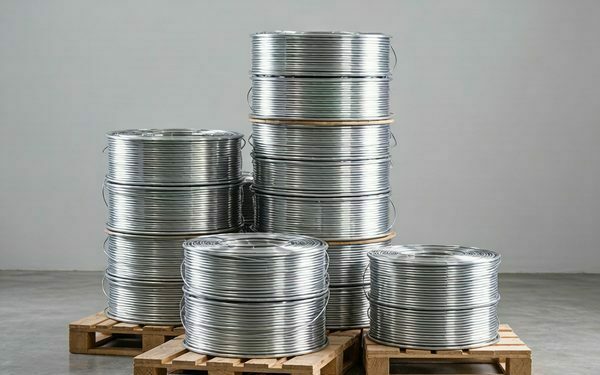

Packaging Standards
- Small spools (DIN 100): 1–5 kg, common for 0.1–0.5 mm wire
- Standard spools (DIN 125, 160): 5–15 kg
- Coil baskets (DIN 250, 355): 15–50 kg, common for 0.8–3.0 mm
- Wooden drums: 50–250 kg, for 1.0–12.0 mm wire
- Custom packaging: Available for OEM customers
Major Applications of Aluminum Wire
Aluminum wire serves a wide range of B2B markets:
1. Electrical & Power Transmission
- Overhead transmission line conductors (ACSR/AAAC)
- Magnet wire for transformers and motors
- Building wire (XHHW, THHN, NM-B)
- Service drop cable
- Grounding wire
2. Welding & Fabrication
- MIG wire: ER4043, ER5356, ER5183, ER1100 (spool or drum)
- TIG wire: Cut-length rods 914 mm (36″) or 1000 mm
- Brazing: ER4047 for HVAC and automotive
3. Automotive
- EV battery cell connections
- Wire harness (weight reduction vs copper)
- Rivets for body panels (5056, 2117)
- Heat exchangers (4043, 4047)
4. Construction & Building
- Mesh for plaster reinforcement
- Decorative wire and balustrade
- Anti-theft fasteners (nails, rivets)
- Fence wire
5. Industrial & Consumer Goods
- Rivets (cold-heading)
- Nails and staples
- Antenna wire
- Spring wire (after heat treatment)
- Wire forms and baskets
6. Aerospace
- 2117-T4 rivets
- 5056 lockbolts
- Welding consumables for fuselage repair
How to Choose a Reliable Aluminum Wire Supplier in China
For B2B buyers, choosing the right Chinese supplier is critical. Here are the seven criteria HXM recommends evaluating:
1. Production Capability
- Vertical integration: Does the supplier cast their own rod, or only draw? Vertical integration = better quality control and pricing.
- Drawing capacity: How many tons per month? Can they handle your annual volume?
- Alloy range: Do they produce 1xxx, 3xxx, 4xxx, 5xxx, 6xxx series?
2. Quality Certifications
- ISO 9001:2015 quality management
- ISO 14001 environmental
- ASTM/ASME/EN/JIS standards compliance
- Customer-specific certifications (e.g., IATF 16949 for automotive)
3. Mill Test Certificates
- EN 10204 3.1 certificates issued per heat lot
- Third-party inspection (SGS, BV, TÜV) accepted
- Full traceability from raw material to finished product
4. Engineering Support
- Can they recommend the optimal alloy for your application?
- Do they support custom diameters, tempers, tolerances?
- Will they provide samples for qualification?
5. Logistics Capability
- FOB, CIF, DDP shipping terms
- Export experience to your country (ask for references)
- Proper packaging for sea-freight container loads (20’GP: ~20 tons, 40’GP: ~26 tons)
6. Communication & Lead Time
- Sales response within 12 hours
- English-speaking account manager
- Production lead time: typically 15–30 days for stock alloys, 30–45 days for custom
7. Payment Terms
- T/T 30% deposit + 70% balance against B/L copy
- L/C at sight (for large orders)
- 100% T/T in advance for samples
HXM Aluminum meets all seven criteria — 6 semi-continuous casting lines, 10 continuous casting and rolling lines, ISO 9001:2015 certified, and 12+ years of export experience to 60+ countries. Request a free quote.
How to Order Aluminum Wire from HXM: Step-by-Step Process
Step 1: Send Your Specification
Include alloy, temper, diameter (or size range), quantity (kg or tons), packaging, and delivery destination. For welding wire, also specify the spool type (D300, D200, or cut lengths).
Step 2: Receive a Quotation Within 12 Hours
Our sales team responds with a detailed offer including FOB/CIF price, lead time, payment terms, and mill test certificate sample.
Step 3: Sample Approval (Recommended for New Products)
We can ship 1–5 kg samples via DHL/FedEx for your qualification testing. Sample cost is refundable against the bulk order.
Step 4: Confirm Order and Pay Deposit
Sign the proforma invoice and arrange T/T deposit. Production is scheduled within 48 hours of deposit receipt.
Step 5: Production and Quality Inspection
- Production lead time: 15–30 days for standard alloys
- Pre-shipment inspection: Welcome at our factory, or appoint SGS/BV
- MTC 3.1: Issued with shipment documents
Step 6: Shipment and Delivery
We deliver FOB Shanghai, Ningbo, or Qingdao. We can also arrange CIF or DDP to your nearest port. Air-freight available for urgent small orders.
Frequently Asked Questions About Aluminum Wire
What is the difference between aluminum wire and copper wire?
Aluminum wire is one-third the weight of copper wire and costs 30–50% less per meter. However, aluminum has only 61% of copper’s conductivity, so you need a larger cross-section to carry the same current. Aluminum wire is widely used in overhead transmission, building wire, and applications where weight and cost matter more than maximum conductivity.
Which aluminum alloy is best for welding?
The most common aluminum welding wires are ER4043 (for 6xxx series base metals, automotive, general fabrication) and ER5356 (for 5xxx series, marine, and high-strength applications). ER4043 is easier to feed and produces smoother beads; ER5356 offers higher as-welded strength and better corrosion resistance in salt water.
What is the standard diameter tolerance for aluminum wire?
Standard tolerance is typically ±0.01 mm for fine wire (0.3–0.8 mm) and ±0.02–0.03 mm for larger diameters. Premium tolerances (half the standard) are available on request. Tolerances follow ASTM B211 for drawn wire and EN 1715-3 for European customers.
Can aluminum wire be used outdoors?
Yes, aluminum naturally forms a protective oxide layer that resists corrosion. For marine or highly corrosive environments, 5xxx series alloys (5056, 5356) or anodized 6xxx wire are recommended. For long-term outdoor electrical service, use AAAC or ACSR conductors with proper tension hardware.
What is the minimum order quantity (MOQ)?
For standard alloys and diameters (e.g., 1350, 4043, 5356 in common sizes), MOQ is typically 500 kg per size. For custom alloys or non-standard diameters, MOQ is 1–2 tons to cover drawing die setup costs. Sample orders of 1–50 kg are accepted at a premium price.
How is aluminum wire packaged for export?
Standard export packaging: plastic spools (DIN 100/125/160), wooden drums (50–250 kg), or coil baskets (15–50 kg), all wrapped in PE film and shipped in wooden cases or on pallets. 20’GP containers hold approximately 15–20 tons, 40’GP containers approximately 22–26 tons depending on packaging.
What is the lead time for an aluminum wire order?
Standard alloy and size: 15–25 days after deposit. Custom alloy or non-standard size: 25–40 days. For urgent orders, we can expedite production in 7–10 days for an additional fee. Sample orders ship within 3–5 days via DHL/FedEx.
Do you provide mill test certificates?
Yes, every shipment includes an EN 10204 3.1 Mill Test Certificate with chemical composition, mechanical properties, and dimensional inspection results. Third-party certificates from SGS, BV, TÜV, or customer-specified inspectors are available on request.
Ready to source aluminum wire from a trusted Chinese supplier?
