If 6061 is the king of aluminum alloys, then the T6 temper is the crown that gives it power. While you’ll see “6061 aluminum” used everywhere, it’s the “-T6” designation that transforms this versatile metal into the high-performance material trusted for everything from aerospace components to high-end bicycle frames.
But what exactly is the T6 temper? How is it achieved? And what specific properties does it unlock that make it so valuable?
This guide will walk you through everything you need to know about 6061-T6 aluminum. We’ll explore the science behind its heat treatment, provide a detailed data sheet for engineers and buyers, and showcase where this remarkable material shines.
What Exactly is the "T6" in 6061-T6?
In the world of aluminum, “temper” refers to the treatment process a material undergoes to achieve its final metallurgical state and mechanical properties. The “T” designation specifically means the alloy is thermally treated (heat-treated) to produce stable tempers.
The number “6” signifies a specific recipe: Solution heat-treated and then artificially aged.
Think of it like baking a cake. Raw 6061 is the mixed batter—full of potential but soft. The T6 process is the precise baking and cooling process that turns it into a strong, stable, and finished product.
The T6 Heat Treatment Process: A Step-by-Step Guide
Achieving the T6 temper is a precise, three-stage process that fundamentally changes the material’s internal structure.

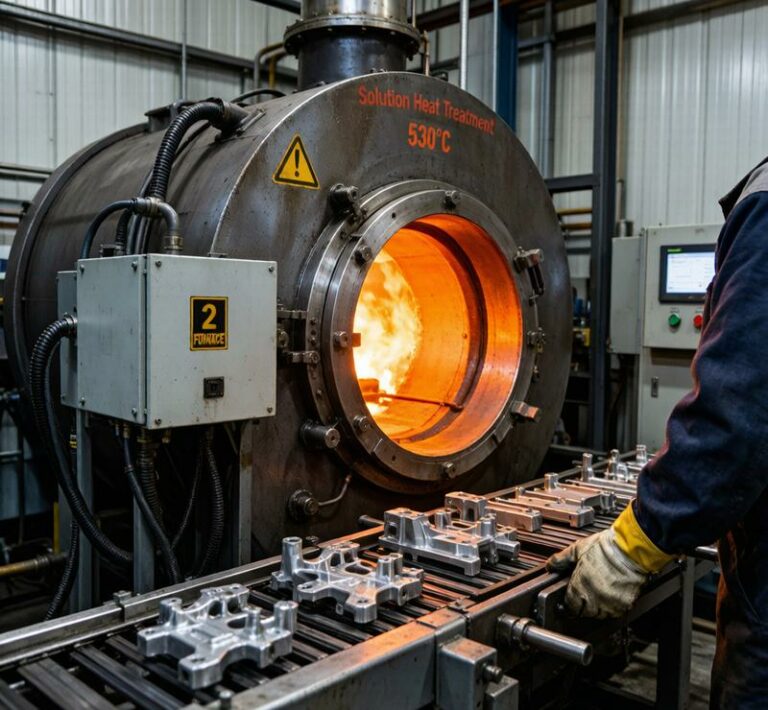

Step 1: Solution Heat Treatment
The process begins by heating the 6061 aluminum to a precise, high temperature, typically around 530°C (985°F). It’s held at this temperature long enough for the main alloying elements (magnesium and silicon) to completely dissolve into the aluminum, forming a solid solution. This creates a uniform, consistent internal structure.
Step 2: Quenching
Immediately after solution heat treatment, the material is rapidly cooled, or “quenched,” usually in water. The goal of this shocking temperature drop is to “freeze” the dissolved magnesium and silicon atoms in place, preventing them from clustering together prematurely. At this stage, the material is relatively soft and workable.
Step 3: Artificial Aging (Precipitation Hardening)
This is where the magic happens. The quenched material is placed in a low-temperature oven and “aged” for a specific time and temperature—for example, 8-12 hours at 175°C (350°F). During this controlled heating, the trapped magnesium and silicon atoms finally precipitate out of solution, forming microscopic, highly uniform particles of magnesium silicide (Mg₂Si).
These fine particles act as obstacles within the metal’s crystal lattice, making it much more difficult for dislocations to move. This internal resistance is what gives 6061-T6 its dramatically increased strength and hardness.
Comprehensive 6061-T6 Properties (The Data Sheet)
For engineers, and procurement managers, this is the critical information. Here are the typical properties of 6061-T6 aluminum.
| Property | Value (Metric) | Value (Imperial) | Why It Matters to You |
| Mechanical Properties | |||
| Ultimate Tensile Strength | ≥ 310 MPa | ≥ 45,000 psi | High Strength-to-Weight Ratio: Delivers robust structural performance without adding unnecessary weight. |
| Yield Strength | ≥ 276 MPa | ≥ 40,000 psi | Resists Deformation: The point at which the material begins to deform permanently, ensuring part integrity under load. |
| Hardness (Brinell) | 95 HB | 95 HB | Excellent Machinability: Hard enough to form clean chips and hold tight tolerances during CNC machining. |
| Elongation at Break | 12-17% | 12-17% | Good Ductility: Can withstand some forming and bending before fracturing, though less than softer tempers. |
| Physical Properties | |||
| Density | 2.70 g/cm³ | 0.0975 lb/in³ | Lightweight: A core benefit of aluminum, ideal for transportation, aerospace, and portable applications. |
| Thermal Properties | |||
| Thermal Conductivity | 167 W/m-K | 1160 BTU-in/hr-ft²-°F | Good Heat Dissipation: Effectively pulls heat away from critical components, making it suitable for heat sinks and housings. |

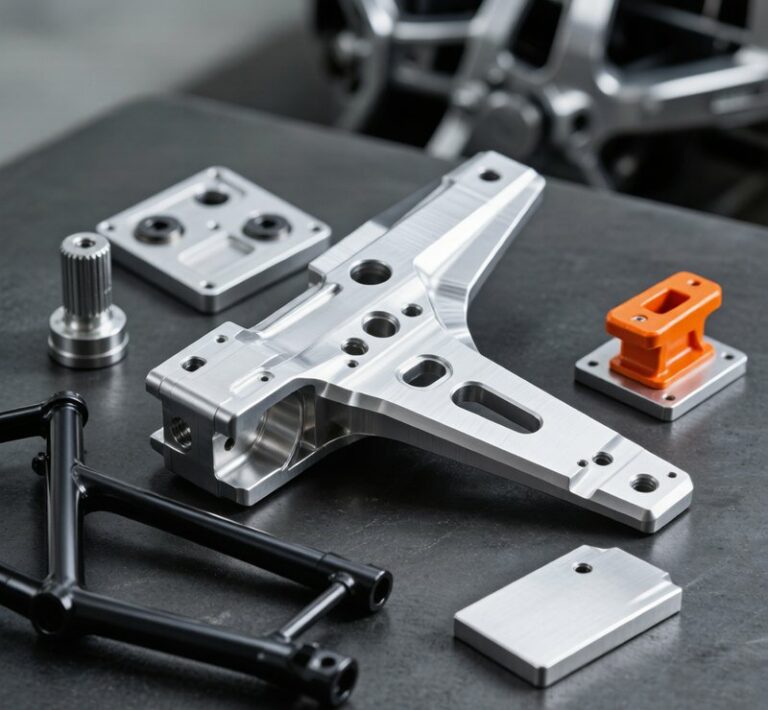

Common Applications: Advantages of 6061-T6
The unique blend of strength, workability, and corrosion resistance makes 6061-T6 a top choice for a vast range of applications:

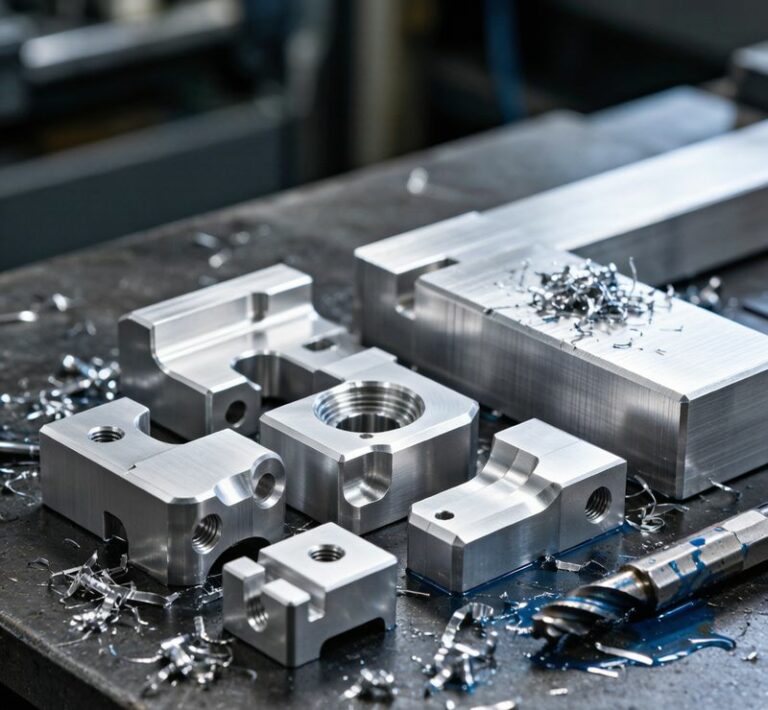

CNC Machined Parts: Its excellent hardness and machinability make it a favorite for creating complex, high-precision components, from electronics enclosures to automotive parts.
Structural & Architectural Applications: Used for window frames, door frames, and structural framing where strength and corrosion resistance are essential.
High-Performance Bicycle Frames: The classic material for lightweight yet strong bike frames that can withstand the rigors of the road and trail.
Aerospace Components: Used for aircraft fittings and structural parts that require a good strength-to-weight ratio.
Molds and Tooling Plates: Their stability and ability to hold a fine finish make them suitable for plastic injection molds and tooling fixtures.
The HXM Aluminum Advantage: Sourcing 6061-T6 with Confidence
Achieving the perfect T6 temper requires sophisticated equipment and rigorous process control. Sourcing from a reliable manufacturer is critical to ensure you receive material that performs exactly as expected.
At HXM Aluminum, we guarantee:
Certified T6 Temper: Our heat treatment processes are strictly controlled and verified to meet international standards.
Full Traceability: We can provide material test certificates (MTCs) for every batch, detailing the chemical composition and mechanical properties, so you have complete confidence in what you’re buying.
Consistent Quality: Our ISO 9001 certified processes ensure that every plate, bar, and tube you receive is of the same high quality.
In Conclusion
The T6 temper is what elevates 6061 aluminum from a good alloy to a great one. It represents the optimal balance of strength, corrosion resistance, and workability, making it one of the most versatile and valuable materials in modern manufacturing.
Whether you are designing a new product or procuring material for an established production line, specifying 6061-T6 ensures you are working with a material you can trust.
Ready to source high-quality 6061-T6 aluminum for your next project? Contact our technical sales team for a competitive quote on certified plates, bars, or custom extrusions.
