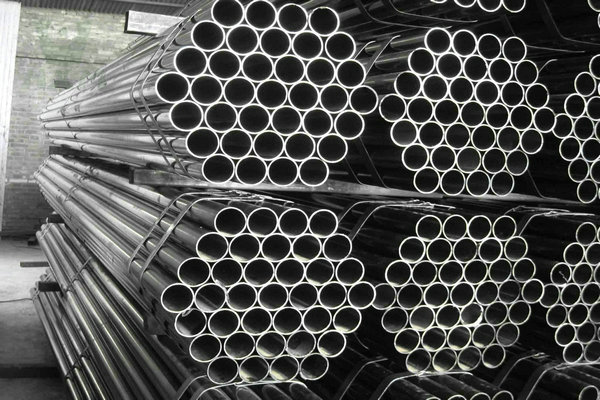

6061 Aluminum Tubes

6061 Aluminum Tube Metal, 6061 aluminium tube suppliers

6061 Aluminum Pipe & Tube Specifications

Standards: ASTM, ASME, AMS, GB/T, JIS

Thickness: 0.2-500mm, etc.

Width: 20-2650mm, etc.

Length: Customized

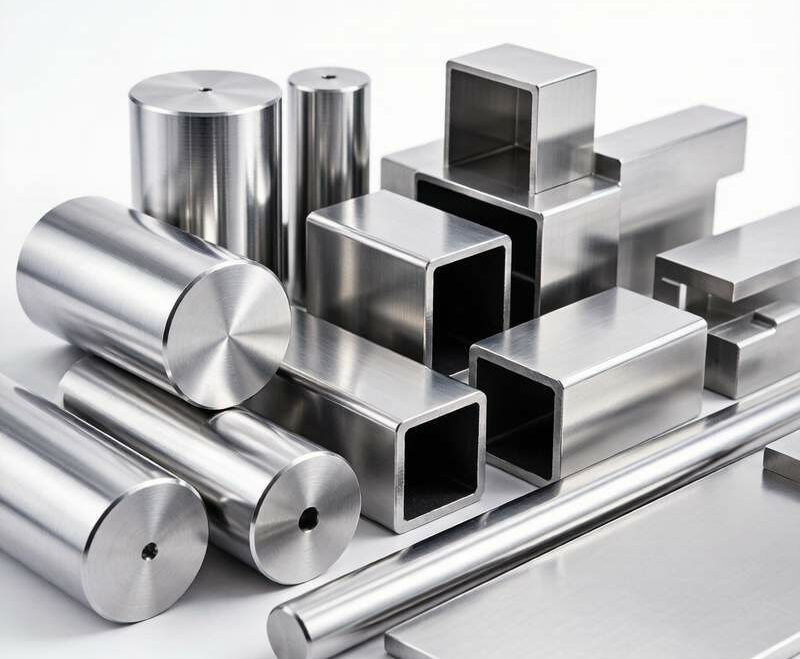

Shape: Round, Square, Rectangular, etc.

Material Temper: F, O, T4, T6, T651, H14, H112

Delivery Time: 7-20 days.

6061 Aluminum Tube & Pipe Data Sheet

Chemical Composition of 6061 Aluminum Tube

Elements Mg Fe Cu Mn Si Cr Ti Zn Others Al
Content 0.8-1.2  0.70 0.15-0.40 0.15 0.40-0.8 0.04-0.35 0.15 0.25 0.05 Remains

Mechanical Properties and Tempers of 6061 Aluminium Tube

Typical Mechanical Properties of 6061 Aluminium Tube
Temper Tensile Strength Yield Strength Elongation
  KSI KSI %
T451 35 21 25
T651 45 40 17

Different Tempers of 6061 Aluminum Tubes Metal

6061 aluminum alloy is a commonly used aluminum alloy that can be used to manufacture a variety of products, including sheet metal products. It can be processed in different states to obtain different mechanical properties and uses. The following are several common states of 6061 aluminum tube metal:

T6: This is one of the most common states in 6061 aluminum tube metal. In the T6 state, the aluminum alloy undergoes high-temperature solution treatment and then is rapidly quenched. This process gives it high strength and hardness. 6061 aluminum in T6 temper is commonly used in structural applications where strength is critical.

T4: In this state, the aluminum alloy has been solid solution treated and then aged naturally. It offers good formability and weldability while still possessing reasonable strength. 6061 aluminum in T4 temper is typically used in applications that require forming or bending.

T651 : Similar to the T6 condition, but with additional stretching after solution treatment. This stretching process reduces internal stress and enhances dimensional stability. 6061 aluminum in T651 condition is typically used in applications requiring precision parts and components where tight tolerances are required.

O : This is the annealed state of 6061 aluminum, completely softened. It has excellent formability but is less strong than in the processed state. 6061 aluminum in the O temper is suitable for applications where extensive forming is required or where strength is not a primary consideration.

T6511: This is a stretched version of the T651 condition, achieved through a stretching process. It offers properties similar to T651 aluminum, but with improved flatness and straightness. 6061 aluminum in the T6511 temper is typically used in applications where flatness is critical, such as aerospace components.

These are some of the most common states of 6061 aluminum tubes, but there are others available, each offering specific properties suitable for different applications.

Applications of 6061 Aluminum Pipe Metal

6061 Aluminum Pipe & Tube Packages

The following is our company’s standard aluminum pipe & tube export packaging. If the customer has any packaging requirements, our company can meet them.
