Aluminum Honeycomb Panels: The Complete Guide
Aluminum honeycomb panels are sandwich structures built from two thin aluminum face sheets bonded to a core of hexagonal aluminum cells — a geometry borrowed from beehives. The result is extraordinary: panels that are stiffer and lighter than solid metal, with the highest strength-to-weight ratio of any common construction material. That is why honeycomb panels are the backbone of aircraft floors, spacecraft structures, high-speed train interiors, architectural facades, and marine bulkheads.
This guide explains how aluminum honeycomb panels are made, how the core works, the key performance properties (flatness, stiffness, fire behavior), how to choose cell size and face gauge, and where these panels deliver the greatest value.
As a aluminum manufacturer and supplier, HXM Aluminum supplies the high-quality aluminum sheets and aluminum coils used to produce honeycomb core and sandwich panels, in the alloys and gauges the industry specifies.
How Honeycomb Structure Works: The Physics of Strength

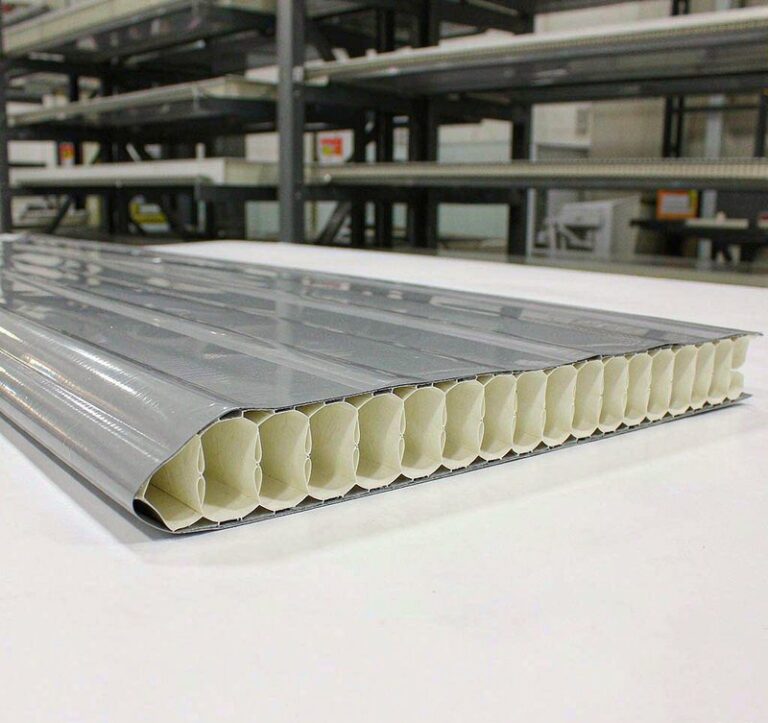

A sandwich panel works like an I-beam laid flat: the face sheets carry the bending and compression loads (like the flanges of an I-beam), while the core keeps the faces apart and carries shear loads (like the web). Separating the faces by the core thickness dramatically increases the panel’s second moment of area — the stiffness of a panel increases with the cube of its total thickness — so a 20 mm honeycomb panel can be stiffer than a 20 mm solid aluminum plate while weighing a fraction of it.
The hexagonal cell shape is not arbitrary: hexagons fill space with minimal wall material, giving maximum strength per unit of core weight, and they behave isotropically in the plane of the panel — the same stiffness in every direction, which is why hexagonal honeycomb dominates over square or other cell shapes.
Honeycomb Core: Cell Size, Foil Gauge & Alloy

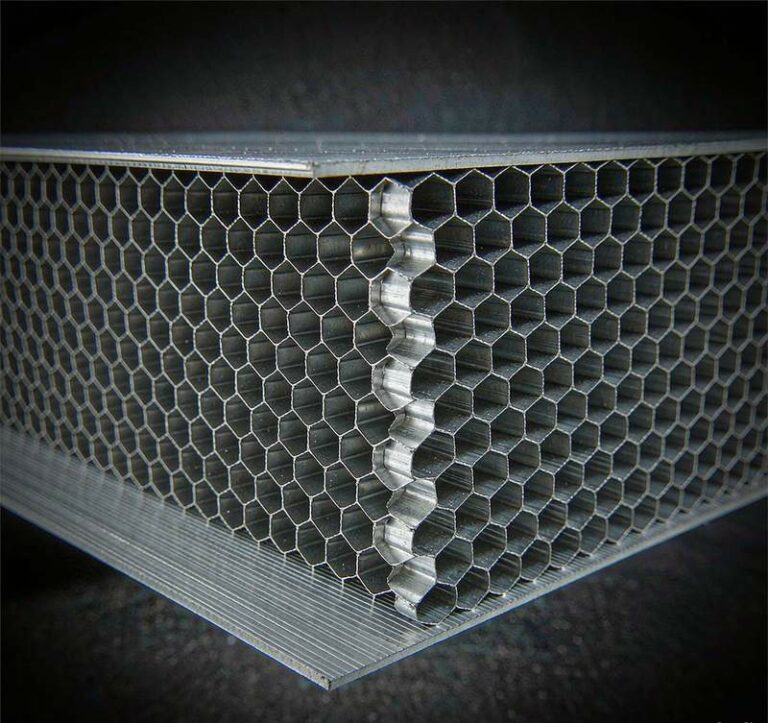

Honeycomb core is produced by stacking thin aluminum foil, applying adhesive in stripes, expanding the stack into a honeycomb block, and then slicing it to the required core thickness. The two variables that define core performance are cell size (distance across the flats, typically 3.2–19 mm) and foil gauge (typically 0.02–0.10 mm). Smaller cells and thicker foil give a denser, stronger core; larger cells and thinner foil give a lighter, cheaper core.
Typical Aluminum Honeycomb Core Specifications
| Cell Size (mm) | Foil Gauge (mm) | Core Density (kg/m³) | Compressive Strength (MPa) | Typical Use |
|---|---|---|---|---|
| 3.2 | 0.03 | ~130 | ~3.1 | Aircraft flooring, high load panels |
| 4.8 | 0.03 | ~83 | ~2.0 | Aviation, rail interiors |
| 6.4 | 0.04 | ~62 | ~1.4 | Doors, partitions, architectural |
| 9.5 | 0.05 | ~52 | ~1.1 | Signage, display panels |
| 19.0 | 0.05 | ~29 | ~0.5 | Light architectural panels, ceilings |
Face Sheets: Alloys, Gauges & Surface Options
The face sheets give the panel its stiffness, surface quality, and appearance. Common face alloys are 3003 (general purpose), 5052 (marine and outdoor corrosion resistance), and 6061 (higher strength, structural use). Face gauges range from 0.3 mm to 3.0 mm — thinner faces for interior and lightweight panels, thicker faces where impact resistance or heavy point loads are expected.
Faces can be supplied mill finish (for concealed or painted applications), anodized (architectural finishes, color options), PVDF-coated (exterior cladding), or with decorative laminates (wood, stone, and metal-effect films for interiors). Read our aluminum anodizing guide and surface finishing guide for finish comparisons.
Key Properties: Stiffness, Weight & Flatness
Compared to solid aluminum plate, honeycomb panels offer the same bending stiffness at a fraction of the weight. A typical 16 mm architectural honeycomb panel with 1.0 mm faces weighs about 5–7 kg/m² versus roughly 43 kg/m² for 16 mm solid plate — a weight saving of 85% or more while maintaining comparable stiffness. Panels also deliver exceptional flatness: because the bonded sandwich structure locks the faces in place, large honeycomb panels stay flat without the oil-canning and waviness that afflict single-skin sheets, even in large unsupported spans.
Aluminum Honeycomb vs Alternative Panel Materials
| Property | Aluminum Honeycomb | Solid Aluminum Plate | Aluminum Composite (ACM) | Steel Plate |
|---|---|---|---|---|
| Weight (16 mm panel) | 5–7 kg/m² | ~43 kg/m² | ~8–10 kg/m² | ~126 kg/m² |
| Bending stiffness | Very high | High | Medium | Very high |
| Flatness over large spans | Excellent | Good | Good | Fair (heavy) |
| Fire performance | Non-combustible core | Non-combustible | PE core flammable | Non-combustible |
| Impact/dent resistance | Good | Excellent | Poor–fair | Excellent |
| Corrosion resistance | Excellent | Excellent | Good | Poor (needs coating) |
Fire Performance & Safety Standards
One of the strongest reasons architects choose aluminum honeycomb over plastic-core composite panels is fire safety. The honeycomb core is non-combustible aluminum — there is no polyethylene or other combustible filler. Panels can be engineered to meet stringent classifications including ASTM E84 Class A, EN 13501-1 A2, BS 476 Part 6/7, and NFPA 285 for exterior wall assemblies. This makes honeycomb panels a preferred choice for high-rise facades, transit interiors, and public buildings where composite panels with PE cores are increasingly restricted by building codes.
Applications: Aerospace, Transit, Marine & Architecture

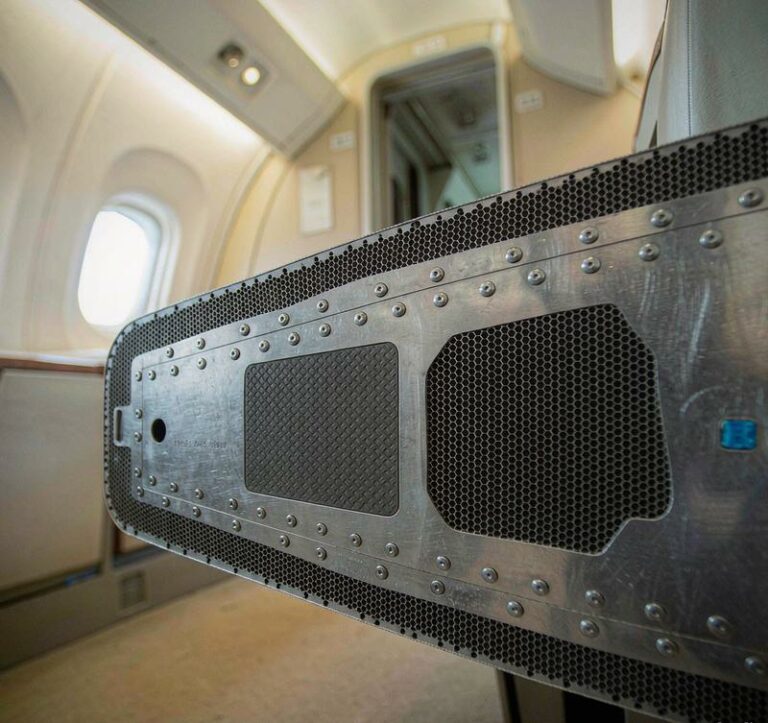

Honeycomb’s strength-to-weight advantage has made it the standard material wherever weight costs money. In aerospace, aluminum honeycomb panels form aircraft floors, galley structures, cargo liners, and interior walls — every kilogram saved reduces fuel burn. In high-speed rail and transit, honeycomb floors and wall panels cut weight while meeting fire and structural standards. In marine applications, 5052-based honeycomb panels provide lightweight, corrosion-resistant bulkheads and decks. In architecture, large-format honeycomb panels deliver perfectly flat, lightweight facades, column covers, canopies, and interior wall systems with premium finishes.
Aluminum Honeycomb Panel Applications and Requirements
| Industry | Typical Face Alloy | Cell Size (mm) | Panel Thickness (mm) | Key Requirement |
|---|---|---|---|---|
| Aircraft floors | 2024 / 5052 | 3.2–4.8 | 10–25 | FAA fire, impact, wear |
| Rail transit interiors | 3003 / 5052 | 4.8–6.4 | 10–20 | EN 45545 fire, low weight |
| Marine bulkheads/decks | 5052 | 4.8–6.4 | 15–30 | Saltwater corrosion resistance |
| Building facades | 3003 / 5052 | 6.4–9.5 | 12–30 | Flatness, A2 fire, PVDF finish |
| Interior wall systems | 3003 / 1100 | 6.4–9.5 | 10–20 | Decorative finish, flatness |
| Doors & partitions | 3003 / 5052 | 6.4 | 15–40 | Impact, flatness, hinge support |
How Honeycomb Panels Are Manufactured

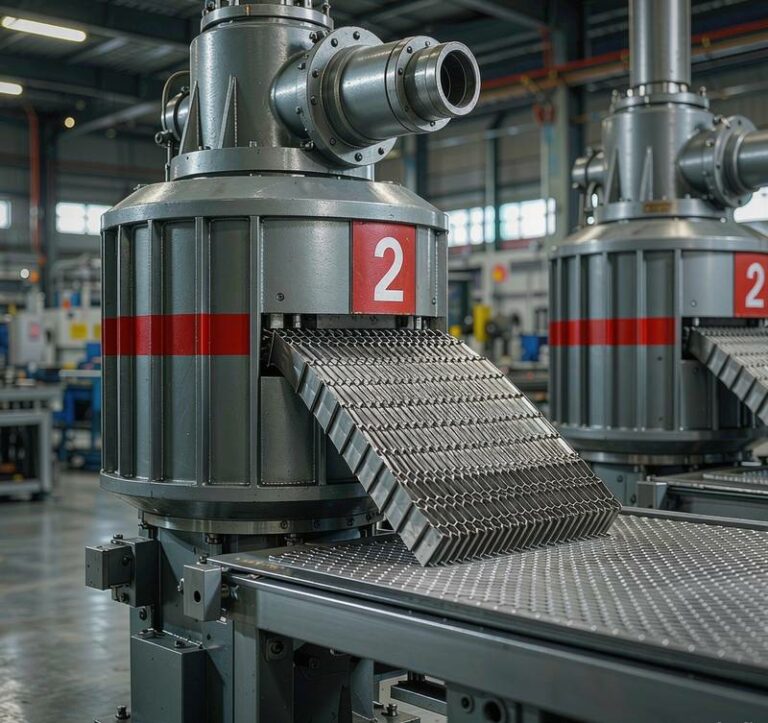

Honeycomb sandwich panels are produced in three main steps. First, the core block is made by bonding stacked foil sheets in stripes, then expanding the stack into a honeycomb block and slicing it to thickness. Second, the face sheets are cleaned, chemically treated (conversion coating for adhesion), and coated with structural adhesive film. Third, the stack of face – core – face is cured in a hot press or autoclave under controlled temperature and pressure, bonding everything into a rigid panel. Panel makers then edge-close, cut to size, and apply edge profiles or sealing tapes.
Edge Closing, Inserts & Fabrication Considerations
Because the honeycomb core is exposed at panel edges and is not solid, fabrication needs care. Edge closing — aluminum edge profiles, folding, or sealing tapes — protects the core from moisture ingress and gives panels a clean finished edge. Threaded inserts or potted-in fittings are used where panels must be bolted or hinged; fastening through the face alone can crush the core locally. Panels can be CNC routed for cutouts and grooves, but through-cut edges must be re-sealed. For projects that will be bent or formed, note that honeycomb panels have limited bendability — face sheets can wrinkle on tight radii, so specify pre-formed or edge-closed panels instead.
Honeycomb Panel Specification Checklist
| Parameter | What to Specify | Typical Values |
|---|---|---|
| Total panel thickness | Core + 2 faces | 10–40 mm |
| Face alloy & gauge | 3003 / 5052 / 6061, 0.3–3.0 mm | 1.0 mm standard |
| Core cell size | 3.2–19 mm across flats | 6.4 mm |
| Core density | kg/m³ of core | 50–130 kg/m³ |
| Panel size | Max sheet 1500×3000 mm typical | 1250×2500 / 1500×3000 |
| Face finish | Mill / anodized / PVDF / laminate | Per project |
| Edge treatment | Edge profile / folding / sealed | Per project |
| Fire standard | ASTM E84 / EN 13501 / NFPA 285 | Class A / A2 |
Sourcing Honeycomb-Grade Aluminum from HXM
HXM Aluminum supplies the precise aluminum material honeycomb panel manufacturers need, with tight tolerances and full documentation:
- Honeycomb core foil in 3003, 5052, and 5056 alloys, gauges 0.02–0.10 mm, with controlled surface cleanliness for adhesive bonding
- Face sheets in 3003, 5052, and 6061, gauges 0.3–3.0 mm, in sheet or coil, with flatness and finish options
- Mill test certificates with full chemical composition and mechanical properties for aerospace, transit, and architectural specifications
- Custom widths and coils to match your core production line
Our material is supplied with documented alloy and temper conformity, consistent gauge control, and surface treatment readiness, so your bonding process starts with predictable metal every time.
Frequently Asked Questions
1. What is an aluminum honeycomb panel?
An aluminum honeycomb panel is a sandwich structure with two thin aluminum face sheets bonded to a hexagonal aluminum core. The core keeps the faces apart, dramatically increasing bending stiffness with very little added weight, so panels are stiffer and far lighter than equivalent solid aluminum plate. Panels are used in aerospace, transit, marine, and architectural applications where light weight, flatness, and strength matter.
2. How much lighter is a honeycomb panel than solid aluminum?
A 16 mm architectural honeycomb panel with 1.0 mm faces weighs about 5–7 kg/m², compared with roughly 43 kg/m² for 16 mm solid aluminum plate — a weight saving of 80–85% at comparable bending stiffness. Even against aluminum composite panels (ACM), honeycomb is typically 20–40% lighter and much stiffer.
3. Is aluminum honeycomb fire-resistant?
Yes. The core is non-combustible aluminum with no plastic filler, so panels can be engineered to meet ASTM E84 Class A, EN 13501-1 A2, BS 476, and NFPA 285 requirements. This is a key reason honeycomb is specified for high-rise facades and transit interiors, where combustible PE-core composite panels are increasingly restricted by code.
4. What is the difference between honeycomb and aluminum composite panels (ACM)?
ACM has a solid plastic (typically polyethylene) core between two thin aluminum skins — lighter and cheaper, but the PE core is combustible and the panels dent and oil-can more easily. Honeycomb panels have a metallic cellular core: stiffer, flatter, non-combustible, and more impact-resistant, but more expensive. For fire-rated facades and high-performance interiors, honeycomb is the superior choice.
5. Which aluminum alloys are used for honeycomb panels?
Core foil is usually 3003, 5052, or 5056 — the higher magnesium alloys (5052/5056) give stronger cores for aerospace. Face sheets are typically 3003 (general), 5052 (marine/outdoor corrosion resistance), or 6061 (structural strength). For aircraft structural panels, 2024 faces are also used. HXM supplies all of these in the gauges honeycomb manufacturers specify.
6. How are honeycomb panels made?
First, foil sheets are bonded in stripes and expanded into a honeycomb block, which is sliced to core thickness. Then the face sheets are cleaned, conversion-coated, and bonded to the core with structural adhesive film. The face–core–face stack is cured in a hot press or autoclave under controlled temperature and pressure, then edged, cut, and finished.
7. Can honeycomb panels be bent or formed?
Honeycomb panels have limited bendability because the face sheets can wrinkle on tight radii. For curved or folded applications, specify pre-formed panels, edge-closed panels, or panels with routered grooves for folding. Through-cut edges must be re-sealed to protect the core from moisture. For fixing, use threaded inserts or potted fittings rather than face-through fasteners.
8. Can HXM supply honeycomb-grade aluminum with full documentation?
Yes. HXM Aluminum supplies honeycomb core foil and face sheet material in 3003, 5052, 5056, and 6061 with mill test certificates, documented alloy/temper conformity, controlled gauges, and surface cleanliness suitable for adhesive bonding. We support custom widths and coils for core production lines. Contact us with your core or face sheet specification for a quotation.
Build Lighter and Stronger with Honeycomb-Grade Aluminum
From aircraft floors to flat architectural facades, honeycomb construction is the most weight-efficient way to build rigid panels. HXM Aluminum provides the precision core foil and face sheet stock that makes these panels possible — with the tolerances, surface quality, and certification your production demands.
