Aluminum Surface Finishing Guide: Beyond Anodizing

Aluminum’s natural properties — lightweight strength, corrosion resistance, and recyclability — make it indispensable across industries. However, raw aluminum rarely meets end-use requirements without surface finishing. Surface treatment transforms aluminum from a functional base metal into a performance-engineered material with specific aesthetic, protective, and functional characteristics.

This comprehensive guide covers the complete landscape of aluminum surface finishing technologies, from the well-known anodizing process to advanced powder coating, PVDF fluorocarbon systems, mechanical finishing, e-coating, and decorative sublimation. Whether you’re sourcing aluminum sheets for architectural cladding, aluminum profiles for industrial applications, or fabricated components requiring specialized finishes, this guide provides the technical depth to make informed decisions.

HXM Aluminum, as a leading Chinese aluminum manufacturer, offers a complete range of surface finishing options on all product categories including sheets, tubes, profiles, and coils. Read on to discover which finishing method best suits your project requirements.

Aluminum surface finishing refers to the industrial processes applied to aluminum substrates to modify their surface properties. These processes serve three primary functions:

• Protection: Enhancing corrosion resistance, UV stability, and wear resistance
• Aesthetics: Achieving desired colors, textures, gloss levels, and decorative patterns
• Functionality: Improving electrical conductivity, adhesion properties, hardness, or friction characteristics

The choice of finishing method depends on the end-use application, environmental exposure conditions, budget constraints, and desired aesthetic outcome. Modern aluminum finishing encompasses chemical, electrochemical, mechanical, and organic coating technologies, each with distinct advantages and limitations.

Proper surface treatment transforms aluminum’s performance profile significantly. Key benefits include:

• Extended Service Life: Quality finishes can extend aluminum’s service life to 30-50 years in architectural applications
• Aesthetic Versatility: From matte to high-gloss, metallic to wood grain — modern finishing offers virtually unlimited design options
• Enhanced Corrosion Protection: Multi-layer coating systems provide barrier protection far beyond natural aluminum oxide
• Improved Cleanability: Finished surfaces resist dirt accumulation and are easier to maintain
• Value Addition: Finished aluminum commands significantly higher market value than mill-finish products

Anodizing is an electrochemical process that converts the aluminum surface into a durable, corrosion-resistant oxide layer. While this guide focuses on finishing methods beyond anodizing, understanding anodizing provides essential context for comparing alternative technologies.

For a comprehensive deep-dive into anodizing processes, visit our detailed anodizing guide or explore our range of anodized aluminum sheets.

Type I anodizing uses chromic acid as the electrolyte, producing a thin (0.5-2.5 microns), dense oxide layer. It offers good corrosion protection with minimal dimensional change, making it suitable for precision components and aerospace applications where fatigue strength retention is critical. The resulting coating is typically gray and provides an excellent base for paint adhesion.

Type II is the most common anodizing specification, using sulfuric acid electrolyte to produce coating thicknesses of 2.5-25 microns. It accepts dyes readily, enabling a wide color range for decorative applications. Commonly applied to architectural extrusions, consumer products, and automotive components. For related products, see our aluminum sheets available in anodized finish.

Type III hardcoat anodizing operates at lower temperatures and higher current densities to produce exceptionally thick (25-150 microns), hard oxide layers. These coatings approach the hardness of sapphire and provide outstanding wear and abrasion resistance. Applications include military equipment, hydraulic components, and high-wear industrial parts.

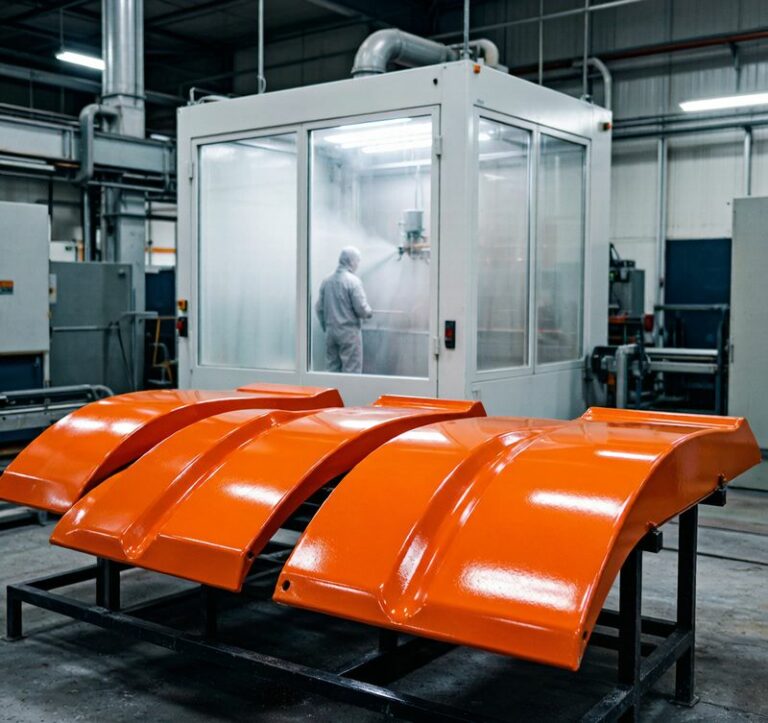

Powder coating has emerged as one of the most popular aluminum finishing methods worldwide. It applies dry thermoplastic or thermoset polymer powder electrostatically to the aluminum surface, then cures it under heat to form a continuous, durable film. The process is solvent-free, environmentally friendly, and produces finishes with outstanding mechanical and chemical resistance.

The powder coating process follows a systematic sequence:

1. Surface Preparation: Aluminum is cleaned and chemically pre-treated (typically chrome-free conversion coating)
2. Drying: Parts are dried in an oven to remove all moisture
3. Powder Application: Electrostatic spray guns charge powder particles as they exit the nozzle; the grounded aluminum part attracts the charged powder
4. Curing: Parts enter a curing oven at 180-200°C where powder particles melt, flow, and cross-link into a continuous film
5. Cooling and Inspection: Finished parts are cooled and inspected for film thickness, adhesion, and appearance

The electrostatic application ensures excellent transfer efficiency (up to 98% with recovery systems), while the thermal curing creates a finish that is tougher than conventional liquid paint.

Powder coating delivers exceptional performance across multiple metrics:

• Corrosion Resistance: Exceeds 1,000 hours in ASTM B117 salt spray testing when applied over proper pre-treatment
• Impact Resistance: Outstanding flexibility and impact resistance — coated panels can withstand 160 inch-pounds of direct and reverse impact
• Chemical Resistance: Resistant to solvents, acids, alkalis, and cleaning chemicals
• UV Stability: Polyester powder coatings with UV stabilizers provide 10-15 years of exterior durability
• Hardness: Typically 2H-4H pencil hardness, providing good scratch resistance

Powder coating offers virtually unlimited color possibilities. Available finishes include:

• Solid Colors: RAL, Pantone, or custom-matched colors in gloss, semi-gloss, or matte
• Metallic Effects: Aluminum flake, mica, and pearlescent pigments create metallic and sparkle effects
• Textured Finishes: Wrinkle, hammer tone, sand, and fine texture options
• Clear Coats: Transparent powder for protecting polished or brushed aluminum surfaces
• Anti-graffiti: Special formulations that resist paint and marker adhesion
• Anti-bacterial: Silver-ion additives for healthcare and food processing environments

PVDF (polyvinylidene fluoride) coating, also known as fluorocarbon or Kynar coating, represents the gold standard for architectural aluminum finishing. Based on a resin system containing minimum 70% PVDF fluoropolymer, these coatings deliver unparalleled weather resistance and color stability for premium building projects.

The high carbon-fluorine bond energy (485 kJ/mol) in PVDF makes it extraordinarily resistant to UV degradation, chemical attack, and environmental pollutants — qualities essential for aluminum sheets used in building facades exposed to decades of outdoor weathering.

PVDF coating is applied as a liquid paint system in a controlled factory environment:

1. Pre-treatment: Multi-stage chromate or chrome-free conversion coating for maximum adhesion
2. Primer Application: Corrosion-inhibiting primer applied by spray
3. Color Coat: PVDF-based color coat containing pigments and fluoropolymer resin — typically applied in 2-3 coats
4. Clear Coat (Optional): Transparent PVDF topcoat for added gloss and protection
5. Curing: Each coat is baked at 230-250°C peak metal temperature to fuse the fluoropolymer

Total dry film thickness ranges from 25-45 microns for 2-coat systems to 35-60 microns for 3-coat systems.

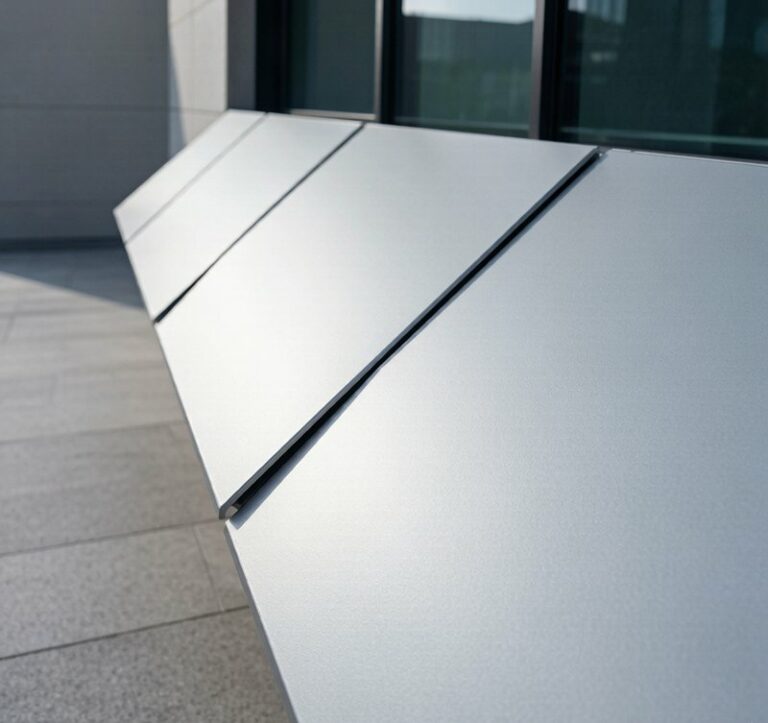

PVDF coatings dominate high-end architectural projects worldwide. Key applications include:

• Curtain wall panels and mullions
• Aluminum composite panels (ACP/ACM)
• Canopy and soffit systems
• Column covers and fascia panels
• Window and door frames in premium buildings

PVDF meets the most stringent architectural standards including AAMA 2605, which requires 10-year Florida exposure testing with maximum 5 Delta E color change — the highest performance specification in the industry.

Liquid paint systems remain important in aluminum finishing, particularly for applications requiring precise color matching, special effects, or coating of complex geometries. Two primary liquid application methods serve the aluminum industry: conventional wet spray and continuous coil coating.

These systems complement powder coating and PVDF technologies, offering unique advantages for specific aluminum profile and sheet applications.

Conventional wet spray applies liquid paint through pneumatic, airless, or HVLP (high-volume low-pressure) spray equipment. This method excels for:

• Small Batches: Cost-effective for low-volume or custom color runs
• Complex Shapes: Manual spraying reaches areas inaccessible to powder application
• Touch-Up: On-site repair of damaged factory finishes
• Specialty Coatings: Application of zinc-rich primers, epoxy systems, and high-temperature coatings

Two-component polyurethane and acrylic paint systems offer good exterior durability, typically lasting 5-10 years in outdoor exposure.

Coil coating applies liquid paint to continuous aluminum strip in a high-speed, automated process. The aluminum coil unwinds, passes through cleaning and pre-treatment, receives roller-applied coating, and is cured in seconds at high temperature before rewinding.

Advantages of coil coating include:

• Uniformity: Precision application ensures consistent film thickness across the entire coil
• Efficiency: Process speeds of 100-200 meters per minute minimize cost
• Material Yield: Nearly 100% material utilization with minimal waste
• Post-Formability: Coatings are formulated to withstand subsequent bending, stamping, and roll-forming

Coil-coated aluminum is extensively used in roofing, siding, gutters, and appliance panels. HXM supplies pre-painted aluminum coils in a full range of colors and paint systems.

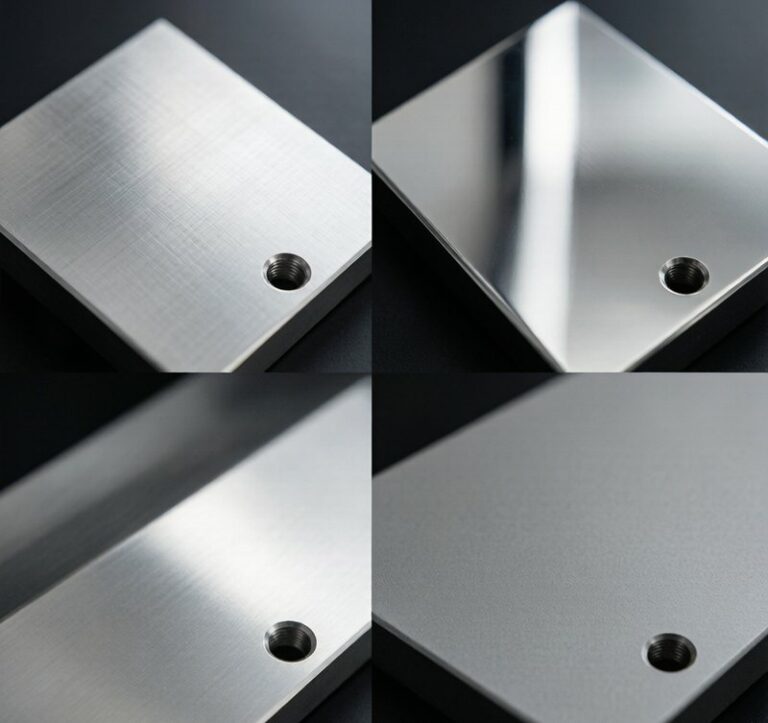

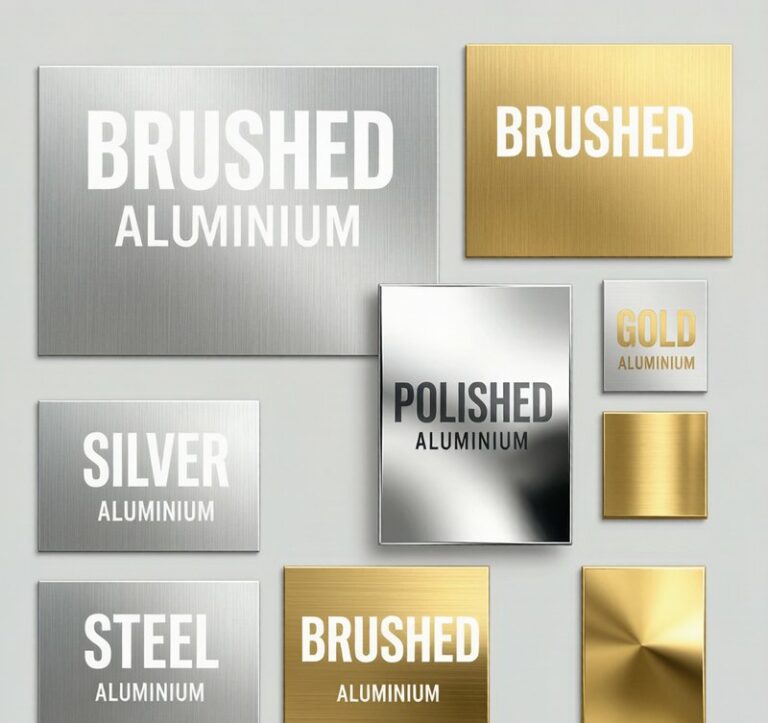

Mechanical finishing modifies the aluminum surface through physical abrasion, creating textures from mirror-polished to uniformly brushed. Unlike coating-based methods, mechanical finishing reveals the natural metallic character of aluminum and is often used as a standalone finish or as a pre-treatment before anodizing or clear coating.

Brushed aluminum is produced by uniformly abrading the surface with abrasive belts, brushes, or wheels. The process creates a consistent linear grain pattern that masks fingerprints and minor scratches while providing a sophisticated industrial aesthetic.

Key characteristics of brushed finishes:

• Grain Options: Available in various grit sizes from coarse (#80) to fine (#320+), producing different visual effects
• Directional Appearance: Linear brushing creates a directional, engineered look popular in consumer electronics and appliances
• Practical Benefits: Brushed finishes hide fingerprints and minor handling marks better than polished surfaces
• Applications: Interior architectural panels, elevator interiors, appliance fascias, and consumer product housings
• Protection: Brushed surfaces typically receive a clear anodic or lacquer coating for durability

Polishing produces a highly reflective, mirror-like aluminum surface through progressive abrasive refinement followed by buffing with polishing compounds. The process uses rotating wheels, belts, or vibratory equipment with successively finer abrasives.

Polished aluminum specifications:

• Reflectivity: Can achieve >85% total reflectance with proper processing
• Surface Roughness: Ra values as low as 0.02-0.05 microns
• Applications: Decorative trim, lighting reflectors, automotive brightwork, and architectural accents
• Maintenance: Polished surfaces require protective clear coating to prevent oxidation and tarnishing
• Cost Factor: High-luster polishing is labor-intensive and significantly more expensive than brushing

Satin finishing occupies the middle ground between brushed and polished, providing a smooth, low-gloss surface with subtle reflectivity. Produced by fine abrasive blasting, chemical etching, or controlled mechanical abrasion, satin finishes offer an elegant, contemporary appearance.

Satin aluminum is commonly specified for:

• Architectural interior panels and column covers
• Furniture components and retail fixtures
• Marine interior fittings
• Signage and display systems

For satin-finished aluminum sheets, the finish is typically sealed with a clear anodized layer for protection while maintaining the visual effect.

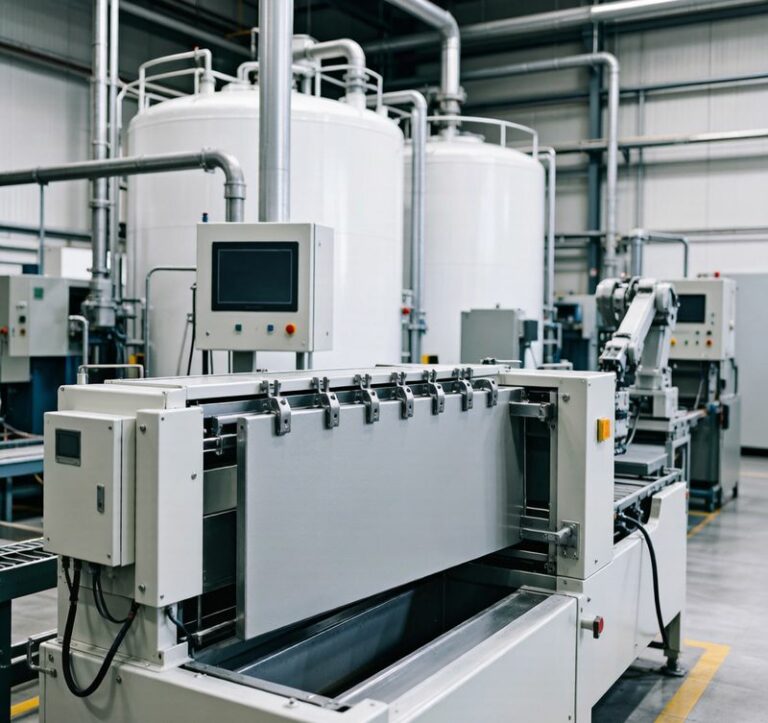

Electrophoretic deposition, commonly called e-coating or electrocoating, applies an organic coating through an electrochemical process. Aluminum parts are immersed in a water-based paint bath where an electric current causes charged paint particles to migrate and deposit uniformly onto the aluminum surface.

The e-coating process provides unmatched coverage uniformity, particularly for complex geometries:

1. Cleaning and Pre-treatment: Multi-stage alkaline cleaning, rinsing, and phosphate or zirconium conversion coating
2. Immersion: Parts are immersed in the electrocoat bath containing deionized water, resin, pigments, and solvents
3. Deposition: DC voltage (50-300V) causes charged resin particles to migrate and deposit on the part surface
4. Rinsing: Excess bath material is rinsed with ultrafiltrate to recover paint solids
5. Curing: Parts bake at 160-190°C to cross-link the deposited film

The self-limiting nature of electrodeposition — as the insulating film builds, deposition rate decreases — ensures uniform thickness even in recessed areas, cavities, and edges.

E-coating delivers several unique performance benefits compared to spray-applied coatings:

• Complete Coverage: Reaches interior surfaces, weld seams, and complex geometries that spray applications miss
• Uniform Thickness: Self-limiting process produces consistent 15-35 micron films across the entire part
• Excellent Corrosion Protection: Exceeds 1,000 hours salt spray resistance when cathodic e-coat is applied over proper pre-treatment
• Environmental Compliance: Water-based, low-VOC, and closed-loop rinse systems minimize environmental impact
• High Transfer Efficiency: >95% material utilization with recovery systems
• Automation Ready: Ideal for high-volume production lines with consistent quality

E-coating is widely used for automotive aluminum components, including structural parts, brackets, heat shields, and suspension components.

Sublimation finishing transfers decorative patterns — most commonly wood grain and stone effects — onto aluminum surfaces through heat transfer printing. This technology has revolutionized architectural aluminum, providing the warm aesthetics of natural materials with the durability and low maintenance of aluminum.

The process is particularly popular for aluminum profiles used in window frames, door systems, and curtain wall applications where natural wood appearance is desired without the maintenance burden of real timber.

The sublimation process transfers designs from a printed film to the aluminum surface:

1. Substrate Preparation: Aluminum receives a powder-coated base layer, typically in a color that complements the final design (e.g., white or light beige for wood effects)
2. Film Wrapping: A transfer film printed with the desired wood grain, stone, or abstract pattern is wrapped around the aluminum profile or sheet
3. Vacuum and Heat: Parts are placed in a vacuum press and heated to 180-200°C. The vacuum ensures complete film-to-surface contact
4. Dye Sublimation: Under heat and vacuum, dyes in the film sublimate — transitioning directly from solid to gas — and penetrate into the powder coating layer
5. Film Removal: After cooling, the depleted transfer film is removed, leaving the permanently embedded design

The sublimated dyes penetrate 60-100 microns into the powder coat, creating a finish that will not peel, crack, or delaminate.

Sublimation finishing offers extraordinary design flexibility for aluminum profiles and architectural products:

• Wood Grain Effects: Oak, walnut, mahogany, teak, ash, and dozens of other species — indistinguishable from real wood in appearance
• Stone Effects: Marble, granite, travertine, and concrete textures for modern architectural aesthetics
• Abstract Patterns: Custom designs, logos, camouflage, and artistic patterns
• Metallic Effects: Brushed metal, patina, and oxidized finishes on powder base

Sublimated aluminum combines the visual warmth of natural materials with aluminum’s structural advantages: it won’t rot, warp, fade (10-15 years UV resistance), or require painting. This makes it ideal for exterior windows, doors, curtain walls, railings, and decorative panels.

Surface preparation is arguably the most critical factor determining the quality and longevity of any aluminum finish. Regardless of the coating technology selected, inadequate pre-treatment will result in premature coating failure — adhesion loss, blistering, under-film corrosion, and delamination.

All aluminum finishing begins with thorough cleaning to remove contaminants that would interfere with coating adhesion:

• Alkaline Cleaning: Removes oils, greases, and shop soils using mild to moderate alkaline solutions at 50-70°C
• Acid Cleaning: Removes oxides, mill scale, and inorganic soils using phosphoric or sulfuric acid-based cleaners
• Solvent Degreasing: Vapor degreasing or wipe-down with organic solvents for heavy oil removal
• Ultrasonic Cleaning: For precision parts, ultrasonic agitation in cleaning solution removes particles from intricate geometries

Water break-free surfaces — where rinse water sheets uniformly without beading — indicate effective cleaning.

Conversion coating chemically modifies the aluminum surface to improve coating adhesion and corrosion resistance. The chemical reaction converts the aluminum surface into a non-metallic, corrosion-resistant layer:

• Chrome Phosphate (Yellow Chromate): Traditional standard offering excellent performance; being phased out in many regions due to hexavalent chromium regulations (REACH, RoHS)
• Chrome-Free Conversion: Titanium/zirconium-based, silane, or organic-inorganic hybrid coatings; the modern standard meeting environmental requirements without sacrificing performance
• Phosphate Coating: Iron or zinc phosphate provides an excellent paint base with good corrosion resistance
• Anodizing as Pre-treatment: Thin anodic layers (2-5 microns) create an ideal surface for subsequent organic coating adhesion

The conversion coating weight is measured in mg/m², with optimal ranges varying by coating type. Chrome-free technologies now match or exceed the performance of traditional chromate processes.

Mechanical surface preparation physically removes surface contaminants and oxides while creating a surface profile for improved mechanical adhesion:

• Abrasive Blasting: Grit, shot, or sand blasting removes heavy oxides and creates a uniform anchor profile
• Wire Brushing: Removes loose corrosion products and mill scale
• Sanding/Grinding: Levels surface irregularities and removes weld spatter
• Sweep Blasting: Light abrasive blasting at low pressure (40-60 psi) to create a surface profile without excessive metal removal

Mechanical preparation is particularly important for field-applied coatings, repair work, and structural steel components.

The architectural aluminum market demands finishes that balance aesthetics, durability, and cost. For premium projects, PVDF offers unmatched weather resistance. For mid-range commercial and residential construction, polyester powder coating provides the optimal balance of performance and economy. Anodizing remains popular for interior architectural applications where its metallic appearance is valued.

HXM supplies finished aluminum sheets and profiles meeting AAMA, Qualicoat, and GSB international architectural standards.

Automotive aluminum finishing spans decorative exterior trim (anodized or PVDF), structural and underbody components (e-coat), wheels (powder coat or liquid), and heat exchangers (specialty coatings). The trend toward lightweighting continues to drive aluminum adoption in automotive — and with it, demand for appropriate finishing.

Our automotive-grade aluminum sheets can be supplied with the full range of finishing options ready for stamping and assembly.

Consumer electronics demand thin, precise finishes that maintain tight dimensional tolerances while providing durable, attractive surfaces. Anodizing dominates this sector — particularly dyed Type II for colored finishes and clear anodizing over brushed aluminum for a premium natural-metal look.

Mechanical finishing (brushed, satin) combined with clear anodizing creates the signature look of high-end laptops, smartphones, and audio equipment. The finish must withstand thousands of handling cycles without visible degradation.

International standards ensure aluminum finishes meet minimum performance requirements for their intended applications. Understanding these standards is essential for specifiers sourcing finished aluminum products from manufacturers like HXM.

The American Architectural Manufacturers Association (AAMA) publishes the most widely referenced standards for architectural aluminum coatings:

• AAMA 2603: Minimum performance for interior applications and non-critical exterior uses. Requires 1-year South Florida exposure with color change limits.
• AAMA 2604: Intermediate specification for commercial architectural applications. Requires 5-year Florida exposure, chemical resistance testing, and abrasion resistance.
• AAMA 2605: The highest performance specification, requiring 10-year South Florida exposure with maximum 5 Delta E units color change. Also mandates resistance to mortars, acids, cleaners, and humidity. This is the standard for premium PVDF architectural coatings.

Qualicoat is the European quality label for architectural powder, liquid, and laminate coatings on aluminum. The system classifies finishes into three classes:

• Class 1 (Standard): For general architectural applications with moderate environmental exposure. Minimum 60 microns film thickness for powder.
• Class 2 (Enhanced): For applications requiring enhanced durability, particularly in aggressive environments. Requires 1,000 hours acetic acid salt spray (AASS).
• Class 3 (Seaside): For coastal and severe industrial environments. Requires 1,500 hours AASS and filiform corrosion testing. Film thickness minimum 80 microns.

Qualicoat-licensed applicators undergo regular independent testing, providing specifiers with confidence in finish quality.

The International Organization for Standardization (ISO) publishes numerous standards relevant to aluminum finishing:

• ISO 7599: Anodizing of aluminium and its alloys — method for specifying decorative and protective anodic oxidation coatings
• ISO 2360: Non-conductive coatings on non-magnetic basis metals — measurement of coating thickness (eddy current method)
• ISO 2409: Cross-cut test for paint and varnish adhesion
• ISO 2810: Natural weathering exposure tests for paints and varnishes
• ISO 9227: Salt spray corrosion testing (neutral, acetic acid, copper-accelerated)

HXM’s finishing partners test to applicable ISO, AAMA, and Qualicoat standards based on the target market and application requirements.

Multiple variables influence the total cost of aluminum finishing:

• Part Geometry: Complex shapes require more labor and may have lower transfer efficiency, increasing cost
• Batch Size: Large volumes amortize setup costs; small batches carry a premium per unit
• Color Selection: Standard colors are most economical; custom color matching, metallic effects, and multi-coat systems increase cost
• Pre-treatment Requirements: Chrome-free conversion is standard; specialized pre-treatments for extreme environments add cost
• Quality Specifications: AAMA 2605 or Qualicoat Class 3 certification requires more rigorous process control and testing
• Geographic Location: Labor, energy, and environmental compliance costs vary by region
• Supply Chain: Integrated manufacturer-applicators (finishing at the same facility as aluminum production) typically offer lower total cost

As a general guideline for budgeting purposes (2024 Chinese manufacturing pricing):

• Powder Coating: $4-$10/m² — most economical for colored finishes on standard architectural profiles
• Anodizing: $5-$12/m² — competitive for natural and dark colors; cost rises with thickness
• E-Coating: $3-$8/m² — very economical for high-volume automotive and hardware applications
• PVDF 2-Coat: $12-$22/m² — premium architectural specification
• PVDF 3-Coat: $18-$30/m² — highest specification for landmark buildings
• Sublimation: $8-$20/m² — varies with pattern complexity and profile geometry

Note: Prices are indicative and subject to quantity, alloy, dimensional tolerances, and market conditions. Contact HXM for project-specific quotations.

As a leading aluminum manufacturer in China, HXM Aluminum provides integrated manufacturing and finishing solutions that streamline the supply chain for international buyers. Our capabilities span the full range of aluminum products and surface finishing technologies.

HXM offers the following surface finishing options across all product categories:

Key advantages of sourcing finished aluminum from HXM:

• Integrated Production: Manufacturing and finishing under one roof eliminates double handling, reduces lead times, and ensures seamless quality control
• Scale Economics: High-volume production capability delivers competitive pricing for international projects
• Quality Assurance: In-house testing laboratory equipped for salt spray, humidity, adhesion, impact, and color measurement per international standards
• Export Expertise: Experienced in preparing finished aluminum for containerized ocean freight with appropriate protective packaging
• Technical Support: Engineering team provides guidance on finish selection, specification compliance, and application optimization

Our customers source finished aluminum sheets, aluminum profiles, aluminum tubes, and aluminum coils with surface finishes ready for immediate fabrication and installation.
