3003 Aluminum Pipe & Tube Specifications
Standards: ASTM, ASME, AMS, GB/T, JIS
Thickness: 0.2-500mm, etc.
Width: 20-2650mm, etc.
Length: Customized

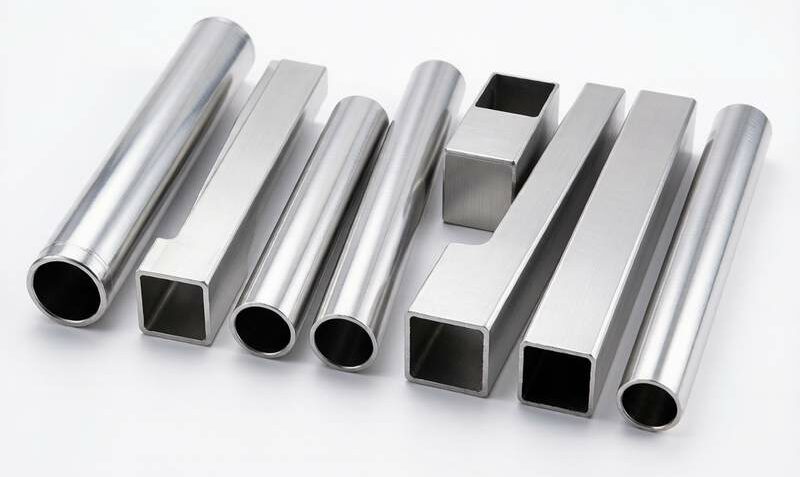

Shape: Round, Square, Rectangular, etc.
Material Temper: F, O, T4, T6, T651, H14, H112
Delivery Time: 7-20 days.
3003 Aluminum Tube & Pipe Data Sheet
Equivalent Of Aluminum 3003 Tube
European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
---|---|---|---|---|---|---|
AW-AlCu4Mg1 | AU4G1 | 3.0517 | A93003 | AlCu4Mg | 3003 | AlCuMg2 |
Chemical Composition of 3003 Aluminum Pipes
Element | Al | Mn | Cu | Si | Fe | Zn | Other Elements (each) | Other Elements (total) |
---|---|---|---|---|---|---|---|---|
Composition (%) | Balance | 1.0 – 1.5 | 0.05 – 0.20 | ≤ 0.60 | ≤ 0.70 | ≤ 0.10 | ≤ 0.05 | ≤ 0.15 |
3003 aluminum alloy tube has excellent corrosion resistance and good mechanical properties, mainly due to its manganese content.
Mechanical Properties and Tempers of 3003 Aluminum Tubes
Here is a comparison of the mechanical properties of 3003 aluminum tubes across different aluminum tempers:
Property | H14 (Half-Hard) | H18 (Full-Hard) | H22 (Quarter-Hard) | O (Annealed) |
---|---|---|---|---|
Tensile Strength | 140 – 180 MPa (20 – 26 ksi) | 165 – 205 MPa (24 – 30 ksi) | 130 – 170 MPa (19 – 25 ksi) | 95 – 135 MPa (14 – 20 ksi) |
Yield Strength | 120 – 145 MPa (17 – 21 ksi) | 150 – 185 MPa (22 – 27 ksi) | 110 – 140 MPa (16 – 20 ksi) | 35 – 75 MPa (5 – 11 ksi) |
Elongation | ~10% | ~6% | ~13% | ~30% |
Hardness (Brinell) | 50 – 65 HB | 60 – 70 HB | 45 – 60 HB | 40 – 50 HB |
3003 Aluminum Tube has good strength and ductility with excellent corrosion resistance. Mechanical properties vary depending on the temper and can be used in a range of applications from structural components to heat exchangers and general-purpose piping. The choice of temper depends on the specific requirements for strength, formability, and performance in the intended application.
For high-quality 3003 aluminum pipes and professional assistance, contact HXM, your reliable supplier of aluminum products.
Applications of 3003 Aluminum Pipe Metal
3003 aluminum pipe is known for its excellent corrosion resistance, good machinability, and moderate strength, and is widely used in various industries. Here are some common applications:

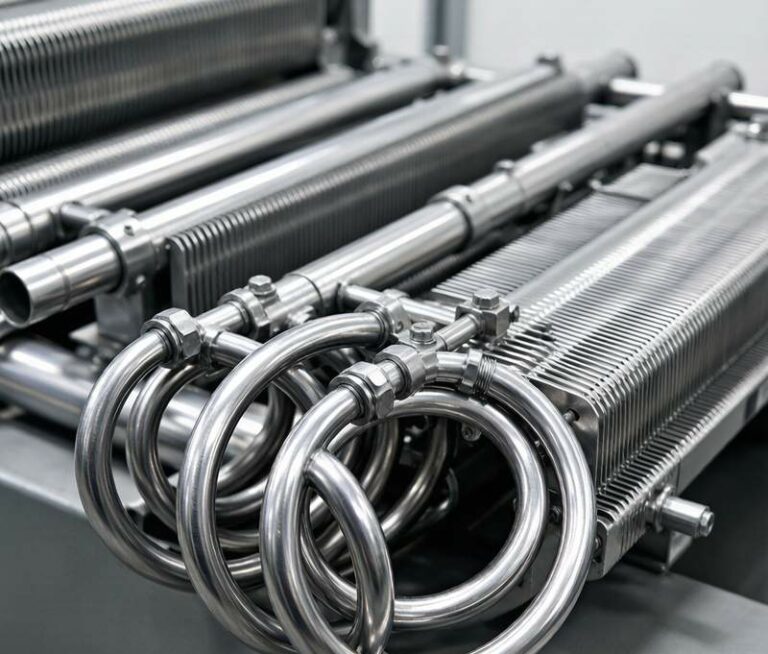

HVAC Systems:
Heat Exchangers and Radiators:
Automotive Industry:
Used in automotive manufacturing for fuel lines, hydraulic systems, and other components where lightweight and corrosion resistance are beneficial.
Employed in making various automotive parts that require good formability and durability.
Pressure Vessels and Containers:
Suitable for making low-pressure storage tanks and containers used in various industries, including chemical processing and pharmaceuticals.
Ideal for transporting and storing liquids and gases where corrosion resistance is essential.
General Fabrication and Manufacturing:
Used in general fabrication applications where moderate strength, good workability, and corrosion resistance are required.
Suitable for manufacturing custom piping solutions for various industrial applications.
3003 aluminum pipe metal is a versatile material extensively used in various industries due to its excellent corrosion resistance, good workability, and moderate strength. Its applications span heat exchangers, plumbing systems, marine and automotive industries, HVAC systems, architectural and structural elements, and general fabrication. This versatility makes 3003 aluminum pipe metal a reliable choice for many practical and industrial uses.

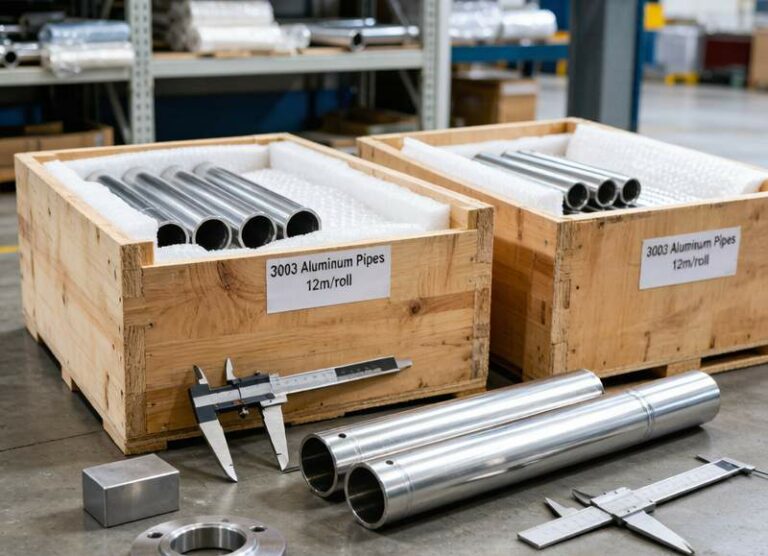

3003 Aluminum Pipe & Tube Packages
The following is our company’s standard aluminum pipe & tube export packaging. If the customer has any packaging requirements, our company can meet them.
FAQ
What Is 3003 Aluminum Pipe?
3003 is an AL-Mn alloy, which is the most widely used rust-proof aluminum. The strength of this alloy is not high (slightly higher than industrial pure aluminum), and it cannot be strengthened by heat treatment. Therefore, cold working methods are used to improve its mechanical properties: it has high plasticity in the annealed state, good plasticity during semi-cold hardening, low plasticity during cold hardening, good corrosion resistance, good weldability, and poor machinability.
3003 aluminum tube has good formability, weldability, and corrosion resistance. It is used for processing parts that require good formability, high corrosion resistance, and good weldability, or work that requires both these properties and higher strength than 1000 series alloys.
Comparison Between 3003 Aluminum Tube and 5052 Aluminum Pipe
Strength: 5052 aluminum pipe offers higher tensile and yield strength compared to 3003 aluminum tube, making it more suitable for applications requiring greater strength.
Corrosion Resistance: 5052 provides better corrosion resistance, especially in marine environments, due to its higher magnesium content.
Formability: 3003 has better formability, making it easier to work with for complex shapes and extensive forming.
Applications: 3003 is commonly used in applications where excellent formability and moderate strength are required, such as heat exchangers and food processing equipment. 5052 is favored for applications demanding higher strength and superior corrosion resistance, especially in marine and automotive industries.
How Can I Get A Sample Of 3003 Aluminum Pipes?
To request a sample of our 3003 Aluminum tube, please contact HXM directly. We offer free samples for testing, with customers only responsible for shipping costs. Our team is ready to assist you with any specific requirements and provide the necessary technical support.
Customized Service of 3003 Aluminum Tubes:
At HXM, we offer tailored services for 3003 aluminum tubes to meet your specific needs. Our customization options include:
Custom Dimensions: We provide tubes in various diameters, wall thicknesses, and lengths to fit your exact specifications.
Surface Finishes: Choose from mill finish, anodized, powder-coated, or polished to enhance appearance and performance.
Special Coatings: Add protective or epoxy coatings for increased durability and resistance to chemicals.
Fabrication Services: We offer cutting, bending, forming, welding, and machining to deliver ready-to-use components.
Environmental Protection and Sustainability:
Our production process strictly adheres to environmental protection standards and is committed to reducing environmental impact. Our 3003 aluminum tube is 100% recyclable and meets the requirements of sustainable development.
What Surface Treatments Are Available For 3003 Aluminum Tubes?
Mill Finish: Standard shiny finish from manufacturing.
Anodizing: Adds corrosion resistance and color options.
Powder Coating: Provides color variety and durability.
Painting: Customizable colors and added protection.
Polishing: Smooth, reflective surface for aesthetics.
Chemical Conversion Coating: Improves corrosion resistance.
Electropolishing: Bright, clean finish for hygiene-sensitive applications.
Why Choose Us As Your 3003 Aluminum Pipe Supplier?
There are many manufacturers and suppliers of aluminum metal in China, so why choose us as your aluminum tube metal supplier? Here are some of the advantages we recommend you to choose us as your 3003 aluminum pipe supplier:
Quality Assurance: We ensure high-quality 3003 aluminum pipes that meet industry standards and specifications.
Customization: Our ability to provide customized solutions, including dimensions, surface finishes, and fabrication services, ensures your exact requirements are met.
Experience and Expertise: With years of experience, we possess the knowledge and expertise to deliver reliable products for diverse applications.
Competitive Pricing: We offer competitive pricing without compromising on quality, providing value for your investment.
Prompt Delivery: Our efficient logistics ensure timely delivery of orders to meet your project timelines.
Customer Support: We prioritize customer satisfaction, offering dedicated support and assistance throughout your procurement process.
Comprehensive Services: From initial inquiry to after-sales support, we provide comprehensive services to ensure a seamless experience.
By choosing us as your 3003 Aluminum Pipe Supplier, you will be working with a reliable, experienced, customer-focused company that is committed to providing high-quality aluminum metal products and exceptional service.
