The automotive industry is undergoing a transformation driven by the need for fuel efficiency, emissions reduction, and the rapid rise of electric vehicles (EVs). At the center of this revolution is aluminum — a material that weighs roughly one-third as much as steel while offering excellent strength-to-weight ratios, corrosion resistance, and infinite recyclability.

Modern vehicles now contain an average of 200–250 kg of aluminum, up from just 50 kg in the 1990s. From body panels and chassis components to battery enclosures and heat exchangers, aluminum has become indispensable in automotive engineering. Leading automakers like Tesla, Ford, Audi, and BMW have adopted aluminum-intensive architectures to achieve weight reductions of 40–50% compared to traditional steel designs.

For B2B manufacturers and sourcing professionals, understanding the alloys, processes, and design considerations behind automotive aluminum is critical. This complete guide covers everything from body panels and EV battery enclosures to structural extrusions and crash management systems — with practical sourcing insights from HXM Aluminum, a leading Chinese aluminum manufacturer.

Weight is the enemy of efficiency. Every 10% reduction in vehicle weight yields a 6–8% improvement in fuel economy for internal combustion vehicles, and a similar extension in driving range for EVs. Aluminum offers a 40–50% weight reduction over steel for equivalent structural components, making it the single most effective lightweighting material available at scale.

Key Drivers for Aluminum Adoption

The shift from steel to aluminum is driven by several converging factors:

• Fuel economy regulations: Corporate Average Fuel Economy (CAFE) standards and EU CO2 targets require automakers to achieve 50+ mpg fleet averages by 2025
• EV range extension: Every 100 kg removed from an EV adds approximately 10 km of range — critical for consumer adoption
• Corrosion resistance: Aluminum forms a natural oxide layer, eliminating the need for heavy anti-corrosion coatings
• Recyclability: 75% of all aluminum ever produced is still in use; recycled aluminum requires only 5% of the energy needed for primary production
• Crash performance: Aluminum absorbs crash energy more efficiently per unit weight than steel

Weight Reduction by Vehicle System

Different vehicle systems benefit from aluminum to varying degrees. Body structures see the largest absolute weight savings, while closures (doors, hoods, liftgates) offer the best cost-to-weight-savings ratio. Aluminum sheet products from HXM are specifically engineered for these automotive applications.

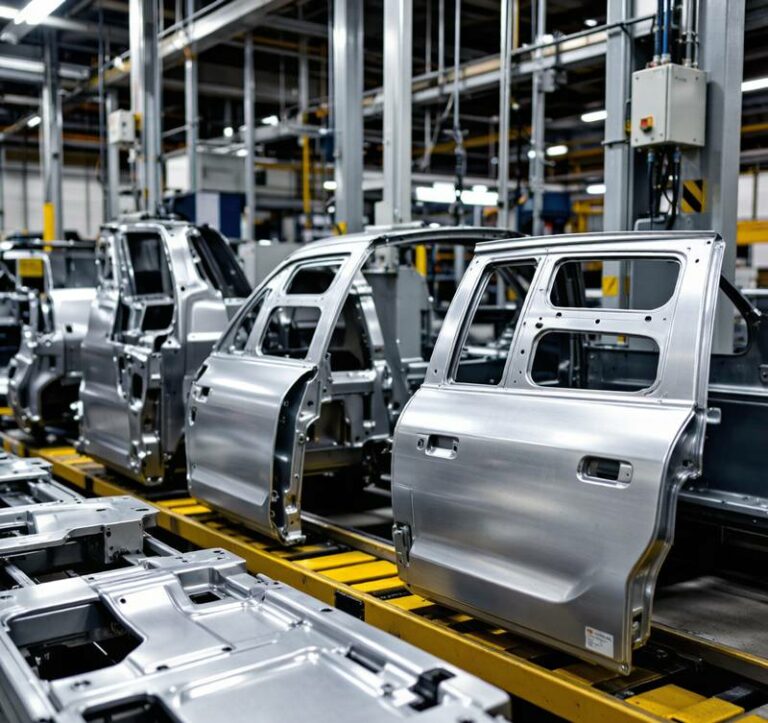

Automotive body panels require a careful balance of formability, strength, and surface finish. Three alloy series dominate this application: 5xxx (Al-Mg), and 6xxx (Al-Mg-Si) series. Each offers distinct advantages for specific panel types.

5182 Alloy — Inner Panels and Structural Components

AA5182 is a 5xxx series alloy with 4.5% magnesium content, widely used for inner body panels, floor pans, and door inner panels. Its excellent formability allows complex stamping operations, while its moderate strength provides adequate structural performance. The 5xxx series strain-hardens during forming, increasing yield strength in the finished part.

6016 Alloy — Outer Body Panels

AA6016 is the industry standard for outer body panels — hoods, doors, fenders, and liftgates. It is supplied in the T4 temper (solution heat-treated and naturally aged), providing excellent formability for stamping. After the paint-bake cycle (approximately 185°C for 30 minutes), it undergoes artificial aging to achieve final strength (T6 condition), a phenomenon known as paint-bake hardening.

6111 Alloy — High-Strength Outer Panels

AA6111 offers higher strength than 6016 while maintaining comparable formability. It is preferred by North American automakers for visible outer panels requiring enhanced dent resistance. The paint-bake response of 6111 is particularly strong, achieving yield strengths above 250 MPa after the curing cycle.

HXM Aluminum supplies automotive-grade aluminum sheets in 5182, 6016, and 5052 alloys with tight dimensional tolerances and surface quality meeting OEM specifications.

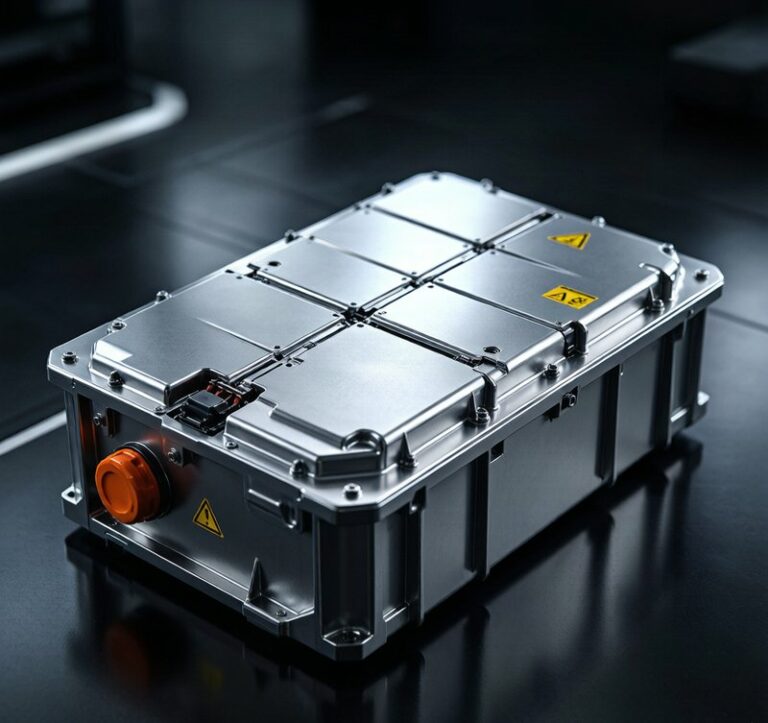

The electric vehicle revolution has created an entirely new application for aluminum: battery enclosures. The battery pack can account for 20–30% of an EV’s total weight, making the housing that protects it a critical lightweighting target. Aluminum battery enclosures are typically 40% lighter than equivalent steel designs, directly extending driving range.

Why Aluminum for EV Battery Enclosures

Battery enclosures must satisfy multiple demanding requirements simultaneously:

• Crash protection: Withstand side-pole and frontal impact tests without deforming into the battery cells
• Thermal management: Dissipate heat from cells and provide thermal runaway containment
• IP67 sealing: Prevent water and dust ingress over a 10–15 year service life
• Electromagnetic shielding: Block EMI/RFI interference from affecting battery management systems
• Lightweight: Every kilogram saved in the enclosure extends vehicle range

Alloys for Battery Enclosures

Aluminum extrusions form the frame rails and cross members of battery enclosures, while plates form the top cover and bottom shield. The most common alloys are:

6061-T6 is widely used for extruded frame members due to its excellent strength-to-weight ratio, weldability, and corrosion resistance. HXM offers 6061 aluminum alloy products including extrusions, plates, and sheets suitable for battery enclosure manufacturing.

6082-T6 is a European-origin alloy with slightly higher strength than 6061, used for heavy-duty structural members in battery enclosures. It offers superior machinability and is preferred for complex extruded cross-sections.

Aluminum battery enclosures also integrate cooling channels directly into the extrusion design, eliminating separate cooling plates and further reducing weight and assembly complexity.

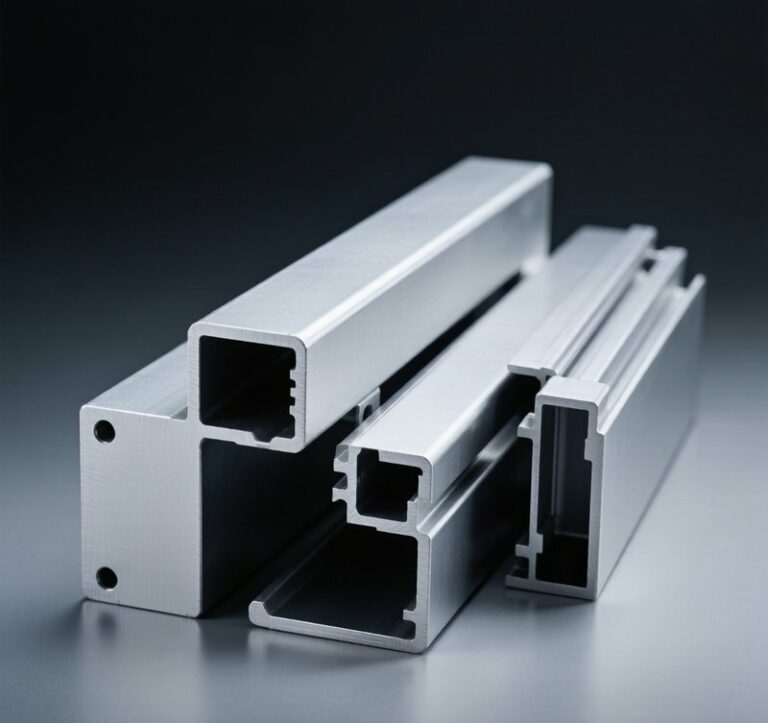

Aluminum extrusions are the backbone of modern vehicle structures. From spaceframe architectures (like the Audi A8 and Tesla Model S) to EV battery frames, extruded aluminum profiles provide engineered cross-sections that place material exactly where structural loads demand it — something impossible with stamped sheet steel.

6005 and 6005A Alloys — General Structural Extrusions

AA6005 and 6005A are the workhorses of automotive extrusion. They offer excellent extrudability, allowing complex hollow and semi-hollow cross-sections with thin walls (1.5–3.0 mm). Typical applications include chassis rails, cross members, subframes, and bumper reinforcement beams. The T5 temper (cooled from extrusion press and artificially aged) provides a good balance of strength and cost.

6063 Alloy — Cosmetic and Secondary Structural

AA6063 is used where surface finish matters: visible trim, roof rails, and interior structural components. Its excellent response to anodizing makes it ideal for applications requiring both structural performance and aesthetic appeal.

7005 Alloy — High-Strength Chassis Applications

For applications requiring maximum strength, the 7xxx series 7005 alloy offers tensile strengths exceeding 350 MPa. It is used in suspension components, control arms, and high-load chassis members. While more expensive than 6xxx alloys, 7005 enables thinner-wall designs that further reduce weight.

Aluminum has largely replaced copper and brass in automotive heat exchangers since the 1980s. Modern vehicles contain 5–7 heat exchangers — radiators, condensers, evaporators, heater cores, intercoolers, and oil coolers — all made from aluminum. The material’s excellent thermal conductivity (167–230 W/m·K), low density, and brazeability make it ideal for these applications.

3003 Alloy — Fin Stock and Tube Material

AA3003 is a 3xxx series (Al-Mn) alloy used for heat exchanger fins, tubes, and headers

. Its moderate strength, excellent corrosion resistance, and good brazeability make it the standard choice for radiator and condenser components. The alloy is typically supplied as thin foil (0.08–0.15 mm for fins) and thin-wall tubing.

4343 and 4045 — Braze Clad Alloys

Aluminum heat exchangers are assembled using controlled atmosphere brazing (CAB), which requires a lower-melting-point braze alloy clad onto the core alloy. AA4343 (7.5% Si) and AA4045 (10% Si) are clad onto 3003 core stock — when heated to approximately 600°C, the clad layer melts and flows to form metallurgical bonds between fins and tubes.

EV Thermal Management — New Applications

Electric vehicles have introduced new thermal management challenges. Battery cooling plates, inverter cold plates, and motor cooling jackets all rely on aluminum. These components use friction stir welded or brazed aluminum assemblies with internal cooling channels. HXM supplies aluminum coil products suitable for fin stock and thermal management applications.

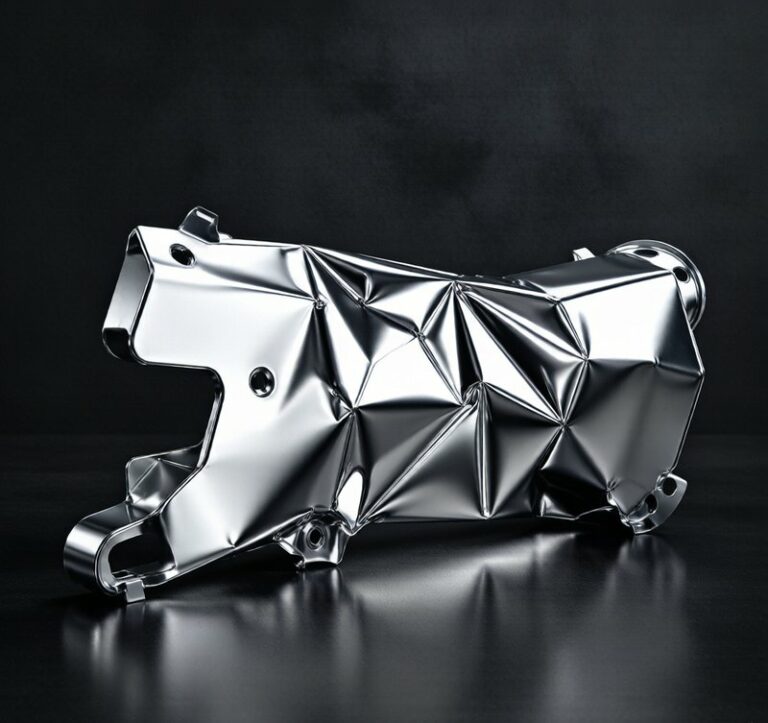

Aluminum crash management systems (CMS) are engineered to absorb kinetic energy during collisions, protecting vehicle occupants and (in EVs) the battery pack. A typical CMS consists of a bumper beam, crash boxes (crush cans), and mounting brackets — all increasingly made from aluminum extrusions.

Bumper Beams

Aluminum bumper beams use complex extruded cross-sections — typically multi-chamber hollow profiles — that collapse progressively during impact. AA7005 and AA6082 are commonly used for their high strength and energy absorption. An aluminum bumper beam weighs 40–50% less than a steel beam of equivalent crash performance.

Crash Boxes (Crush Cans)

Crash boxes are sacrificial components designed to deform in a controlled manner during low-speed impacts (up to 15 km/h), protecting the vehicle’s main structure. Aluminum extrusions with trigger geometries (pre-formed notches or holes) ensure predictable folding behavior. In high-speed crashes, crash boxes absorb initial energy before the bumper beam and frame rails take over.

Specific Energy Absorption

Aluminum’s advantage in crash applications comes from its specific energy absorption (energy absorbed per unit mass). Aluminum extrusions can absorb 25–30 kJ/kg, compared to 15–20 kJ/kg for mild steel. This means lighter aluminum components can provide equal or better crash protection.

Joining aluminum presents unique challenges compared to steel. Aluminum’s oxide layer, high thermal conductivity, and low melting point require specialized joining techniques. Modern automotive aluminum structures use a combination of methods, often within the same assembly.

Friction Stir Welding (FSW)

FSW is a solid-state joining process that uses a rotating tool to generate frictional heat, plastically deforming and mixing the metal without melting it. This produces high-strength, defect-free welds with minimal distortion. FSW is ideal for battery enclosure seams, tailgate welds, and dissimilar alloy joints. Tesla and Ford use FSW extensively in their aluminum vehicle architectures.

Resistance Spot Welding (RSW)

While traditionally difficult for aluminum due to its high conductivity, advances in RSW equipment — higher currents (30–50 kA), shorter weld times, and specialized electrode caps — have made spot welding aluminum viable for body-in-white assembly. Automakers like GM use RSW for aluminum-to-aluminum and aluminum-to-steel joints.

Adhesive Bonding

Structural adhesives provide continuous load transfer between panels, improving stiffness by 20–40% over mechanical fastening alone. Epoxy-based adhesives are applied between aluminum panels before curing during the paint-bake cycle. Nearly all modern aluminum vehicle bodies use adhesive bonding as a primary joining method, often combined with riveting or welding.

Self-Pierce Riveting (SPR)

SPR joins aluminum sheets by driving a semi-tubular rivet through the top sheet into the bottom sheet, where it flares outward — no pre-drilled hole required. SPR is the dominant mechanical joining method for aluminum vehicle bodies, used extensively by Jaguar, Audi, and BMW. It enables dissimilar metal joining (aluminum to steel) without galvanic corrosion concerns.

The aluminum vs steel debate is central to automotive lightweighting strategy. While advanced high-strength steels (AHSS) have narrowed the gap, aluminum still offers superior weight savings across most components. The comparison must consider not just material density, but strength-to-weight ratio, formability, corrosion behavior, and lifecycle cost.

Beyond Weight: Performance Advantages

Aluminum offers benefits beyond simple weight reduction:

• Lower center of gravity: Weight savings high on the vehicle (roof, upper body) improve handling and rollover resistance
• Reduced unsprung mass: Aluminum suspension components improve ride quality and tire contact
• Corrosion warranty: Aluminum bodies eliminate perforation corrosion, supporting longer warranty periods
• Payload increase: For commercial vehicles, aluminum weight savings translate directly to increased payload capacity

Designing with aluminum requires different approaches than steel. Its lower elastic modulus (70 GPa vs 210 GPa for steel) means aluminum parts are approximately three times more flexible — stiffness-driven designs need thicker sections or geometric optimization (ribs, folds, multi-chamber extrusions).

Stiffness Design

For stiffness-critical components, aluminum designs typically use 1.4–1.5× the thickness of steel equivalents. However, because aluminum is one-third the density, the part still weighs roughly half as much. Engineers use second moment of area optimization — placing material away from the neutral axis — to maximize stiffness without adding weight.

Fatigue Design

Aluminum does not exhibit an endurance limit like steel — fatigue strength continues to decrease with cycle count. Automotive aluminum components are designed using S-N curves specific to the alloy and temper, with safety factors accounting for 10+ years of service. Cast components require additional attention to porosity and defect-tolerant design.

Galvanic Corrosion Prevention

When aluminum contacts steel or copper in the presence of moisture, galvanic corrosion can occur. Design solutions include:

• Isolating dissimilar metals with non-conductive gaskets or coatings
• Using compatible fasteners (stainless steel or aluminum)
• Applying seam sealers at joint interfaces
• Specifying conversion coatings (chromate or non-chromate) on aluminum surfaces

Formability Considerations

Aluminum sheet has lower formability than drawing-quality steel. Deep-drawing operations require larger radii, reduced draw depths, and careful lubricant selection. The 5xxx series offers the best formability for complex shapes, while 6xxx series requires careful process control to avoid splitting during stamping.

Automotive aluminum components are produced by three primary manufacturing routes, each suited to different part geometries and production volumes. Understanding these processes helps sourcing professionals select the right manufacturing partner.

Stamping (Sheet Products)

Stamping forms flat aluminum sheet into body panels, closures, and structural panels using progressive or transfer dies. Automotive stamping lines handle sheet thicknesses from 0.8 mm to 3.0 mm. Key considerations include springback compensation (aluminum springs back more than steel), lubricant selection, and die coating to prevent galling. HXM aluminum sheets are supplied in coils and cut-to-length sheets ready for stamping operations.

Extrusion (Profiles and Tubes)

Extrusion forces heated aluminum billets through a steel die to produce complex cross-sections. Automotive extrusions range from simple tubes to multi-chamber bumper profiles with wall thicknesses as thin as 1.5 mm. The extrusion process enables near-net-shape production with minimal machining waste. HXM’s extrusion capabilities cover structural profiles up to 300 mm width with tight tolerances.

Die Casting (Complex Components)

High-pressure die casting (HPDC) produces complex 3D components like suspension knuckles, gearbox housings, and structural nodes. Aluminum casting alloys (A356, ADC12) offer excellent fluidity and dimensional accuracy. Vacuum-assisted HPDC produces porosity-free parts suitable for structural and crash applications. Tesla’s Model Y rear body uses a single gigacasting — a massive die-cast aluminum node replacing 70+ stamped parts.

Aluminum costs 2–3× more per kilogram than steel, making material cost the primary barrier to adoption. However, a comprehensive cost analysis must consider processing, assembly, fuel savings, and end-of-life value. When viewed over the full vehicle lifecycle, aluminum often delivers net cost savings.

Material Cost Breakdown

While aluminum ingot costs more than steel, several factors reduce the cost premium in finished components:

• Lower tooling cost for extrusions: Extrusion dies cost $5,000–$50,000 vs $2–5M for stamping dies
• Reduced assembly operations: Extrusions and castings consolidate multiple parts into one
• No corrosion coating needed: Eliminates e-coating, galvanizing, and painting for some components
• Higher scrap value: Aluminum scrap retains 70–80% of primary metal value vs 10–20% for steel

Lifecycle Cost Savings

For the vehicle owner, aluminum’s weight savings generate ongoing operational savings. A 100 kg weight reduction saves approximately 0.3–0.5 L/100 km of fuel (or 1.5–2.5 kWh/100 km for EVs). Over a 200,000 km vehicle life, this translates to 600–1,000 liters of fuel — a savings that exceeds the aluminum cost premium.

For EVs, the cost equation is even more favorable: weight savings reduce battery size requirements, and battery cost savings ($100–150/kWh) can offset the aluminum material premium entirely.

Aluminum is one of the most sustainable materials in the automotive industry. Its infinite recyclability, combined with the dramatic energy savings of recycled vs primary production, makes it a cornerstone of circular economy strategies for automakers committed to carbon neutrality.

The Recycling Advantage

Recycling aluminum requires only 5% of the energy needed to produce primary aluminum from bauxite ore — a 95% energy saving. Recycled aluminum has identical mechanical properties to primary metal, meaning there is no quality compromise. The automotive industry recycles over 90% of aluminum from end-of-life vehicles, and manufacturing scrap is nearly 100% recycled.

Closed-Loop Recycling

Leading automakers have implemented closed-loop recycling systems where stamping scrap is returned directly to the aluminum supplier, remelted, and re-supplied as new sheet — keeping the alloy chemistry controlled and minimizing transportation. Ford’s Dearborn truck plant and Jaguar’s Castle Bromwich facility both operate closed-loop systems that recycle thousands of tons of aluminum scrap annually.

Carbon Footprint Reduction

Primary aluminum production emits 8–12 kg CO2 per kg of metal (varying by energy source). However, with hydroelectric-powered smelting (common in Norway, Canada, and Iceland), this drops to under 4 kg CO2/kg. Recycled aluminum emits just 0.5–1.0 kg CO2/kg. Automakers are increasingly specifying low-carbon aluminum to meet Scope 3 emissions targets.

China is the world’s largest aluminum producer, accounting for over 55% of global output. For automotive manufacturers and Tier 1 suppliers, sourcing aluminum from China offers significant cost advantages without compromising quality — provided you work with an experienced, certified supplier.

HXM Aluminum Manufacturing Capabilities

HXM Aluminum is a Chinese aluminum manufacturer serving B2B customers worldwide with a comprehensive product range tailored to automotive and industrial applications:

• Aluminum Sheets — 5182, 6016, 5052, 6061 alloys for body panels and structural applications; thickness 0.2–200 mm, width up to 2,600 mm
• Aluminum Profiles — Custom extrusions in 6005, 6063, 6061, 7005 alloys for chassis, bumper, and battery frame applications; complex hollow sections, thin-wall profiles
• Aluminum Tubes — Seamless and welded tubes for cooling lines, structural applications, and hydroformed components
• Aluminum Coils — Fin stock (3003/4343 clad), deep-drawing quality, and structural coils for stamping operations
• 6061 Aluminum Alloy — Plates, sheets, bars, tubes, and profiles in T6 and T651 tempers for EV battery enclosures and structural members

Quality Assurance and Certifications

HXM Aluminum operates under ISO 9001 quality management systems with material traceability from ingot to finished product. All automotive-grade materials are supplied with mill test certificates (MTC) per EN 10204 3.1, including chemical composition, mechanical properties, and dimensional inspection results. Third-party testing (SGS, BV, TÜV) is available on request.

Why Source from HXM?

• Competitive pricing: Direct from Chinese mill — no middleman markup, 20–40% cost savings vs Western suppliers
• Flexible MOQ: Support for both prototype quantities and production-volume orders
• Custom cutting and processing: Cut-to-length sheets, precision-cut profiles, CNC machining
• Global shipping: FOB, CIF, DDP terms; experience shipping to 40+ countries
• Technical support: Alloy selection guidance, specification review, and application engineering

Whether you need prototype quantities of 6016 body sheet for a new vehicle program, or production volumes of 6061 extrusions for EV battery frames, HXM Aluminum can support your project from development through serial production. Contact our team to discuss your automotive aluminum requirements.
