Aluminum Bending & Forming Guide: Techniques & Best Practices

Aluminum bending and forming are essential manufacturing processes that transform flat sheets, tubes, and extrusions into functional components used across industries. From automotive body panels and aircraft structural parts to architectural facades and consumer electronics, the ability to bend aluminum with precision directly impacts product quality, cost, and performance.

Unlike steel, aluminum presents unique challenges in forming: lower ductility in certain alloys, significant springback behavior, and sensitivity to bend radius relative to material thickness. Understanding these characteristics is critical for engineers, fabricators, and procurement professionals seeking to specify and source formed aluminum components.

This guide covers the full spectrum of aluminum bending techniques, including sheet metal press brake operations, tube and pipe bending methods, and extrusion profile forming. We examine aluminum alloy selection criteria, minimum bend radius rules, springback prediction and compensation strategies, defect prevention, and cost optimization. Whether you are designing a new part, selecting a fabrication method, or sourcing formed aluminum from Chinese manufacturers like HXM Aluminum, this resource provides the technical depth needed for informed decision-making.

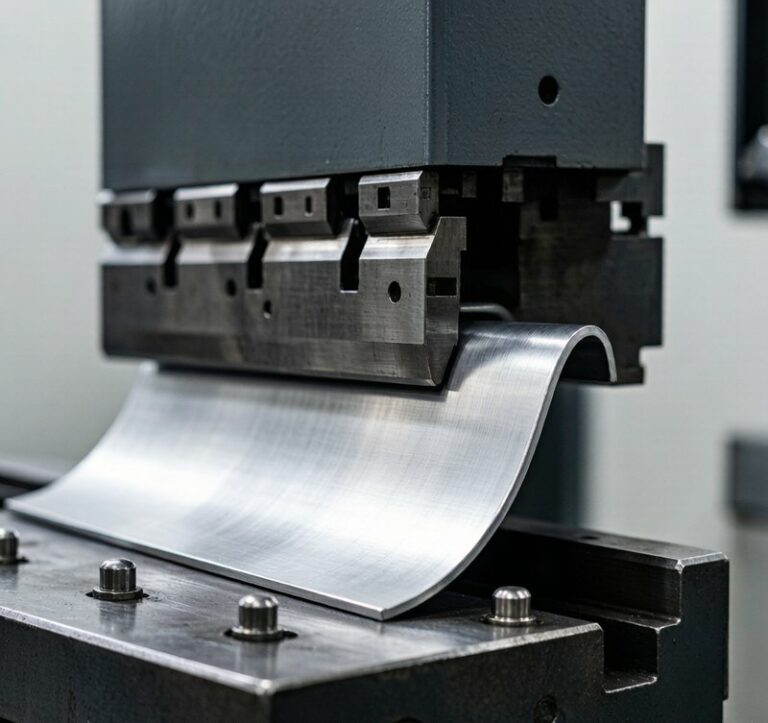

Modern CNC press brake forming aluminum sheet metal — a core process for precision bending in industrial manufacturing.

Understanding Alloy Series and Formability

Aluminum alloys are classified into series (1xxx through 8xxx) based on primary alloying elements. Each series exhibits distinct formability characteristics that determine its suitability for bending operations:

• 1xxx Series (Pure Aluminum, >99% Al): Excellent formability with minimal springback. Ideal for deep drawing and complex bending. Tensile strength is low (70-185 MPa), limiting structural applications.
• 3xxx Series (Al-Mn): Good formability with moderate strength. 3003 aluminum sheets are widely used for general sheet metal bending, fuel tanks, and roofing.
• 5xxx Series (Al-Mg): Good to excellent formability depending on magnesium content. 5052 aluminum sheets offer excellent bendability and corrosion resistance, popular for marine and automotive applications.
• 6xxx Series (Al-Mg-Si): Moderate formability in T4 temper; significantly reduced in T6. 6061 aluminum alloy is a versatile structural alloy that bends well in O or T4 condition.
• 7xxx Series (Al-Zn): Limited formability. Generally requires hot forming or solution heat treatment for bending. Used in aerospace where strength is paramount.

Temper Designation Impact on Bending

Temper designations significantly affect an alloy’s bending behavior:

For most general fabrication needs, aluminum sheets in 3003-O, 5052-O, and 6061-O tempers offer the best balance of formability, strength, and cost. HXM supplies these alloys across a wide range of thicknesses and dimensions from our extensive inventory.

Press Brake Fundamentals for Aluminum

Press brake bending is the most common method for forming aluminum sheet metal. The process involves clamping a sheet between a punch and die, then applying force to bend the material to a specified angle. Key considerations for aluminum press brake operations include:

• V-Die Opening Selection: For aluminum, the standard V-die opening is 6-8 times material thickness (6t to 8t). A wider opening reduces cracking risk but increases springback. Harder tempers require 8t or larger openings.
• Punch Radius: The punch tip radius should match the desired inside bend radius. For 90-degree bends in aluminum, a punch radius of 1t to 2t is typical for softer tempers.
• Bend Allowance Calculation: The k-factor for aluminum typically ranges from 0.33 to 0.45, with softer tempers having lower k-factor values. Accurate bend allowance calculation is critical for flat pattern development.
• Grain Direction: Always bend perpendicular to the rolling grain direction when possible. Bending parallel to the grain increases the risk of cracking, particularly in 6xxx and 7xxx alloys.

Air Bending vs. Coining for Aluminum

Air bending (where the punch does not bottom out in the die) is preferred for aluminum because it requires less force and provides more flexibility in compensating for springback. Coining (bottoming) can cause excessive thinning and stress concentration in aluminum, particularly in age-hardened tempers. The air bending approach allows the operator to adjust punch depth to achieve the desired final bend angle, which is essential given aluminum’s greater springback compared to steel.

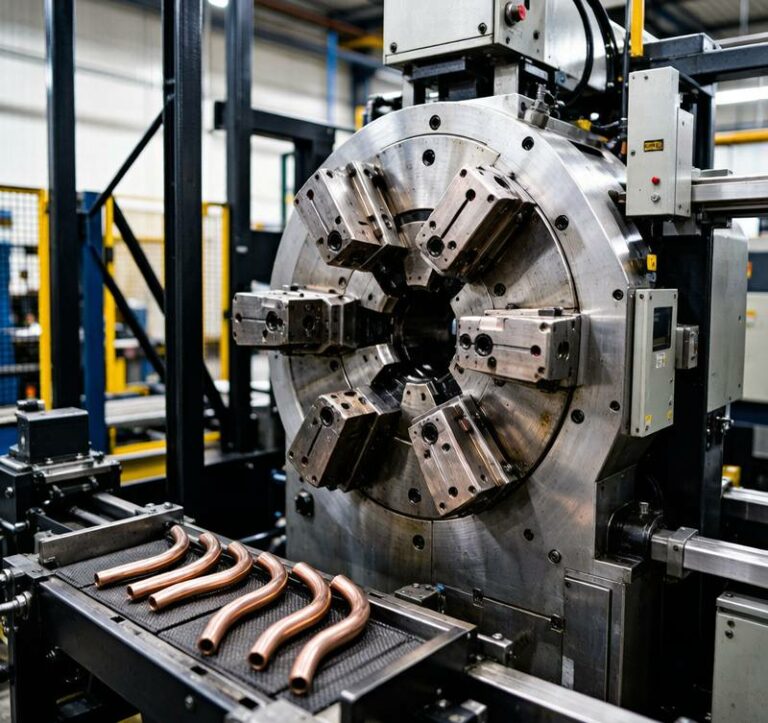

CNC rotary draw bending produces precise curved aluminum tubes for industrial applications, maintaining uniform wall thickness and structural integrity.

Rotary Draw Bending

Rotary draw bending is the most precise method for bending aluminum tubes and pipes. The process uses a rotating bend die that wraps the tube around a fixed-radius former while a pressure die and mandrel support the inner wall. This method achieves consistent centerline radii (CLR) as tight as 1.5x the tube diameter for annealed aluminum tempers.

For aluminum tube bending, HXM uses CNC rotary draw machines with multi-axis control, enabling complex multi-plane bends in a single setup. Critical parameters include mandrel position, wiper die clearance, and pressure die assist force — all of which must be optimized for the specific aluminum alloy and temper being formed.

Mandrel Bending

Mandrel bending inserts a flexible mandrel inside the tube to support the inner wall during bending, preventing collapse and wrinkling. For aluminum tubes with wall thickness-to-diameter ratios below 0.05 (thin-wall), a mandrel is essential. Multi-ball mandrels with linked segments provide the best support for tight-radius bends in aluminum.

Roll Bending (Three-Roll Bending)

Roll bending uses three rollers to gradually form large-radius curves in aluminum tubes and profiles. This method is ideal for producing large-radius bends such as those found in architectural structures, handrails, and greenhouse frames. Roll bending works well with aluminum extrusions and aluminum tubes of various cross-sections, though springback compensation requires multiple passes.

Compression Bending

Compression bending is a simpler method suitable for symmetrical bends in softer aluminum tempers like 3003-O and 5052-O. It uses a stationary bend die and a follower that compresses the tube against the die. While less precise than rotary draw, it is economical for low to medium volume production of simple bends.

Stretch Forming for Aluminum Profiles

Stretch forming is the dominant method for bending aluminum extrusions into curved shapes. The profile is gripped at both ends, pre-stretched to 1-3% strain to place the material into uniform plastic deformation, and then wrapped around a curved form die. This process is widely used for aluminum profiles in architectural curtain walls, monorail beams, and aerospace structural members.

Key advantages of stretch forming include minimal springback (due to uniform plastic strain), consistent cross-sectional geometry, and the ability to form complex, variable-radius curves. HXM’s stretch forming capability handles extrusions up to 12 meters in length with cross-sections up to 300mm wide.

Three-Roll Profile Bending

Three-roll bending machines are commonly used for aluminum profiles where large, sweeping radii are required. This method passes the profile through three adjustable rollers that progressively curve the material. Multiple passes are typically needed to compensate for springback. Three-roll bending works well for 6061 aluminum extrusions in T4 or T5 temper, producing arcs for solar panel frames, greenhouse structures, and architectural features.

Rotary Draw Bending for Extrusions

For aluminum extrusions requiring tight, repeatable bends, rotary draw bending with custom mandrels designed for the profile cross-section provides excellent results. This is particularly effective for aluminum angles, channels, and rectangular hollow sections where a consistent bend radius is required across the entire cross-section.

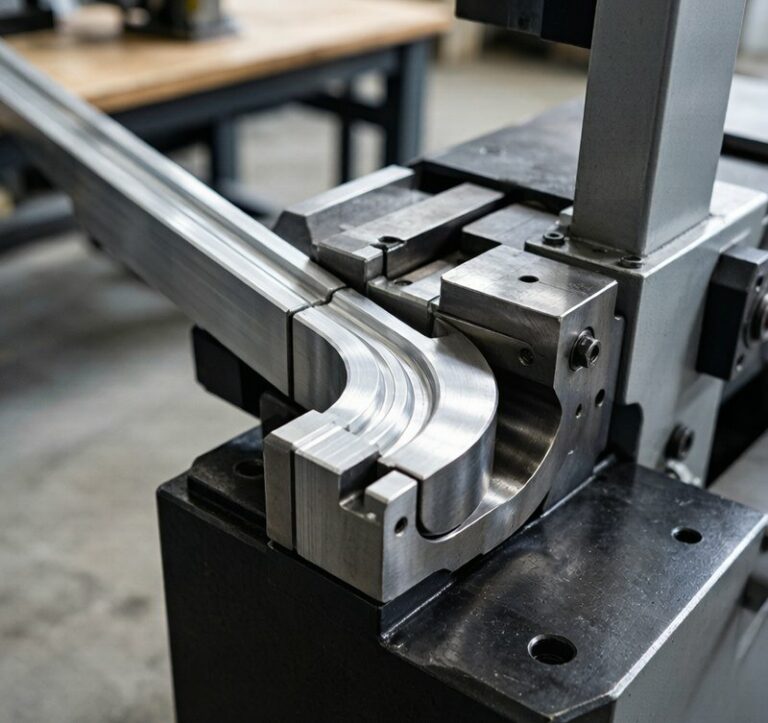

Curved aluminum extrusion profiles produced through precision stretch forming for architectural and structural applications.

Understanding Minimum Bend Radius

The minimum bend radius is the tightest curve that can be formed in aluminum without cracking or unacceptable thinning. This is typically expressed as a multiple of material thickness (e.g., 1t, 2t, 3t). For aluminum, the inside bend radius should generally not be less than the material thickness (1t minimum) for any alloy, with harder tempers requiring significantly larger radii.

Key Factors Affecting Minimum Bend Radius

• Alloy Type: Higher-strength alloys (2xxx, 6xxx-T6, 7xxx) require larger bend radii due to lower ductility.
• Temper: Annealed (O temper) allows the tightest bends; strain-hardened and aged tempers require progressively larger radii.
• Material Thickness: Thicker material requires proportionally larger bend radii due to greater outer fiber strain during bending.
• Grain Direction: Bending across the grain (perpendicular) allows tighter radii than bending along the grain (parallel). Where possible, orient bends at 90° to the rolling direction.
• Edge Condition: Smooth, deburred edges reduce the risk of crack initiation at the bend line. Rough or sheared edges should be positioned on the compression side of the bend when possible.

General Rule of Thumb:

• 3xxx-O, 5xxx-O: 1t minimum (can go to 0.5t for thin gauges)
• 6xxx-T4: 1.5t to 2t minimum
• 6xxx-T6: 3t to 5t minimum
• 7xxx-T6: 5t to 8t minimum (hot forming recommended)
• 2024-T3: 4t to 6t minimum

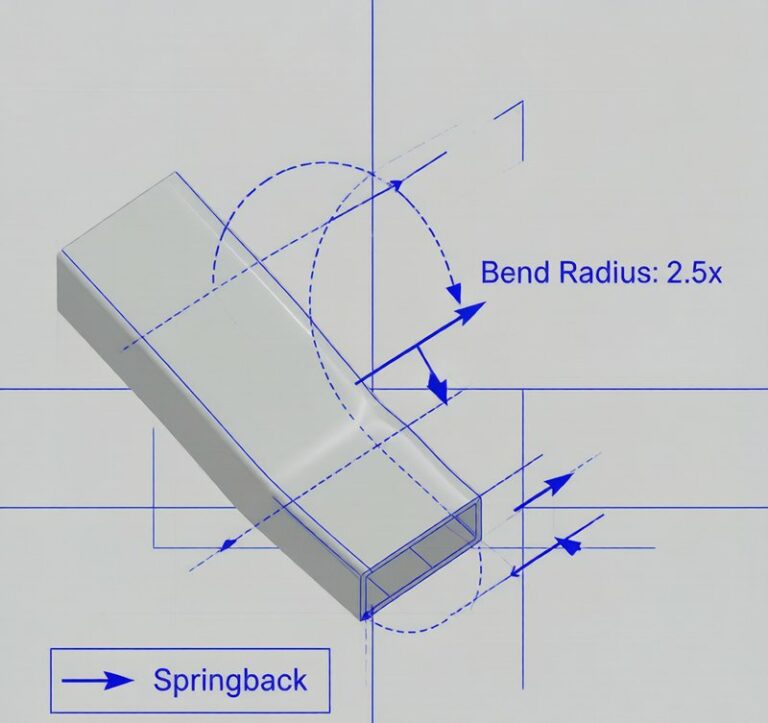

Technical diagram illustrating bend radius, springback angle, and neutral axis concepts for aluminum forming calculations.

Why Aluminum Exhibits More Springback Than Steel

Springback occurs when the elastic portion of deformation recovers after the bending force is removed, causing the material to “spring back” toward its original shape. Aluminum, with its lower elastic modulus (69 GPa vs. 207 GPa for steel), exhibits significantly more springback than steel — typically 2 to 3 times greater for the same bend geometry.

Springback in aluminum increases with higher yield strength, larger bend radius-to-thickness (r/t) ratios, and wider V-die openings. A 6061-T6 sheet bent to 90 degrees may spring back 5-10 degrees, while the same alloy in O temper may spring back only 1-2 degrees.

Springback Prediction Methods

• Empirical Formulas: Simple rule: Aluminum springback angle ≈ K × (Yield Stress / Elastic Modulus) × (Bend Radius / Thickness), where K is a geometric constant.
• FEA Simulation: Finite element analysis using material-specific stress-strain curves provides the most accurate prediction for complex geometries. Modern forming simulation software can predict springback within 0.5 degrees for known material properties.
• Trial Bend Method: For production environments, performing trial bends with incremental angle adjustments remains a practical approach, with data logged for future reference.

Compensation Strategies

1. Over-bending: Bend to a smaller angle than the target, allowing springback to return the part to the desired angle. For aluminum, over-bend by 2-10 degrees depending on alloy, temper, and geometry.
2. Bottoming/Coining: Apply additional pressure at the bottom of the stroke to plastically deform the bend zone and minimize elastic recovery. Use with caution on aluminum to avoid excessive thinning.
3. Stretch Forming: Applying tension during bending shifts the neutral axis and reduces elastic recovery significantly. Particularly effective for extrusions and profiles.
4. Die Geometry Adjustment: Designing the forming die with a slightly smaller included angle to compensate for anticipated springback.
5. Heat-Assisted Forming: Heating aluminum to 200-350°C reduces yield strength and springback. This is particularly effective for 6xxx and 7xxx series alloys.

Press Brake Selection for Aluminum Sheets

CNC press brakes are the workhorse of aluminum sheet metal bending. Key specifications include tonnage capacity (typically 40-400 tons for aluminum), bed length (2-6 meters), and control system precision. For aluminum, hydraulic press brakes with CNC back gauges provide the best control for springback compensation.

CNC Tube Bender Selection

CNC tube bending machines range from single-stack to multi-stack configurations capable of producing multiple bend radii in one setup. Key selection criteria include maximum tube diameter (typically 10-120mm for aluminum), minimum bend radius capability, and the number of programmable axes (3-axis to 9-axis). For aluminum, machines with mandrel extraction and boost capabilities are recommended for thin-wall applications.

Stretch Forming Equipment

Stretch forming machines are rated by maximum stretching force (typically 10-200 tons) and maximum work length (3-12 meters). For aluminum extrusions, hydraulic stretch formers with programmable stretch percentage and wrap speed controls provide optimal results. Dual-axis stretch formers can produce compound curves in a single setup.

When to Use Heat-Assisted Bending

Heat-assisted forming (also called warm forming or hot forming) involves heating aluminum to an elevated temperature before bending to improve formability and reduce springback. This technique is essential for alloys such as 6061-T6, 7075-T6, and 2024-T3, which have poor cold formability.

Temperature Ranges for Aluminum Hot Forming

• Solution Heat Treatable Alloys (2xxx, 6xxx, 7xxx): Heat to 200-350°C for warm forming. Above 350°C, care must be taken to avoid grain growth and incipient melting. Solution heat treatment at 465-535°C followed by immediate forming (within the W temper window) enables complex bends in otherwise unformable materials.
• Work-Hardening Alloys (3xxx, 5xxx): Heat to 150-250°C. Higher temperatures can cause recrystallization and loss of work-hardening benefits.

Practical Considerations

• Heating Methods: Induction heating for localized heating of the bend zone; furnace heating for entire parts; oxy-acetylene torch for spot heating (avoid on finished surfaces).
• Forming Window: For solution heat treated alloys (W temper), the forming window lasts 30 minutes to several hours depending on alloy composition and ambient temperature.
• Aging Response: Parts formed in the W temper will naturally age to near-T4 properties over several days at room temperature or can be artificially aged to T6 condition within hours.
• Surface Protection: Aluminum oxide forms rapidly at elevated temperatures. Parts with critical surface finish requirements should be formed at the lowest practical temperature.

1. Cracking at the Bend Line

Cracking is the most common defect in aluminum bending, occurring when the outer fiber strain exceeds the material’s elongation capacity. Prevention strategies include increasing the bend radius, using softer temper material, orienting bends perpendicular to the grain direction, and deburring edges before bending. For 6061-T6 and other age-hardened alloys, consider bending in the T4 condition and aging to T6 after forming.

2. Wrinkling

Wrinkling occurs when compressive stresses cause buckling on the inner radius of a bend. This is especially common in thin-wall tube bending. Prevention involves using an appropriate mandrel, optimizing wiper die clearance (typically 0.1-0.2mm for aluminum tubes), and ensuring the pressure die force is adequate to prevent tube slippage without causing excessive friction.

3. Wall Thinning

All bending operations cause some thinning of the outer wall, but excessive thinning compromises structural integrity. Acceptable thinning is typically limited to 15-25% of original wall thickness depending on the application. Thinning is minimized by using larger bend radii, mandrel support in tube bending, and stretch forming techniques for extrusions.

4. Cross-Section Distortion

Aluminum tubes and profiles can flatten or ovalize during bending. This is controlled by using internal mandrels, optimizing bend die groove geometry, and employing boost or pressure die assist in CNC bending. For critical applications, hydroforming or internal pressure during bending can maintain near-perfect roundness.

5. Surface Marking and Galling

Aluminum is softer than steel tooling and prone to galling (adhesive wear). Using polished or chrome-plated tooling, applying proper lubricants, and maintaining clean tool surfaces minimize surface defects. For cosmetic surfaces, protective film or tape should be applied before bending.

Critical Design Rules for Bendable Aluminum Parts

• Bend Radius Rule: As a general design rule, specify inside bend radii of 1.5-2 times material thickness for 3xxx and 5xxx alloys in common tempers, and 2-4 times thickness for 6xxx alloys. This provides a safety margin against cracking while keeping tooling costs manageable.
• Minimum Flange Length: The minimum flange length should be at least 4 times the material thickness to ensure the flange engages properly with the V-die. For 2mm aluminum, this means a minimum flange of approximately 8mm.
• Hole-to-Bend Distance: Place holes and cutouts at least 2.5 times the material thickness plus the inside bend radius from the bend line to prevent distortion. For aluminum, which distorts more easily than steel, a margin of 3t+r is prudent.
• Bend Relief Notches: Use relief notches at the intersection of bend lines to prevent tearing at corners. The relief radius should be at least 0.5 times the material thickness.
• Grain Direction Specification: Clearly specify grain direction on drawings, with bends oriented 90° to the rolling direction. For parts with multiple bend lines in different orientations, the designer must evaluate which orientation minimizes overall cracking risk.
• Symmetry: Design parts to be as symmetrical as possible to simplify tooling and reduce the number of setups. Symmetrical parts also spring back more predictably and uniformly.

Standard Bending Tolerances

Bend angle tolerances for aluminum are typically specified per ISO 2768 or customer-specific standards. The achievable tolerance depends on the bending method, alloy, and temper; see the table below for general guidelines.

Key Cost Drivers in Aluminum Bending

The total cost of formed aluminum parts is determined by material selection, bending method, production volume, and tooling requirements. Understanding these cost drivers helps optimize the balance between part quality and budget.

• Material Costs: Alloy and temper selection directly impact material price. 3003 and 5052 alloys are typically 10-20% less expensive than 6061, while 7075 can cost 40-60% more. Selecting the most formable temper (O temper) may slightly increase material cost but significantly reduces forming costs and rejection rates.
• Tooling Costs: Custom bend dies, mandrels, and press brake tooling represent significant upfront investment. Simple press brake tooling costs $200-$1,000 per set, while custom CNC rotary draw tooling can range from $2,000-$15,000 per set depending on complexity.
• Setup and Programming Time: CNC equipment requires programming and setup, with typical setup times of 30-90 minutes for press brakes and 2-4 hours for complex CNC tube bending jobs. These costs are amortized over production volume.
• Secondary Operations: Some formed parts require trimming, heat treatment, surface finishing, or machining after bending. Designing parts to minimize secondary operations reduces total cost.
• Rejection Rates: Inexperienced bending of challenging alloys can result in 5-15% scrap rates. Working with an experienced fabricator like HXM reduces rejection through proven process parameters.

Why Source Formed Aluminum Parts from China?

China has become the world’s leading hub for aluminum fabrication, offering significant advantages in terms of manufacturing capacity, cost competitiveness, and supply chain integration. Chinese manufacturers benefit from proximity to raw material sources, established logistics networks, and a deep pool of experienced fabricators.

HXM Aluminum is a premier B2B aluminum manufacturer and fabricator based in China, offering comprehensive forming capabilities supported by extensive material inventory and quality certifications. Our formed aluminum products serve customers across automotive, aerospace, construction, marine, and industrial equipment sectors.

HXM’s Core Forming Capabilities

• CNC press brake bending for aluminum sheets up to 6 meters in length and 10mm in thickness
• CNC rotary draw bending for aluminum tubes from 6mm to 120mm OD
• Stretch forming and roll bending for aluminum profiles and extrusions up to 12 meters
• In-house tooling design and fabrication for rapid prototyping and production ramp-up
• Full quality inspection including CMM dimensional verification, springback measurement, and surface integrity testing
• Material traceability and certification per ASTM, EN, and GB standards

Quality Assurance and Certifications

HXM operates under ISO 9001 certified quality management systems with rigorous in-process inspection, statistical process control, and final inspection protocols. Our formed aluminum parts are supplied with full material certifications, dimensional reports, and compliance documentation as required by customer specifications.

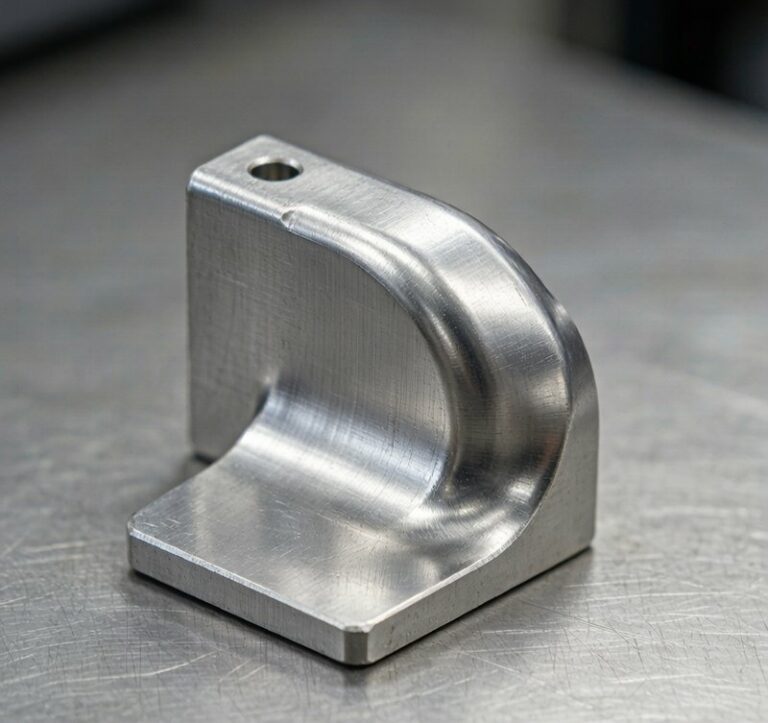

Precision-formed aluminum components for automotive and aerospace applications, demonstrating HXM’s advanced bending and forming capabilities.

How to Get Started

For engineers and procurement professionals evaluating formed aluminum part sourcing, HXM offers a streamlined inquiry process: submit your drawings (2D PDF or 3D STEP/IGES files) along with quantity requirements and target pricing, and our engineering team will provide a comprehensive quotation within 48 hours, including bendability analysis, material recommendations, tooling cost estimates, and production lead times.
