Aluminum Welding Guide: Methods, Filler Metals & Best Practices

Aluminum has become one of the most important structural materials in modern manufacturing. Its exceptional strength-to-weight ratio, corrosion resistance, and recyclability make it the material of choice for industries ranging from automotive and aerospace to marine engineering and construction. According to industry data, global aluminum consumption exceeded 70 million metric tons in 2024, with the transportation and construction sectors accounting for over 50% of total demand.

Welding is one of the most critical fabrication processes for aluminum products. From building lightweight vehicle frames to constructing corrosion-resistant ship hulls and fabricating pressure vessels, proper aluminum welding techniques directly determine the quality, safety, and service life of the final product. Unlike steel welding, aluminum welding presents unique challenges due to the metal’s physical and chemical properties — its high thermal conductivity, low melting point, and tenacious oxide layer demand specialized knowledge and techniques.

This comprehensive guide provides fabrication engineers, welding professionals, and procurement managers with a thorough understanding of aluminum welding methods, filler metal selection, joint preparation, defect prevention, and quality control. Whether you are setting up a new aluminum welding operation, troubleshooting existing processes, or sourcing weldable aluminum materials from China, this guide covers everything you need to know. As a leading aluminum manufacturer and supplier, HXM Aluminum provides high-quality aluminum products specifically suited for welding applications across all major industry sectors.

Aluminum weldability differs fundamentally from steel weldability. Understanding these differences is the first step toward achieving high-quality aluminum welds. Three primary factors make aluminum welding particularly challenging: the refractory oxide layer, high thermal conductivity, and susceptibility to hot cracking.

Aluminum naturally forms a thin but extremely tenacious aluminum oxide (Al₂O₃) layer on its surface when exposed to air. This oxide layer has a melting point of approximately 2,072°C (3,762°F), while the underlying aluminum melts at only 660°C (1,220°F). This means that during welding, the oxide layer remains solid even as the base metal beneath it melts, creating a barrier that prevents proper fusion. If not removed before welding, oxide inclusions become trapped in the weld pool, leading to lack of fusion defects, porosity, and reduced mechanical properties. Proper pre-weld cleaning — both mechanical (stainless steel wire brushing) and chemical (solvent degreasing) — is absolutely essential to remove this oxide layer before welding begins.

Aluminum has a thermal conductivity approximately 5 times higher than carbon steel (237 W/m·K for pure aluminum vs. 50 W/m·K for mild steel). This means heat dissipates rapidly away from the weld zone into the surrounding base metal. As a result, aluminum welding requires significantly higher heat input compared to steel welding of similar thickness. Preheating the workpiece to 150-200°C (300-400°F) is often necessary for thicker sections (greater than 6 mm) to reduce the thermal gradient and ensure proper fusion. Inadequate heat input results in cold laps, incomplete penetration, and lack of fusion — some of the most common aluminum welding defects encountered in production.

Aluminum alloys have a relatively wide solidification temperature range, which makes them susceptible to hot cracking (also known as solidification cracking or hot tearing) during welding. Hot cracking occurs when the weld metal is in a semi-solid state — between the liquidus and solidus temperatures — and tensile stresses develop during shrinkage and cooling. Alloys with high copper content (2xxx series) and high zinc content (7xxx series) are particularly prone to hot cracking and are generally considered difficult or impossible to weld using conventional fusion welding methods. Selecting the appropriate filler metal (such as ER4043 or ER5356) with a composition that widens the solidification range or provides sufficient eutectic liquid to heal cracks is critical for crack-free welds.

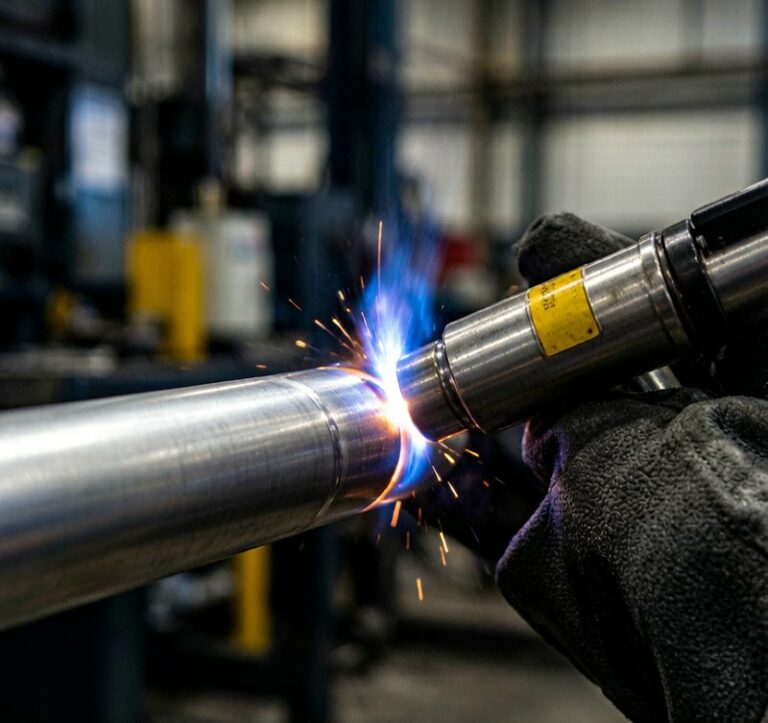

Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW), is widely regarded as the premier welding process for aluminum. It offers the highest level of control, produces the cleanest welds, and is the preferred method for applications requiring superior weld quality, such as aerospace components, food-grade equipment, and pressure vessels. TIG welding uses a non-consumable tungsten electrode to create the arc, with a separate filler rod manually fed into the weld pool by the operator.

In TIG welding of aluminum, alternating current (AC) is almost always used instead of direct current (DC). AC provides two essential benefits: during the electrode-positive (EP) half-cycle, the arc performs cathodic cleaning — effectively breaking up and removing the aluminum oxide layer from the weld zone surface. During the electrode-negative (EN) half-cycle, the arc provides deep penetration into the base metal. The balance between these two half-cycles can be adjusted on modern inverter-based TIG machines. A typical setting is 65-75% EN (penetration) and 25-35% EP (cleaning). Pure argon is the standard shielding gas, with flow rates typically between 12-20 CFH (cubic feet per hour) depending on cup size and joint configuration.

The tungsten electrode must be properly prepared — for AC welding, a balled tip is preferred, which forms naturally when the arc is initiated on a clean copper or aluminum block. A 2% ceriated or lanthanated tungsten electrode (typically 2.4 mm or 3.2 mm diameter) provides excellent arc stability and longer electrode life compared to pure tungsten.

TIG welding offers several distinct advantages for aluminum fabrication. First, it provides superior control over heat input and filler metal addition, enabling precise weld bead placement and excellent cosmetic appearance. Second, TIG produces virtually no spatter, resulting in clean welds that require minimal post-weld cleanup. Third, the process generates a narrow heat-affected zone (HAZ), which minimizes distortion and preserves the mechanical properties of the base metal. Fourth, TIG is capable of welding very thin aluminum sections (down to 0.5 mm) that would be impossible with other processes. Fifth, the separate control of heat and filler metal allows the welder to manage the weld pool independently, making TIG ideal for out-of-position welding and complex joint geometries. The main limitations are slower travel speeds and higher operator skill requirements compared to MIG welding.

TIG welding is the standard for critical aluminum applications including: aerospace structural components and fuel tanks, cryogenic vessels and LNG storage tanks, food processing and pharmaceutical equipment, semiconductor and vacuum chamber fabrication, bicycle frames and high-end automotive parts, heat exchangers and HVAC components, and architectural aluminum structures where cosmetic appearance is paramount. In these applications, radiographic-quality welds (Class A per AWS D17.1 for aerospace) are often required, and TIG is the only process capable of consistently meeting these demanding standards.

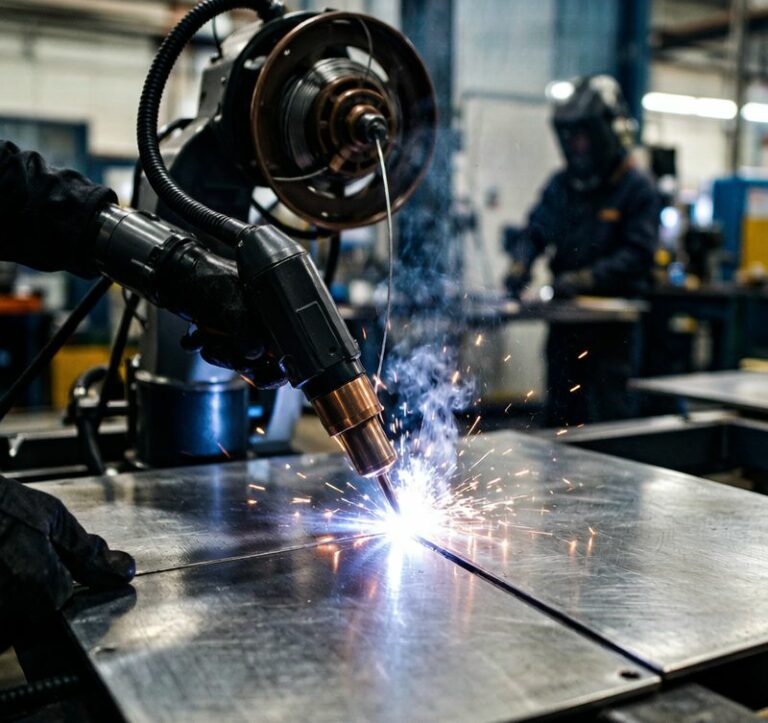

Metal Inert Gas (MIG) welding, also known as Gas Metal Arc Welding (GMAW), is the go-to process for high-productivity aluminum welding in manufacturing and fabrication environments. MIG uses a continuously fed consumable wire electrode that serves as both the arc source and filler metal. The process is semi-automatic or fully automatic, making it significantly faster than TIG welding for production applications.

Aluminum MIG welding typically uses direct current electrode positive (DCEP) polarity with pure argon or argon-helium shielding gas mixtures. Because aluminum wire is soft and prone to bird-nesting (tangling) in standard wire feeders, specialized equipment is essential: a spool gun (for shorter cable lengths up to 3-4 meters) or a push-pull wire feed system (for longer distances). A spool gun places a small wire spool directly on the welding gun, minimizing the feed distance and eliminating bird-nesting issues.

The wire feed speed and voltage must be matched precisely to achieve the spray transfer mode — the optimal metal transfer mode for aluminum MIG welding. In spray transfer, the molten filler metal transfers across the arc as a stream of fine droplets smaller than the wire diameter, producing smooth, spatter-free welds with deep penetration. This occurs above the transition current, typically 135-180 amps for 1.2 mm diameter wire. Below this threshold, globular transfer occurs, resulting in poor weld quality, excessive spatter, and incomplete fusion. Modern pulsed MIG power sources use a modulated waveform to achieve spray transfer at lower average currents, extending the usable range down to thinner materials.

MIG welding provides substantial productivity benefits for aluminum fabrication. Travel speeds are typically 2-4 times faster than TIG welding, with deposition rates ranging from 2-10 kg/hour depending on wire diameter and parameters. The continuous wire feed eliminates the stop-start cycles associated with TIG filler rod changes, enabling long continuous welds on large assemblies. MIG welding requires less operator skill than TIG, making it easier to train production welders and maintain consistent quality across shifts. The process is well-suited for automation and robotic welding cells, which further increase throughput and consistency. MIG welding can handle thicker aluminum sections (up to 25 mm or more in multi-pass applications) efficiently. The primary limitations are less precise heat control, larger HAZ, and less aesthetic weld appearance compared to TIG.

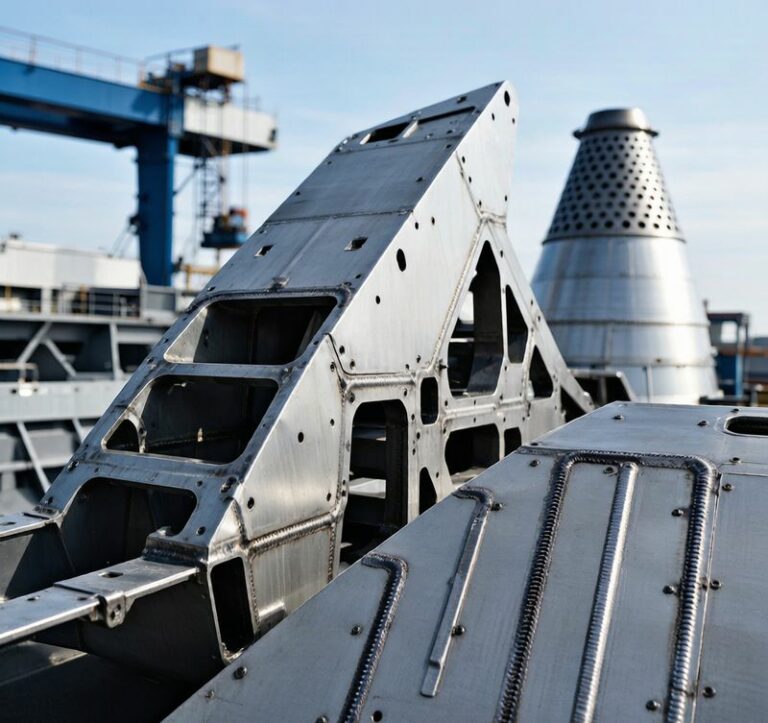

MIG welding dominates in production-oriented aluminum fabrication including: aluminum boat and ship building (hull plates, decks, structural frames), truck trailers and commercial vehicle bodies, structural aluminum framing and curtain wall systems, aluminum rail car and mass transit vehicle construction, agricultural and construction equipment, general aluminum fabrication shops, and large-diameter aluminum pipe welding. For these applications, the productivity gains of MIG welding far outweigh the aesthetic advantages of TIG welding, making it the most cost-effective choice for medium-to-high volume production.

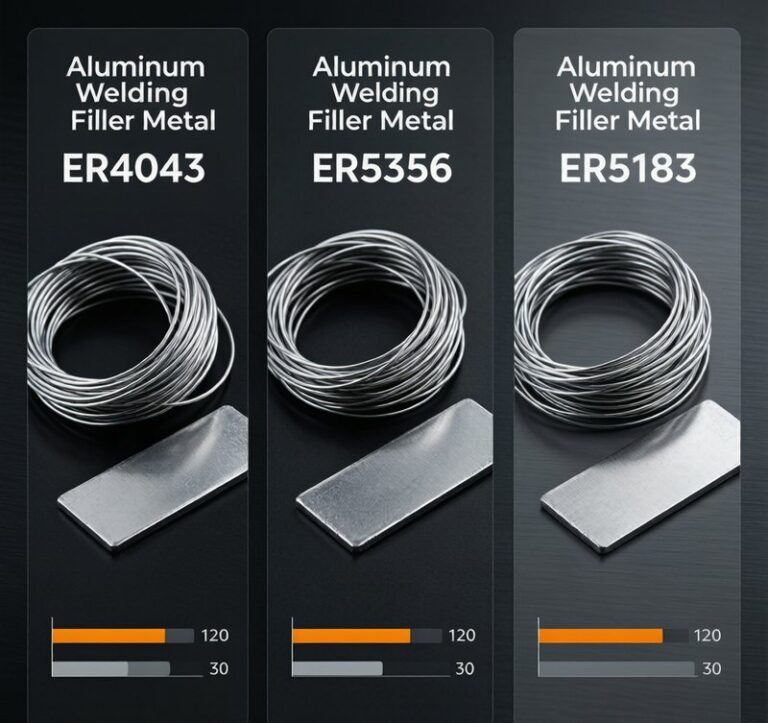

Selecting the correct filler metal is one of the most critical decisions in aluminum welding. The filler metal composition directly affects weld strength, crack resistance, ductility, corrosion resistance, and color match after anodizing. The three most commonly used aluminum filler metals are ER4043, ER5356, and ER5183. Each is designed for specific base metal alloy combinations and service conditions.

ER4043 is an aluminum-silicon filler metal containing approximately 5% silicon. The silicon addition provides several benefits: it lowers the melting point, increases fluidity of the weld pool, and provides excellent resistance to hot cracking. ER4043 is the most widely used general-purpose aluminum filler metal. It is the preferred filler for welding 6xxx series alloys (such as 6061 aluminum alloy and 6063), as well as many casting alloys. The high silicon content promotes good wetting and produces smooth, visually appealing weld beads. However, ER4043 welds turn dark gray when anodized, which is a significant consideration for architectural and decorative applications requiring color uniformity. Additionally, ER4043 weld metal has lower ductility and is not recommended for service temperatures exceeding 65°C (150°F) due to potential embrittlement.

ER5356 is an aluminum-magnesium filler metal containing approximately 5% magnesium. It provides higher weld strength (240 MPa tensile) and better ductility compared to ER4043, making it the preferred choice for structural applications. ER5356 is the standard filler for welding 5xxx series alloys such as 5052 aluminum sheets, 5083, and 5086. It offers superior corrosion resistance in marine and chemical environments, making it essential for boat building, ship repair, and offshore structure fabrication. One key advantage of ER5356 is that it anodizes to a color that closely matches the base metal, which is critical for architectural applications. However, ER5356 has slightly lower resistance to weld cracking than ER4043 and produces a more viscous (less fluid) weld pool, requiring slightly higher heat input for equivalent penetration. It is not recommended for welding 3xxx series alloys (3003 aluminum sheets) where ER4043 performs better.

ER5183 is a high-strength aluminum-magnesium filler metal with approximately 4.5% Mg and 0.7% Mn. It offers the highest as-welded tensile strength (275 MPa) among common aluminum filler metals and is specifically designed for welding high-magnesium 5xxx series alloys, particularly 5083, 5086, and 5456. ER5183 provides excellent toughness at cryogenic temperatures, making it the filler metal of choice for LNG (liquefied natural gas) storage tanks, cryogenic piping systems, and other low-temperature applications. The manganese addition improves strength and reduces hot cracking susceptibility. ER5183 is more expensive than ER4043 and ER5356 due to the higher alloy content and more specialized manufacturing requirements. It should be used only when the specific strength and toughness requirements justify the additional cost.

Proper joint design and preparation are fundamental to achieving sound aluminum welds. Aluminum’s high thermal conductivity and tendency to form oxides demand careful attention to joint geometry, fit-up tolerances, and surface preparation. The most common joint types for aluminum welding include V-groove butt joints, square butt joints, fillet (T) joints, and lap joints, each suited to specific material thicknesses and loading conditions.

V-groove joints are the standard for butt welding aluminum plates thicker than 6 mm (1/4 inch). The included angle is typically 60-75 degrees, with a root face (land) of 1-2 mm and a root gap of 1.5-3 mm. The bevel can be prepared by machining (milling or planing), which produces the cleanest surface, or by grinding with an aluminum-specific abrasive disc. The root face prevents burn-through during the root pass while ensuring complete penetration. For double-sided welding, a double-V or X-groove configuration is preferred as it reduces distortion by balancing the shrinkage forces on both sides of the joint. Beveling must be performed on clean material — any lubricant or cutting fluid must be thoroughly removed before welding.

Square butt joints (no bevel) are suitable for aluminum sheets up to 4-5 mm thickness when welded from both sides, or up to 3 mm for single-sided welding. A slight root gap of 0.5-1.5 mm allows for full penetration of thin materials. Fillet joints (T-joints) are the most common joint type in structural aluminum fabrication, used in frames, stiffeners, and attachments. For fillet welds, the leg length should equal the thickness of the thinner member, and a slight gap (0.5-1 mm) between members allows for proper root fusion. Fit-up accuracy is more critical for aluminum than steel — gaps wider than 1.5 mm increase the risk of burn-through and incomplete fusion due to aluminum’s high fluidity when molten. Tack welds should be placed at regular intervals (every 100-150 mm) and should be of adequate size (at least 10 mm long) to prevent joint movement during welding.

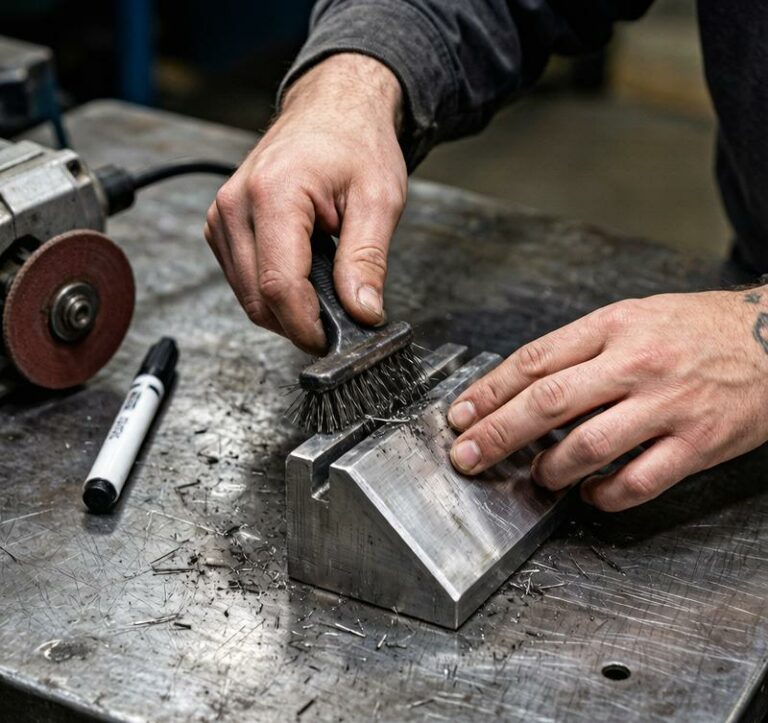

Pre-weld cleaning is arguably the most important step in aluminum welding — more critical than for any other common structural metal. The aluminum oxide layer, surface contaminants, and moisture must be completely removed from the weld zone and adjacent areas to prevent porosity, lack of fusion, and oxide inclusions. A systematic cleaning procedure combining degreasing and oxide removal is essential.

Mechanical oxide removal is performed using a stainless steel wire brush that must be dedicated exclusively to aluminum — never use a brush that has been used on steel or other metals, as iron particles embedded in the aluminum surface will cause severe galvanic corrosion at the weld. The brushing should be done with light pressure in one direction only (not back-and-forth), which helps prevent the oxide from being worked back into the surface. Power wire brushing with rotary tools should be done at low RPM (under 2,500 RPM) to avoid smearing the oxide layer rather than removing it. For heavy oxide layers on material that has been stored outdoors or exposed to moisture, abrasive grinding with aluminum oxide discs or flap wheels may be necessary, followed by wire brushing to remove embedded abrasive particles.

Chemical cleaning begins with thorough degreasing using solvents such as acetone, isopropyl alcohol, or methyl ethyl ketone (MEK). Apply the solvent with a clean, lint-free white cloth and wipe in one direction. Always change cloths frequently — a contaminated cloth simply spreads the contaminants across a larger area. For production environments, alkaline cleaning with a mild NaOH solution (5-10%) at 60-70°C for 1-3 minutes effectively removes both organic contaminants and the oxide layer. This must be followed immediately by a thorough water rinse and then a nitric acid (HNO3, 50% concentration) desmutting step to remove the black smut residue left by the alkaline etch. After chemical cleaning, parts should be thoroughly dried with clean compressed air and welded as soon as possible — within 2 hours is ideal, as the oxide layer begins re-forming immediately upon exposure to air.

Correct welding parameters are essential for achieving sound aluminum welds. The key parameters include welding current (amperage), voltage, travel speed, wire feed speed (for MIG), shielding gas flow rate, and preheat temperature. Parameter selection depends primarily on material thickness, alloy type, joint configuration, and welding position. The following table provides general guidelines for TIG and MIG welding parameters based on material thickness.

As shown in the table, the required welding amperage increases approximately linearly with material thickness. A useful rule of thumb for TIG welding of aluminum is approximately 30-35 amps per millimeter of thickness for material up to 6 mm, decreasing to approximately 25-30 amps per millimeter for thicker sections where preheat is applied. For MIG welding in spray transfer mode, the amperage is primarily determined by wire feed speed — for 1.2 mm diameter aluminum wire, each 1 m/min increase in wire feed speed corresponds to approximately 35-40 amps increase in welding current. It is critical to ensure the power source has adequate capacity: a machine rated at 250 amps at 60% duty cycle may not be sufficient for continuous welding of aluminum thicker than 8 mm.

Heat input is a function of welding current, voltage, and travel speed, calculated as: Heat Input (kJ/mm) = (Amps × Volts × 60) / (Travel Speed in mm/min × 1000). For aluminum, the recommended heat input range is typically 0.5-1.5 kJ/mm for thin sections (1-3 mm) and 1.5-3.0 kJ/mm for medium-to-thick sections (4-12 mm). Travel speed should be fast enough to prevent excessive heat buildup (which causes grain growth, loss of temper, and increased distortion) but slow enough to ensure complete fusion and adequate gas shielding. A good starting point for TIG welding 3 mm aluminum is approximately 150 mm/min travel speed with 130 amps AC. For MIG welding of the same thickness, travel speeds of 500-700 mm/min are typical, reflecting the higher deposition rate and efficiency of the MIG process.

Post-weld heat treatment (PWHT) is often applied to aluminum weldments to restore mechanical properties lost during welding, relieve residual stresses, and improve dimensional stability. The need for PWHT depends on the alloy type, service requirements, and applicable welding codes. Heat-treatable alloys (2xxx, 6xxx, 7xxx series) benefit most from PWHT, while non-heat-treatable alloys (1xxx, 3xxx, 5xxx series) typically do not require it.

For heat-treatable alloys such as 6061 aluminum alloy (T6 temper), solution heat treatment involves heating the weldment to 525-540°C (980-1005°F) and holding at temperature for a sufficient time to dissolve the strengthening precipitates back into solid solution. The soaking time depends on section thickness — typically 1 hour per 25 mm of thickness for forgings and extrusions, with thinner sections requiring proportionally less time. After soaking, the part must be quenched rapidly (within 10-15 seconds of removal from the furnace) in water at 20-40°C to retain the alloying elements in supersaturated solid solution. Slow quenching allows precipitates to re-form at grain boundaries, reducing the strengthening potential and corrosion resistance of the final product. Distortion during quenching is a significant concern, especially for large, complex weldments — fixtures and controlled quench rates may be necessary.

After solution treatment and quenching, the aluminum is in a soft, ductile condition (T4 temper for natural aging). Natural aging occurs at room temperature and reaches near-maximum strength in approximately 4-5 days for 6xxx series alloys. Artificial aging (precipitation heat treatment) accelerates this process by heating to 160-190°C (320-375°F) for 8-18 hours, depending on the alloy. Artificial aging to the T6 temper provides the highest strength but slightly reduced ductility compared to natural aging (T4). For welded assemblies requiring maximum strength, such as structural aerospace components or high-pressure vessels, full solution treatment plus artificial aging (T6) after welding is standard practice. For less demanding applications, welding in the T4 condition followed by natural aging may be sufficient and is significantly less costly. It is important to note that the as-welded strength in the HAZ is typically only 50-60% of the base metal T6 strength, and even after PWHT, full recovery is not always achieved in the fusion zone.

Aluminum welding is susceptible to certain characteristic defects that must be understood and controlled. The most common issues include porosity, hot cracking, incomplete fusion, lack of penetration, and distortion. Each defect has specific causes and proven prevention strategies. A systematic approach to defect prevention through proper material preparation, parameter control, and welder technique is far more cost-effective than post-weld repair.

Porosity is the single most common defect in aluminum welding. It is caused primarily by hydrogen gas that becomes dissolved in the molten weld pool and is trapped as the metal solidifies rapidly. The solubility of hydrogen in molten aluminum is approximately 20 times higher than in solid aluminum, so as the weld pool freezes, the excess hydrogen precipitates out, forming gas bubbles that become trapped as porosity. Hydrogen sources include: moisture on the base metal or filler wire surface, hydrocarbon contaminants (oil, grease, cutting fluid residue), hydrated aluminum oxide (which contains chemically bound water), and moisture in the shielding gas. Prevention requires a multi-pronged approach: meticulous cleaning and degreasing, storage of filler metals in a dry environment (controlled humidity below 50%), use of high-purity (99.997% or better) argon shielding gas, and preheating to drive off surface moisture. Porosity exceeding AWS D1.2 limits (typically 0.75 mm or 3/32 inch individual pore maximum) is cause for rejection in code-quality work.

Hot cracking occurs at temperatures near the solidus during the final stages of solidification. It is caused by the combination of a wide solidification temperature range and tensile stresses from thermal contraction. Aluminum alloys with high levels of copper (2xxx), zinc (7xxx), or magnesium (>5% in 5xxx) are particularly susceptible. The most effective prevention measure is selecting the correct filler metal: ER4043 is highly resistant to hot cracking because the 5% silicon content provides sufficient eutectic liquid at grain boundaries to “heal” micro-cracks as they form. This is why ER4043 is recommended for welding 6xxx series alloys despite providing lower strength than ER5356 — the enhanced crack resistance often outweighs the strength difference. Other prevention strategies include: avoiding high restraint conditions in joint design, using stringer beads rather than wide weaves, ensuring a slightly convex bead profile (concave beads concentrate stress at the centerline), and controlling the weld cooling rate (slower cooling reduces thermal stresses).

Distortion is a universal challenge in aluminum welding due to aluminum’s high coefficient of thermal expansion (approximately twice that of steel) and high thermal conductivity. Effective distortion control requires a combination of design and process strategies: balanced welding sequences (alternating sides to cancel shrinkage forces), back-step welding technique (welding short segments in the opposite direction of overall progression), pre-setting or pre-bending to compensate for expected shrinkage, robust fixturing with chill bars or clamps, minimizing weld volume (using the smallest acceptable fillet size and bevel angle), and intermittent or staggered welds where continuous welds are not structurally required. For critical assemblies, thermal stress relief at 340-400°C for non-heat-treatable alloys (followed by slow cooling) can reduce residual stresses by 50-80% without significantly affecting mechanical properties. Finite element analysis (FEA) simulation of welding distortion is increasingly used in aerospace and automotive industries to predict and compensate for distortion before the first production part is welded.

Not all aluminum alloys are equally weldable. The weldability of aluminum alloys varies dramatically depending on their chemical composition and strengthening mechanism. Understanding the weldability characteristics of each alloy series is essential for material selection in welded structures and for selecting the correct welding procedure. The following table summarizes the fusion weldability of the major aluminum alloy series.

The 1xxx series (minimum 99.0% aluminum) offers the best weldability of any aluminum alloy series. With no alloying elements that could form low-melting-point eutectics, these alloys are virtually immune to hot cracking. Welds in 1xxx alloys have corrosion resistance and electrical conductivity approaching that of the base metal. The main consideration is that the as-welded strength will be in the annealed (O temper) condition, which is typically only 60-80 MPa. If higher strength is required, the base metal must be work-hardened (H temper), and the HAZ will be softened by the welding heat. 1xxx alloys are commonly used in chemical processing equipment, electrical bus bars, food processing equipment, and decorative applications where formability and corrosion resistance are more important than strength.

The 5xxx series, represented by 5052 aluminum sheets, 5083, and 5086, offers excellent weldability combined with moderate-to-high strength (215-350 MPa tensile in annealed condition). These alloys are strain-hardenable (not heat-treatable), so the HAZ is softened during welding, but the overall joint efficiency is typically 80-90% of the annealed base metal strength. Alloys with magnesium content up to 5% weld easily with ER5356 or ER5183 filler. Caution is required for alloys with magnesium content above 3.5% — these should not be exposed to sustained service temperatures above 65°C (150°F), as this can cause sensitization and susceptibility to stress corrosion cracking. The 5xxx series is the workhorse of marine aluminum construction, used extensively in ship hulls, decks, superstructures, LNG tanks, and pressure vessels. HXM Aluminum supplies high-quality 5052, 5083, and 5086 aluminum sheets specifically manufactured for welding applications, with certifications to ASTM, EN, and JIS standards.

The 6xxx series, including 6061 aluminum alloy and 6063, is the most widely used heat-treatable aluminum alloy group in welded structures. Weldability is generally good, but these alloys are susceptible to hot cracking if the wrong filler metal is used. ER4043 is the recommended filler for most 6xxx applications because its high silicon content prevents hot cracking more effectively than ER5356. The downside is that the weld strength with ER4043 is lower (approximately 186 MPa vs. 240 MPa with ER5356), but this trade-off is almost always justified by the elimination of cracking risk. The HAZ in 6xxx alloys experiences significant strength reduction during welding — as-welded HAZ strength may be only 50-60% of the T6 base metal strength. Post-weld heat treatment (solution treatment + aging) can recover most of this strength, but this adds cost and may cause distortion. For maximum strength applications, 5xxx alloys are often preferred over 6xxx because they achieve better as-welded strength without PWHT.

The 7xxx series alloys, exemplified by 7075 and 7050, offer the highest strength of any aluminum alloy but are generally considered unweldable by conventional fusion welding processes. These alloys are extremely susceptible to hot cracking and stress corrosion cracking in the weld zone. The high zinc and magnesium content creates a very wide solidification range and low-melting-point eutectics that concentrate at grain boundaries during weld solidification, leading to severe cracking. Additionally, the copper content in many 7xxx alloys exacerbates hot cracking. For these reasons, 7xxx alloys are typically joined by mechanical fastening (rivets, bolts) or solid-state welding processes such as friction stir welding (FSW), which does not melt the base metal. In some cases, 7xxx alloys with lower copper content (e.g., 7005, 7020) can be welded with specialized filler metals (ER5356 or proprietary compositions), but this requires extensive qualification and is not recommended for general fabrication.

Quality inspection is an integral part of aluminum welding to ensure the integrity, safety, and reliability of welded structures. A comprehensive inspection program typically combines multiple non-destructive testing (NDT) methods with destructive mechanical testing for procedure and welder qualification. The selection of inspection methods depends on the applicable welding code (AWS D1.2, ASME Section IX, ISO 15614), the criticality of the application, and the types of defects most likely to occur.

Visual testing (VT) is the first line of inspection and should be performed on 100% of production welds. Key visual inspection criteria for aluminum welds include: uniform bead width and reinforcement (typically 1-2 mm reinforcement for butt welds), smooth transition at weld toes (no sharp notches or undercut exceeding 0.5 mm depth), absence of surface cracks, craters filled to full cross-section, and no visible porosity. Dye penetrant testing (PT) supplements visual inspection by revealing fine surface-breaking defects that may not be visible to the naked eye. A colored or fluorescent dye is applied to the cleaned surface, allowed to penetrate into surface defects, and then a developer draws the dye out, making defects clearly visible. PT is particularly effective for detecting micro-cracks, pin-hole porosity, and incomplete fusion at weld toes. For critical applications, PT should be applied after a delay of 24-48 hours following welding to allow for delayed cracking (hydrogen-induced cracking in susceptible alloys).

Radiographic testing (RT) using X-ray or gamma-ray sources is the gold standard for detecting internal weld defects in aluminum. RT produces a permanent film or digital image that clearly shows porosity (appearing as dark spots), tungsten inclusions (bright white spots), cracks (fine dark lines), and incomplete fusion (dark lines at the fusion boundary). For aluminum, lower energy X-rays (100-200 kV) are typically used compared to steel radiography due to aluminum’s lower density. Inspection is typically performed to the acceptance criteria of AWS D1.2 or ASME B31.3, which define maximum allowable defect sizes based on material thickness and application criticality. Ultrasonic testing (UT) uses high-frequency sound waves (typically 2.25-10 MHz) to detect internal defects. UT is particularly effective for detecting planar defects (cracks, lack of fusion) that may be missed by RT at unfavorable orientations. However, UT requires a high degree of operator skill and experience, as the interpretation of signals depends on the operator’s ability to distinguish between defect indications and geometric reflections from the weld profile.

Understanding the cost components of aluminum welding is essential for project budgeting, process selection, and make-versus-buy decisions. Aluminum welding costs are generally higher than carbon steel welding for equivalent joint configurations due to the specialized equipment, higher skill requirements, more expensive consumables, and additional preparation steps required. The following table breaks down the major cost components of aluminum welding operations.

For global buyers, engineers, and procurement managers seeking reliable sources of weldable aluminum products, China has become the world’s largest producer and exporter of aluminum materials. However, the quality and consistency of aluminum products can vary significantly between suppliers. Selecting a manufacturer with proven quality certifications, consistent alloy chemistry control, and experience serving international markets is essential for ensuring your welded products meet specifications and perform reliably in service.

HXM Aluminum is a premier aluminum manufacturer and supplier based in China, specializing in high-quality aluminum products specifically suited for welding applications. We produce a comprehensive range of aluminum sheets, coils, bars, tubes, and profiles in weldable alloys including:

• 5052 Aluminum Sheets — The most versatile weldable alloy for marine, automotive, and general fabrication. Excellent corrosion resistance and formability.

• 5083/5086 Aluminum — High-strength marine-grade alloys with superior weldability for shipbuilding and cryogenic applications.

• 6061 Aluminum — The standard heat-treatable structural alloy. Available as sheets, bars, tubes, and custom profiles with consistent chemistry for reliable welding.

• 3003 Aluminum — General-purpose alloy with excellent weldability for sheet metal fabrication, tanks, and enclosures.

• 1050/1060 Pure Aluminum — For applications requiring maximum corrosion resistance and electrical conductivity after welding.

Our products are manufactured under strict ISO 9001:2015 quality management systems with full material traceability, mill test certificates (MTC) per EN 10204 3.1, and chemical composition analysis for every production lot. We supply weldable aluminum to customers in over 60 countries across North America, Europe, Middle East, Southeast Asia, and Africa. Whether you need standard mill finish sheets and plates or custom-cut blanks ready for welding, HXM provides competitive pricing, consistent quality, and reliable delivery.

Contact our technical sales team to discuss your specific aluminum welding material requirements. Our engineers can recommend the optimal alloy, temper, and product form for your welding application and provide comprehensive material certifications to support your quality assurance program.

This aluminum welding guide is provided by HXM Aluminum, a leading manufacturer and supplier of weldable aluminum products including sheets, coils, bars, tubes, and profiles. For more information about our aluminum products, visit our homepage or contact our team.
