7075 Aluminum Pipe & Tube Specifications
Standards: ASTM, ASME, AMS, GB/T, JIS
Thickness: 0.2-500mm, etc.
Width: 20-2650mm, etc.
Length: Customized
Shape: Round, Square, Rectangular, etc.
Material Temper: F, O, T4, T6, T651, H14, H112
Delivery Time: 7-20 days.
7075 Aluminum Tube & Pipe Data Sheet
Equivalent Grades Of Aluminum 7075 Tube
| Standard | 7075 Aluminum | Equivalent Grades | Notes |
|---|---|---|---|
| Aluminum Association (AA) | 7075 | – | Standard aluminum alloy designation |
| International Organization for Standardization (ISO) | 7075 | 3.4365 | Comparable performance to 7075 |
| Deutsches Institut für Normung (DIN) | – | EN AW-7075 | Standard corresponding designation |
| British Standards (BS) | – | 7075-T6 | 7075-T6 is commonly used interchangeably |
| Japanese Industrial Standards (JIS) | – | A7075-T6 | A7075-T6 is similar under JIS standards |
| Chinese National Standards (GB) | – | 7075-T6 | 7075-T6 is often used as an equivalent |
Chemical Composition of 7075 Aluminum Tube
| Element | Chemical Composition (%) |
|---|---|
| Al | Balance (approximately 87.1 – 91.4%) |
| Zn | 5.1 – 6.1% |
| Cu | 1.2 – 2.0% |
| Mg | 2.1 – 2.9% |
| Mn | 0.3% max |
| Cr | 0.18 – 0.28% |
| Si | 0.4% max |
| Fe | 0.5% max |
| Ti | 0.2% max |
| Other Elements | Each 0.05% max, Total 0.15% max |
Mechanical Properties and Tempers of 7075 Aluminium Tube
| Property | 7075-T6 | 7075-T651 | 7075-T7 | 7075-T76 |
|---|---|---|---|---|
| Yield Strength (MPa) | 503 – 572 | 483 – 552 | 414 – 482 | 483 – 552 |
| Ultimate Tensile Strength (MPa) | 572 – 641 | 552 – 621 | 483 – 552 | 552 – 621 |
| Elongation (%) | 8 – 10 | 10 – 12 | 8 – 10 | 10 – 12 |
| Shear Strength (MPa) | 414 – 517 | 414 – 482 | 414 – 482 | 414 – 482 |
| Hardness (Brinell) | 150 – 180 | 145 – 175 | 150 – 180 | 145 – 175 |
For high-quality 7075 aluminum Tube and professional assistance, contact HXM, your reliable supplier of aluminum products.
Different Tempers of 7075 Aluminum Tubes Metal
7075 aluminum tube metal is renowned for its high strength and versatility, making it suitable for various demanding applications. The properties of 7075 aluminum can vary significantly depending on its temper, which refers to the heat treatment and aging process it undergoes. Here’s a breakdown of the most common tempers for 7075 aluminum tube metal:
7075-T6
- Properties: This is one of the most widely used tempers for 7075 aluminum. It offers the highest strength and is known for its excellent mechanical properties. It has good resistance to stress corrosion cracking and is often used in aerospace and structural applications.
- Applications: Aircraft structures, marine components, and high-stress components.
7075-T651
- Properties: Similar to T6 but with a slightly different processing method that reduces internal stresses. It has the same high strength as T6 but with improved machinability.
- Applications: Aerospace components, high-strength structural parts, and tooling.
7075-T73
- Properties: This temper is an alternative to T6, with similar strength but enhanced stress corrosion resistance and improved toughness. It undergoes a solution heat treatment followed by aging at a lower temperature.
- Applications: Aerospace parts requiring good corrosion resistance and strength, such as fuselage frames and wing skins.
7075-T76
- Properties: This is an alternative to T73 with similar mechanical properties but offers improved resistance to localized corrosion.
- Applications: Specialized aerospace components and high-performance marine applications.
7075-O
- Properties: The ‘O’ temper denotes that the aluminum is in its soft, annealed state. This temper is not as strong as T6 but provides the maximum ductility and is easier to form and machine.
- Applications: Pre-machining or forming, and applications requiring extensive shaping.
7075-T3 and 7075-T4
- Properties: These are less commonly used but are still relevant. T3 is solution heat-treated and cold worked, offering good strength and formability. T4 is similar but requires additional aging for increased strength.
- Applications: Aerospace and military applications, where high strength and corrosion resistance are necessary.
Applications of 7075 Aluminum Pipe Metal

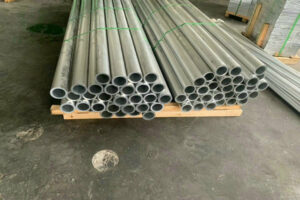

7075 Aluminum Pipe & Tube Packages
The following is our company’s standard aluminum pipe & tube export packaging. If the customer has any packaging requirements, our company can meet them.
