Aluminum circles (also called aluminum discs or aluminum blanks) are flat, round pieces of aluminum used primarily as raw material for deep drawing and spinning operations to produce cookware, lighting reflectors, and various industrial components. As a leading manufacturer, HXM Aluminum produces high-quality aluminum circles across a wide range of alloys, diameters, and thicknesses. This guide covers everything you need to know about aluminum circles — from alloy selection and manufacturing to applications and sourcing.
What Are Aluminum Circles?
Aluminum circles are round blanks cut from aluminum sheet or coil, typically used as starting material for deep drawing, stamping, or spinning processes. They are characterized by their diameter, thickness, alloy, and surface condition. The round blank shape minimizes waste during the drawing process compared to square blanks and provides uniform material flow during forming.
Browse our complete range of aluminum circle products at HXM Aluminum.
Aluminum Circle Alloys
1050/1060 Aluminum Circles (Pure Aluminum)
The most commonly used alloys for cookware and lighting applications. With ≥99.5% aluminum content, 1050 and 1060 circles offer excellent deep drawing performance, high thermal conductivity, and superior corrosion resistance. Their excellent formability makes them the first choice for producing pots, pans, and lighting reflectors. See our 1000 Series Aluminum page for more information.
3003 Aluminum Circles
Adding approximately 1.2% manganese provides 3003 circles with about 20% higher strength than pure aluminum while maintaining good formability. Ideal for pressure cookers, tea kettles, and other cookware requiring higher structural strength. Read our 3003 Aluminum Guide for detailed properties.
3004 Aluminum Circles
3004 offers even higher strength than 3003 with additional magnesium content. Used for hard-anodized cookware, rice cooker inner pots, and applications requiring good hardness and scratch resistance after anodizing.
5052/5050 Aluminum Circles
For applications requiring higher strength and marine-grade corrosion resistance, 5052 circles provide excellent performance. Used in marine hardware, road signs, and high-strength cookware. See our 5052 Aluminum Guide for comprehensive information.

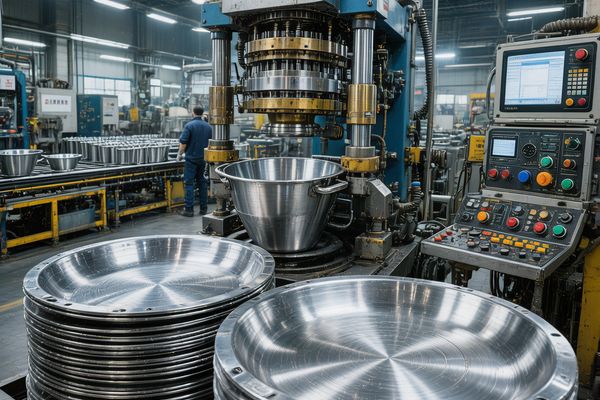

Aluminum Circle Manufacturing Process
- Coil preparation: Aluminum coil of the required alloy and thickness is prepared for circle cutting
- Circle stamping/cutting: Circles are punched from the coil using progressive stamping dies or circle cutting machines. Laser cutting may be used for small quantities or special requirements
- Annealing (if required): Circles are annealed to O temper for maximum formability before deep drawing. This step is critical for preventing tears during the drawing process
- Surface treatment: Circles may be polished, anodized, or coated depending on the end application
- Quality inspection: Dimensional accuracy, surface quality, and mechanical properties are verified per HXM quality standards
- Packaging: Circles are stacked, separated by paper, and packaged on pallets for shipment
Key Applications of Aluminum Circles

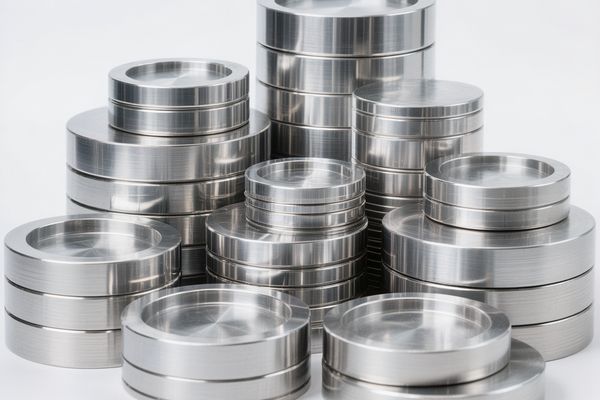

Cookware Manufacturing (Largest Application)
Aluminum circles are the primary raw material for manufacturing cookware worldwide. The deep drawing process transforms flat circles into pots, pans, woks, pressure cooker bodies, and saucepans. 1050, 1060, and 3003 are the dominant alloys. After drawing, cookware is typically coated (non-stick), anodized (hard anodized), or polished.
Lighting Reflectors
High-purity 1060 and 1070 aluminum circles are spun or deep-drawn into parabolic reflectors for LED lights, street lamps, and automotive headlights. The high reflectivity of pure aluminum (up to 92%) makes it ideal for optical applications.
Road Signs & Traffic Equipment
5052 and 3003 aluminum circles are used for road sign blanks, which are then retro-reflective sheeting applied. Aluminum’s lightweight, corrosion resistance, and durability make it the standard material for traffic signage worldwide.
Industrial Components
Aluminum circles serve as blanks for various stamped and drawn industrial components including filter housings, end caps, gaskets, and decorative covers. The material can be further processed into shapes using our aluminum strip and aluminum sheet products as well.
Electrical & Electronics
Circles of 1060 and 1070 alloy are used for electrical connector bases, capacitor housings, and electronic shielding components due to their high electrical conductivity.
Aluminum Circle Specifications
| Parameter | Typical Range |
|---|---|
| Alloy | 1050, 1060, 1070, 1100, 3003, 3004, 5052 |
| Temper | O, H12, H14, H22, H24 |
| Diameter | 80 – 1250 mm |
| Thickness | 0.3 – 10.0 mm |
| Surface | Mill finish, polished, anodized |
| Tolerance (Diameter) | ±0.5 mm (standard), ±0.2 mm (precision) |
| Tolerance (Thickness) | ±5% of nominal thickness |
How to Specify Aluminum Circles for Your Order
- Select the alloy: 1050/1060 for standard cookware and reflectors; 3003 for higher-strength cookware; 5052 for marine/outdoor signage
- Choose the temper: O temper for deep drawing (most common); H12/H14 for lighter forming operations. See our temper designations guide
- Specify diameter and thickness: Calculate the blank size needed based on the finished part dimensions and drawing ratio. Typically, the blank diameter is 1.5–3x the finished part diameter
- Surface requirements: Mill finish for further processing; polished for visible surfaces; anodized for corrosion/abrasion resistance
- Quantity: Specify total pieces or weight. Typical MOQ is 2–5 metric tons
Quality Considerations for Deep Drawing Circles
- Grain structure: Fine, uniform grain structure prevents “orange peel” surface defects during deep drawing
- Earing control: Controlled rolling direction minimizes earing (wavy edges) during cup drawing
- Surface cleanliness: Oil-free surfaces are critical for cookware that will be coated or anodized
- Consistent thickness: Thickness variations cause uneven drawing and potential tear-outs
- Burr-free edges: Clean-cut edges prevent cracking initiation during forming
HXM Aluminum’s quality testing laboratory ensures all circles meet these critical parameters before shipment.
Frequently Asked Questions
What alloy is best for cookware circles?
For standard cookware (pots, pans, woks), 1050 or 1060-O temper circles provide the best deep drawing performance. For pressure cookers and heavy-duty cookware, 3003-O offers higher strength while maintaining good formability. For hard-anodized cookware, 3004 provides the best post-anodize hardness.
What is the difference between aluminum circle and aluminum disc?
“Aluminum circle” and “aluminum disc” refer to the same product — a round flat aluminum blank. The term “circle” is more commonly used in the Asian and Middle Eastern markets, while “disc” is more common in European and North American markets. Both refer to identical products.
Can aluminum circles be custom-sized?
Yes. Custom diameters and thicknesses are available from HXM Aluminum. We can produce circles from 80mm to 1250mm diameter in any thickness from 0.3mm to 10mm. Custom tooling for specific sizes is available with short lead times.
Conclusion
Aluminum circles are the essential starting material for cookware manufacturing, lighting reflectors, road signs, and numerous industrial stamping applications. Selecting the right alloy, temper, and surface condition — combined with consistent quality from a reliable manufacturer — is critical for producing high-quality drawn and stamped parts.
HXM Aluminum produces aluminum circles in all common alloys from 80mm to 1250mm diameter with strict quality controls for deep drawing performance. Our custom specification service ensures you receive circles optimized for your exact manufacturing process. Contact us for pricing and technical support.
