Aluminum weight calculation is a fundamental skill for engineers, purchasers, manufacturers, and logistics professionals working with aluminum materials. Whether you are ordering aluminum sheets, calculating shipping costs for aluminum bars, or estimating project material requirements for aluminum tubes, accurate weight calculation ensures you order the right quantity, budget correctly, and avoid costly mistakes.

Why does aluminum weight matter so much? In B2B aluminum procurement, pricing is typically quoted per kilogram or per ton. Shipping costs—especially for international freight—are calculated by weight. Structural engineers need to know component weights for load calculations. And manufacturers must account for raw material weight in production planning and inventory management. A calculation error of just 10% could translate to thousands of dollars in unexpected costs.

This comprehensive guide covers everything you need to master aluminum weight calculation. Starting from the fundamental concept of aluminum density (2.66–2.81 g/cm³ depending on alloy), we provide detailed formulas for every common shape: sheets, plates, round bars, round tubes, square tubes, rectangular tubes, flat bars, and custom extrusions. For each formula, we include step-by-step examples with real-world dimensions. We also cover unit conversions between metric and imperial systems, compare aluminum weight against steel (aluminum is approximately 1/3 the weight), and explain how weight impacts shipping costs and final pricing. Whether you need a quick reference or in-depth understanding, this guide has you covered.

For ready-to-order aluminum products with accurate weight specifications, contact HXM Aluminum—our team provides detailed product data sheets and instant quotations for global delivery.

What Is Density and Why It Matters

Density (ρ, pronounced “rho”) is the mass per unit volume of a material, expressed in g/cm³ or kg/m³. It is the single most important parameter in aluminum weight calculation. Every weight formula begins with density: Weight = Volume × Density. If you get the density wrong, your entire weight calculation will be wrong. For aluminum alloys, density ranges from approximately 2.66 g/cm³ for high-magnesium 5xxx series alloys to 2.81 g/cm³ for high-zinc 7xxx series alloys—a difference of about 5.6%. While this may seem small, on a 10-ton order, that is a difference of 560 kg, enough to affect container loading plans and freight costs.

Pure Aluminum vs Aluminum Alloys

Pure aluminum (99.0–99.99% Al) has a density of 2.70 g/cm³ at 20°C. This is the baseline density that is often used as a quick reference. However, almost all commercially used aluminum is alloyed with other elements—magnesium, silicon, copper, zinc, manganese—to improve strength, corrosion resistance, formability, and other properties. Each alloying element has a different density, so the overall density of an aluminum alloy shifts depending on its composition:

• Magnesium (Mg): density 1.74 g/cm³ — lighter than aluminum, reduces overall alloy density
• Silicon (Si): density 2.33 g/cm³ — slightly lighter than aluminum
• Copper (Cu): density 8.96 g/cm³ — much heavier, increases alloy density significantly
• Zinc (Zn): density 7.14 g/cm³ — heavier, increases alloy density
• Manganese (Mn): density 7.44 g/cm³ — heavier, increases alloy density
• Iron (Fe): density 7.87 g/cm³ — heavier, increases alloy density

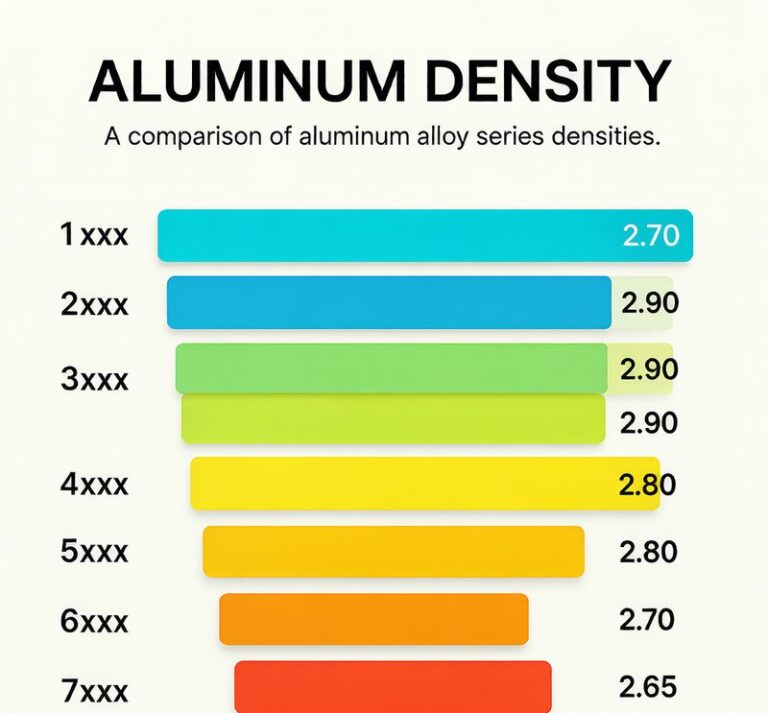

Density Range Across Alloy Series

The density of aluminum alloys falls within a relatively narrow range of 2.66 to 2.81 g/cm³. This means the heaviest aluminum alloy is only about 5.6% heavier than the lightest. However, on commercial-scale orders, this difference matters. The table below shows the typical density range for each major alloy series:

For most practical aluminum weight calculations, using the general reference density of 2.70 g/cm³ is acceptable for estimates. However, for exact orders involving high-strength 2xxx or 7xxx series alloys or lightweight 5xxx series alloys, always use the specific alloy density from the chart below for the most accurate result.

1xxx Series: Pure Aluminum (2.70–2.71 g/cm³)

The 1xxx series represents commercially pure aluminum (99.0% minimum aluminum content). These alloys have the lowest strength but the highest corrosion resistance, electrical conductivity, and thermal conductivity. They are widely used in electrical applications, chemical equipment, and reflective surfaces. The density is the closest to pure aluminum (2.70 g/cm³), making them the reference point for weight comparisons.

2xxx Series: Al-Cu Alloys (2.77–2.80 g/cm³)

Alloyed primarily with copper (2–6%), 2xxx series alloys like 2024 achieve strength comparable to mild steel through heat treatment. However, copper increases density by 2.6–3.7% compared to pure aluminum. These alloys are extensively used in aerospace structures where the strength-to-weight advantage over steel is critical, despite being heavier than other aluminum series.

3xxx Series: Al-Mn Alloys (2.72–2.73 g/cm³)

Manganese is the primary alloying element (1.0–1.5%) in the 3xxx series. These moderate-strength alloys, particularly 3003, are the most widely used aluminum alloys for general sheet metal work, roofing, siding, and cooking utensils. The density increase is modest at 0.7–1.1% above pure aluminum.

4xxx Series: Al-Si Alloys (2.66–2.70 g/cm³)

Silicon is the primary alloying element (up to 12%), reducing density slightly below pure aluminum. The 4xxx series is primarily used for welding wire and brazing filler metals where the low melting point from silicon content is advantageous. These are among the lightest aluminum alloys.

5xxx Series: Al-Mg Alloys (2.66–2.69 g/cm³)

Magnesium alloyed up to 5% creates the lightest group of aluminum alloys. High-magnesium alloys like 5083 and 5086 combine excellent corrosion resistance in marine environments with lower weight, making them ideal for shipbuilding, pressure vessels, and cryogenic applications. Their density of 2.66 g/cm³ represents the lower end of the aluminum density spectrum.

6xxx Series: Al-Mg-Si Alloys (2.69–2.71 g/cm³)

These versatile heat-treatable alloys contain both magnesium and silicon. 6061 aluminum is the most popular alloy in this series, offering a balanced combination of strength, corrosion resistance, machinability, and weldability. Its density of 2.70 g/cm³ is exactly that of pure aluminum, making calculations straightforward.

7xxx Series: Al-Zn Alloys (2.78–2.81 g/cm³)

The strongest aluminum alloys, alloyed primarily with zinc (up to 8%), are also the heaviest. 7075 aluminum at 2.81 g/cm³ is approximately 4% heavier than pure aluminum. This density increase is the trade-off for achieving ultimate tensile strengths exceeding 570 MPa—approaching mild steel strength at one-third the weight.

Sheet and Plate Weight Formula

For aluminum sheets and plates, the weight calculation is the simplest form: multiply length, width, thickness, and density. Sheets are generally defined as material under 6mm thickness, while plates are 6mm and above.

Formula: W = L × W × T × ρ

Where: W = Weight (kg), L = Length (m), W = Width (m), T = Thickness (mm) / 1000, ρ = Density (kg/m³)

Using mm units directly: W (kg) = L(mm) × W(mm) × T(mm) × ρ(g/cm³) / 1,000,000

For example, a 3003 aluminum sheet measuring 2000mm × 1000mm × 3mm: W = 2000 × 1000 × 3 × 2.73 / 1,000,000 = 16.38 kg. Browse our aluminum sheets catalog for standard dimensions and alloy options.

Round Bar Weight Formula

For aluminum round bars and rods, calculate the cross-sectional area as π × (D/2)² and multiply by length and density.

Formula: W = π × (D/2)² × L × ρ

Using mm units: W (kg) = π × (D/2)² × L × ρ / 1,000,000,000

Simplified: W (kg) = 0.0000007854 × D²(mm) × L(mm) × ρ(g/cm³)

For a 6061 aluminum round bar of 50mm diameter and 3000mm length: W = π × (25)² × 3000 × 2.70 / 1,000,000,000 = 15.90 kg. Check our aluminum bar selection for available diameters.

Round Tube Weight Formula

Aluminum round tubes have a hollow cross-section. Calculate the outer cylinder volume minus the inner cylinder volume.

Formula: W = π × [(OD/2)² − (ID/2)²] × L × ρ

Where: OD = Outside Diameter, ID = Inside Diameter = OD − 2 × wall thickness

Using mm units: W (kg) = π × [(OD/2)² − (ID/2)²] × L × ρ / 1,000,000,000

For a 6063 aluminum tube with OD 60mm, wall 3mm, and length 6000mm: ID = 60 − 6 = 54mm; W = π × (900 − 729) × 6000 × 2.69 / 1,000,000,000 = 8.67 kg. Explore our aluminum tube inventory for standard sizes.

Square and Rectangular Tube Weight Formula

For hollow square or rectangular tubes, calculate the volume difference between the outer rectangle and the inner hollow rectangle.

Formula: W = [W × H − (W − 2t) × (H − 2t)] × L × ρ

Where: W = Width (mm), H = Height (mm), t = Wall thickness (mm), L = Length (mm)

For a square tube 40 × 40mm, wall 2mm, length 5000mm, density 2.70: Outer area = 40 × 40 = 1600 mm²; Inner area = 36 × 36 = 1296 mm²; Cross section = 304 mm²; W = 304 × 5000 × 2.70 / 1,000,000 = 4.10 kg.

Flat Bar Weight Formula

Aluminum flat bars are rectangular in cross-section, similar to sheets but sold as bar stock rather than sheet stock.

Formula: W = W × T × L × ρ

Using mm units: W (kg) = W(mm) × T(mm) × L(mm) × ρ(g/cm³) / 1,000,000

For a flat bar 80mm × 12mm × 4000mm of 6061 aluminum: W = 80 × 12 × 4000 × 2.70 / 1,000,000 = 10.37 kg.

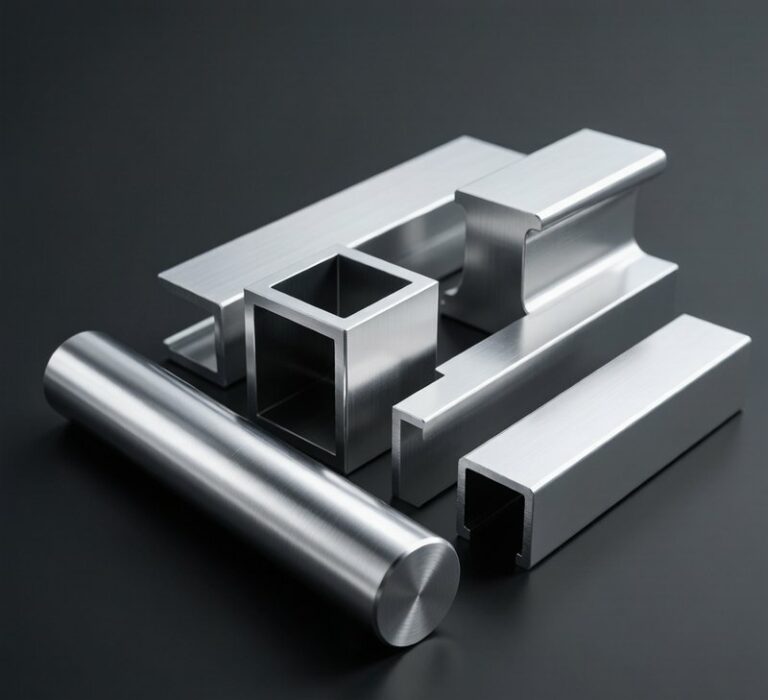

Custom Extrusion and Profile Weight Formula

For aluminum extrusions with custom cross-sections (channels, angles, I-beams, T-slots), the weight is calculated using the cross-sectional area provided by the manufacturer or calculated from CAD geometry.

Formula: W = A × L × ρ

Where: A = Cross-sectional area (mm²), L = Length (mm), ρ = Density (g/cm³ → kg)

W (kg) = A(mm²) × L(mm) × ρ(g/cm³) / 1,000,000

For a custom profile with cross-sectional area 450 mm² and length 6000mm: W = 450 × 6000 × 2.70 / 1,000,000 = 7.29 kg.

Example 1: 6061 Aluminum Sheet Weight

Scenario: A manufacturer needs 25 sheets of 6061-T6 aluminum for a machine frame. Each sheet measures 2440mm × 1220mm × 4mm. Calculate the total weight for procurement and shipping.

Known values: L = 2440mm, W = 1220mm, T = 4mm, ρ(6061) = 2.70 g/cm³

Step 1: Calculate single sheet volume:

V = 2440 × 1220 × 4 = 11,907,200 mm³

Step 2: Apply density:

W(single) = 11,907,200 × 2.70 / 1,000,000 = 32.15 kg per sheet

Step 3: Multiply by quantity:

Total = 32.15 × 25 = 803.75 kg

Result: The total order weighs approximately 804 kg (or about 1,772 lbs).

Example 2: 7075 Aluminum Round Bar Weight

Scenario: An aerospace machine shop orders 100 pieces of 7075-T651 round bar, each 80mm diameter and 2500mm long. Calculate total weight.

Known values: D = 80mm, L = 2500mm, ρ(7075) = 2.81 g/cm³, r = 40mm

Step 1: Calculate cross-section area:

A = π × (40)² = 5,026.55 mm²

Step 2: Calculate volume per bar:

V = 5,026.55 × 2500 = 12,566,375 mm³

Step 3: Apply density:

W(single) = 12,566,375 × 2.81 / 1,000,000 = 35.31 kg per bar

Step 4: Total weight:

Total = 35.31 × 100 = 3,531 kg (approximately 3.53 metric tons)

Example 3: 6063 Square Tube Weight for Construction

Scenario: A construction project requires 500 meters of 6063-T5 square tube, 50mm × 50mm with 2mm wall thickness. Calculate total weight.

Known values: Outer = 50 × 50mm, t = 2mm, ρ(6063) = 2.69 g/cm³, Total L = 500,000mm

Step 1: Calculate cross-section area:

Outer area = 50 × 50 = 2,500 mm²

Inner = 50 − 4 = 46mm; Inner area = 46 × 46 = 2,116 mm²

Cross section = 2,500 − 2,116 = 384 mm²

Step 2: Calculate total volume:

V = 384 × 500,000 = 192,000,000 mm³

Step 3: Apply density:

Total W = 192,000,000 × 2.69 / 1,000,000 = 516.48 kg

Result: The 500-meter tube order weighs about 516 kg.

Common Unit Conversions for Aluminum Weight Calculation

Working with international clients often requires converting between metric and imperial units. The following conversions are essential for accurate aluminum weight calculation in any measurement system:

Quick conversion formula for imperial weight calculation: For aluminum weight in pounds per foot for a round bar: W (lb/ft) = D²(inch) × 1.17 (for ρ = 2.70 g/cm³). For sheets: W (lb/ft²) = T(inch) × 14.5.

Why Aluminum Weighs One-Third of Steel

One of the most important advantages of aluminum in structural applications is its low density compared to steel. With an average density of 2.70 g/cm³ compared to steel’s 7.85 g/cm³, aluminum is approximately 2.9 times lighter. This means that for the same volume of material, aluminum weighs only 34.4% as much as steel—roughly one-third the weight.

This weight advantage makes aluminum the preferred material for applications where weight reduction is critical: aerospace, automotive lightweighting, transportation, portable structures, and high-rise building facades. Even though aluminum is generally more expensive per kilogram than steel, the overall cost can be lower when weight-based savings in transportation, handling, and structural support are factored in.

For the same component dimensions, substituting steel with aluminum reduces weight by approximately 65%. Even after upsizing the aluminum part to match steel’s stiffness (since aluminum’s elastic modulus is about one-third of steel’s), the weight savings typically remain in the 30–50% range, which is significant for any weight-critical application.

Packaging Weight and Container Loading

When ordering aluminum products internationally, the actual shipping weight includes not just the net weight of the aluminum but also packaging materials (crates, pallets, wrapping, strapping) and dunnage. Understanding the total gross weight is essential for accurate freight cost estimation and container loading planning.

Common packaging weight factors:

• Wooden pallets: 15–25 kg per pallet
• Wooden crates: 30–60 kg per crate (for heavy bars/tubes)
• Steel strapping and edge protectors: 0.5–2 kg per bundle
• Plastic wrapping and VCI paper: 0.5–1 kg per bundle
• Protective interleaving paper (for sheets): 2–5 kg per pallet

Typical container capacities:

Estimating total shipping weight: Total Gross Weight = Net Aluminum Weight + Packaging Weight. As a rule of thumb, add 3–5% to the net aluminum weight to account for packaging when estimating shipping costs. For heavy individual pieces (single bars >500 kg), the packaging factor may be only 1–2% since wooden dunnage replaces full crating.

Understanding aluminum weight is the first step in accurate cost estimation. The total delivered cost of aluminum products comprises several components, each typically quoted per unit weight:

Example cost calculation: For a 5-ton order of 6061 aluminum sheets delivered from China to the US:

• LME price: $2,500/MT × 5 = $12,500
• Alloy premium (6061): $250/MT × 5 = $1,250
• Processing: $500/MT × 5 = $2,500
• Ocean freight: $2,500 (1 × 20ft container)
• Import duty (varies): ~$250–1,250
• Estimated total: $19,000–20,000 (or $3,800–4,000/MT)

For current aluminum pricing and factory-direct quotes, check our aluminum price trends and market guide. To get a specific quotation for your order, contact our sales team with your required dimensions, alloy, temper, and delivery location.

While manual calculation using the formulas above is essential for understanding the principles, several online tools can speed up routine weight calculations. When using any online calculator, always verify that it uses the correct alloy density for your specific material. Many generic calculators default to 2.70 g/cm³ (pure aluminum density) which introduces errors for alloys at the extremes of the density range.

What to look for in an aluminum weight calculator:

• Alloy-specific density: The calculator should allow you to select your specific alloy or input a custom density value
• Multiple shapes: Sheet, plate, bar, tube, and profile options
• Unit flexibility: Support for both metric (mm, kg) and imperial (inches, lbs) units
• Batch calculation: Ability to calculate total weight for multiple pieces
• Weight per unit length: For bars and tubes, showing kg/m or lb/ft

For professional use, we recommend building a simple spreadsheet with the formulas from this guide. This gives you complete control over input values, allows batch processing of multiple items, and avoids errors from generic online tools. Our sales engineers can provide verified weight specifications for all products in your quotation—just contact HXM for a detailed quote.

Avoid These Errors for Accurate Results

Even experienced engineers can make mistakes in weight calculations. Here are the most common errors and how to avoid them:

1. Unit confusion: Mixing mm and meters is the most frequent error. Always use consistent units. If using mm for dimensions, divide by 1,000,000 (1,000³) or 1,000,000,000 (for area-dependent formulas).
2. Wrong density: Using 2.70 g/cm³ for all alloys. 7075 at 2.81 g/cm³ is 4% heavier than this assumption—a significant error on large orders.
3. Diameter vs radius: Using diameter directly in the circle area formula (π×D²) instead of radius (π×r²). Remember: A = π × (D/2)², not π × D².
4. Tube wall thickness: Forgetting to multiply wall thickness by 2 when calculating ID. ID = OD − 2 × wall thickness, not OD − wall thickness.
5. Neglecting packaging weight: Forgetting to add 3–5% for packaging when calculating shipping weight, leading to freight cost underestimation.
6. Alloy temper effects: While temper (annealing, strain hardening, heat treatment) does not change density, some rare cases may need correction factors for coated or clad products.
7. Theoretical vs actual weight: Manufacturing tolerances on thickness (±5–10%) mean actual weight can differ from theoretical calculations. For precise orders, request actual measured weights from your supplier.

By following the formulas and density values in this guide and double-checking your unit conversions, you can avoid these common pitfalls and ensure accurate weight calculations every time.
