Aluminum Machining & CNC Guide: Speeds, Feeds & Tool Selection

Aluminum is one of the most widely machined metals in modern manufacturing, prized for its excellent strength-to-weight ratio, corrosion resistance, and outstanding machinability. With a typical machinability rating of 300-400% compared to mild steel (B1112 at 100%), aluminum allows for material removal rates (MRR) 5-10 times higher than carbon steel, making it the material of choice for high-volume production across aerospace, automotive, electronics, and consumer goods industries.

The global CNC aluminum machining market continues to grow rapidly, driven by demand for lightweight components in electric vehicles, aircraft structures, and electronic enclosures. Understanding the optimal cutting speeds, feed rates, tool geometries, and alloy-specific parameters is essential for achieving tight tolerances (as low as ±0.005mm on premium machines), superior surface finishes (Ra 0.2-0.4μm), and cost-effective production cycles.

At HXM Aluminum, we combine deep material science expertise with advanced CNC machining capabilities. Whether you need precision-machined aluminum bars, aluminum tubes, or aluminum profiles, our engineering team delivers parts that meet the most demanding specifications. This comprehensive guide covers everything from alloy selection and tool geometry to cutting parameters and surface finish optimization.

The above comparison clearly demonstrates why aluminum dominates industries where speed, precision, and cost-efficiency intersect. Throughout this guide, we will explore the specific machining parameters and best practices that unlock aluminum full potential in CNC operations.

Aluminum unique combination of physical and mechanical properties makes it exceptionally suitable for CNC machining. Understanding these inherent advantages is the first step in optimizing your machining strategy.

Low Cutting Forces and Power Requirements

Aluminum tensile strength typically ranges from 70 MPa (pure aluminum) to over 570 MPa (7075-T6), significantly lower than steel (400-2000+ MPa). This translates directly to lower cutting forces during machining — 200-600 N compared to 800-2000 N for steels. Consequently, aluminum parts can be machined on 3-axis and 5-axis CNC machines with relatively modest spindle power, reducing both capital equipment costs and energy consumption per part.

The low cutting force requirement also means less tool deflection, enabling higher precision and finer surface finishes. When machining thin-walled aluminum components — common in aerospace and electronics — this property is particularly valuable as it minimizes the risk of part deformation during cutting.

High Thermal Conductivity and Chip Evacuation

With thermal conductivity of 120-237 W/(m·K), aluminum efficiently dissipates the heat generated during cutting. Approximately 70-80% of cutting heat is carried away by the chips rather than absorbed by the workpiece or cutting tool. This natural heat dissipation mechanism protects tool edges from thermal softening and prevents workpiece thermal expansion that could compromise dimensional accuracy.

Aluminum also produces short, discontinuous chips (Type 6 according to ISO 3685), which are easy to evacuate from the cutting zone. This reduces the risk of chip recutting — a common problem in pocket milling operations — and helps maintain consistent surface quality throughout production runs.

Excellent Dimensional Stability

While aluminum has a coefficient of thermal expansion (CTE) of approximately 23 × 10⁻⁶/K — higher than steel at 12 × 10⁻⁶/K — its high thermal conductivity ensures rapid temperature equalization throughout the workpiece. Combined with stress-relieved raw materials (such as T651 temper for 6061), properly machined aluminum parts maintain excellent dimensional stability, capable of holding ±0.01mm tolerances in temperature-controlled environments.

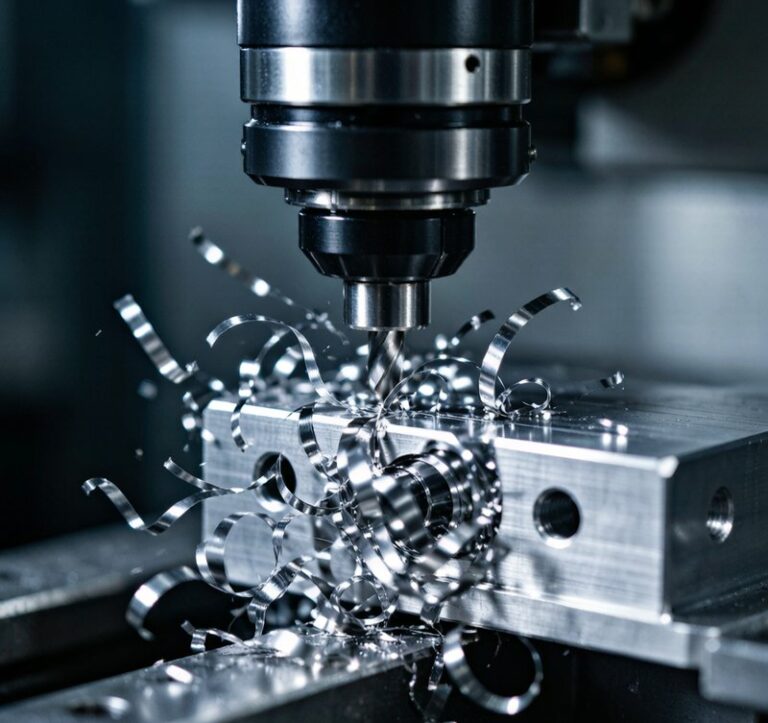

CNC milling is the most versatile machining process for aluminum, capable of producing flat surfaces, pockets, slots, contours, and 3D freeform geometries. Modern aluminum milling operations leverage high-speed machining (HSM) techniques, specialized tool geometries, and optimized toolpaths to achieve cycle time reductions of 50-70% compared to conventional methods.

Milling Process Types for Aluminum

Face Milling: Used to produce flat surfaces, face milling with 45° lead angle cutters achieves surface finishes of Ra 0.4-0.8μm on aluminum. Recommended cutting speeds: 500-800 m/min (1640-2625 SFM) with carbide inserts. Depth of cut (ap) typically 1-5mm for finishing and 3-8mm for roughing.

End Milling: The workhorse operation for aluminum, capable of slotting, profiling, pocketing, and contouring. 2-flute and 3-flute carbide end mills with polished flutes and high helix angles (35°-45°) are preferred for aluminum. Feed rates of 0.05-0.25 mm/tooth are typical depending on tool diameter and operation type.

High-Speed Machining (HSM): At spindle speeds exceeding 15,000 RPM and feed rates above 10 m/min, HSM takes advantage of aluminum favorable cutting characteristics. Trochoidal milling toolpaths — which maintain constant cutter engagement — reduce radial cutting forces by 60%, enabling deeper axial depths (up to 2× cutter diameter) without tool breakage.

Milling Parameters by Operation Type

Note: Vc = cutting speed, fz = feed per tooth, ap = axial depth of cut, ae = radial depth of cut, D = tool diameter. Parameters above assume 6061-T6 aluminum. Adjust for other alloys per the cutting speed tables in Section 6.

Best Practices for Aluminum Milling

• Chip Evacuation: Use compressed air or high-pressure coolant (50-80 bar) to clear chips from deep pockets and narrow slots. Chip recutting degrades surface finish and accelerates tool wear.
• Climb Milling: Always prefer climb (down) milling for aluminum — 70% of the heat goes into the chip rather than the workpiece, yielding better surface finish and extended tool life.
• Ramp Entry: For pocket milling, use ramped or helical entry (3-5° ramp angle) to avoid direct plunging that can overload the tool center.
• Stepover Optimization: For ball-nose finishing of 3D surfaces, maintain stepover (scallop height) ≤ 0.05mm for fine finish and ≤ 0.1mm for standard finish applications.
• Tool Holder Rigidity: Use hydraulic or shrink-fit holders (runout < 3μm) for finish passes. A collet chuck with ≥ 10μm runout can reduce tool life by 30-40%.

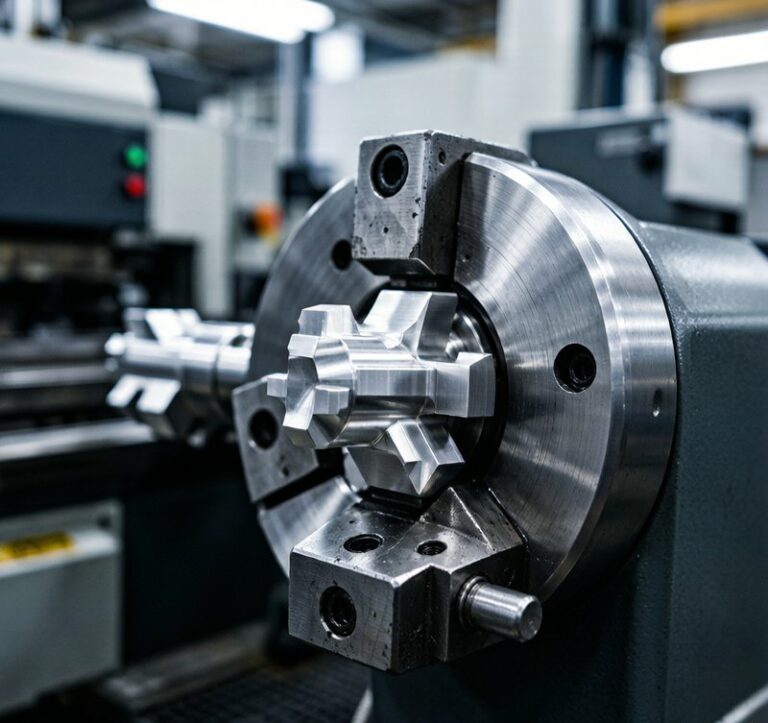

CNC turning operations produce cylindrical aluminum components — shafts, bushings, spacers, and fittings — used extensively across mechanical, hydraulic, and aerospace systems. Aluminum free-machining characteristics allow for turning speeds up to 1000 m/min with carbide tooling, making it one of the most productive lathe operations in modern manufacturing.

Turning Tool Geometry for Aluminum

The cutting tool geometry for aluminum turning differs significantly from that used for steel. Key considerations include:

Rake Angle: High positive rake angles (12°-20° for carbide, 20°-35° for HSS) reduce cutting forces and promote smooth chip flow. High-positive inserts with polished rake faces (ISO geometry code: – for carbide brazed tools, or insert designation ending in characteristic “sharp”) are preferred.

Clearance Angle: 8°-12° primary clearance prevents rubbing against the workpiece. Adequate clearance is essential given aluminum tendency to spring back after cutting.

Nose Radius: 0.2-0.4mm for finishing (fine finish), 0.4-0.8mm for roughing (edge strength). A larger nose radius improves surface finish in finishing passes but may cause chatter in slender workpieces.

Chipbreaker: Polished chipbreakers with open geometries ensure free chip flow without clogging. UP-type or FP-type geometries designed for non-ferrous materials are optimal.

Turning Parameters for Common Operations

Assumes 6061-T6 aluminum wrought alloy. For cast aluminum alloys (A356, A380), reduce cutting speed by 20-30% due to abrasive silicon content.

PCD and Diamond Tooling for Aluminum Turning

For high-volume aluminum turning — particularly in automotive and electronics industries — polycrystalline diamond (PCD) tooling offers unparalleled tool life: 50-100 times longer than carbide. PCD inserts with 2-4μm average grain size are typically used for finishing operations at speeds of 800-3000 m/min, achieving mirror-like surface finishes of Ra 0.1-0.2μm. The initial higher cost is quickly amortized when producing quantities exceeding 10,000 parts per run.

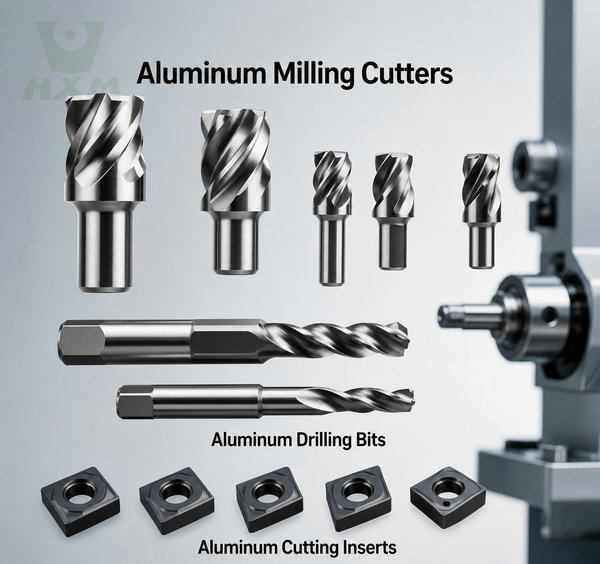

Tool selection is arguably the single most impactful decision in aluminum machining. The right tool can double productivity and halve per-part cost; the wrong one leads to built-up edge (BUE), poor surface finish, and excessive scrap. Here we break down the critical factors: carbide grades, coatings, flute count and geometry, and tool holder selection.

Carbide Grades for Aluminum

The ISO K-classification (K05-K40) covers carbide grades for non-ferrous materials. For aluminum:

• K10/K20 (C2-C3 US equivalent): General-purpose aluminum machining grade. 6% cobalt binder, 1-2μm WC grain size. Excellent balance of wear resistance and toughness.
• K05 (C4 US equivalent): Ultrafine grain (0.5-0.8μm) with 3-5% cobalt. Highest wear resistance for finishing. Suitable for alloys with abrasive silicon content (cast aluminum A380).
• Micrograin Carbide: Submicron WC grains (0.2-0.5μm) with 6-12% cobalt. Extreme toughness and sharp-edge capability — ideal for high-feed roughing of 7075 and 2024 alloys.
• PCD (Polycrystalline Diamond): Diamond particles sintered on carbide substrate. Vickers hardness > 8000 HV (vs. 1600-1800 HV for carbide). Unrivaled wear resistance for high-volume production runs exceeding 50,000 parts.

Tool Coating Comparison

Key insight for aluminum: Unlike steel machining where coatings are essential, many aluminum operations perform best with sharp, uncoated polished carbide tools. The sharp cutting edge (edge radius < 5μm) of uncoated tools minimizes cutting forces and reduces the risk of BUE. Coatings like DLC or diamond are recommended only for abrasive alloys or ultra-high-volume production.

Flute Count and Helix Angle

2-Flute End Mills: The standard choice for aluminum. Large chip evacuation space (core diameter ~50-55% of tool diameter) prevents chip packing in deep slots and pockets. Works well with slotting, profiling, and pocketing operations.

3-Flute End Mills: Increasingly popular for aluminum. Offers 50% higher feed rate than 2-flute at the same chipload, with sufficient chip clearance for most operations. Excellent compromise between productivity and chip evacuation for standard-depth pockets (up to 1.5×D depth).

High Helix (35°-45°): Higher helix angles produce a shearing cut that reduces radial forces, improves chip evacuation (chips are lifted upward), and generates superior surface finish. The 40°-45° range is optimal for aluminum — steeper than the 30° helix typical of general-purpose end mills.

Variable Helix: End mills with helix angle variation (e.g., 37°/38°/39° repeating) suppress harmonic chatter by disrupting the cutting frequency. Particularly valuable for long-reach and thin-wall applications where chatter is the dominant quality issue.

Not all aluminum alloys machine the same way. Heat-treatable alloys (6061, 7075, 2024) cut predictably with defined chip formation, while high-silicon cast alloys (A356, A380) are abrasive and require reduced speeds. Wrought alloys in the annealed (O) condition may be gummy, while T6/T651 temper provides crisper chip formation. The tables below provide starting parameters for the most commonly machined aluminum alloys.

Machinability rating percentages are relative to B1112 steel at 100%. Higher percentages indicate easier machining.

Recommended Cutting Speeds (Vc) by Alloy and Operation (m/min)

Ranges reflect roughing (lower end) to finishing (higher end). Start at 60-70% of the upper limit and increase gradually while monitoring tool wear and chip color (straw to light brown is acceptable; blue indicates excessive heat).

Feed Rates per Tooth by Tool Diameter (2-Flute Carbide End Mill)

Formula: Feed Rate (mm/min) = fz × Number of Flutes × RPM. For 3-flute end mills, multiply fz by 0.7-0.8 to account for reduced chip clearance.

While aluminum high thermal conductivity naturally aids heat dissipation, proper coolant strategies are essential for chip evacuation, built-up edge prevention, and dimensional accuracy — particularly in high-speed and deep-cavity operations. The choice between flood coolant, mist, MQL (Minimum Quantity Lubrication), and dry machining depends on operation type, material, and production volume.

Coolant Types for Aluminum

Water-Soluble (Emulsion) Coolants: The workhorse for aluminum machining. Concentrations of 5-10% provide excellent cooling and adequate lubrication. Premium semi-synthetic fluids with EP (extreme pressure) additives form a protective chemical film on the tool surface, reducing BUE formation by 40-60% compared to conventional soluble oils. Maintain pH between 8.5-9.5 to prevent bacterial growth while avoiding aluminum staining.

Synthetic Coolants: Transparent solutions with excellent cooling performance and cleanliness. Superior for grinding operations and high-speed milling where cooling capacity is paramount. However, some synthetic formulations can stain aluminum or attack machine tool seals — always verify compatibility with your machine OEM.

MQL (Minimum Quantity Lubrication): Aerosol delivery of vegetable-based ester oil at 5-50 ml/hour. Growing rapidly for aluminum machining due to environmental benefits (no coolant disposal) and cost savings. Studies show MQL can match or exceed flood coolant performance in aluminum end milling, with the added benefit of cleaner chips (oil content < 1% vs. 15-25% for wet chips).

Straight Oil (Neat Oil): Used for demanding operations like tapping, broaching, and deep-hole drilling. Provides maximum lubrication but limited cooling. Typical for threading operations where surface quality and thread integrity are critical.

Coolant Delivery Methods

Through-Tool Coolant (TTC): Preferred for deep pocket milling (depth > 3× tool diameter). Channels coolant directly to the cutting edge at 20-80 bar pressure, ensuring chip evacuation from the bottom of deep cavities. TTC can improve tool life by 30% and surface finish by one Ra grade compared to external coolant in deep pocket operations.

High-Pressure Coolant (HPC): At 50-150 bar, HPC physically breaks and evacuates chips from the cutting zone. Essential for aluminum turning of gummy alloys (5052, 3003) and deep-hole drilling (depth > 8× diameter). The chip-breaking effect of HPC reduces downtime for chip entanglement by up to 80% in automated production.

Flood Coolant + Air Blast: Combining flood coolant for temperature control with compressed air (6-8 bar) for chip evacuation offers a cost-effective solution for standard pocket milling. Position air nozzles to blow chips out of cutter path, preventing recutting.

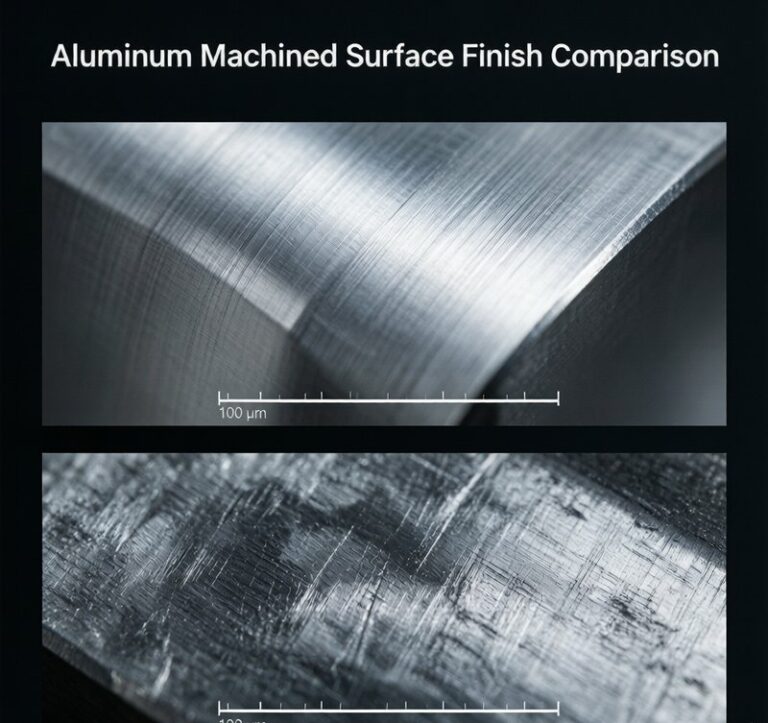

Surface finish is a critical quality metric in aluminum machining, affecting part functionality, appearance, corrosion resistance, and suitability for subsequent operations like anodizing or painting. Aluminum can achieve exceptionally fine surface finishes due to its homogeneity and lack of hard inclusions — commonly Ra 0.2-0.8μm with standard carbide tooling and Ra 0.05-0.2μm with diamond tooling or super-finishing processes.

Surface Finish (Ra) by Machining Method

Ra values assume 6061-T6 aluminum. 5052 and 3003 alloys typically achieve Ra values 20-40% higher due to their softer, gummier nature.

Proven Techniques for Superior Surface Finish

• Wiper Inserts: Special turning inserts with a long, flat secondary cutting edge that burnishes the surface. Can reduce Ra by 50% at double the feed rate compared to standard inserts. Ideal for achieving Ra 0.2-0.4μm on turned aluminum surfaces.
• Finish Pass Strategy: Dedicate a separate finishing tool (never reuse roughing tools for finishing). Run two finish passes with the second pass at 50% of the first pass depth — the second light cut removes the spring-back surface layer and achieves a more consistent finish.
• Vibration Damping: For long-reach tools (stickout > 4×D), use tuned mass damper tool holders or carbide shank tools to suppress chatter. Chatter marks directly degrade surface finish from Ra 0.4μm to Ra 3.2μm or worse.
• Cutting Speed Sweet Spot: For each tool-workpiece combination, there exists an optimal cutting speed range for surface finish. For 6061-T6 with carbide end mills, 500-700 m/min typically yields the best balance of finish quality and tool life.
• Avoid Dwelling: Never let the tool dwell (stop feeding while rotating) on the machined surface — this instantly causes rubbing, work hardening, and smear marks. Use M-codes to synchronize spindle stop with axis movement during retraction.

Aluminum favorable machinability characteristics enable tight tolerances — but achieving and maintaining precision requires understanding the interplay between machine capability, thermal effects, cutting strategy, and post-machining behavior. This section covers achievable tolerances, GD&T considerations, and strategies for precision aluminum machining.

Standard Tolerances by Machining Process (6061-T6)

Premium tolerances assume temperature-controlled environment (20±1°C), calibrated machines, and optimized toolpaths. For aluminum, thermal expansion of ~23 μm per meter per degree Celsius must be accounted for — a 500mm part machined at 25°C will be 0.058mm longer than at 20°C.

Key Strategies for Precision Aluminum Machining

Temperature Control: Machine in a climate-controlled environment (20±2°C). Allow workpieces to normalize to room temperature after roughing before finishing. For parts with ±0.01mm tolerance on features > 200mm, thermal stabilization time of 24 hours is recommended after rough material removal.

Roughing/Finishing Separation: Remove 80-90% of material in roughing operations, then run finishing passes on separate machines or at minimum on separate setups. Roughing heat and stress can distort the workpiece by 0.02-0.10mm — finishing from the same setup eliminates this variable.

Stress-Relieved Material: Specify T651 temper (stress-relieved by stretching) rather than T6 for critical precision parts. The stress-relief process reduces residual stress distortion by 60-75%. For the highest precision, consider vibration stress relief (VSR) or thermal stress relief before final machining.

GD&T Datum Strategy: Design datums should correspond to setup and inspection datums. Avoid datum features that are machined across multiple setups whenever possible. For 5-axis parts, the “3-2-1” locating principle combined with properly sequenced operations ensures positional accuracy of ±0.03mm or better.

Selecting the right aluminum alloy is a balance of machinability, mechanical properties, corrosion resistance, cost, and post-machining requirements. The four most commonly machined wrought aluminum alloys each have distinct characteristics that suit different applications.

6061-T6/T651: The Universal Standard

6061 aluminum alloy is the most commonly machined aluminum grade worldwide, representing approximately 40% of all aluminum machining jobs. Its well-balanced properties — 310 MPa tensile strength, 95 HB hardness, and excellent corrosion resistance — make it the default choice for general-purpose machined components. Available as 6061 aluminum bars, 6061 aluminum tubes, and 6061 aluminum sheets, this alloy offers the best overall value for most machining applications.

Key characteristics: Machinability rating ~270%, good chip formation, excellent weldability, anodizes well, and cost-effective at approximately $3-5/kg (raw billet/bar). Recommended for: structural components, brackets, fittings, manifolds, and general mechanical parts.

7075-T6/T651: High-Strength Aerospace Grade

7075 is the premier high-strength aluminum alloy for machining, with tensile strength (570 MPa) approaching that of mild steel. Used extensively in aerospace for structural components, aircraft fittings, and high-stress parts where weight savings are critical. Its zinc-based chemistry provides exceptional strength but reduces corrosion resistance compared to 6061.

Key characteristics: Machinability rating ~250%, produces compact curly chips, requires sharp tools (edge radius < 8μm) to prevent BUE, available in T651 (stress-relieved) for precision work, higher cost at $5-8/kg. Recommended for: aircraft structural components, molds and tooling, military equipment, bicycle and sporting goods.

2024-T3/T351: Aerospace Skin Material

2024 aluminum offers a unique combination of high strength (470 MPa) and excellent fatigue resistance. Unlike 6061 and 7075 (which use Mg₂Si and MgZn₂ precipitates respectively), 2024 uses CuAl₂ and CuMgAl₂ precipitates that provide superior fatigue crack growth resistance. This alloy is the standard for aircraft fuselage skins and lower wing structures.

Key characteristics: Machinability rating ~250%, requires careful chip control, poor corrosion resistance (requires cladding/coating), $4-7/kg. Recommended for: aircraft skins, truck wheels, and structural components subject to cyclic loading.

6082-T6: European Structural Standard

6082 is the European equivalent of 6061, with slightly higher manganese content (0.4-1.0% vs 0.15% max in 6061) that improves formability and corrosion resistance. The machining characteristics are nearly identical to 6061, though 6082 may exhibit slightly better chip control in some operations.

Key characteristics: Machinability rating ~270%, excellent for extrusion and machining, superior corrosion resistance in marine environments, cost similar to 6061. Recommended for: structural extrusions, marine components, bridges, and transport applications where EN standards apply.

Proper workholding is critical for aluminum machining — inadequate clamping can cause part distortion, vibration, and dimensional errors. Aluminum lower stiffness (E = 69 GPa vs. 210 GPa for steel) means it deforms more readily under clamping force, requiring carefully designed fixturing strategies to balance holding force against the risk of part distortion.

Workholding Methods for Aluminum

Precision Machine Vises: The most common workholding for prismatic aluminum parts. Use soft aluminum jaws (6061-T6, machined in-situ) for best locating accuracy (±0.01mm). Jaw contact area should cover ≥ 70% of the part clamping surface. Apply clamping force of 15-25 kN for typical parts — excessive force on thin-wall aluminum sections (>0.02mm deflection) requires reduced force and possibly a torque wrench on the vise handle.

Vacuum Fixturing: Ideal for aluminum sheets and thin plates where mechanical clamping would distort the workpiece. Vacuum chucks with anodized aluminum or phenolic grid plates provide uniform holding force of ~10 N/cm². For 3mm aluminum sheet (200mm × 300mm), vacuum alone provides ~600 N holding force — sufficient for light finish cuts (ap < 0.5mm).

Custom Fixture Plates: For production runs exceeding 100 parts, dedicated fixture plates with locating pins and pneumatic/hydraulic clamping provide the fastest changeover and best consistency. Use case-hardened steel locating pins (12-20mm diameter) with 0.01mm clearance in aluminum part bores for repeatable positioning within 0.02mm.

Common Workholding Challenges and Solutions

Thin-Wall Distortion: Aluminum parts with walls < 2mm thick distort easily under clamping. Solutions: use piezo-electric force sensors to monitor clamping force, fill internal cavities with low-melt alloy (Cerrobend, melting point 70°C), or use freeze clamping for extreme cases.

Vibration and Chatter: Weak workholding amplifies cutting vibration. Solutions: add multiple clamping points (minimum 3-point contact), use damped tool holders, consider epoxy-bonded fixturing for complex shapes that are difficult to clamp conventionally.

Over-Constraint: Using more than 6 locators (3-2-1 principle) on a single part distorts the workpiece. Always follow the principle of exact constraint — 3 points on primary datum, 2 on secondary, 1 on tertiary.

Despite aluminum excellent machinability, specific problems recur in production environments. The table below catalogs the most common issues with their root causes and proven solutions, followed by detailed analysis of each major problem category.

Problem-Solution Summary

Built-Up Edge (BUE): The Most Common Aluminum Problem

Built-up edge occurs when aluminum material welds to the cutting tool under heat and pressure, forming a pseudo-edge that periodically breaks off — embedding in the workpiece surface and causing dimension loss. BUE is the root cause of roughly 40% of surface finish complaints in aluminum machining.

Prevention strategy: Maintain cutting temperatures above the BUE formation threshold (typically > 200°C at the tool-chip interface) by using adequate cutting speeds (minimum 150 m/min for 6061). Use tools with polished rake faces (Ra < 0.1μm on the rake face) and sharp cutting edges (edge radius < 5μm). Apply cutting fluids with aluminum-specific EP additives that form a protective boundary film preventing aluminum adhesion to the tool surface.

Chatter: Vibration-Induced Surface Defects

Chatter is a self-excited vibration between the tool and workpiece that produces a characteristic wavy surface pattern. It occurs when the cutting force excites one of the natural frequencies of the machine-tool-workpiece system. In aluminum machining, chatter is particularly problematic because high spindle speeds approach the natural frequency of many tool-holder assemblies.

Mitigation: Use stability lobe diagrams to select spindle speeds at “sweet spots” where chatter is suppressed. Variable helix/variable pitch end mills break up the cutting frequency, preventing the buildup of harmonic vibration. For long-reach applications (L/D > 4), solid carbide shank tools with 2×-3× higher stiffness than HSS shanks dramatically reduce chatter tendency.

Cost optimization in aluminum machining requires a holistic approach spanning material selection, part design, process planning, and sourcing strategy. The raw material cost of aluminum billet (typically 15-30% of total part cost) must be balanced against machining time (40-60%) and post-processing (10-25%).

Cost Comparison: Material vs Machining vs Finishing

Percentages are approximate for aluminum parts machined in quantities of 100-10,000 units. Simple = < 5 features, Medium = 5-20 features, Complex = 20+ features with tight tolerances.

Design for Manufacturability (DFM) in Aluminum

Standardize Features: Use standard tool diameters (3, 4, 6, 8, 10, 12, 16, 20mm) for hole sizes and corner radii. A custom corner radius requiring a specialty tool can add $50-200+ in tooling cost per part run.

Avoid Deep Pockets: Pocket depth > 4× tool diameter requires long-reach tools that cut 3-5× slower than standard tools due to reduced rigidity. Redesign deep pockets as through-cavities machined from both sides whenever geometry allows.

Minimize Setups: Each additional setup adds 15-30 minutes of machine time and introduces locating error of ±0.02-0.05mm per setup. Design parts that can be completed in 1-2 setups. Features should reference datums accessible from the primary setup where possible.

Specify Tolerances Judiciously: Every 0.01mm of additional tolerance roughly doubles the machining cost. Reserve ±0.01mm tolerances only for mating and functional surfaces; use ±0.1mm for general features and ±0.5mm for non-functional faces.

Process Optimization Tips

• Near-Net-Shape Stock: For production quantities > 500, consider aluminum profiles (extrusions) or cast preforms that reduce material removal volume by 50-80%. Extruded aluminum profiles offer the best price-performance ratio for long, uniform-cross-section parts.

• HSM Toolpaths: Trochoidal and adaptive clearing toolpaths reduce cycle time by 30-50% compared to conventional toolpaths while extending tool life by maintaining constant chip load.

• Tool Management: Implement a structured tool life management system. For 6061-T6 with carbide end mills, replace roughing tools after 60-90 minutes of actual cutting time, and finishing tools after 30-45 minutes to maintain surface finish quality.
