In industrial manufacturing, the choice of aluminum brazing and welding wire can make the difference between a strong, long-lasting joint and a costly repair.
For industries like HVAC, automotive, marine, and construction, selecting the right alloy and diameter is critical to ensuring structural integrity, corrosion resistance, and productivity.
For General Purpose & Thermal Conductivity: Choose ER4043 (Al-Si alloy).
For High Strength & Corrosion Resistance: Choose ER5356 (Al-Mg alloy).
For Thin Sheets & Low Melting Point: Choose ER4047 (Brazing specialty).
Key Standards: Ensure compliance with AWS A5.10, ISO 18273, and EN 573.

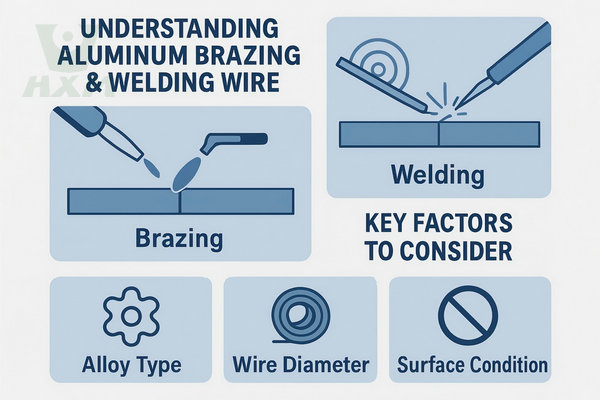

Understanding Aluminum Brazing & Welding Wire
🔹 Aluminum Brazing Wire
- Lower melting temperature than base metal
- Flows into joints via capillary action
- Ideal for thin materials and heat exchangers
👉 Typical alloys: 4045, 4047
🔹 Aluminum Welding Wire
- Melts both filler and base metal
- Forms high-strength fusion joints
- Suitable for structural applications
👉 Typical alloys: 4043, 5356, 5183
📌 Brazing is best for precision & sealing, while welding is best for strength.

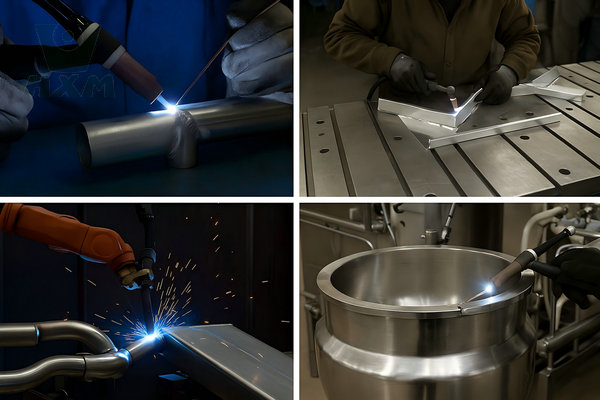

Key Selection Factors for Aluminum Brazing & Welding Wire
Alloy Type
Different alloys offer unique properties:
| Alloy | Melting Range (°C) | Features & Benefits | Typical Applications |
|---|---|---|---|
| 4047 | 577–582 | Low melting point, excellent fluidity, leak-tight joints | HVAC, refrigeration, brazing |
| 4043 | 566–582 | Good corrosion resistance, smooth bead appearance | Automotive body panels |
| 5183 | 535–595 | High strength, good toughness at low temperatures | Marine structures |
| 5356 | 566–632 | Excellent corrosion resistance, high tensile strength | Shipbuilding, truck frames |
| 5556 | 541–636 | Superior saltwater resistance | Offshore equipment |
- 4047 → Leak-proof brazing (heat exchangers)
- 4043 → Smooth weld + crack resistance
- 5356 → High strength + marine corrosion resistance
Wire Diameter
| Diameter | Application |
|---|---|
| 0.8–1.0 mm | Thin materials / precision welding |
| 1.2–1.6 mm | General industrial use |
| 2.0 mm+ | Heavy-duty / structural welding |
👉 Thinner wire = better control
👉 Thicker wire = higher efficiency
Surface Condition
Clean, flux-free wire for TIG and MIG welding.
Flux-coated wire for certain brazing applications, eliminating the need for separate flux application.

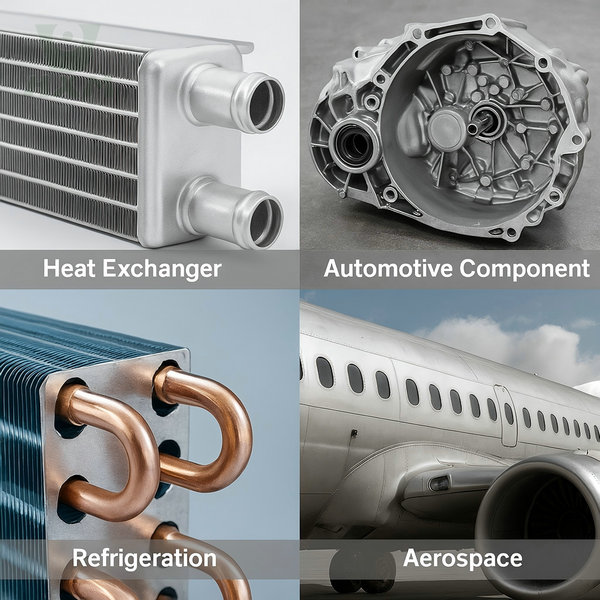

Common Industrial Applications
HVAC & Refrigeration – Brazing aluminum to copper or aluminum tubes in heat exchangers.
Automotive – Welding suspension frames, radiators, and aluminum body panels.
Marine & Shipbuilding – Fabricating ladders, railings, and structural parts exposed to saltwater.
Architectural Projects – Joining aluminum frames, panels, and railings in construction projects.
How to Match Wire to Your Project
| Industry | Recommended Alloy | Main Benefits |
|---|---|---|
| HVAC | 4047 | Low melting point, high fluidity, leak-free joints |
| Automotive | 4043 / 5183 | High corrosion resistance, good weldability |
| Marine | 5356 / 5556 | Superior saltwater corrosion resistance |
| Construction | 4043 / 6061 rod | Strong welds with architectural finish |
Comparison: ER4043 vs. ER5356 Aluminum Welding Wire
| Feature | ER4043 (Al-Si 5) | ER5356 (Al-Mg 5) |
| Main Alloying Element | 5% Silicon | 5% Magnesium |
| Primary Advantage | Excellent fluidity, low crack sensitivity | High shear strength, high ductility |
| Anodizing Color | Dark Gray (not recommended for decorative) | Matches base metal (ideal for finishing) |
| Best For Base Alloys | 6061, 6063, 3003 | 5052, 5083, 5086, 5454 |
| Service Temperature | High (Resistance to stress corrosion) | Low (Susceptible to stress corrosion >65°C) |
Understanding the Difference Between Brazing and Welding
Brazing and welding both join metals but differ in process and results:
Brazing uses a filler metal with a melting point lower than the base metals. The filler flows into the joint via capillary action, creating a strong bond without melting the base parts. This is ideal for joining thin-walled components like HVAC tubes or delicate assemblies.
Welding melts both the filler and base metal, producing a fusion joint. This is suited for structural applications where high tensile strength is required.
Why Work with a Professional Supplier
Partnering with a reliable aluminum brazing & welding wire supplier ensures:
Consistent alloy quality and certification (ISO, RoHS)
Custom diameters and packaging for your production line
On-time delivery and global logistics support
Technical advice for alloy selection and process optimization

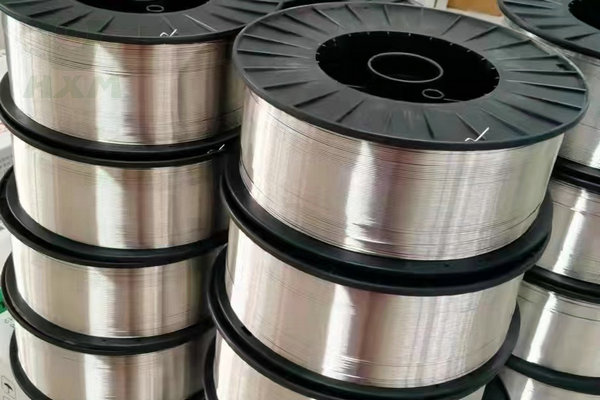

Why Choose HXM Aluminum?
- Full alloy range: 4043 / 4045 / 4047 / 5356 / 5183
- Custom diameters & spool packaging
- ISO-certified production + full traceability
- OEM / ODM support
- Global export to 50+ countries
👉 We support trial orders and technical consultation.
FAQs
What is the best aluminum welding wire?
4043 for general use, 5356 for high strength.
What is the difference between 4043 and 5356?
4043 has better fluidity; 5356 has higher strength and corrosion resistance.
Can I use ER4043 to weld 5083 aluminum?
It is generally not recommended. ER4043 lacks the necessary magnesium to match the strength of 5083. Use ER5356 or ER5183 for better structural integrity and corrosion resistance.
What is 4047 aluminum wire used for?
Brazing applications requiring low melting point and high fluidity.
Brazing applications requiring low melting point and high fluidity.
5356 or 5556 due to excellent saltwater resistance.
Which wire is best for thin aluminum sheets?
ER4047 is excellent for thin sections because its high silicon content lowers the melting point and minimizes the risk of “burn-through.”
Can aluminum welding wire be customized?
Yes, including diameter, spool size, and alloy composition.
Conclusion
The right aluminum brazing or welding wire improves production efficiency, joint strength, and long-term performance.
If your project requires high-quality, certified alloy wire, HXM Aluminum can supply the right product with competitive pricing and flexible order quantities.
