Aluminum Busbar: The Complete Engineering Guide
Busbars are the arteries of electrical power distribution — rigid conductors that carry current between switchgear, transformers, distribution panels, and loads. For over a century, copper was the default busbar material. Today, aluminum busbars are the global standard in low and medium-voltage applications, chosen for their low cost, light weight, and excellent conductivity-to-weight ratio.
The shift to aluminum busbars has accelerated with the growth of data centers, electric vehicles, energy storage systems, and renewable energy — all of which demand high-current busbars at scale. This guide covers aluminum busbar alloys, ampacity (current-carrying capacity) ratings, sizing methodology, connection design, and application selection, with the engineering data you need to specify the right solution.
As a B2B aluminum manufacturer and supplier, HXM Aluminum produces conductor-grade busbar in 1060, 1070, and 1350 alloys, plus structural 6061 and 6063 profiles for busbar enclosures. We supply aluminum bars, aluminum strips, and aluminum sheets for electrical applications worldwide.
Why Aluminum for Busbars?
Aluminum’s advantages in busbar applications are compelling and quantifiable. Compared to copper, aluminum busbars deliver:
- ~65% lower material cost for equal current-carrying capacity (copper is 3.5–4.5x the price per ton, and aluminum needs only 1.6x the cross-section)
- ~50% lower weight for equal conductance — critical for tall vertical bus runs and rooftop installations
- Adequate conductivity — 59–62% IACS for conductor-grade alloys, sufficient for virtually all distribution applications
- Excellent corrosion resistance in dry and indoor environments due to the self-healing oxide layer
- Easy formability — aluminum bends, punches, and machines readily during busbar fabrication
The tradeoff — slightly larger cross-section than copper and the need for proper connection hardware — is well understood and fully engineered in modern busbar systems.
Aluminum vs Copper Busbar: Equal-Ampacity Comparison
| Parameter | Copper | Aluminum | Al Advantage |
|---|---|---|---|
| Conductivity (% IACS) | 100–101 | 59–62 | — |
| Relative Cross-Section (equal ampacity) | 1.0 | 1.4–1.6 | — |
| Relative Weight (equal ampacity) | 1.0 | 0.42–0.50 | 50–58% lighter |
| Relative Material Cost (equal ampacity) | 1.0 | 0.30–0.45 | 55–70% cheaper |
| Density (g/cm³) | 8.96 | 2.70 | 3.3x lighter per volume |
| Typical Operating Temp (°C) | 70–90 | 65–90 | Similar |
Aluminum Busbar Alloys: Composition and Properties
The choice of aluminum alloy for busbars balances electrical conductivity against mechanical strength. Pure aluminum alloys maximize conductivity; alloyed series add strength at the cost of some conductivity. The following alloys dominate busbar manufacturing.
Common Aluminum Busbar Alloys
| Alloy | % IACS | Tensile (MPa) | Yield (MPa) | Typical Use |
|---|---|---|---|---|
| 1060 (H14) | 59–61 | 95–125 | 85–110 | Standard distribution busbars |
| 1070 (H14) | 61 | 100–130 | 90–115 | High-purity applications, transformers |
| 1350 (H14) | 61.8 | 110–145 | 95–125 | Conductor-grade, ASTM B236 |
| 6063 (T6) | 53–55 | 240 | 215 | Structural shapes, enclosures |
| 6061 (T6) | 43–47 | 310 | 276 | High-strength busbar, switchgear frames |
Conductivity data per ASTM B236 (1350) and alloy datasheets. Tensile values shown for typical tempers.
When to Use Which Alloy
1060 and 1070 are the default choices for standard distribution busbars, balancing high conductivity (59–61% IACS) with adequate strength for fabrication. 1350 is the certified conductor grade per ASTM B236 with the highest conductivity (61.8% IACS) — specified where conductivity certification is required, such as utility and transformer applications. 6061-T6 is chosen when the busbar must also serve a structural role — resisting vibration, supporting equipment, or spanning long unsupported distances — accepting a conductivity reduction to ~47% IACS.

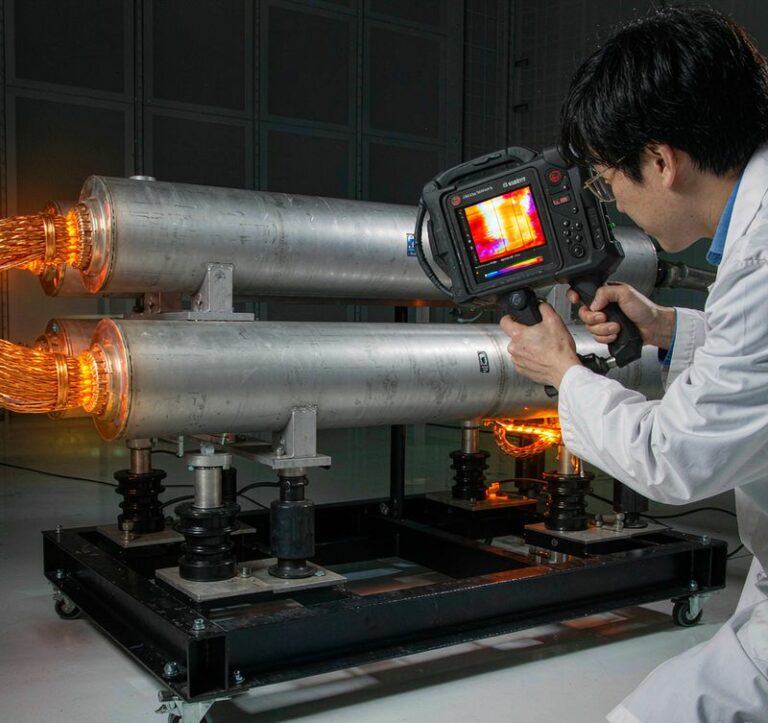

Ampacity Ratings: How Much Current Can an Aluminum Busbar Carry?
Ampacity is the maximum continuous current a conductor can carry without exceeding its rated temperature rise. For aluminum busbars, ampacity depends on cross-sectional area, ambient temperature, cooling (natural convection vs forced air), surface finish, and allowable temperature rise (typically 65°C above a 40°C ambient for standard distribution, up to 90°C total for some designs).
The table below provides typical ampacity values for rectangular aluminum busbars in free air with natural convection and a 65°C rise. These are engineering references — always verify with manufacturer data and account for installation conditions, enclosure derating, and skin effect at high frequencies.
Typical Ampacity of Rectangular Aluminum Busbars (Free Air, 65°C Rise)
| Size (W x T, mm) | Cross-Section (mm²) | Ampacity (A, DC/60Hz) | Weight (kg/m) | Typical Use |
|---|---|---|---|---|
| 20 x 3 | 60 | ~120–140 | 0.16 | Small distribution panels |
| 25 x 3 | 75 | ~150–175 | 0.20 | Lighting panels, control gear |
| 30 x 4 | 120 | ~200–230 | 0.32 | MCC, motor control centers |
| 40 x 4 | 160 | ~260–290 | 0.43 | Main distribution boards |
| 50 x 5 | 250 | ~380–420 | 0.68 | Industrial switchboards |
| 60 x 6 | 360 | ~520–570 | 0.97 | Large switchgear, UPS |
| 80 x 6 | 480 | ~650–700 | 1.30 | Substation busbars |
| 100 x 8 | 800 | ~900–1000 | 2.16 | High-current busbars, 2+ bars in parallel |
| 120 x 10 | 1200 | ~1250–1400 | 3.24 | Main substation feeders, 2–4 bars in parallel |
Reference values adapted from IEC 61439 and common manufacturer tables. De-rate for enclosures, elevated ambient, and non-uniform current distribution in parallel bars.
How to Size an Aluminum Busbar
Proper busbar sizing ensures safe operation, regulatory compliance, and cost efficiency. The process follows a structured methodology:
- Determine load current — the maximum continuous current (including diversity factor) the busbar must carry
- Select allowable temperature rise — typically 65°C rise over 40°C ambient (total 105°C) for distribution; 50–55°C rise for enclosed switchgear
- Choose bar dimensions — from ampacity tables, accounting for cooling method (free air vs enclosed)
- Apply derating factors — for ambient temperature, enclosure ventilation, skin effect (AC), and bar spacing
- Verify short-circuit withstand — the bar must handle fault current without excessive temperature rise or mechanical deflection
- Verify voltage drop — for long runs, confirm voltage drop stays within limits
Derating Factors for Aluminum Busbars
| Condition | Derating Factor | Notes |
|---|---|---|
| Ambient temperature 50°C (vs 40°C) | 0.88–0.92 | Reduced temperature margin |
| Enclosed panel (no ventilation) | 0.60–0.75 | Heat cannot escape freely |
| Enclosed panel (ventilated) | 0.80–0.90 | Improved airflow |
| AC operation (skin/proximity effect, 60 Hz) | 0.95–0.99 | Minor for bars < 10 mm thick |
| Multiple bars in parallel (2 bars) | 1.8x single bar (not 2.0x) | Non-uniform current distribution |
| Horizontal mounting (vs vertical) | 0.85–0.90 | Reduced natural convection |
| Black painted surface (radiation) | 1.05–1.10 | Better heat radiation |

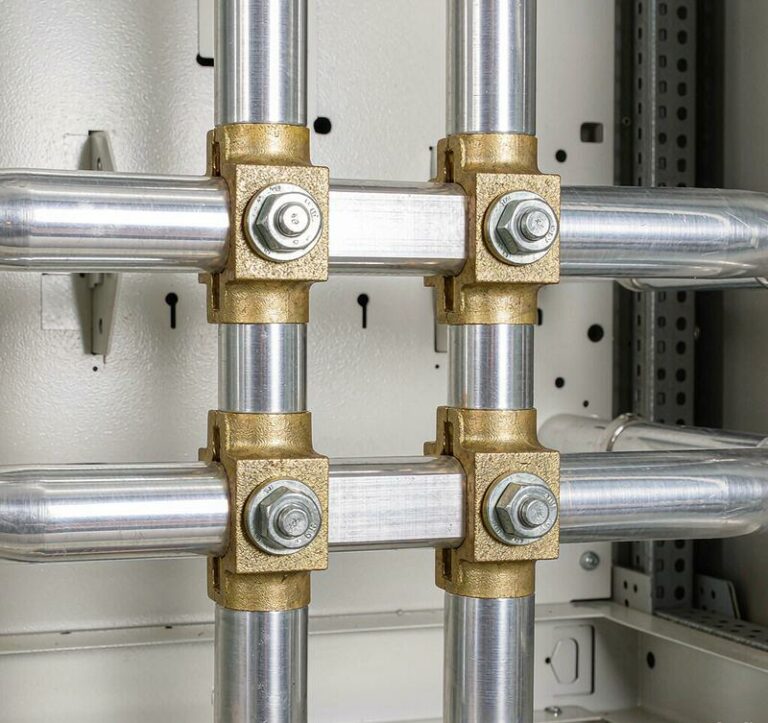

Aluminum Busbar Connections: Best Practices
Reliable connections are the most critical — and most misunderstood — aspect of aluminum busbar systems. Aluminum’s oxide layer is an insulator, and aluminum creeps under sustained pressure. Proper connection design addresses both issues.
Surface Preparation and Anti-Oxidation
Contact surfaces must be cleaned to remove the oxide layer immediately before assembly, then protected with anti-oxidation compound (oxide inhibitor). This conductive paste prevents oxide re-formation and maintains a low-resistance interface. Approved compounds include joint compounds conforming to industry standards, applied thinly to avoid trapping contaminants.
Bolted Joint Design
Bolted joints must maintain adequate contact pressure despite aluminum’s creep. Use Belleville (disc) washers to maintain clamping force over thermal cycling, follow manufacturer torque specifications (typically 20–40 N·m for M8–M12 on aluminum busbars), and use zinc-plated or stainless steel hardware. Joint surfaces should overlap by at least 1.5–2x the bar width for low-resistance contact. For dissimilar metal joints (aluminum to copper), always use bimetallic transition pieces to prevent galvanic corrosion.
Welded and Brazed Connections
For permanent high-current connections, TIG welding with 4043 or 5356 filler provides excellent conductivity and mechanical integrity. Ultrasonic welding is used for thin aluminum strip connections in battery applications. Compression lugs with serrated contact surfaces are common for cable terminations. Each method has specific process requirements documented in standards like IEC 61439 and manufacturer guidelines.
Aluminum Busbar Applications
Aluminum busbars serve virtually every sector of electrical infrastructure. The following application areas represent the largest and fastest-growing markets.
Data Centers and Power Distribution
Data centers consume enormous power and demand dense, reliable busbar systems. Aluminum busways (busbar trunking) distribute power from utility feeds to server rows, replacing heavy copper cable runs. The weight savings simplify overhead installation and structural loading — a critical factor in multi-story data centers. Busway systems with aluminum conductors rated from 100 A to 6,300 A are industry standard.

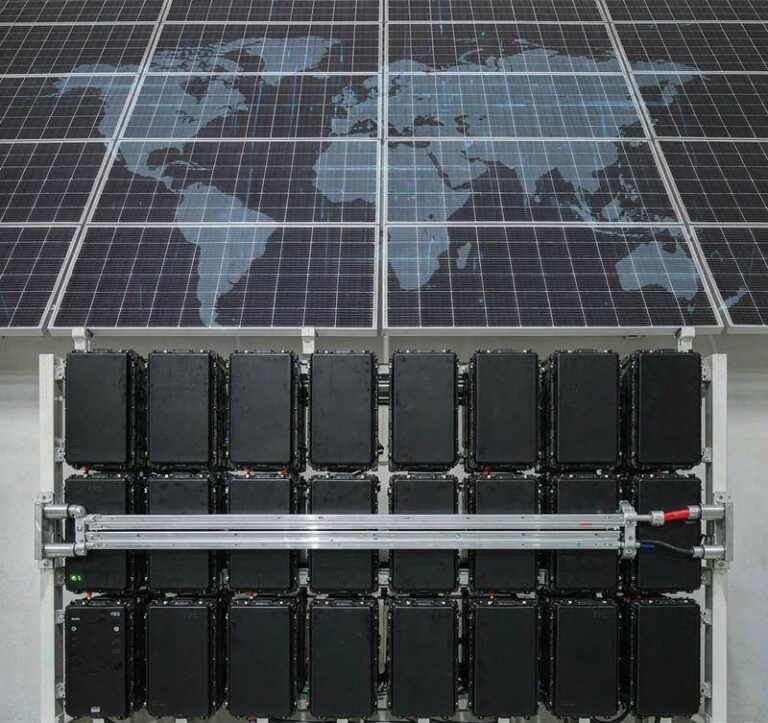

Energy Storage and EV Battery Systems
Energy storage systems (ESS) and EV battery packs use aluminum busbars extensively to interconnect battery cells and modules. The automotive industry has standardized on aluminum for battery busbars due to weight, cost, and thermal performance. Laminated aluminum busbars — flat aluminum strips insulated with PET film — connect individual cells in series and parallel, carrying high currents in tight spaces. Our automotive & EV lightweighting guide covers the broader vehicle integration.
Renewable Energy and Solar
Solar inverters, wind turbine converters, and solar power plants use aluminum busbars for DC and AC distribution. The cost advantage of aluminum is decisive at utility scale, where busbar runs span hundreds of meters. Aluminum busways also connect solar arrays to inverters, reducing total installed cost versus copper cabling.

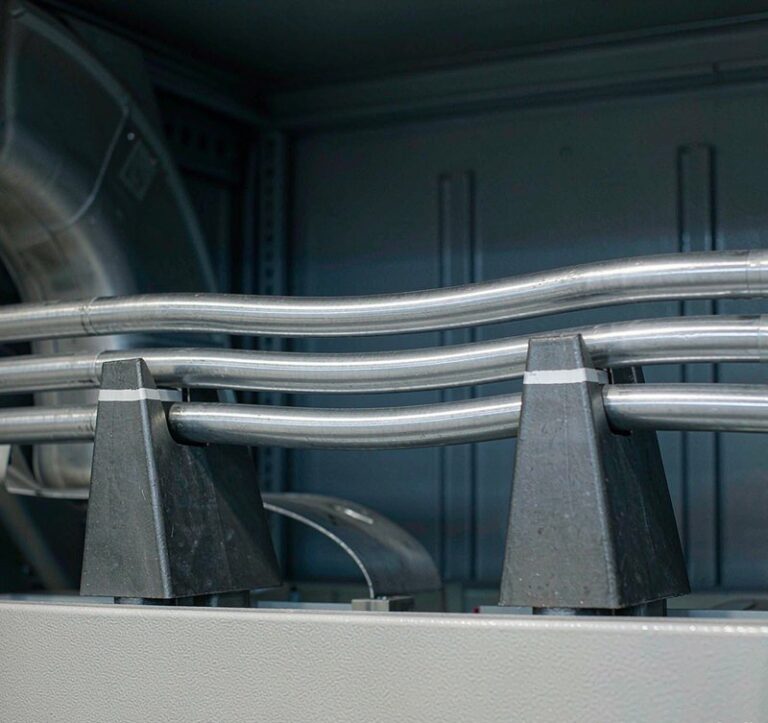

Switchgear, Switchboards, and MCC
Low and medium-voltage switchgear, motor control centers (MCC), and distribution boards have used aluminum busbars for decades. Standards such as IEC 61439 and UL 891 define busbar sizing, spacing, and temperature rise requirements. Aluminum’s formability allows efficient bends and complex routing within compact enclosures, and modern connection hardware has eliminated historic reliability concerns.
Industrial and Commercial Facilities
Factories, warehouses, and commercial buildings use aluminum busway systems for flexible power distribution. The modular nature of busways allows equipment to be added or relocated without rewiring — a major advantage over hard-wired cable systems. Aluminum’s corrosion resistance makes it suitable for both indoor and protected outdoor installations.
Standards Governing Aluminum Busbars
Aluminum busbar materials and systems are governed by a comprehensive set of international standards. Specifying the correct standard ensures performance, safety, and regulatory acceptance.
Key Standards for Aluminum Busbars
| Standard | Scope | Key Requirement |
|---|---|---|
| ASTM B236 | Aluminum bars for electrical purposes | Min. 61.0% IACS for alloy 1350 |
| ASTM B317 | Aluminum alloy bar (6061, 6063) | Structural electrical shapes |
| IEC 61439 | Low-voltage switchgear assemblies | Busbar temperature rise, spacing |
| UL 891 / UL 67 | Switchboards / panelboards | North American busbar requirements |
| IEC 60439 (superseded) | Busbar trunking systems | Legacy busway standard |
| GB/T 5585.1 | Busbar conductors (China) | Aluminum busbar national standard |
Sustainability: Aluminum Busbars and the Energy Transition
Aluminum busbars play a central role in the global energy transition. Their light weight and low cost make large-scale electrification — EV charging networks, solar farms, wind farms, battery storage, and grid modernization — economically feasible. Aluminum’s recyclability adds a circular-economy dimension: busbar scrap from decommissioned switchgear returns to the supply chain with 95% energy savings versus primary production. Our aluminum recycling guide quantifies these benefits.
HXM Aluminum: Conductor-Grade Busbar Supply
HXM Aluminum is a dedicated supplier of aluminum busbar materials with full engineering documentation. Our electrical product range includes:
- Conductor-grade flat bar in 1060, 1070, and 1350 alloys, widths 10–120 mm, thicknesses 3–10 mm, with certified % IACS conductivity
- Busbar strip and coil for laminated busbar manufacturing and continuous busway production
- 6061-T6 and 6063-T6 structural shapes for busbar enclosures and support frames
- Custom fabrication: cutting, punching, bending, drilling, and surface treatment per your drawings
- Documentation: mill test certificates, conductivity test reports, chemical composition analysis, and conformity certificates per ASTM/IEC
Our busbar stock is supplied in standard 3–6 meter lengths or cut-to-size, with optional tin plating or nickel plating for corrosion-critical connections. Contact our engineering team for ampacity consultation and custom sizing support.
Frequently Asked Questions
1. Is aluminum good for busbars?
Yes, aluminum is the global standard for busbars in low and medium-voltage distribution. It offers ~50% lower weight and ~55–70% lower cost than copper for equal current-carrying capacity, with adequate conductivity (59–62% IACS for conductor grades) and excellent corrosion resistance in indoor applications. Modern connection hardware (anti-oxidation compound, Belleville washers, bimetallic transitions) has eliminated historic reliability concerns. For most distribution, switchgear, and renewable energy applications, aluminum is the optimal choice.
2. What aluminum alloy is used for busbars?
The most common busbar alloys are 1060, 1070, and 1350 (conductor-grade pure aluminum with 59–62% IACS) and 6061, 6063 (structural alloys). Alloy 1350 per ASTM B236 is the certified conductor grade with 61.8% IACS — used where conductivity certification is required. Alloy 6061-T6 is used for high-strength busbars and switchgear frames, accepting ~47% IACS for 310 MPa strength. The choice balances conductivity against mechanical requirements.
3. How do I calculate aluminum busbar ampacity?
Busbar ampacity depends on cross-sectional area, ambient temperature, cooling method, and allowable temperature rise. Start with a standard ampacity table (such as the reference values in this guide) for your bar size, then apply derating factors: ~0.88–0.92 for 50°C ambient, ~0.60–0.75 for unventilated enclosures, ~0.80–0.90 for ventilated enclosures, ~0.85–0.90 for horizontal mounting, and ~0.95–0.99 for 60 Hz AC. Verify short-circuit withstand and voltage drop per your system requirements. HXM’s engineering team can provide a detailed ampacity calculation for your specific configuration.
4. Can aluminum and copper busbars be connected together?
Yes, but only with proper transition hardware. Direct aluminum-copper contact in the presence of moisture creates galvanic corrosion because aluminum is more anodic. Use bimetallic transition pieces (Al-Cu welded or bolted transitions), tin-plate the aluminum surface, or use approved bi-metal lugs. In dry, sealed enclosures with anti-oxidation compound, direct connections can be acceptable, but the safest practice is always a certified transition joint.
5. How many amps can an aluminum busbar carry?
A typical 60 x 6 mm aluminum busbar in free air carries ~520–570 A with a 65°C rise; a 100 x 8 mm bar carries ~900–1,000 A; a 120 x 10 mm bar carries ~1,250–1,400 A. For higher currents, multiple bars are installed in parallel (2 bars = 1.8x, 3 bars = 2.5x a single bar). These values de-rate significantly in enclosed panels and elevated ambient temperatures. Always verify with manufacturer data and account for installation conditions.
6. Why is aluminum cheaper than copper for busbars?
Aluminum trades at roughly 25–30% of copper’s price per ton on the LME. Because aluminum needs only ~1.4–1.6x the cross-section for equal ampacity (not 3x), the material cost of an equal-capacity aluminum busbar is approximately 30–45% of its copper equivalent — a 55–70% saving. Lower density also cuts freight by ~50%, and aluminum’s easier fabrication reduces manufacturing cost. These economics make aluminum the default choice for cost-sensitive distribution infrastructure.
7. What is a laminated aluminum busbar?
A laminated aluminum busbar (also called a laminate busbar or laminated bus bar) is a flat, multi-layer aluminum conductor where each conductive layer is insulated with a thin dielectric film (typically PET) and bonded into a single assembly. Laminated busbars provide low inductance, controlled impedance, compact stacking, and excellent heat spreading — making them ideal for EV battery interconnects, power inverters, and high-frequency applications. They are manufactured from thin aluminum strip (0.5–3 mm) with precision-cut geometry.
8. Can HXM supply custom aluminum busbars?
Yes. HXM Aluminum supplies conductor-grade busbar bar, strip, and coil in 1060, 1070, and 1350 alloys, plus 6061-T6 structural shapes, with certified conductivity, mill test certificates, and full chemical analysis. We provide custom fabrication — cutting to length, punching, bending, drilling, edge rounding, and optional tin/nickel plating — per your drawings. Our engineering team assists with alloy selection, ampacity sizing, and connection design. Contact us with your current rating and dimensions for a same-day quotation.
