How to Cut Aluminum: Methods, Tools & Best Practices
Aluminum is one of the easiest metals to cut — and one of the easiest to ruin. It is soft, which means it cuts fast, but it also gums up blades, melts at relatively low temperatures, and forms stubborn burrs. Whether you are cutting aluminum sheet with a saw, shearing plate, or laser-cutting complex parts, the right method, tooling, and parameters make the difference between clean professional edges and a ruined piece of metal.
This guide covers every common aluminum cutting method — shearing, sawing, laser cutting, waterjet cutting, plasma cutting, and CNC milling — with tooling recommendations, speed and feed guidance, edge quality comparisons, and best practices for burr-free, distortion-free cuts.
As a B2B aluminum manufacturer and supplier, HXM Aluminum supplies aluminum sheets, coils, bars, and tubes — and also provides cut-to-size service so your material arrives ready for fabrication.
Why Aluminum Is Different to Cut
Three properties make aluminum cutting unique. First, it is soft and gummy: chips stick to cutting edges and weld onto the blade, causing rubbing, overheating, and poor finish — this is why lubrication matters more than for steel. Second, its high thermal conductivity pulls heat away from the cut, which sounds good but means a laser needs high power density to reach melting temperature. Third, its low melting point (660°C vs steel’s ~1500°C) means heat from cutting can anneal the material locally, softening heat-affected zones in heat-treated tempers like T6.
Alloy matters too: 1xxx and 3xxx cut cleanly and are very forgiving; 5xxx cuts well but forms a tough burr; 6xxx (especially T6) machines beautifully — they were designed for it; 2xxx and 7xxx cut well but are more sensitive to overheating and cracking.
Aluminum Cutting Methods at a Glance
| Method | Best For | Thickness Range | Edge Quality | Speed |
|---|---|---|---|---|
| Shearing | Straight cuts in sheet | Up to ~6 mm | Good (slight burr) | Fastest |
| Circular saw | Bars, tubes, extrusions | All | Very good | Fast |
| Band saw | Plate, large bars | All | Good | Medium |
| Laser cutting | Complex sheet shapes | Up to ~12 mm | Excellent | Very fast (thin) |
| Waterjet | Thick plate, no heat | Up to 150+ mm | Excellent | Slow |
| Plasma cutting | Thick plate, rough cuts | 6–80 mm | Fair (HAZ) | Fast |
| CNC milling | Precision parts | All | Excellent | Medium |
Shearing: The Fastest Way to Cut Aluminum Sheet
Shearing cuts aluminum sheet in a straight line by pressing a moving blade past a fixed blade — no chips, no sparks, no heat. It is the fastest and most economical method for straight cuts, with a slight burr on the exit side and a slightly work-hardened edge. Standard shears handle aluminum up to about 6 mm depending on machine capacity. Thicker plate and hard tempers (H18, T6) require more blade clearance; soft tempers (O) can deform at the cut line if clearance is too small.

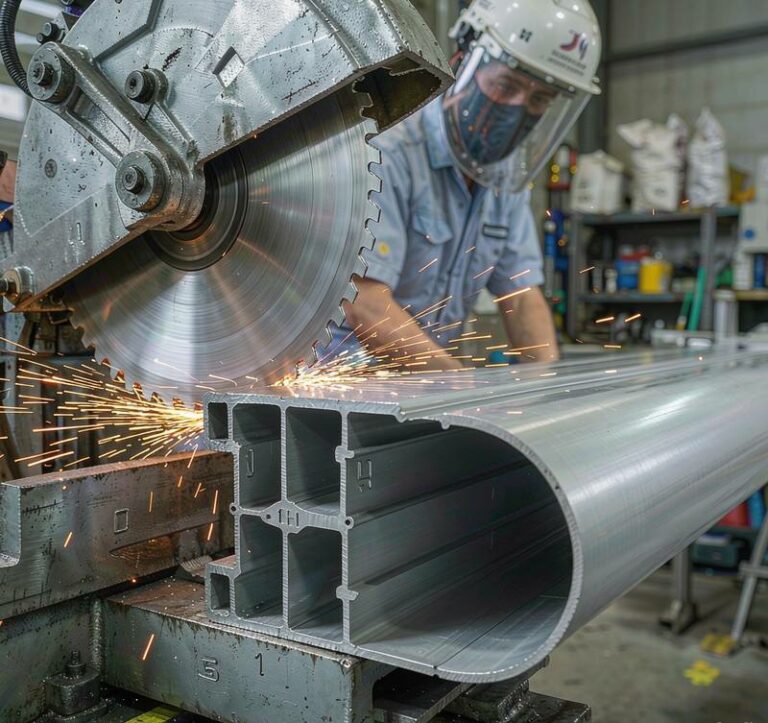

Sawing Aluminum: Blades, Speeds & Lubrication
Circular saws are the standard for cutting aluminum bars, tubes, and extrusions. The secret is a blade with more teeth and less rake than wood-cutting blades: typically 80–120 teeth for a 250–300 mm blade, with negative or zero rake angle to prevent grabbing, and carbide-tipped teeth for long life. Run at high RPM with steady feed, and always use cutting fluid or wax lubricant — this prevents chips from welding to the teeth and keeps the cut cool and burr-free.
Band saws are preferred for cutting plate and large bar stock. Use a bimetal blade with 6–10 teeth per 25 mm and run at moderate speed (about 100–150 m/min blade speed for aluminum). A slow, even feed produces the cleanest edge; forcing the blade causes deflection and drift.
Circular Saw Blade Selection for Aluminum
| Material Being Cut | Blade Diameter | Teeth Count | Rake Angle | Notes |
|---|---|---|---|---|
| Sheet < 3 mm | 250 mm | 100–120 | 0° to -5° | Fine teeth prevent chattering |
| Extrusions & profiles | 300 mm | 80–100 | -5° | Steady feed, no forcing |
| Solid bar & tube | 350–400 mm | 60–80 | -5° to -10° | Use coolant, clamp firmly |

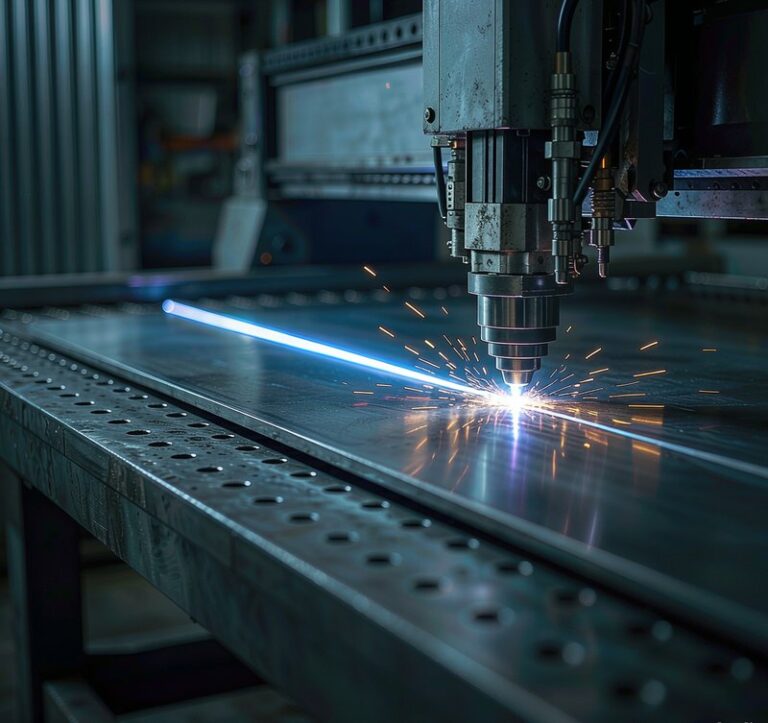

Laser Cutting Aluminum: Speed with Limitations
Fiber lasers have revolutionized aluminum sheet cutting. Aluminum’s high reflectivity historically made CO2 lasers inefficient, but fiber lasers (1µm wavelength) are absorbed far better and cut 1–3 mm aluminum sheet at remarkable speed with excellent edge quality and a small heat-affected zone. Practical limits: most fiber lasers cut aluminum sheet cleanly up to about 8–12 mm, beyond which edge quality and speed degrade; thicker plate is better waterjet-cut.
Laser cutting is ideal for complex profiles, tight radii, small holes, and high-volume nesting of sheet parts. Typical kerf is 0.1–0.3 mm and positional accuracy ±0.05–0.1 mm. For 5xxx and 6xxx alloys, nitrogen assist gas gives the cleanest bright edge; air assist is a cost-saving option for non-visible edges.

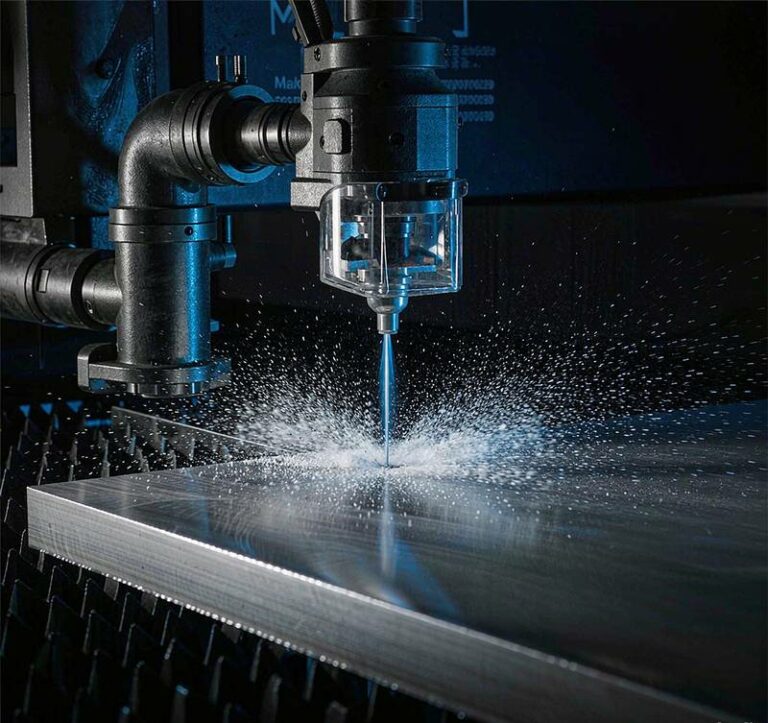

Waterjet Cutting: Cold, Precise, No Heat-Affected Zone
Abrasive waterjet cutting uses a high-pressure stream of water (up to 4,000 bar) mixed with garnet abrasive to erode through aluminum. Because the process is completely cold, there is no heat-affected zone, no annealing of T6 tempers, no distortion, and no residual stress — making waterjet the best method for thick plate (up to 150+ mm), heat-sensitive tempers, and parts that will be welded or machined afterwards. Waterjet also cuts stacked sheets, producing multiple identical parts in one pass.
Trade-offs: waterjet is slower and more expensive per meter than laser, and produces a slightly tapered edge (taper increases with thickness). Typical accuracy is ±0.1–0.25 mm, with a clean satin edge that needs little finishing.
Laser vs Waterjet vs Plasma for Aluminum
| Criterion | Fiber Laser | Abrasive Waterjet | Plasma |
|---|---|---|---|
| Max thickness (aluminum) | ~12 mm | 150+ mm | 80 mm |
| Heat-affected zone | Small | None | Large |
| Edge squareness | Excellent | Slight taper | Poor (dross) |
| Cutting speed (thin sheet) | Fastest | Slow | Fast |
| Cost per meter | Low | High | Low |
| Best application | Complex thin parts | Thick, heat-sensitive | Rough thick cutting |
CNC Milling & Machining Aluminum
CNC milling is the method for precision aluminum parts — machined enclosures, brackets, housings, and prototypes. Aluminum machines very well: use carbide end mills with 2–3 flutes (2-flute for chip evacuation in slots, 3-flute for general work), high spindle speeds (8,000–20,000+ RPM), and aggressive chip loads — aluminum wants to be cut fast, not rubbed slowly. Climb milling produces the best finish; coolant or mist prevents chip welding. 6061-T6 is the machining standard; 7075 for higher strength; 2024 for aerospace fatigue-critical parts. Our aluminum machining guide covers feeds, speeds, and tooling in detail.
Cutting Aluminum with Hand Tools
For small jobs, hand tools work well when chosen correctly. Use a fine-tooth blade in a jigsaw or reciprocating saw (12+ TPI for sheet, 10 TPI for tube), always with the work firmly clamped and lubricated with cutting wax. Tin snips cut soft sheet (1xxx, 3xxx O-temper) up to about 1 mm cleanly; they are harder work on 5xxx and H-tempers. Pipe cutters work on thin-walled aluminum tube but leave an internal burr. Whatever the tool, two rules apply: clamp firmly and let the tool cut — do not force it. Forcing produces chatter, burrs, and broken blades.
Deburring and Edge Finishing
Most cutting methods leave a burr, and sharp edges are a safety hazard and a functional problem (they cut seals, collect dirt, and start corrosion). Deburring options: manual files and deburring blades for small jobs; deburring machines (brush or abrasive belt) for production; vibratory finishing for batches of small parts; and edge rolling or radiusing where a rounded edge is required. For cosmetic edges on visible parts, follow deburring with the appropriate finish from our surface finishing guide.
Aluminum Cutting Best Practices Summary
| Practice | Why It Matters | How to Do It |
|---|---|---|
| Lubricate every cut | Prevents chip welding and overheating | Cutting fluid, WD-40, or wax stick |
| Use the right blade | Correct tooth count/rake stops grabbing | 80–120T carbide, 0° to -5° rake |
| Clamp work firmly | Prevents chatter, vibration, and drift | Use clamps/vise, never hand-hold |
| Let the tool feed | Forcing causes burrs and breakage | Steady, even feed pressure |
| Control heat | Heat anneals T6 and distorts sheet | Coolant, low feed for thick cuts |
| Deburr after cutting | Burrs are hazards and corrosion sites | File, brush, or vibratory finishing |

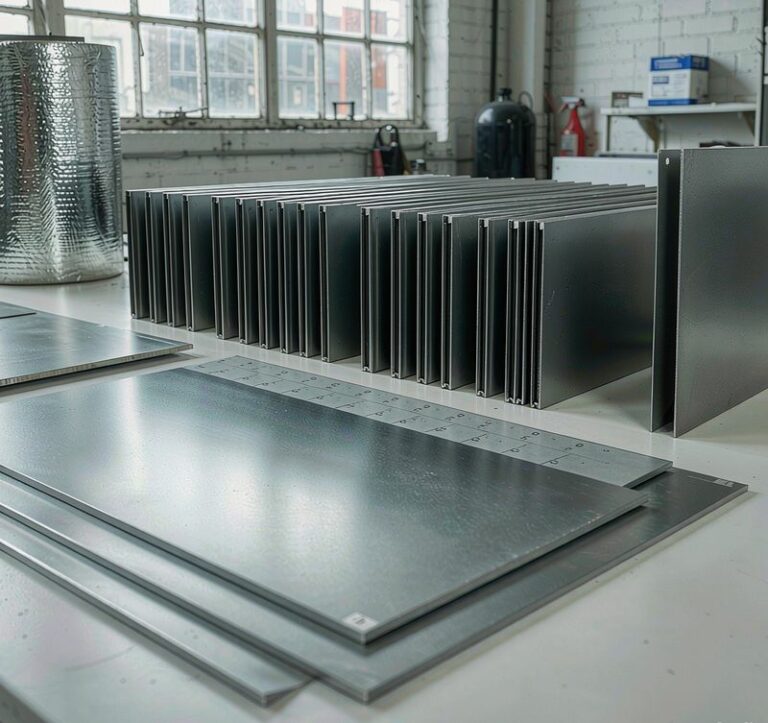

Let HXM Do the Cutting: Cut-to-Size Service
Cutting aluminum in-house requires the right equipment, tooling, and know-how — and every offcut is a cost. HXM Aluminum offers cut-to-size service on sheets, coils, bars, and tubes so you receive material ready for assembly:
- Sheets cut to exact dimensions by shearing (straight cuts) or laser (complex shapes)
- Bars and tubes cut to length with clean, square, deburred ends
- Coil slit to custom widths for strip applications
- Edge finishing — deburred, rounded, or anodized after cutting
- Custom tolerance control to ±0.5 mm or tighter on request
Buying cut-to-size aluminum eliminates scrap, saves machine time, and ensures consistent edge quality across every part — often cheaper than buying full sheets and cutting yourself.
Frequently Asked Questions
1. What is the best way to cut aluminum sheet?
For straight cuts, shearing is fastest and cheapest up to ~6 mm. For complex shapes and tight radii, fiber laser cutting gives the best edge quality up to ~12 mm. For thick plate, heat-sensitive tempers, or parts needing zero heat-affected zone, abrasive waterjet is best. For small jobs, a fine-tooth jigsaw blade with lubrication works well on thin sheet.
2. Can I cut aluminum with a regular wood saw blade?
Not recommended. Wood blades have positive rake angles that grab soft aluminum, causing dangerous kickback, poor cuts, and rapid blade wear. Use a carbide-tipped blade designed for non-ferrous metal with 0° to -5° rake and 80–120 teeth (for a 250–300 mm blade). The correct blade plus lubrication gives clean, safe, burr-free cuts.
3. Does cutting aluminum ruin its strength?
It depends on the method. Cold cutting (shearing, waterjet, sawing with coolant) preserves the alloy’s mechanical properties. Hot cutting (laser, plasma) creates a heat-affected zone at the cut edge that can locally anneal heat-treated tempers like 6061-T6, softening the edge — acceptable for most non-structural edges, but for load-bearing edges specify waterjet or machine the edge after laser cutting.
4. Why does my aluminum blade keep clogging and burning?
Clogging and burning mean the blade is wrong for aluminum or running without lubrication. Soft aluminum chips weld to the cutting edge when the blade overheats. Fix it by using a non-ferrous blade (negative rake, more teeth), applying cutting fluid or wax, not forcing the feed, and letting the blade reach full speed before starting the cut.
5. What is the best method for cutting thick aluminum plate?
Abrasive waterjet is the best all-round method for thick plate — it handles 150+ mm with no heat-affected zone and excellent edge quality, though it is slower and pricier. Band sawing is a cost-effective alternative for straight cuts in plate up to ~100 mm. Plasma is fastest for rough thick cutting but leaves dross and a large heat-affected zone that needs machining away.
6. Do I need coolant to cut aluminum?
Yes, for sawing and machining it is strongly recommended. Coolant or lubricant prevents aluminum chips from welding to the cutting edge, keeps the cut cool (protecting temper and flatness), extends tool life, and improves edge finish. For hand tools, a cutting wax stick or light oil works. For laser cutting, nitrogen or air assist gas serves a similar purpose.
7. What thickness of aluminum can a laser cut?
A modern fiber laser cuts aluminum sheet cleanly up to about 8–12 mm, depending on laser power (3–20 kW). Beyond that, edge quality and speed degrade rapidly because aluminum’s reflectivity and thermal conductivity limit energy absorption. For plate thicker than ~12 mm, abrasive waterjet or band sawing is more practical.
8. Can HXM cut aluminum to my exact size?
Yes. HXM Aluminum offers cut-to-size service on sheets (shear or laser), bars and tubes (cut to length, deburred), and coil (slit to width), with tolerance control to ±0.5 mm or tighter, plus edge finishing and optional anodizing after cutting. Contact us with your cutting list and we will quote precise, scrap-free material.
Cut Aluminum Right the First Time
Clean aluminum cutting is about matching the method to the material — and knowing when to buy it pre-cut. Whether you fabricate in-house or want HXM to deliver cut-to-size parts, the right approach saves material, time, and money. Tell us what you are building and we will supply the metal — cut, deburred, and ready.
