5083 Aluminum Coils — Marine-Grade Coil Supplier
5083 Aluminum Coil Supplier — Marine-Grade Coil (0.2–12 mm × 1000–2500 mm) | O / H111 / H112 / H116 / H321 | ASTM B209 / EN 573 | Mill Certs | MOQ 500 kg | Quote in 24h

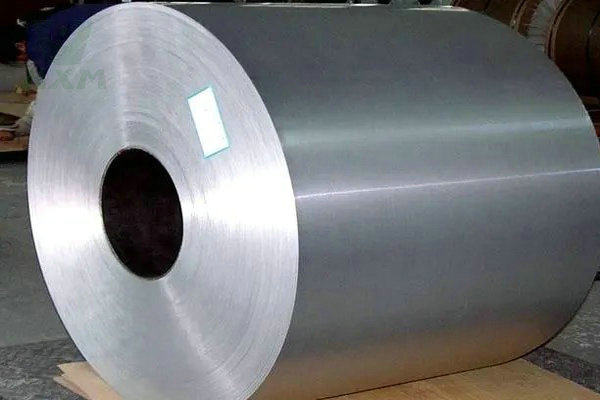

HXM Aluminum supplies 5083 aluminum coils for marine panels, tank trailers, pressure vessels, LNG components and saltwater-exposed fabrications. 5083 is the benchmark Al-Mg-Mn marine alloy, offering high strength, excellent weldability and outstanding resistance to seawater corrosion. We stock and slit coils in thickness 0.2–12 mm and width 1000–2500 mm, tempers O, H111, H112, H116 and H321, with mill-finish or anodizing-ready surfaces. Request a quote or WhatsApp us for 5083 coil pricing and delivery.
5083 Aluminum Coil Specifications
| Property | Value / Range |
|---|---|
| Alloy | 5083 (AlMg4.5Mn, EN AW-5083, A95083) |
| Product form | Mill finish coil, slit coil, cut-to-length sheet |
| Thickness | 0.2 mm – 12.0 mm (custom on request) |
| Width | 1000 mm – 2500 mm (slit down to 30 mm) |
| Inner diameter | 405 mm / 505 mm standard; 150–610 mm on request |
| Outer diameter | Up to 2000 mm |
| Coil weight | 1 – 8 MT per coil; small trial coils negotiable |
| Temper | O, H111, H112, H116, H321 |
| Standards | ASTM B209, EN 573-3, EN 485-2, GB/T 3880 |
| Density | 2.66 g/cm³ |
| Surface | Mill finish, anodizing-ready, chem-film, painted prep |
| Edge | Mill edge, slit edge, deburred |
| MOQ | 500 kg per thickness/temper; mixed load negotiable |
| Lead time | 7 – 25 days (stock slits ship in 3 – 5 days) |
5083 Aluminum Coil Chemical Composition (%)
| Element | Min | Max |
|---|---|---|
| Mg | 4.00 | 4.90 |
| Mn | 0.40 | 1.00 |
| Fe | — | 0.40 |
| Si | — | 0.40 |
| Cu | — | 0.10 |
| Zn | — | 0.25 |
| Cr | 0.05 | 0.25 |
| Ti | — | 0.15 |
| Al | Remainder | Remainder |
Mechanical Properties of 5083 Aluminum Coil by Temper
| Temper | Tensile (MPa) | Yield (MPa) | Elongation % | Typical Use |
|---|---|---|---|---|
| O | 270 – 345 | 115 – 165 | 20 – 26 | Deep drawing, forming |
| H111 | 275 – 350 | 125 – 175 | 18 – 24 | Welded panels, tankers |
| H112 | 285 – 360 | 135 – 185 | 16 – 22 | Marine structural coil |
| H116 | 305 – 380 | 215 – 270 | 12 – 18 | Hull panels, saltwater service |
| H321 | 305 – 385 | 220 – 275 | 10 – 16 | High-strength marine plate/coil |
5083 Aluminum Coil Thickness & Width Tolerances
| Thickness Range | Thickness Tolerance | Width Tolerance |
|---|---|---|
| 0.2 – 0.5 mm | ± 0.03 mm | ± 1.0 mm |
| 0.5 – 1.0 mm | ± 0.05 mm | ± 1.5 mm |
| 1.0 – 3.0 mm | ± 0.08 mm | ± 2.0 mm |
| 3.0 – 6.0 mm | ± 0.12 mm | ± 3.0 mm |
| 6.0 – 12.0 mm | ± 0.20 mm | ± 4.0 mm |
Tighter tolerances and special camber/flatness requirements are available for precision stamping, laser cutting and automated welding lines. Send your drawing for a tailored quote.
5083 Aluminum Coil Equivalent Grades & Standards
| Standard / Region | Designation |
|---|---|
| ASTM | B209 (sheet & plate), B928 (marine sheet) |
| EN | EN AW-AlMg4.5Mn0.7 / EN 573-3 / EN 485-2 |
| UNS | A95083 |
| GB | 5A05 / GB/T 3880 |
| Marine certifications | Mill cert, EN 10204 3.1, chemical & mechanical test report |
5083 Aluminum Coil Weight Reference (per mm width per meter)
| Thickness (mm) | kg/m (1 mm width × 1 m length) | kg/m² |
|---|---|---|
| 0.5 | 0.00133 | 1.33 |
| 1.0 | 0.00266 | 2.66 |
| 2.0 | 0.00532 | 5.32 |
| 3.0 | 0.00798 | 7.98 |
| 4.0 | 0.01064 | 10.64 |
| 6.0 | 0.01596 | 15.96 |
Use the table above to estimate coil weight for a given OD/ID and width. For precise shipping weight, see our aluminum weight calculation guide.
5083 vs 5086 vs 5052 Aluminum Coil: Which One to Choose?
| Property | 5083 Coil | 5086 Coil | 5052 Coil |
|---|---|---|---|
| Mg content | 4.0 – 4.9% | 3.5 – 4.5% | 2.2 – 2.8% |
| Tensile strength | 270 – 385 MPa | 240 – 450 MPa | 170 – 305 MPa |
| Marine corrosion | Excellent | Excellent | Very good |
| Weldability | Excellent | Excellent | Excellent |
| Best for | Heavy marine panels, tankers | Welded structures, lighter panels | General forming, packaging, fluid lines |
For medium-strength forming coils, see 5052 aluminum coils; for the same alloy family in tube form, visit 5083 aluminum tubes or 5083 aluminum bars.
Applications of 5083 Aluminum Coils
- Ship hulls, decks and superstructure panels
- Tank trailers, road tankers and LNG/CNG cylinders
- Offshore platform wall and floor panels
- Pressure vessels and cryogenic equipment
- Desalination plant cladding and ducts
- Automotive and railway body panels exposed to salt
Slitting, Surface Finish & Fabrication Guidance
| Process | Capability |
|---|---|
| Slitting | Widths from 30 mm; burr-free edges; ±0.2 mm width tolerance |
| Tension leveling | Improves flatness for laser/punch press feeding |
| Anodizing prep | Mill finish suitable for Type II / Type III anodizing |
| Welding | ER5356 / ER5556 filler; argon shielding; no post-weld heat treatment |
| Bending | O temper recommended; H321 offers best strength-formability balance |
| Protective film | PVC/PE film available up to 80 µm to prevent scratches |
See our aluminum welding guide for filler-wire selection and parameter tables.
Packaging, Inspection & Delivery
5083 coils are eye-to-wall or eye-to-sky loaded, wrapped with VCI film, waterproof paper and steel/wooden outer protection, then secured in open-top containers for ocean freight. Each shipment includes mill test certificate (MTC), chemical and mechanical reports, and EN 10204 3.1 on request. Third-party inspection (SGS, BV, TÜV) can be arranged.
Related 5083 & Marine-Grade Aluminum Products
Browse related marine-grade and coil products:
- 5083 aluminum tubes — seamless/welded marine pipe
- 5083 aluminum bars — solid rod for marine fittings
- 5086 aluminum tubes — lighter marine welded structures
- 5086 aluminum bars — high-strength marine bar stock
- 5052 aluminum coils — medium-strength forming coil
- 5052 vs 5083 marine guide — alloy selection for saltwater projects
Frequently Asked Questions
What is 5083 aluminum coil used for?
5083 aluminum coil is used for marine panels, ship hulls and decks, tank trailers, LNG cylinders, offshore platform walls, pressure vessels, desalination equipment and any saltwater-exposed fabrication that needs high strength and corrosion resistance.
What thickness and width ranges do you offer?
We supply 5083 aluminum coil in thickness 0.2 mm to 12.0 mm and width 1000 mm to 2500 mm. We also provide narrow slit coils down to 30 mm width and cut-to-length sheets on request.
Is 5083 coil suitable for marine use?
Yes. 5083 is a marine-grade alloy. Tempers H116 and H321 are specifically developed for saltwater service because they resist intergranular corrosion and stress corrosion cracking.
What tempers are available for 5083 aluminum coils?
Common tempers are O, H111, H112, H116 and H321. O temper is best for deep drawing and forming, while H116/H321 are preferred for structural marine panels.
What is the MOQ for 5083 aluminum coils?
MOQ is 500 kg per thickness/temper. Mixed loads and trial coils are negotiable.
How long is the lead time?
Stock slit coils ship in 3 – 5 days; production and custom slitting typically take 7 – 25 days depending on quantity and specifications.
Can 5083 coil be welded?
Yes. 5083 has excellent weldability. Use ER5356 or ER5556 filler wire with argon shielding gas. Post-weld heat treatment is not required.
Can you slit 5083 coils to custom width?
Yes. We offer precision slitting from 30 mm up to 2500 mm width, with burr-free edges and tight width tolerance for stamping, laser cutting and automated welding lines.
How does 5083 coil compare to 5086 coil?
5083 offers higher as-welded strength and is the first choice for heavy marine panels and tankers. 5086 is slightly more formable and is often used for lighter welded structures.
How does 5083 coil compare to 5052 coil?
5083 is stronger and more corrosion-resistant in saltwater, making it better for marine and offshore applications. 5052 is easier to form and is ideal for general packaging, fluid lines and decorative parts.
What certificates do you provide?
We provide Mill Test Certificate (MTC), chemical composition report, mechanical test report and EN 10204 3.1 certificate on request.
How do I request a quote?
Send us your required thickness, width, temper, quantity and destination port. We will reply within 24 hours by email or WhatsApp.
Ready to Order 5083 Aluminum Coils?
Send us thickness, width, temper, quantity and destination port. HXM Aluminum delivers marine-certified 5083 coils worldwide.
